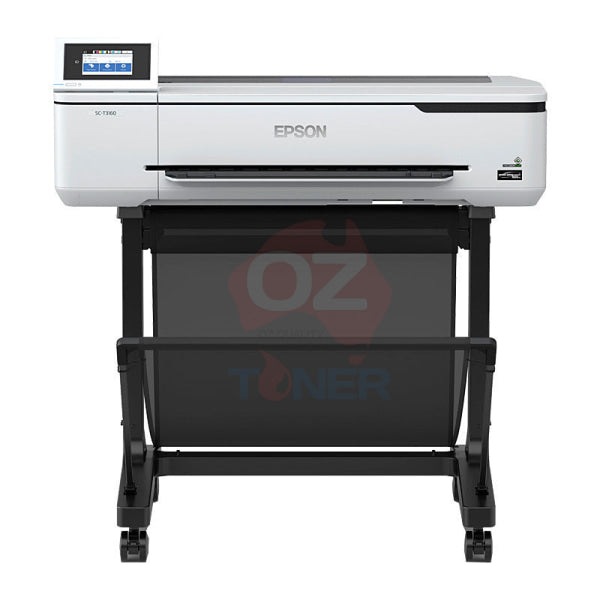

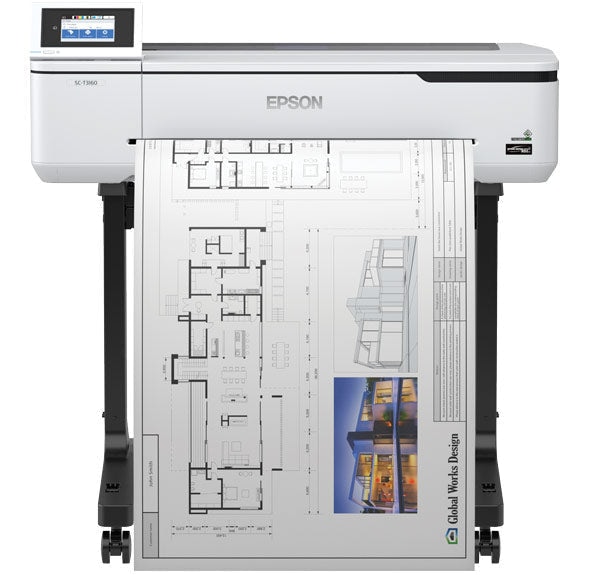

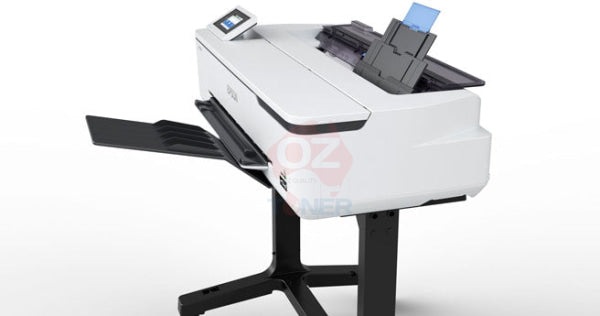

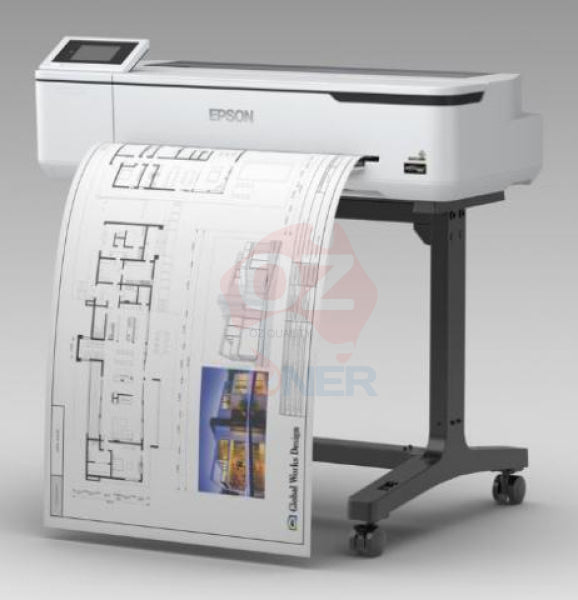

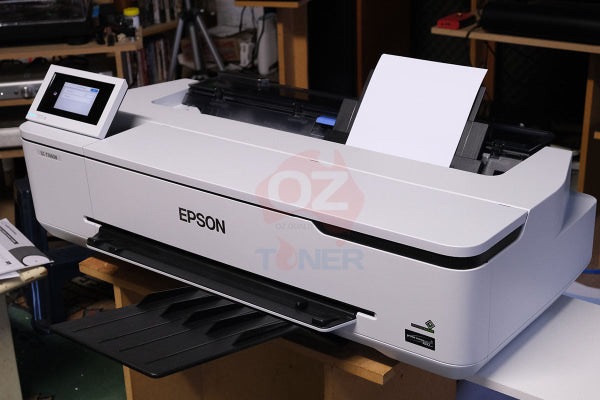

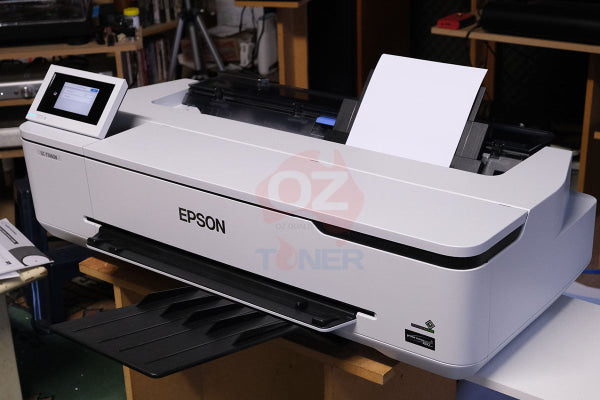

Epson SureColor T3160 A1 24" Large Format Single Function Printer+STAND - CAD & POS printing C11CF11412 SCT3160N
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 1864 Everyday Rewards points
Collect 1864 Everyday Rewards points
SureColor T3160 - 24" |
[C11CF11412]
SC-T3160 will print an A1 image in as little as 34s with output that dries almost instantly. Designed for small and medium sized businesses, the printer can be purchased in either a desktop or floor-standing configuration
The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper, to photographic media. They support high resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters and displays.
The SC-T3160 features Epson's latest PrecisionCore print head and aqueous UltraChrome® XD2 pigment ink. It will print an A1 image in as little as 34s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for small and medium sized businesses that want to produce wide format prints, the printer can be purchased in either a desktop or floor-standing configuration, has a very small footprint, and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications.
RELATED PRODUCTS | |
---|---|
SC-T3160M | 24" Desktop MFP Version (optional stand available) |
SC-T5160 | 36" Floor Standing Version |
SC-T5160 | 36" Floor Standing MFP Version |
SC-T3465 | 24" Floor Standing Business Technical Printer |
SC-T5465 | 36" Floor Standing Business Technical Printer |
SC-T5460M | 36" Floor Standing Business Technical Printer with MFP functionality |
SC-T3200 | 24" High Throughput Technical Printer |
SC-T5200 | 36" High Throughput Technical Printer with optional MFP |
SC-T5200D | 36" High Throughput Dual Roll Technical Printer with optional MFP |
SC-T7200 | 44" High Throughput Technical Printer with optional MFP |
SC-T7200D | 44" High Throughput Dual Roll Technical Printer with optional MFP |
SIZE |
|
---|---|
Max Print Width | 24 inch wide (610mm) |
PRINT TECHNOLOGY | |
Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment |
Print Modes | Uni & Bi-directional |
Nozzle Configuration | 800 per colour |
Maximum Resolution | 2400dpi x 1200dpi |
Minimum Ink Droplet Size | 4.0pl |
INK SYSTEM | |
Family | Epson Ultrachrome® XD2 |
Type | All-Pigment Aqueous |
Colours | C+M+Y+K![]() |
Cartridges | CMY 26/50ml K 50/80ml |
PERFORMANCE (per Sheet) | |
CAD A1 | 34sec |
![]() |
|
MEDIA SUPPORT | |
Roll Format | Single roll top loaded spindle, 2" core, 0.05-0.21mm thick, 329-610mm wide, 110mm max diameter, 3Kg max weight |
Sheet Format | Top loaded A4-A1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick |
Auto Cutter | Inbuilt rotary type |
Manual Double Sided Printing | Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
Output | Single sheet hold feature Supplied with an A4/A3 output tray Floor-standing model and optional Printer Stand incorporates a media basket |
OPERATION | |
Control Panel | 4.3" Colour LCD touch screen |
Control Code | ESC/P Raster, HP/GL/2 & HP RTL* 1 |
Connectivity | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print |
Compatibility | Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later |
Memory | 1GB RAM |
Scanner Support | USB interface with integrated control & auto enlargement Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes Supports A2, US-C (17x22"), B2, US-D (22x34"), A1 & custom (89-610mm wide) output page sizes Supports Epson DS-530, DS-6500 & DS6000 scanner models |
Physical (WxHxD) | Desktop: 970 x 230 x 505 mm, 27kg (no consumables, media or options, no output tray, ASF closed) Floor Standing: 970 x 913 x 696 mm, 38kg (closed basket, no consumables, media or options, no output tray, ASF closed) |
ENVIRONMENT | |
Operational Temp | 10° to 35° C |
Operational Humidity | 20 to 80% (no condensation) |
Power Supply | 100 - 240 V AC, 50/60 Hz |
Power Consumption | 28W Operating, 8W Standby, 1.6W Sleep |
Operating Noise | 49dB |
Recommended Install Space (WxHxD) | Desktop: 1020 x 380 x 915mm Floor-standing: 1020 x 1063 x 1270mm |
SHIPPING INFO | |
Packaging (WxDxH) | Desktop: 1206 x 724 x 522mm, 37Kg Floor standing: 1206 x 724 x 587mm, 49Kg |
What's in the Box | Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD. An additional Stand is included with floor-standing configurations. |
Delivery & Install | Some assembly and configuration may be required. A significant proportion of the included ink will be required to prime the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations. |
Service & Support | Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas. |
CONFIGURATION OPTIONS | |
SCT3160N1YR | Desktop with 1Yr On-Site Warranty (Available from Officeworks) |
SCT31601YR | Floor Standing with 1Yr On-Site Warranty |
SCT31603YR | Floor Standing with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)** |
OPTIONAL ACCESSORIES | |
C12C933151 | 24" Printer Stand (included with all configurations other than the SCT3160N1YR & SCT3160M versions) |
C12C933211 | Additional Roll Feed Spindle for T3160 & T3160M (24") |
1YWTSCT3160 | 1 Yrs Epson CoverPlus On-Site Printer Service Pack** |
2YWTSCT3160 | 2 Yrs Epson CoverPlus On-Site Printer Service Pack** |
