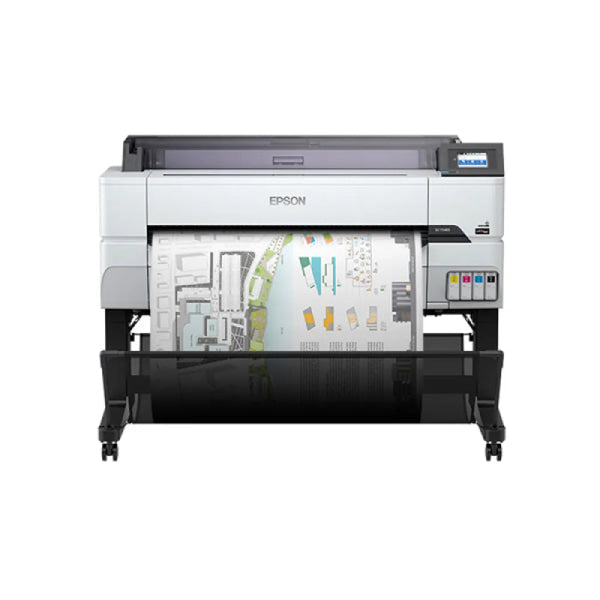

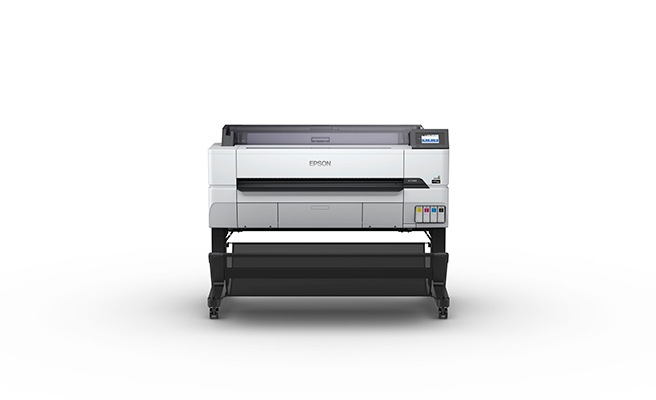

Epson SureColor T5465 - 36" A0 Large Format Single Function Printer P/N:C11CJ56401 SCT5465
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 4782 Everyday Rewards points
Collect 4782 Everyday Rewards points
SureColor T5465 - 36" |
[C11CJ56401]
SC-T5465 features Epson's PrecisionCore? print head &aqueous UltraChrome? XD2 pigment ink. Designed for businesses wanting to produce wide format prints, supplied with a stand and paper basket and can be installed against a wall or in a corner
The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper, to photographic media. They support high resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS, posters and displays.
The SC-T5465 features Epson's latest PrecisionCore print head and aqueous UltraChrome XD2 pigment ink. It will print an A1 image in as little as 22s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for businesses that want to produce wide format prints, the printer is supplied with a stand and paper basket and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications.
SIZE | |
---|---|
Max Print Width | 36 inch wide (914mm) |
PRINT TECHNOLOGY | |
Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment |
Print Modes | Uni & Bi-directional |
Nozzle Configuration | 800 per colour |
Maximum Resolution | 2400dpi x 1200dpi |
Minimum Ink Droplet Size | 4.0pl |
INK SYSTEM | |
Family | Epson Ultrachrome® XD2 |
Type | All-Pigment Aqueous |
Colours | C+M+Y+K![]() |
Cartridges | CMYK 110ml CMYK 350ml CMYK 700ml |
PERFORMANCE (per Sheet) | |
CAD A1 | 22sec |
![]() |
|
MEDIA SUPPORT | |
Roll Format | Single roll top loaded spindle, 2" core, 3 core for plain paper, 0.08 to 0.3mm thick, 254-914mm wide, 170mm max diameter, max weight 12kg |
Sheet Format | Top loaded A4-A0/B1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick |
Borderless Printing | Supported Media Types: A1 (594mm) and A1+ (610mm), 700mm, B1 (728mm), A0 (841mm), A0+ (914mm) Cut Sheet only borderless to the left and right of the sheet |
Auto Cutter | Inbuilt rotary type |
Manual Double Sided Printing | Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
Output | Printer Stand incorporates a media basket |
OPERATION | |
Control Panel | 4.3" Colour LCD touch screen |
Control Code | ESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1 |
Connectivity | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print |
Included Software | Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only) |
Software via web download | HDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Edge Dashboard, LFP Accounting tool |
Roll Management System (Roll Format) | Barcode Roll Media Management system helps keep track of the type of media and how many metres is left on the roll |
USB Input | Front panel USB slot enables JPEG and TIFF files to be printed direct from a thumb drive |
Compatibility | Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later |
Memory | 1GB RAM |
Business Inkjet Printer Support | USB interface with integrated copy and enlargement support for the following printers: WF-C20590 series, WF-C17590 Series, WF-M20590 Series, WF-C20600 Series, WF-20750 Series, WF-21000 Series, WF-R8590 Series, WF-8590 Series, WF-C869R, WF-878R Series, WF-879R Series |
Scanner Support | USB interface with integrated control & auto enlargement Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes Supports A2, US-C (17x22"), B2, US-D (22x34"), A1, B1, US-E (34x44"), A0 & custom (89-610mm wide) output page sizes Supports Epson DS-530, DS-6500 & DS6000 scanner models |
Physical (WxDxH) | 1385 750 1060 mm, 76kg (floor standing, closed basket, no ink, media or options) 1385 966 1060 mm, 76kg (floor standing, open basket, no ink, media or options) |
ENVIRONMENT | |
Operational Temp | 10° to 35° C |
Operational Humidity | 20 to 80% (40 to 60% is recommended for no condensation) |
Power Supply | 100 - 240 V AC, 50/60 Hz |
Power Consumption | 38W Operating, 13W Standby, 1.3W Sleep |
Operating Noise | 50dB |
Recommended Install Space (WxHxD) | Floor-standing: 1385 750 1070 mm |
SHIPPING INFO | |
Packaging (WxDxH) | Floor standing: 1548 850 1100 mm, 113Kg |
What is in the Box | Printer, Power Cord, set of 110ml ink cartridges, 1 x Maintenance Tank, Setup Guide & Warranty Info. Driver, user software & manuals on CD. |
Delivery & Install | Some assembly and configuration may be required. A significant proportion of the included ink will be required to prime the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations. |
Service & Support | Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty‚ terms and travelling charges may apply for equipment located outside major metro areas. |
CONFIGURATION OPTIONS | |
C11CJ56401 | Floor Standing with 1Yr On-Site Warranty |
SCT54653YR | Floor Standing with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)** |
SCT54655YR | Floor Standing with 2 x 2Yr CoverPlus On-Site Service Pack (total 5 yrs cover)** |
OPTIONAL ACCESSORIES | |
C12C933301 | Additional Roll Feed Spindle for T5460 (36") |
1YWTSCT5465 | 1 Yrs Epson CoverPlus On-Site Printer Service Pack** |
2YWTSCT5465 | 2 Yrs Epson CoverPlus On-Site Printer Service Pack** |
