[ER706W-4G] Omada 4G+ Cat6 AX3000 Gigabit VPN Router

[ER706W-4G] Omada 4G+ Cat6 AX3000 Gigabit VPN Router

Hurry! 10 items left!

Price	$479.69
	Collect 479 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$14.95 Australia-wide (per item)
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

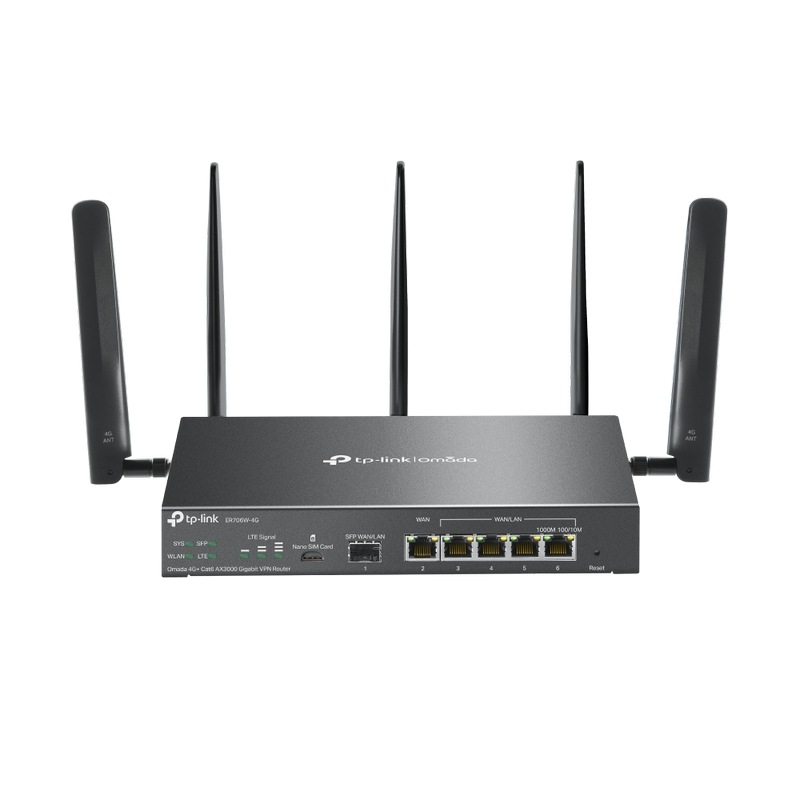

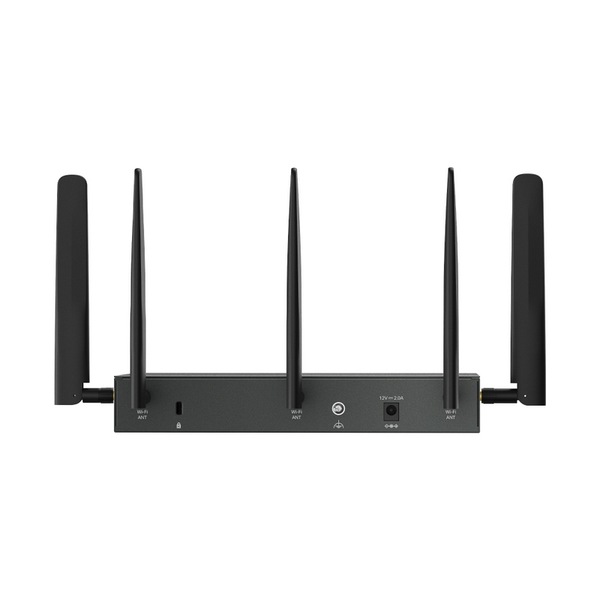

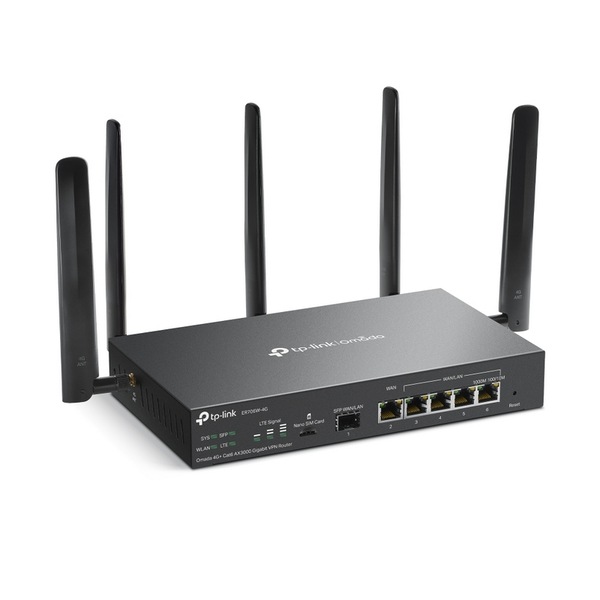

TP-Link ER706W-4G, Omada 4G+ Cat6 AX3000 Gigabit VPN Router

Features:

Support 4G+ Cat6:Insert a Nano SIM card to enjoy up to 300 Mbps.**
AX3000 Dual-Band WiFi 6: Supports2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*
6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
5 High-Gain Detachable Antennas:Extend and concentrate the Wi-Fi signals.
Centralized Management: Cloud access and the Omada app for easy management.
Omada Mesh:Seamlessly connects to EAPs that support mesh technology.*?
High-SecurityVPN: SupportsIPSec / SSL / WireGuard/ OpenVPN / PPTP / L2TP VPN.?
Learn more about Omada Cloud SDN>?

Specifications:

Network Type :LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)
Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
SIM Type :1x Nano SIM Card
Frequency :Downlink: 300 Mbps;
Uplink: 50 Mbps

SECURITY

Access Control :Source/Destination IP Based Access Control
Filtering :Web Group Filtering^†
URL Filtering
Web Security^†
ARP Inspection :Sending GARP Packets
ARP Scanning^†
IP-MAC Binding
Attack Defense :TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN

HARDWARE FEATURES

Interface :1 Gigabit SFP WAN/LAN Port
1 Gigabit WAN Port
4 Gigabit LAN/WAN Ports
Network Media :10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button :Reset Button
Power Supply :12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate :2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps (HE160)
Flash :128 MB NAND
DRAM :512 MB DDR4
LED :SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H ) :8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are not
included)
Antenna :Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting :Desktop/Wall-Mounting
Max Power Consumption :EU: 17.3W

PERFORMANCE

GRE :Unencrypted: 545.3Mbps
Encrypted: 282.6Mbps
WireGuard VPN :387.7Mbps
Concurrent Session :150,000
New Sessions /Second :5,100
NAT (Static IP) :947.1Mbps / 940.1Mbps
NAT(DHCP) :949.2Mbps / 941.1Mbps
NAT(PPPoE) :942.6Mbps / 941.1Mbps
NAT (L2TP) :875.4Mbps / 892.0Mbps
NAT (PPTP) :881.2Mbps / 895.8Mbps
IPsec VPN Throughput :ESP-SHA1-AES256: 652.2Mbps
ESP-SHA256-AES256: 654.4Mbps
ESP-SHA384-AES256: 646.5Mbps
ESP-SHA512-AES256: 670.5 Mbps
OpenVPN :115.5Mbps
L2TP VPN Throughput :Unencrypted: 990.0Mbps
Encrypted: 475.0Mbps
PPTP VPN Throughput :Unencrypted: 1177.9Mbps
Encrypted: 177.4Mbps
SSL VPN Throughput :122.5Mbps
66 Byte Packet forwarding rate :1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate :81274 pps / 91275 pps

WIRELESS FEATURES

Advanced Functions :Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Rate Limit: Based on SSID/Client
Airtime Fairness
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Multiple SSIDs: 16 in total (8 per radio)
Guest Network :Support

BASIC FUNCTIONS

WAN Connection Type :Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
MAC Clone :Modify WAN Address
DHCP :DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
SMS :Receive / Send SMS
IPv6 :StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN :802.1Q VLAN
IPTV :IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

ACL :IP/Port/Protocol/Domain Name Filtering
Advanced Routing :Static Routing
Policy Routing
RIP^†
OSPF^†
Bandwidth Control :IP-Based Bandwidth Control
Load Balance :Intelligent Load Balance
Application Optimized Routing
Link Backup(Timing, Failover)
Online Detection
NAT :One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering^†
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Session Limit :IP-Based Session Limit

VPN

GRE :Only in Standalone Mode
SSL VPN :50 Tunnels
IPsec VPN :100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN :PPTP VPN Server
PPTP VPN Client (10)^?
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN :L2TP VPN Server
L2TP VPN Client (10)^?
50 Tunnels
L2TP over IPSec
OpenVPN :OpenVPN Server
OpenVPN Client (5)^?
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode

AUTHENTICATION

Web Authentication :No Authentication
Simple Password^§
Hotspot (Local User / Voucher^§/ SMS^§/ Radius^§)
External Radius Sever
External Portal Sever^§
LDAP

MANAGEMENT

Omada App :Yes.
Centralized Management :Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access :Yes.
Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance :Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)^†
NTP Synchronize^†
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
Zero-Touch Provisioning :Yes. Require the use of Omada Cloud-Based Controller.
Management Features :Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive P
