[ES205G] Omada 5-Port Gigabit Easy Managed Switch by Omada SDN

Image 1
Image 2
Image 3
Best Price in the Last 14 Days
Limited Stock
$35.71
You save 16%Was $42.55

Collect 35 Everyday Rewards points

Log in to MyDeal to link your card
$9.95 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

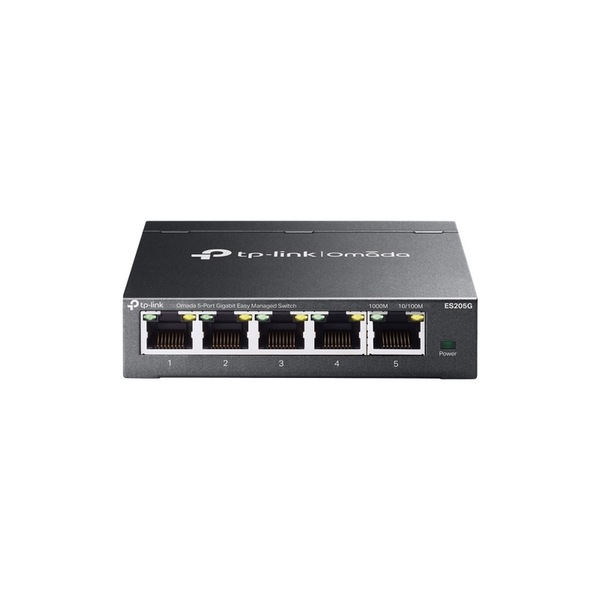

TP-Link ES205G Omada 5-Port Gigabit Easy Managed Switch by Omada SDN

TP-Link ES205G, Omada 5-Port Gigabit Easy Managed Switch

Features:
  • 5× 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design
  • Learn more about Omada Cloud SDN>
Specifications:

HARDWARE FEATURES

  • Interface :• 5× 10/100/1000 Mbps RJ45 Ports
    • AUTO Negotiation/AUTO MDI/MDIX
  • Fan Quantity :Fanless
  • Installation :• Desktop

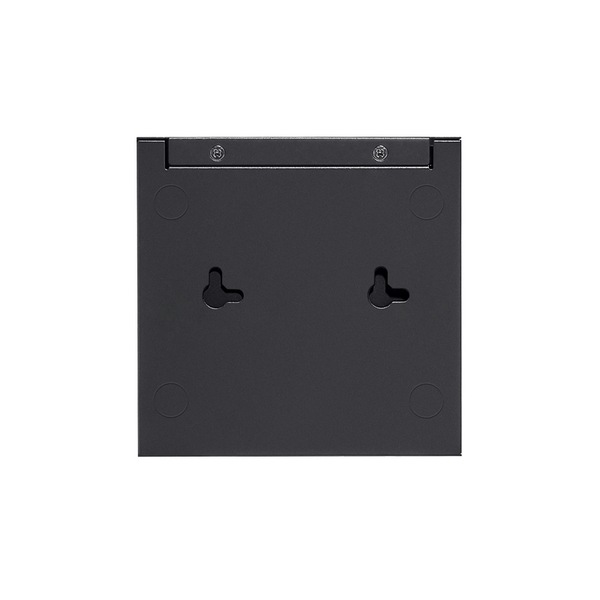

    • Wall Mount
  • Physical Security Lock :

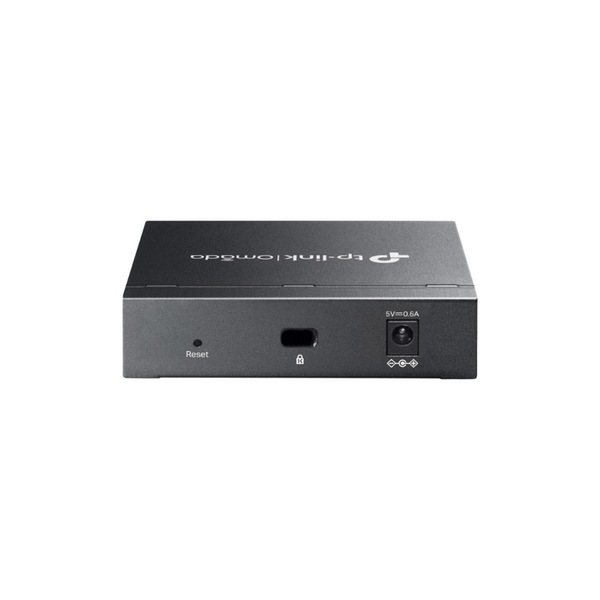

  • Power Supply :External DC Power Adapter (Output: 5 VDC/ 0.6 A)
  • Dimensions ( W x D x H ) :3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

PERFORMANCE

  • Switching Capacity :10 Gbps
  • Packet Forwarding Rate :7.4 Mpps
  • MAC Address Table :8 K
  • Packet Buffer Memory :4 Mbits
  • Jumbo Frame :15 KB

SOFTWARE FEATURES

  • Quality of Service :• Port-based/802.1p/DSCP QoS
    • 8 Priority Queues
    • Priority Schedule Mode
    - WRR (Weighted Round Robin)
    • Queue Weight Config
    • Bandwidth Control
    - Port-Based Rating Limit
    • Storm Control
    - Multiple Control Modes (kbps/pps)
    - Broadcast/Multicast/Unknown-Unicast Control
  • L2 Features :• Static Link Aggregation
    • Loop Prevention / Loopback Detection
    • Flow Control
    - 802.3x Flow Control
    • Mirroring
    - Port Mirroring
    - One-to-One
    - Many-to-One
    - Ingress/Egress/Both
    • Port Statistics
    - Port Mirror Status
    - Traffic Statistics
    • 802.1ab LLDP
  • L2 Multicast :• IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
  • VLAN :• MTU VLAN
    • Port-Based VLAN
    • 802.1Q Tag VLAN
    - Max 32 VLAN Groups
    - 4K VID
  • Transmission Method :Store-And-Forward

MANAGEMENT

  • Omada App :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Centralized Management :• Omada Cloud-Based Controller
    • Omada Hardware Controller
    • Omada Software Controller
  • Cloud Access :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Zero-Touch Provisioning :Yes. Requires the use of Omada Cloud-Based Controller
  • Management Features :• Web-based GUI
    • DHCP Client
    • Cable Diagnostics
    • Automatic Device Discovery
    • Batch Configuration
    • Batch Firmware Upgrading
    • Unified Configuration

OTHERS

  • Certification :FCC, CE, RoHS
  • Package Contents :• ES205G
    • Power Adapter
    • Installation Guide
    • Rubber Feet
  • Environment :• Operating Temperature: 0?~40? (32?~104?)
    • Storage Temperature: -40?~70? (-40?~158?)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing
