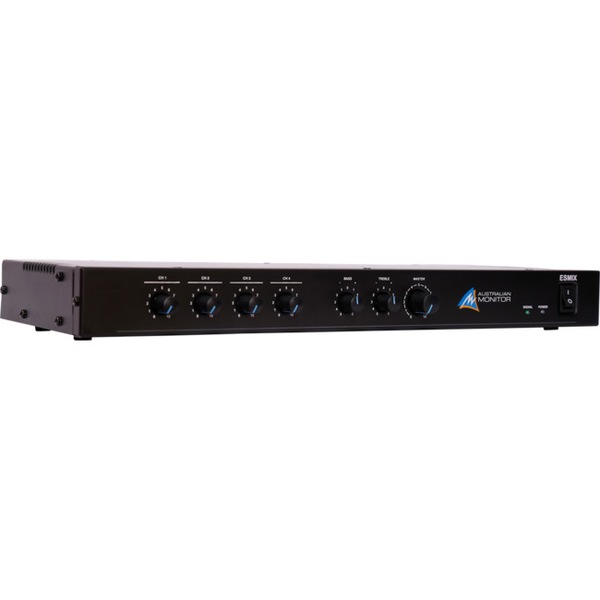

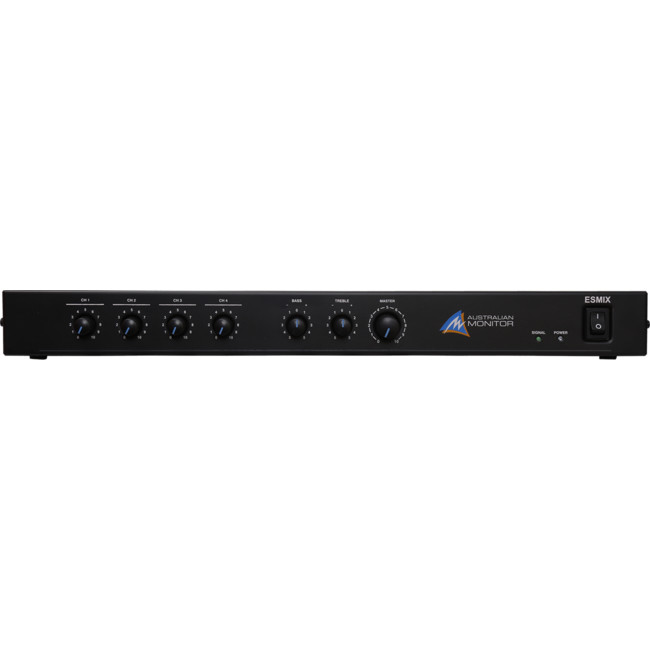

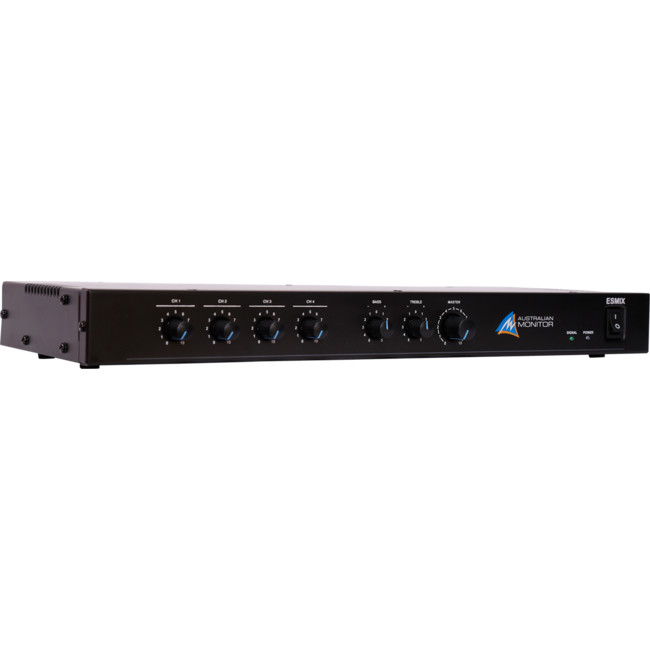

Australian Monitor - ESMIX 4 Channel Mono Mixer

The Australian Monitor ESMIX is the latest evolution of our Essentials series of Mixers, now featuring 2 channels ofpriority VOX muting an integrated tone generator with a modern look and finish.

The mixer maintains the core features you expect including four XLR mic/dual RCA line inputs, record and lineoutputs and 12V phantom power.

The ESMIX offers the latest features to meet projects requiring the most cost-effective solutions.

Key Features

4 microphone/line input mono mixer
Master volume, treble and bass controls
Line and Record Level Outputs
Input 1,2 vox muting priority
Integrated tone generator. Evac/Alert/Interuder/Bell/Chime tones
12VDC phantom power
1 RU rack mountable chassis

LINE AND RECORD OUTPUTS

The ESMIX and ES Mixer Amplifiers feature both a Line and Record Output.

These outputs can be used to link additional power amplifiers to increase the required output channels or totalpower requirements.

PRIORITY MUTING & PHANTOM POWER

The ES series offer two channels of priority muting control.
Using selectable DIP switches on the rear of the product, different configuration modes can be selected as shown in the table.
Use the priority muting to perform talk over functions which mute background music inputs when audio is detected on a priority input channel.

Phantom power is also provided which, when activated, provides 12 volts to condenser microphones on the XLR inputs.

EMBEDDED TONE GENERATOR

The ES120, ES250 and ESMIX products embed a tone generator which can play 5 internal tones.

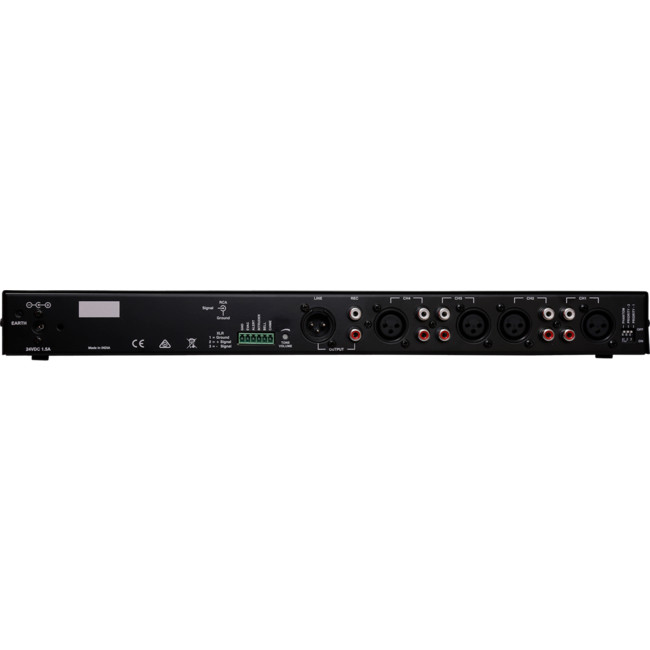

A rear panel connector allows the tones to be played by connecting any of the pins to the ground terminal.

A tone volume control is also provided to change the toneto the desired level.

When a tone is playing Channels 2, 3 and 4 are muted.

Channel 1 is not muted to allow, if required, microphone messaging over the tone.

Specifications

Total Inputs	4	Frequency Response	20Hz - 20kHz
Input Channels	4 MIC or Line	THD+N	< 0.5%
Output Channels	1 Mono	Signal to Noise Ratio	> 84dB
Mounting	1RU	Input Sensitivity	MIC: 1.2mV / Line: 160mV
Warranty	5 years	Input Voltage	100-240Vac 50-60Hz

Product Dimensions (W x D x H)	182mm x 192mm x 44mm	Dimensions (W x D x H)	500mm x 305mm x 134mm
Net Weight	2.5 Kg	Weight	3.5 Kg
		GTIN EAN	9323383020122
