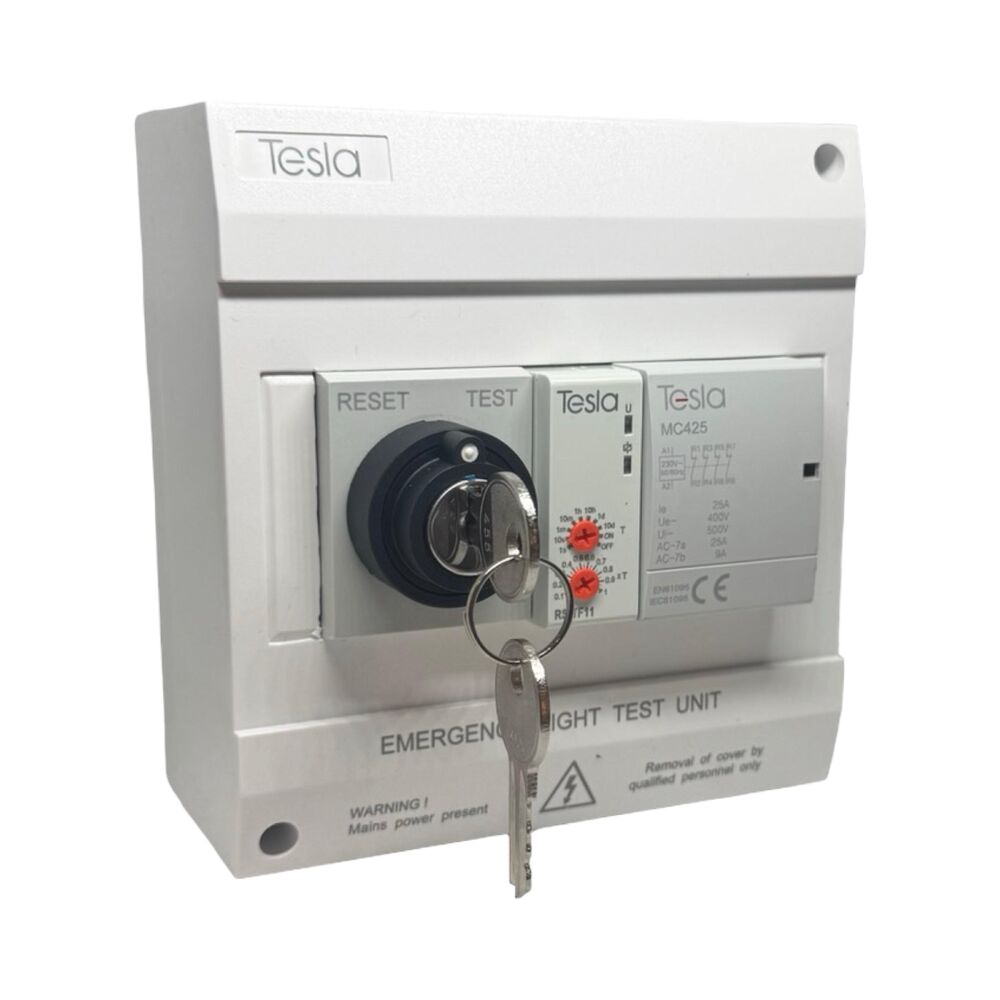

The Tesla EL_TEST Emergency Lighting Test Kit is a purpose-built solution designed to facilitate mandatory testing and maintenance of emergency evacuation lighting systems in accordance with AS/NZS 2293.2. Whether for commercial, industrial, or public facilities, this unit allows you to perform scheduled discharge tests by simulating a mains failure, ensuring that all emergency exit signs and luminaires remain operational for their rated duration.

With both manual and automatic reset options, a programmable time delay, and a reliable key-switch control, the EL_TEST supports compliance and system readiness in a compact, easy-to-integrate enclosure.

Key Features

• Standards Compliant: Enables discharge testing of emergency lighting systems as required by AS/NZS 2293.2.
• Simulated Mains Failure: Accurately initiates battery backup discharge to test performance of exit signs and emergency luminaires.
• Control of Single Point Systems: Ideal for targeted emergency lighting configurations.
• Manual or Auto Reset Functionality: Offers flexible operational modes depending on maintenance preferences.
• Key Switch Operation: Secure access for qualified personnel to initiate test mode.
• Programmable Time Delay: Adjustable to meet testing interval requirements and luminaire durations.
• LED Operational Indicator: Green LED shows standby mode and charging status of connected emergency fittings.
• Compact Design: Fits easily into switchboards or enclosures.

Specifications

• Operating Voltage: 230V AC ±5%, 50/60Hz
• Contactor: 4 Pole, 25A NC (Normally Closed)
• Cable Entry: 4mm² terminals
• Dimensions: 130mm (L) x 122mm (W) x 96mm (D)
• IP Rating: IP20 (Indoor Use Only)
• Operating Temperature: 5°C to 50°C
• Indication: Green LED for standby/charging status
• Reset: Manual or automatic reset configuration

Applications

• Periodic discharge testing of emergency exit lights
• Commercial and industrial facilities with compliance obligations
• New construction or retrofit installations of emergency lighting systems
• Facilities management and fire safety inspection routines

Ensure your emergency lighting system remains compliant and fully operational with the Tesla EL_TEST Emergency Lighting Test Kit—an essential tool for safety maintenance teams and facility managers.
