Exotronic 12 Blade Fuse Holder with Negative Bus Bar & Cover
Your Premier 12V Fuse Box Solution

Introducing the Exotronic 12 Blade Fuse Holder, your solution for efficient and orderly 12V distribution box wiring. This comprehensive fuse holder comes complete with a negative bus bar and cover, ensuring a robust and all-inclusive solution for all your electrical needs.

Designed for a vast range of applications, it serves as an ideal fit for cars, SUVs, buses, trailers, yachts, trucks, boats, display cases, and even medical equipment. It ensures your wiring remains clean, organized, and easily accessible, thereby enhancing the overall efficiency of your electrical setup.

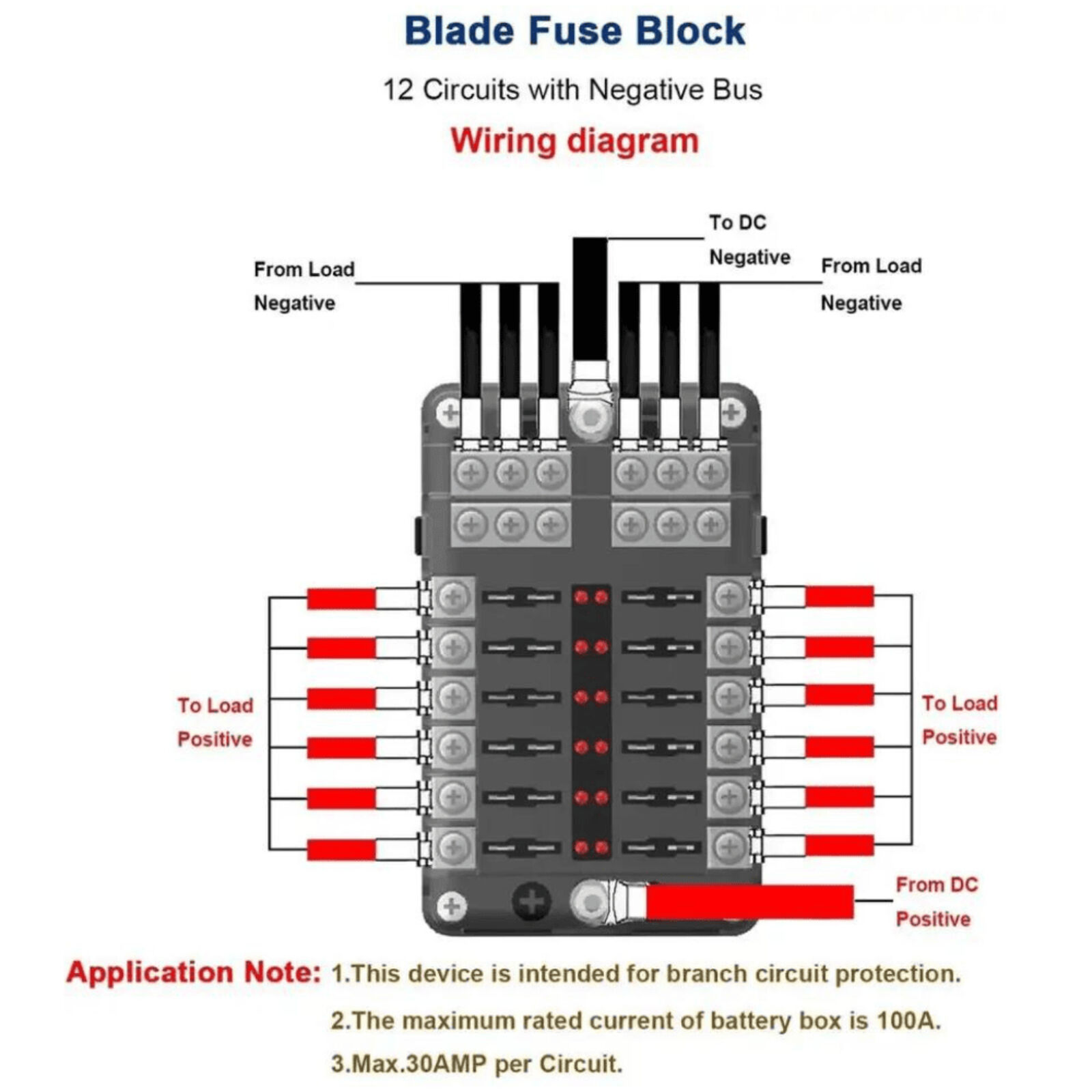

All-In-One 12V / 24V Distribution Box

This fuse box offers 12 dedicated fuses and 12 ground locations, simplifying your wiring projects. Its universal protection feature and robust capacity make it perfect for diverse electrical applications, from setting up extensive overland lighting to adding power windows to your classic vehicle.

Our fuse block stands out with a 100 Amps capacity and 30 Amps per fuse, along with a ground bus bar. These specifications make it an excellent protective measure for your electrical investments.

High-Quality, Safe Material & Quick Issue Identification

Manufactured from environmentally-friendly PBT material, our fuse box meets all safety standards. It boasts mechanical strength, insulation, heat resistance, and flame resistance, ensuring maximum safety. It is also equipped with a red LED warning light that alerts you when a fuse is blown, enabling quick fault identification and resolution.

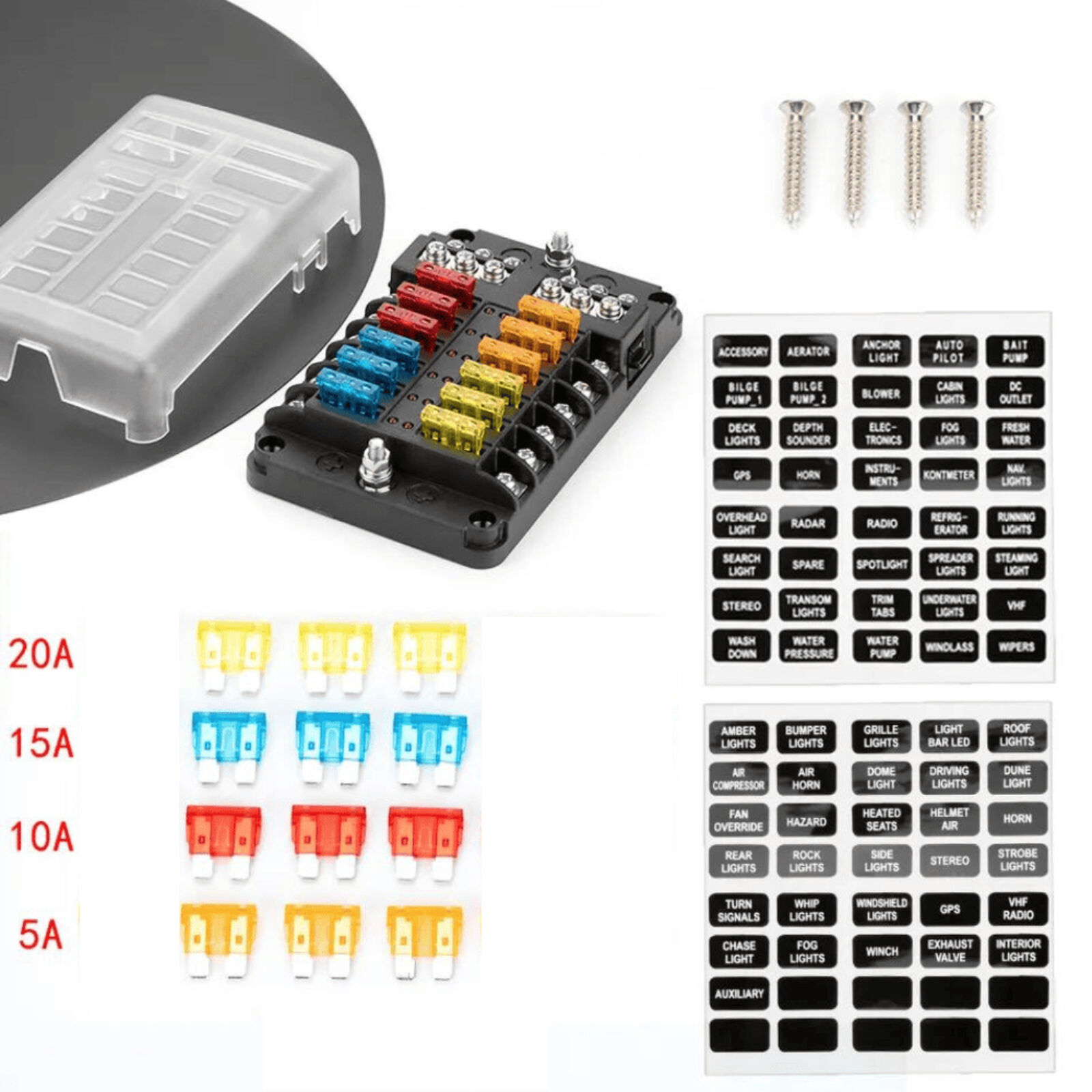

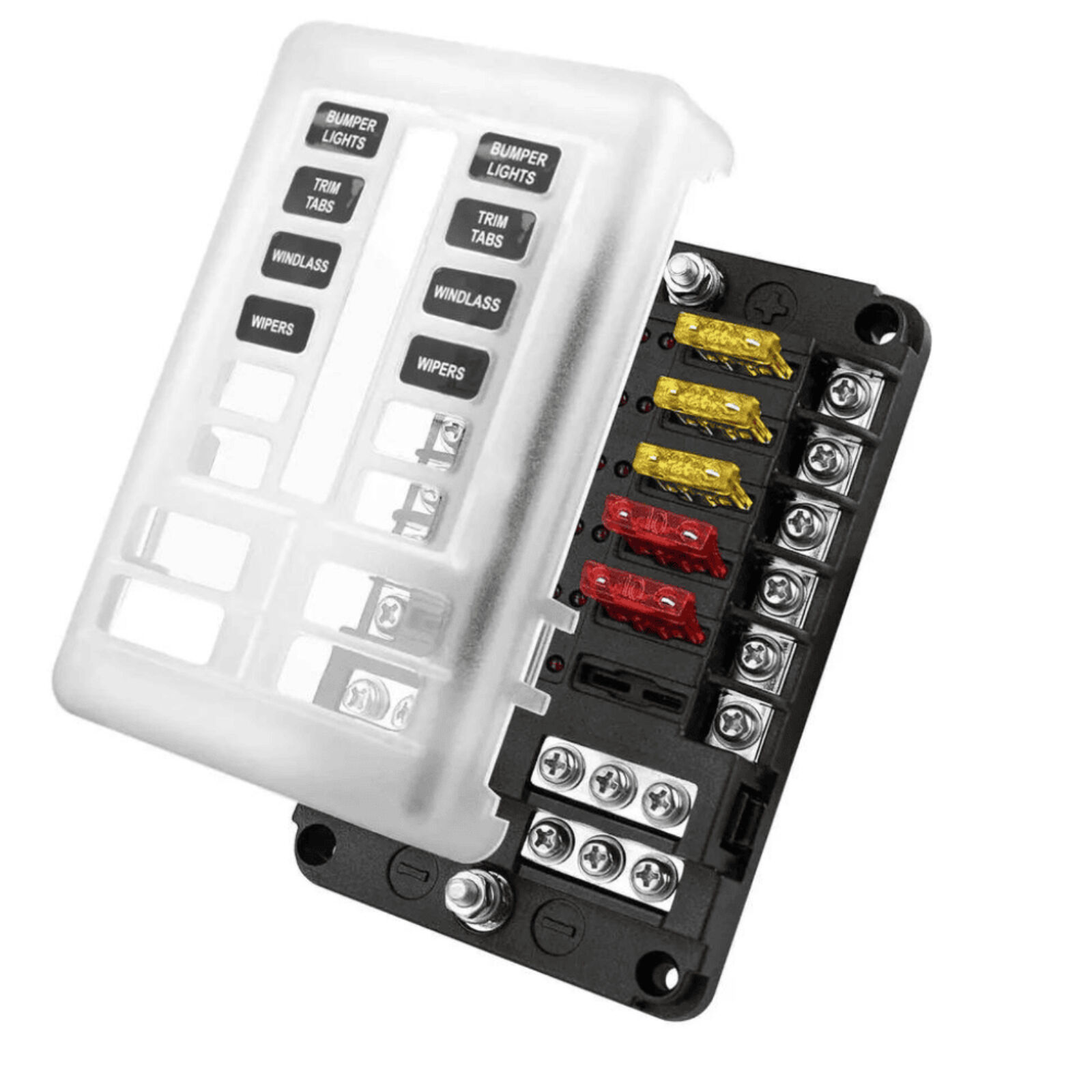

The dustproof design, complete with a clear, vibration resistant, snap-fit cover, ensures safe and convenient use. Each product package includes 2 label stickers, 3x 5A, 3x 10A, 3x 15A, 3x 20A fuses and 4 screws, simplifying the installation process.


Specifications:

Specifications
Specification Detail
Product Name Exotronic 12 Blade Fuse Holder with Negative Bus Bar & Cover

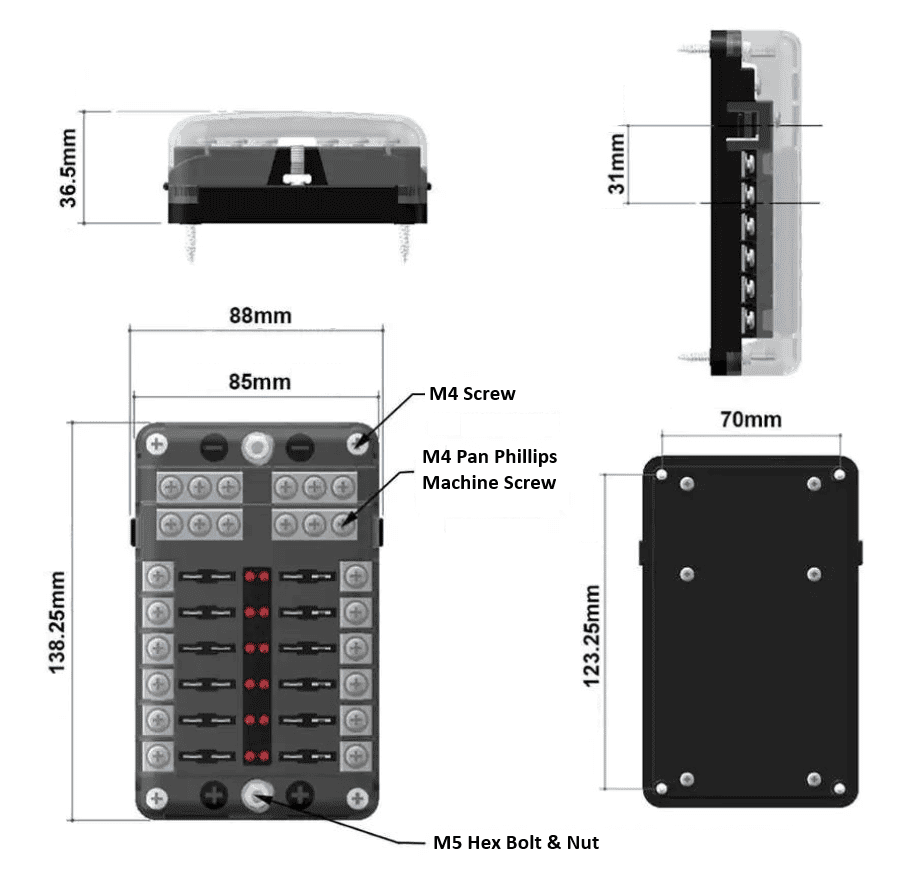

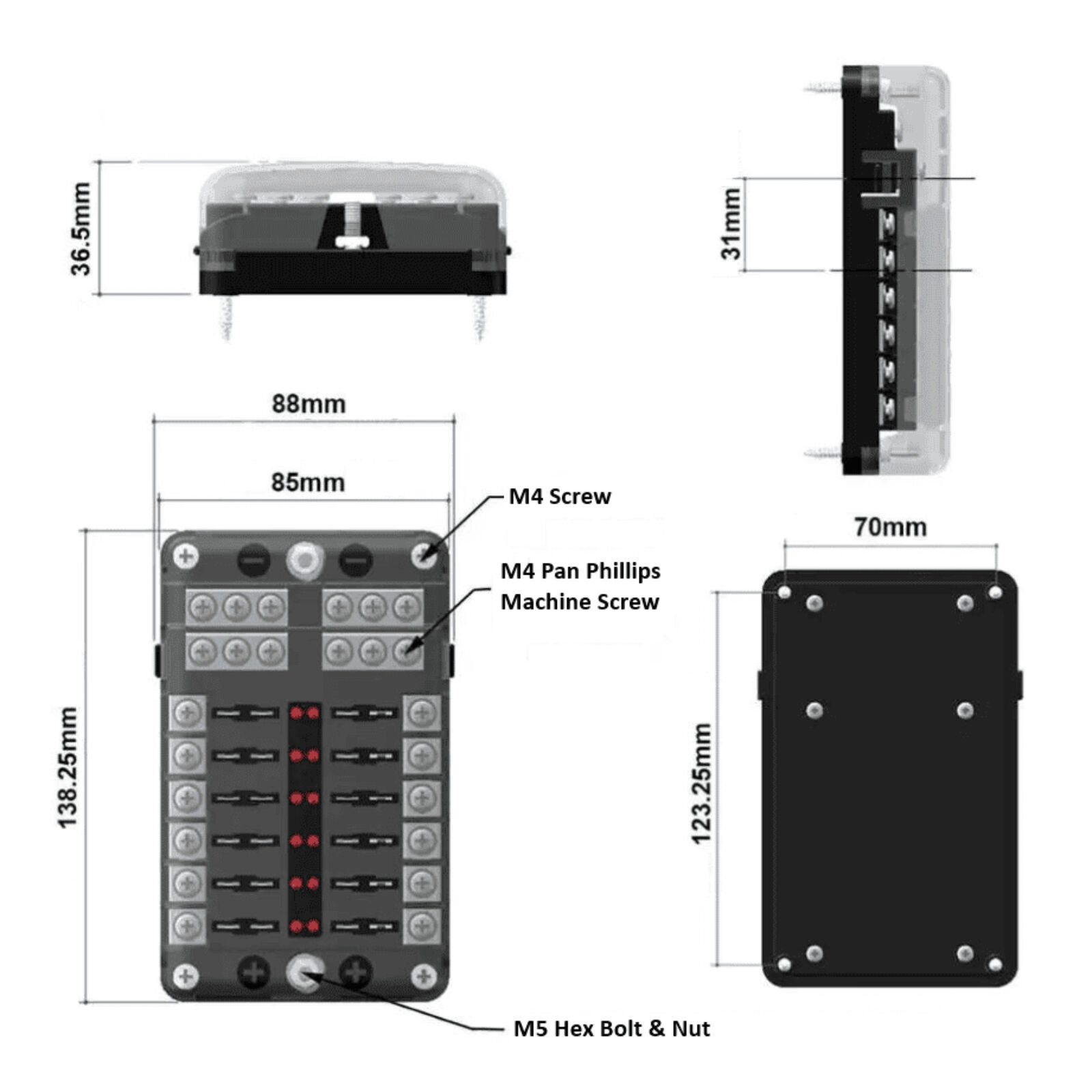

Product Size 138mm x 88mm x 37mm
Input Rated Voltage Max 32V DC(12V 24V universal)
Input Rated Current Per circuit / fuse: 30 amp (Max.)
Per box: 100 amp (Max.)
Quantity of circuits / fuse slots 12 way
Working Temp. -30℃~85℃
Applicable Fuse APR/ATC/ATO/ATS standard blade fuse (1A, 2A, 3A, 4A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A)
Material Base: PBT
Cap: PC
Terminal: Nickel Plated Brass
Screw: Stainless steel
Main Line M5 threaded studs (100A 32VDC Max)
Single Line M4 threaded studs (30A 32VDC Max)
Warranty Statement

Exotronic warranties its accessories to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
