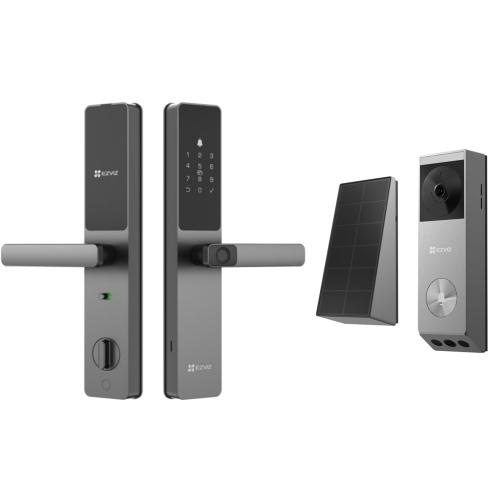

EZVIZ Doorbell & Smart lock EP3X PRO x 1 / DL05 x 1
EZVIZ EP3x Pro
Double protection, half the trouble
Introduce EZVIZ's first dual-lens video doorbell with unparalleled vision, complex detection features, and easy solar charging option. Combining a 2K main camera and a 1080p bottom camera, the EP3x Pro detects both moving people and delivered packages to help you watch over your front door in a smart way. It's also a kit that you can truly set and forget - it comes with free, built-in 32GB eMMC storage capacity, and uses the included solar panel to run on green, non-stop energy.
Dual cameras to complete your view
The EP3x Pro stitches views together to help you see much more. Its 2K forward-facing lens captures approaching people and the environment wide and clear, while the 1080p downward-facing lens allows you to check the ground for packages, where other cameras usually can't see.
A smart doorkeeper that knows what's important
The EP3x Pro detects people other than wandering animals, and you instantly get notified even before people knock. It detects packages, too. So you won't miss a long-expected delivery, or have it taken away by somebody else without knowing.
2K clarity and color night vision
See who's at the door vividly in 2K video, even if you don't have proper front-door lighting available and it's totally dark outside. The EP3x Pro uses a built-in LED to brighten up your hallway and render colorful night vision.
A truly easy kit that goes solar style
The battery-powered EP3x Pro can stick itself to any front door where electricity wiring isn't planned, and run non-stop on green power by using the included solar panel. What's better? It preserves the option to go hardwired if you live in a cloudy region.
Save valuable moments at zero cost
You don't need to pay for storage cards or subscription plans before the camera starts saving video clips. The EP3x Pro is embedded with 32 GB eMMC storage capacity -- which means it can store up to 6 months of video history if it records 10 minutes of activities every day.
Steady performance outside your house
The EP3x Pro is readily made to endure the outdoor weather. Additionally, it can make the most of the battery and stay steadily connected to your home internet, thanks to the low-power Wi-Fi protocol.
Hear the ring from the inside
For large houses, it is recommended to pair the EP3x Pro with its best companion, the EZVIZ CH14. In addition to adjustable ringtone options, the chime can boost the doorbell's Wi-Fi signal to ensure stable connection - which many wireless doorbells may struggle with.
Easy to use but hard to tamper with
In case the doorbell is forcibly removed, a sharp alarm will sound and a mobile alert will be instantly sent to you. What's more, the EP3x Pro prohibits unauthorized use after theft, thanks to the account binding restriction.
We do our best to protect your data and privacy
We design the product to respectfully protect your data and privacy. You can also set up no filming zones to make sure recording only happens when it's appropriate and allowed.
EZVIZ DL05 Smart Lock with Doorbell Fingerprint
Enjoy easy keyless entry of a safe home
The DL05 sticks to the core values of a truly smart lock - easy to unlock, smart in controls, and safe by design. Connected via Bluetooth or Wi-Fi, it boasts flexible unlocking methods, and connects you to your home wherever you are via the EZVIZ App. Under a modern and sleek appearance, its sturdy lock body and multiple safety features help guard your entrance properly.
Home access at your fingertips
Now you don't have to be anxious about losing your key or forgetting long codes. Simply grab the handle to naturally place your fingertips on the scanner, then you're in.
- Processes & stores fingerprints locally
- Stores up to 50 pieces of fingerprints
- Auto-locks³ after 5 successive failed attempts in 5 minutes
Unlock as you prefer, for ones your trust
Swipe open or tap in permanent/temporary passwords. Or, use smartphones to open or assign access remotely.
Stay notified, feel securer
Get the message notifications via the EZVIZ App, whenever and wherever. You receive push notifications when your door is opened or when the lock's battery is low. You will also be alerted when there are suspicious activities of removing your lock or forced entry.
Interconnected control starts at your front door
Explore DL05's smart potentials by connecting it to a collection of EZVIZ smart home products. With the help of an interlinked EZVIZ indoor PT camera², you know not only when the door gets opened, but also who enters with an auto-recorded video.
Double-layered security, extra peace of mind
The DL05 auto-locks behind you whenever you close the door, and it allows you to activate the child lock to prevent your energetic children or pets from accidentally opening the door from the inside.
You can also enable its privacy mode if you don't want to be disturbed - then only the administrator can open the door4 from the outside, and the lock's alarm sounds will be muted.
Plenty of power for a busy household
The DL05 offers a long standby time - up to 365 days5 - and it's easy to change the batteries when needed. You can switch between the Wi-Fi mode and the Bluetooth mode via the EZVIZ App to make better use of the battery.
EZVIZ EP3x Pro
Camera Parameters
Image Sensor
1/2.8" Progressive Scan CMOS (Supports low light sensitivity)
Lens
Upper camera: 2.3mm @F/2.2 ,
diagonal field of view 162°
Bottom camera: 2.3mm @F/2.2 ,
diagonal field of view 155°
Day & Night
ICR infrared filter type ( Max: 6 meters)
Video Parameters
Max. Resolution
Main camera: 2K (2048 × 1296) Bottom camera: 1080p (1920 × 1080)
DNR
2D / 3D DNR
Video Compression
H.265 / H.264
Frame Rate
15fps.Fixed frame rate
PIR Sensor
Sensing Angle
120°
Sensing Distance
Max. 5 m (16.4 ft)
Sensitivity
Adjustable (High: 5 meter, Medium: 4 meter,and Low: up to 3 meter)
Storage
Local Storage
Built-in 32GB eMMC
Cloud Storage
EZVIZ CloudPlay storage
Interface
Audio Input
Built-in high-sensitivity microphone
Audio Output
Built-in high-power speaker
Button
Doorbell button with electronic doorbell
Reset button
Yes
Network Parameters
Interface Protocol
EZVIZ Cloud Proprietary Protocol
Protocol
EZVIZ Cloud Proprietary Protocol
Wi-Fi Parameters
Wi-Fi Standard
IEEE802.11b, 802.11g, 802.11n
Frequency Range
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
Supports 20MHz
Security
64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Function
Intelligent Alarm
AI-Powered Human Shape Detection, Package Detection
Tamper Alarm
Sound and light anti-dismantling alarm
(Supports sending alerts via EZVIZ App)
Video Intercom
Two-Way talk
General
Operation Conditions
-20°C to 50°C, humidity 95% or less (non-condensing)
IP Grade
IP65
Size
166 × 50 × 31mm (6.53 × 1.97 × 1.22 inch)
Battery Capacity
5200 mAh rechargeable lithium battery
Power Supply
8-24VAC, type-C: 5V(±10%), EZVIZ Solar Panel
Power Consumption
3W MAX
Performance Parameter
Max. Power Voltage
8.1V
Max. Power Current
240mA
Max. Power
1.2W
Operating Temperature
-20°C to 50°C
Size
126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch)
IP Grade
IP65
General
Net Weight
Doorbell: 276 g (9.73 oz)
Weight with Package
650 g (22.93 oz)
In the box
In the box
- EP3x Pro Video Doorbell
- Mounting Bracket for Doorbell
- Inclined Mounting Bracket
- Drill Template for Doorbell
- Solar Panel
- Drill Template for Solar Panel
- Power Cable
- Pin
- Screw Kit ×3
- U-shaped Wire ×2
- Wire Connector ×2
- Regulatory Information ×2
- Quick Start Guide
EZVIZ DL05 Smart Lock with Doorbell Fingerprint
Material and Specification
Panel Material
Aluminum alloy
Panel Size
360 × 67 × 27 mm (14.17 × 2.64 × 1.06 inch)
Color
Metallic grey
Lock Body Type
Lift-up lock body
Lock Cylinder
5085 / 6068
Weatherproof
IP65 (Front Panel)
Emergency Charging
Type-C
Working Power
1.5V AA alkaline batteries x8
Technical Specification
Unlocking Method
Fingerprint, passcode, proximity card, mechanical key, bluetooth key via EZVIZ App, temporary codes, remote unlock
User Capacity
50 pcs
Fingerprint Capacity
50 pcs
Passcode Capacity
50 pcs
Card Capacity
50 pcs
Communication Methods
2.4GHz Wi-Fi, Bluetooth
Temporary Access Codes
Supports
Anti-Peeping Codes
Supports (Up to 20 digits)
Low Battery Warning
Supports
Privacy Mode
Supports
User Management
Supports
Real Time Notification
Supports
Anti-Test Locking
Supports
Anti-Tamper Alarm
Supports, enter error 5 times within 5 min, locking 3 min.
Remote Control
Supports
Child Safety Lock
Supports
Voice Control
Soon Supports (Google Assistant / Amazon Alexa)
Supported Door Thickness
30-110 mm
Working Temperature
-25°C~70°C
Operating Humidity
10%~95%
In the box
In the box
- DL05 Smart Fingerprint Lock
(Front Panel + Rear Panel + Hole Template)
- Lock Body
- Standard Screw Bag
- Lock Body Screw Bag (2)
- Locating Screw Bag
- Reversing Screw (2)
- AA-Sized Battery (8)
- Mechanical Key (2)
- Square Rod
- Proximity Card (2)
- Silicon Plug (For Rear Panel)
- Regulatory Information
- Quick Start Guide
- MPN: KIT-11
