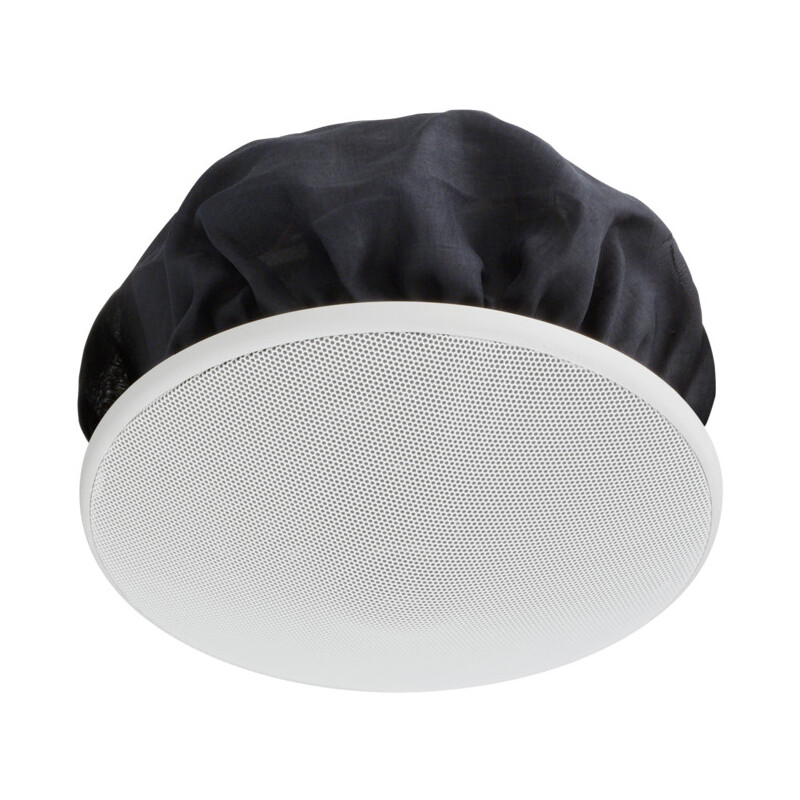

F2352SC TOA 120Mm Wide Dispersion Speaker 2 Way Open Back 200Mm Cut Out 25, 70 and 100V Line
,gravity=Center,allowExpansion)
The F-2352SC ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications.
Well-balanced sound with excellent wide area dispersion defines a new class of ceiling speakers.
TOA introduces a new range of ceiling-mounted speakers that have been designed and engineered to overcome limiting factors that have been associated with conventional ceiling-mount speakers.
Most noticeable has always been the high-frequency roll off that resulted from limited speaker dispersion characteristics.
TOA's new ceiling speaker range provides well-balanced audio reproduction without treble attenuation over an expanded listening area thanks to the extra-wide dispersion characteristics that are part of the overall speaker design.
Perceived speaker directionality and beaming tendencies are minimized, resulting in a natural, well-balanced sound over a wide area at all levels.
Conventional speakers exhibit high frequency rolloff characteristics as the distance between speaker and listenerincreases.
However TOA believes that an ideal ceiling-mounted speaker's response characteristics should include wide dispersion and non-frequency dependent directionality and this new ceiling speaker series
proves that.
Expanded listening area coverage thanks to the extra-widedispersion characteristics of TOA's ceiling speakers makes it possible to utilize fewer speakers to cover a desired area, allowing more cost-effective installations
Rated Input | 6 W (High Impedance) |
---|---|
Power Handling Capacity | Continuous pink noise: 9 W (8 ), 6 W (16 ) Continuous program: 18 W (8 ), 12 W (16 ) |
Impedance | 100 V line: 1.7 k (6 W), 3.3 k (3 W), 10 k (1 W), 20 k (0.5 W) 70 V line: 830 (6 W), 1.7 k (3 W), 3.3 k (1.5 W), 10 k (0.5 W), 20 k (0.25 W) 25 V line: 830 (0.75 W), 1.7 k (0.4 W), 3.3 k (0.2 W), 10 k (0.06 W), 20 k (0.03 W) 16 , 8 |
Sound Pressure Level | 89 dB (1 W, 1 m) |
Frequency Response | 80 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.) |
Speaker Component | High frequency: Balanced dome-type Low frequency: 12 cm cone-type |
Mounting Hole | Φ200 mm (Maximum ceiling thickness: 37 mm) |
Input Terminal | Push-in connector (Bridging terminal-2 branch type) |
Usable Cable | 600 V Vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: Φ0.8 - Φ1.6 mm (equivalent to AWG No. 20 - 15) 7-core twisted copper wire: 0.75 - 1.25 m? (equivalent to AWG No. 18- 17) |
Finish | Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade:UL-94 V-0), white, paint Punched net: Steel plate, white, paint Dust-proof bag: Artificial fiber, black |
Dimensions | Φ230 × 154 (D) mm |
Weight | 1.5 kg (including panel) |
Accessory | Panel - 1, Paper pattern - 1 |
Option | Back can: HY-BC1 Reinforcement ring: HY-RR2 Anchor hanging bracket: HY-AH1 (HY-RR2 required) Tile bar bridge: HY-TB1 (HY-RR2 required) Trim ring: HY-TR1 (HY-RR2 required) |
_
_
MPN: F2352SC
Reference ID: 691787
