FAAC A951 Auto Single Door Operator Push Or Pull Internal Use Non Fire Rated

FAAC A951 Swing Door Operator Internal Use **Body Only**
A-105951

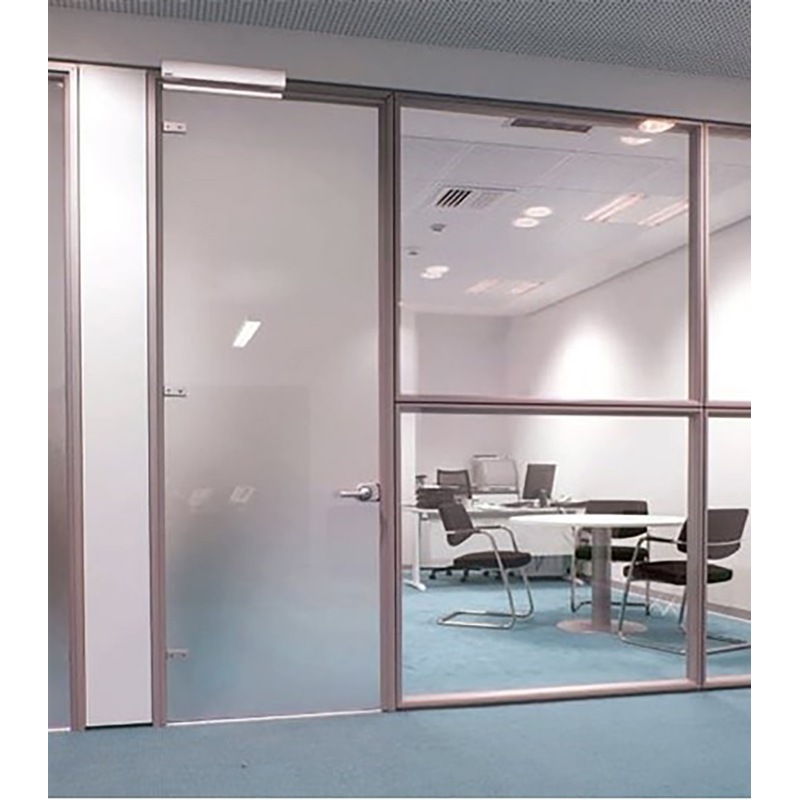

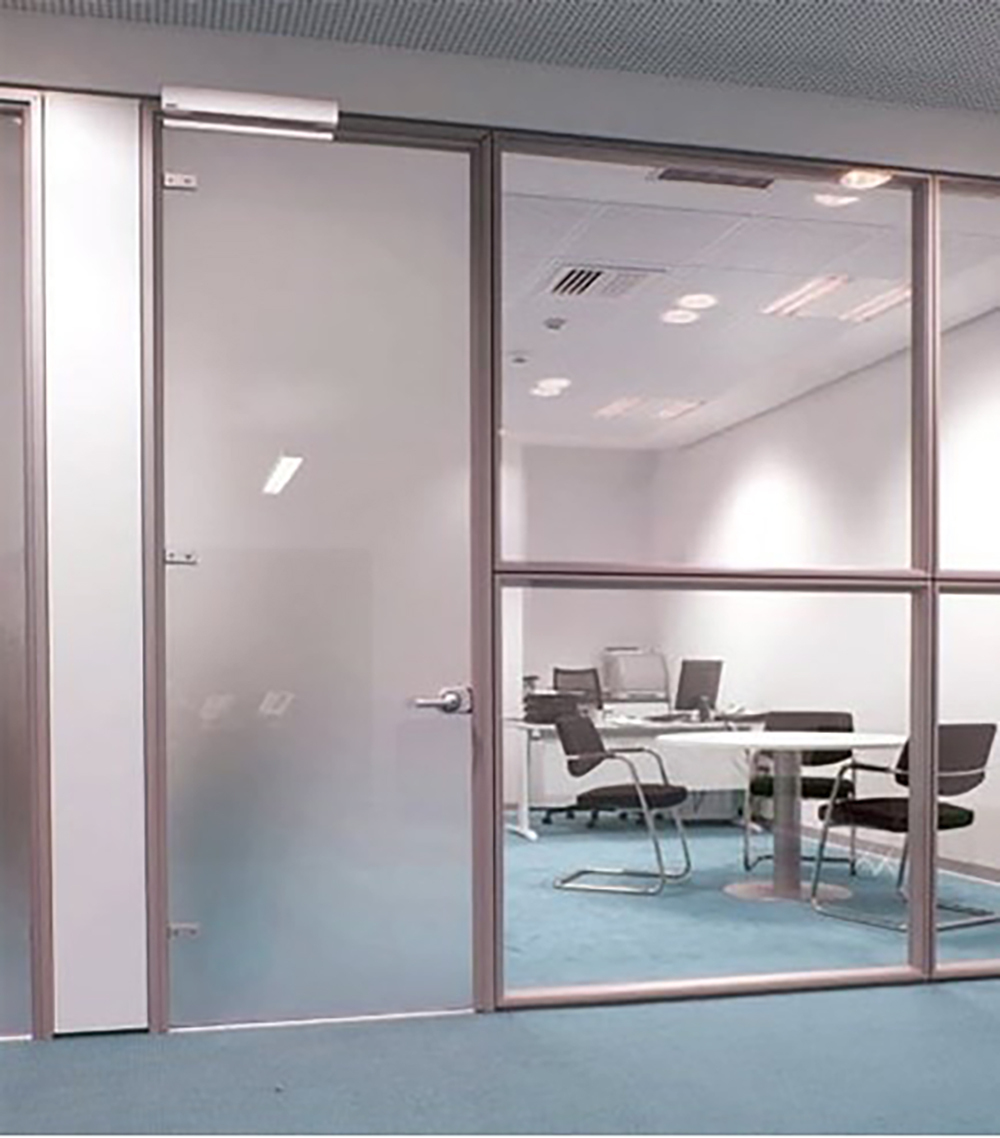

Swing Door Operator used in new construction or retrofitted onto existing doors. designed for heavy duty use and traffic.

Swing Door Operator Function - opens and closes the internal door silently and smoothly.

Includes:

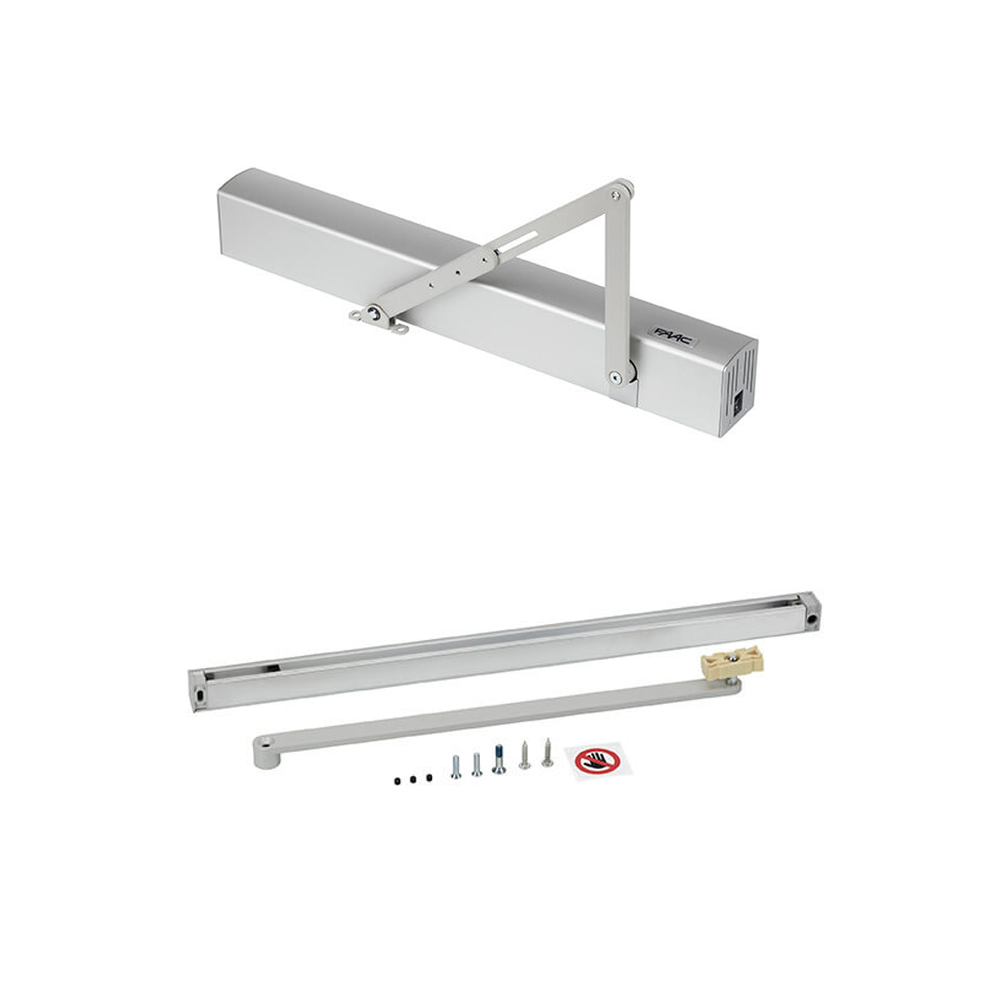

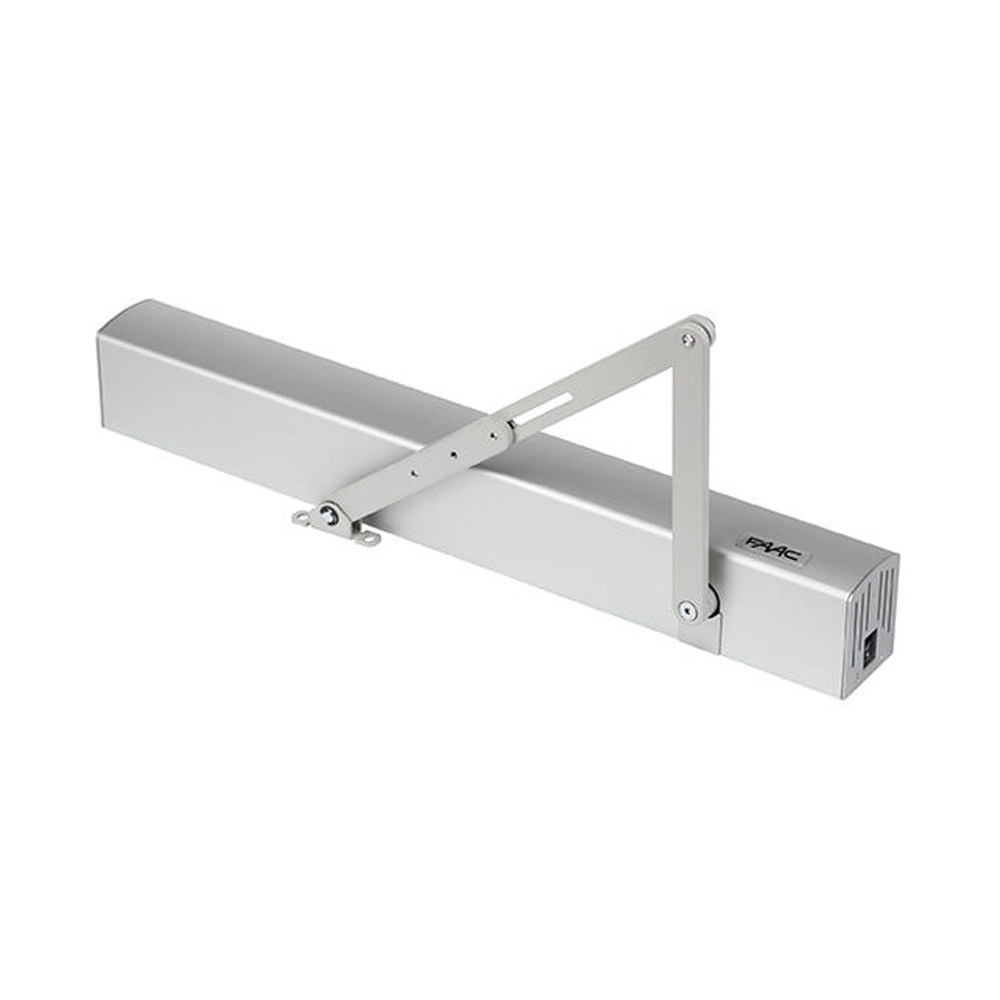

• 1 x FAAC Swing Door Operator Internal Use **Body Only** (A-105951)

Features:

• The housing cover is in anodized extruded aluminium
• Manufactured in compliance with the new European safety standards EN16005; speed and forced are programmed depending on door dimensions.
• Thanks to the accurate selection of mechanical and electronic components, the A951 automated system can silently drive leaves weighing 100 kg and1100-mm wide on continuous duty ensuring the absolute operating safety at any time
• Built-in microprocessor control unit with selfdiagnosis and continuous monitoring of all door functions
• Anti-crushing safety device active both in closing and in opening
• Integrated functions selector with the following operating logics: AUTOMATIC - MANUAL/NIGHT - OPEN
• “INTRUSION” Function, the door opposes the manual opening attempt
• Selectable ‘PUSH and GO’ function
• KP EVO and LK EVO functions keyboard support
• Firmware upgrade and download/upload (configurations, timer and log) through USB key

Specifications:

• Function: Body Only
• Max. Power: 100W
• Passage opening (mm): 700 ÷ 1100
• Max. leaf weight with articulated arm: 100 Kg
• Max. leaf weight with sliding arm: 100 Kg
• Standby power: 5W
• Use frequency: 1
• Electric lock power supply voltage: 25Nm
• Electric motor: Motor powered at 24V
• Max. accessories load: 1A – 24V
• Electric lock power supply: voltage (N.O./N.C.) 24 V / 500 mA max.
• Length: 575mm
• Depth: 60mm
• Height: 70mm
• Weight: 7Kg
• Operation in case of power cut: Manual push/pull opening
• Max. leaf opening angle: 100 Degrees ÷ 125 Degrees
• Opening leaf time: 4 -10 sec (adjustable)
• Closing leaf time: 4 - 10 sec (adjustable)
• Partial opening adjustment: Standard (adjustable)
• Pause time: 0 – 30 sec
• Night pause time: 0 ÷ 90 sec
• Encoder: As standard
• Protection sensor monitoring: (EN16005) As standard (may be excluded)
• Low energy movement:  (EN16005) As standard (may be excluded)
• Operating ambient temperature: -20 Degree Celsius ÷ +55 Degree Celsius
• Protection class: IP 23 (for internal use only)
• Compliance with regulations: EN16005; EN61000-6-2; EN61000-6-3 ; EN13849
