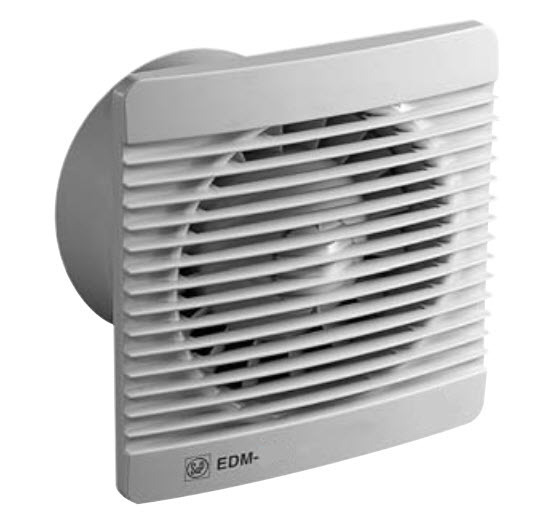

Fantech EDM-100S/12V AC | IPX7 100mm Wall / Ceiling Mounted Exhaust Fan

The EDM Series can be wall or ceiling-mounted and is suitable for exhausting stale and moist air
12V AC model

Construction

All units have weather- and impact-resistant housing.
Motors
Type-shaded-pole induction motor.
‘12V’ Unit - Suitable for wet areas (IPX7): requires a low-voltage transformer. Model EDM-100S-12V only
The EDM-100 12V has Class III insulation, IP57
Bearings - Ball
Maximum ambient temperature - 40°C
Grill: 155mm
Depth inc Grill and motor housing: 98mm
Distance of Motor Housing in wall space: 98mm
Depth inside wall space only, not inc grill: 55mm
Speed: 41 rps
Avh DBA @ 3m: 34
Input Kwatts: See specs
Amps: see specs
Max Temp: 40 degrees C
Approx weight:0.48

Warranty starts from Invoice Date

Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct

GTIN: 8413893716859
