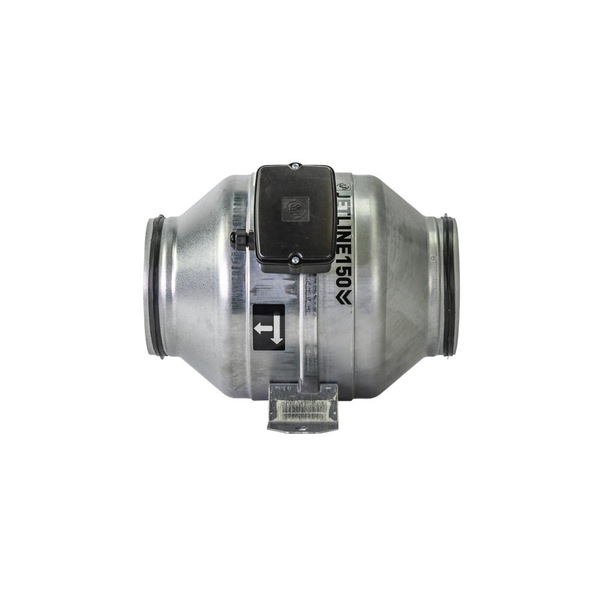

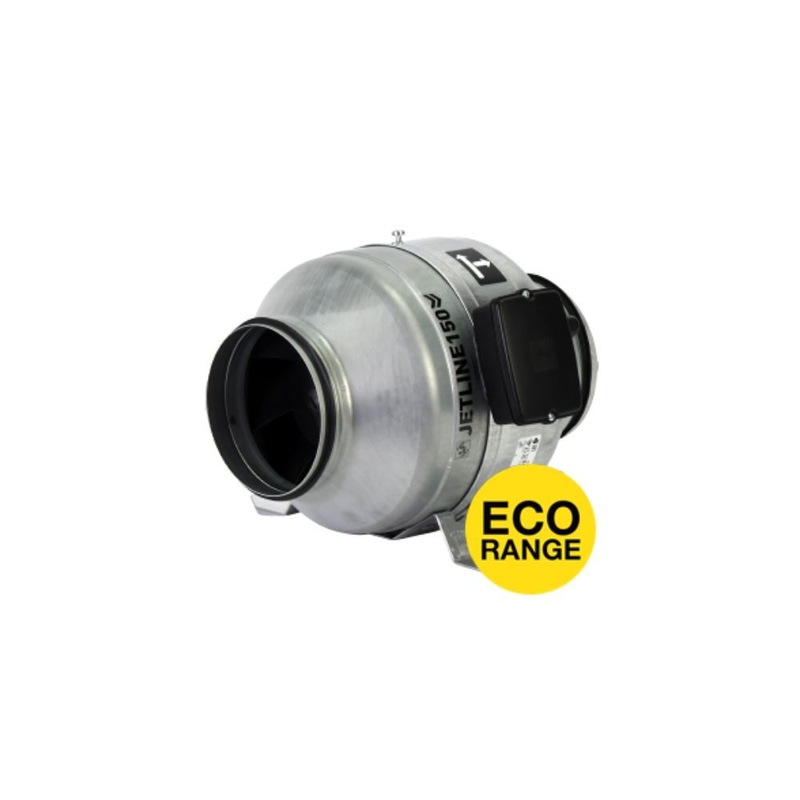

Fantech Jetline Eco In-line Duct Mounted EC Exhaust Fan - 315MM (12" Inch) - 215W - 1570 M³/H - IP44

Image 1
Image 2
$1759.95

Collect 1759 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Hydro Experts
Secure ways to pay at checkout

The Jetline EcoWatt in-line fan comes equipped with the latest energy efficient EC motor technology. It is speed-controllable via a 0-10V analogue input signal and includes an on-board potentiometer.

It features a low profile design and silent-block motor mounting to reduce vibrations and lower the sound level of operation.

The Jetline EcoWatt has a durable outer casing that is manufactured from long lasting galvanised steel.

Features
  • An energy efficient solution with state-of-the-art EC motor technology.
  • Speed-controllable via a 0-10V analogue input signal.
  • High performance patented centrifugal impeller.
  • Designed for direct connection to standard diameter circular ducting.
  • Galvanised steel quick fit mounting bracket for fast installations.
  • Rubber gasket on spigots improves seal between fan and duct work.
  • Can be mounted in any position.
  • Please note: requires hard wire installation

Specification

  • Model No: JETLINE-315ECO
  • M³/h: 1570
  • L/s: 436
  • Fan Speed Rev/Sec: 43
  • AVG. dB(A) @ 3m: 52
  • Watts: 215
  • 1PH Amps: 0.9
  • Volts: 220-240

What's in the box

  • [1] x Fantech Jetline Eco In-line Duct Mounted EC Fan - 315MM (12" Inch) | 215W | 1570 M³/H | IP44

Specifications:

  • Model No: JETLINE-315ECO
  • M³/h: 1570
  • L/s: 436
  • Fan Speed Rev/Sec: 43
  • AVG. dB(A) @ 3m: 52
  • Watts: 215
  • 1PH Amps: 0.9
  • Volts: 220-240

MPN: XFANS52506
