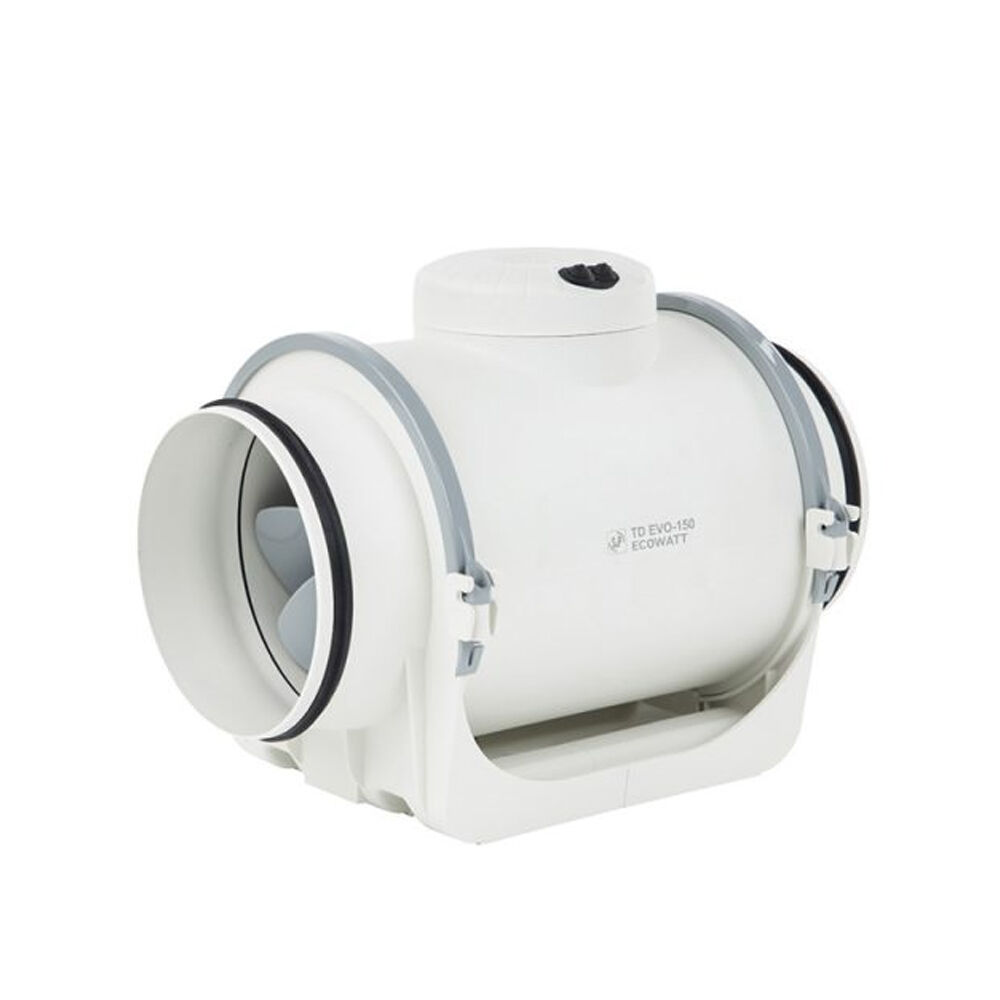

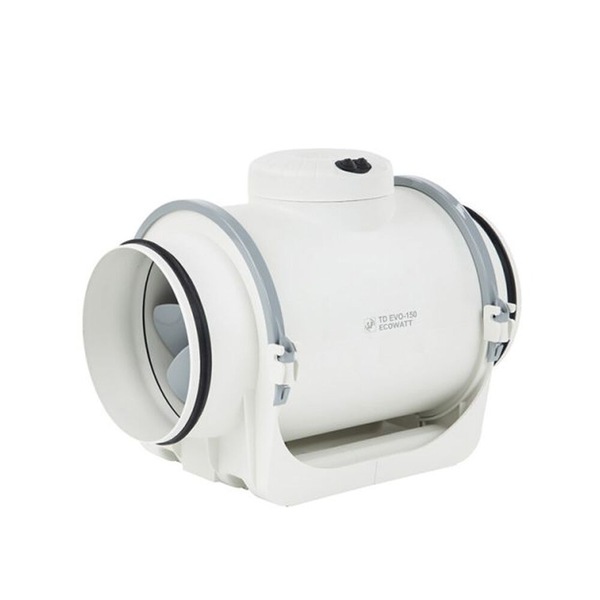

Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer -150MM (6" Inch) - 45W - 560 M³/H - IP44

Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer -150MM (6" Inch) - 45W - 560 M³/H - IP44

Hurry! 1 items left!

$949.95

Collect 949 Everyday Rewards points

Secure ways to pay at checkout

(0)

The Fantech TD EVO VAR in-line fan is designed for exceptional performance and energy efficiency, making it an ideal choice for both residential and commercial ventilation systems. With variable speed control, it can be adjusted via an on-board potentiometer or remotely through a 0-10V or 4-20mA analogue input signal, offering enhanced flexibility for different applications.

Equipped with a built-in, adjustable run-on timer (1 to 30 minutes), the TD EVO VAR ensures effective extraction of steam and odors even after the room is vacated. Its versatile design makes it suitable for toilets, bathrooms, ensuites, laundries, and kitchens in homes, hotels, apartments, and commercial buildings. The range includes six models, accommodating standard duct sizes from 100mm to 315mm in diameter.

Features:

High-Performance Mixed-Flow Impeller – Delivers powerful airflow with optimal efficiency.
Low-Noise Operation – Advanced impeller, guide vanes, and outlet diffuser minimize noise levels.
Easy Maintenance – The main fan body can be removed without dismantling ductwork.
Energy-Efficient Motor – Features a highly efficient single-phase AC motor for reliable performance.
Flexible Installation – Can be mounted in any position to suit various ventilation setups.
Adjustable Junction Box – Rotates to any position for convenient wiring access.
Integrated Run-On Timer – Selectable 0, 1, 5, 15, or 30-minute delay for continued ventilation after use.

Specifications:

Model No.	M³/h†	L/s†	Fan Speed Rev/Sec	AVG. dB(A) @ 3m*	1PH Watts	AMPS	MAX. AMB °C	Volts
TD-EVO-100VAR	210	58	41	31	16	0.1	60	220-240
TD-EVO-125VAR	310	86	39	36	29	0.1	60	220-240
TD-EVO-150VAR	560	156	44	44	45	0.2	60	220-240
TD-EVO-200VAR	900	250	45	47	107	0.5	60	220-240
TD-EVO-250VAR	1400	389	45	52	181	0.8	60	220-240
TD-EVO-315VAR	1840	511	44	56	273	1.1	60	220-240

What's in the box:

[1] x Fantech TD Evo Var Dual Control In-line Duct Mounted AC Fan w/ Run-On Timer -150MM (6" Inch) | 45W | 560 M³/H | IP44

Specifications:

Model No.	M³/h†	L/s†	Fan Speed Rev/Sec	AVG. dB(A) @ 3m*	1PH Watts	AMPS	MAX. AMB °C	Volts
TD-EVO-100VAR	210	58	41	31	16	0.1	60	220-240
TD-EVO-125VAR	310	86	39	36	29	0.1	60	220-240
TD-EVO-150VAR	560	156	44	44	45	0.2	60	220-240
TD-EVO-200VAR	900	250	45	47	107	0.5	60	220-240
TD-EVO-250VAR	1400	389	45	52	181	0.8	60	220-240
TD-EVO-315VAR	1840	511	44	56	273	1.1	60	220-240
