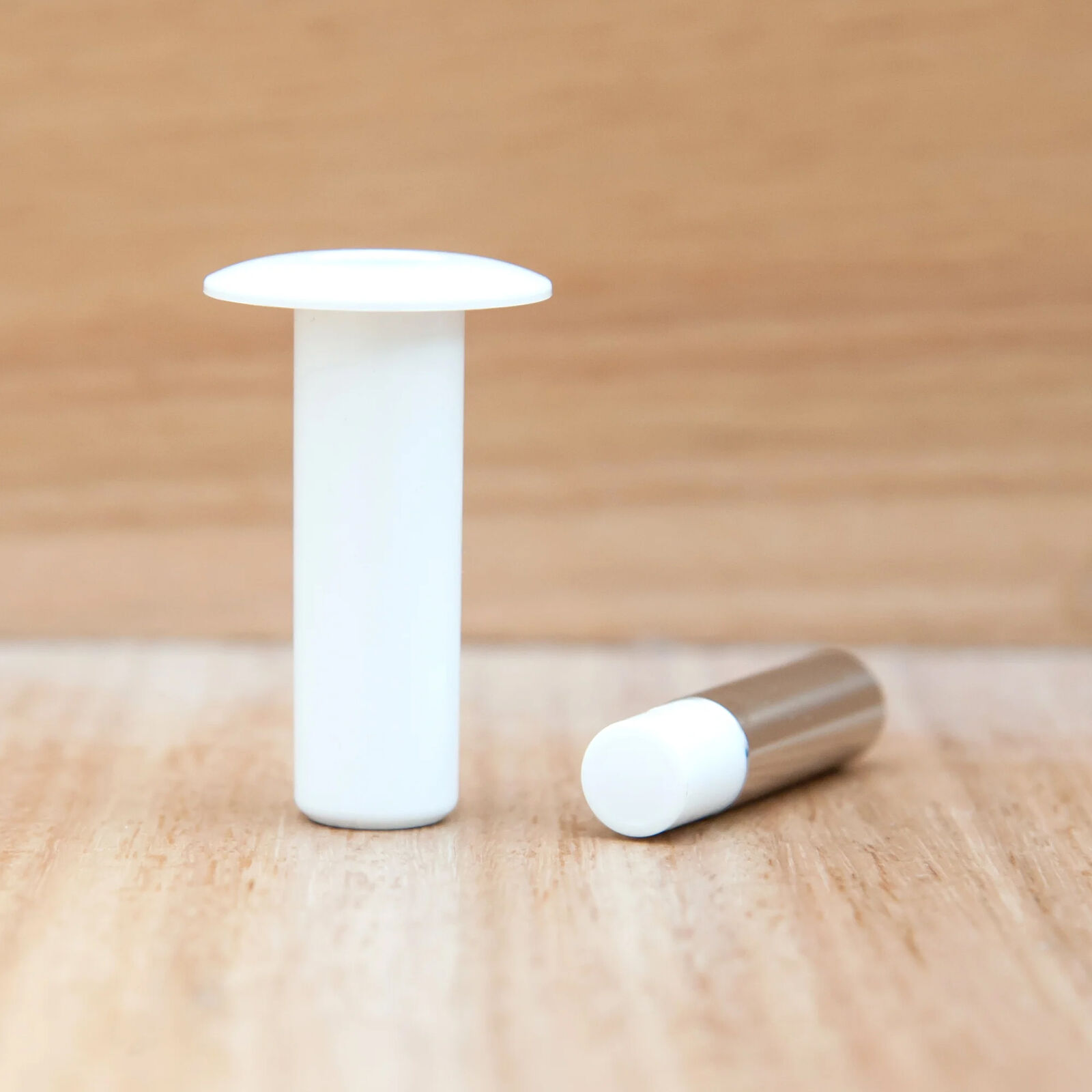

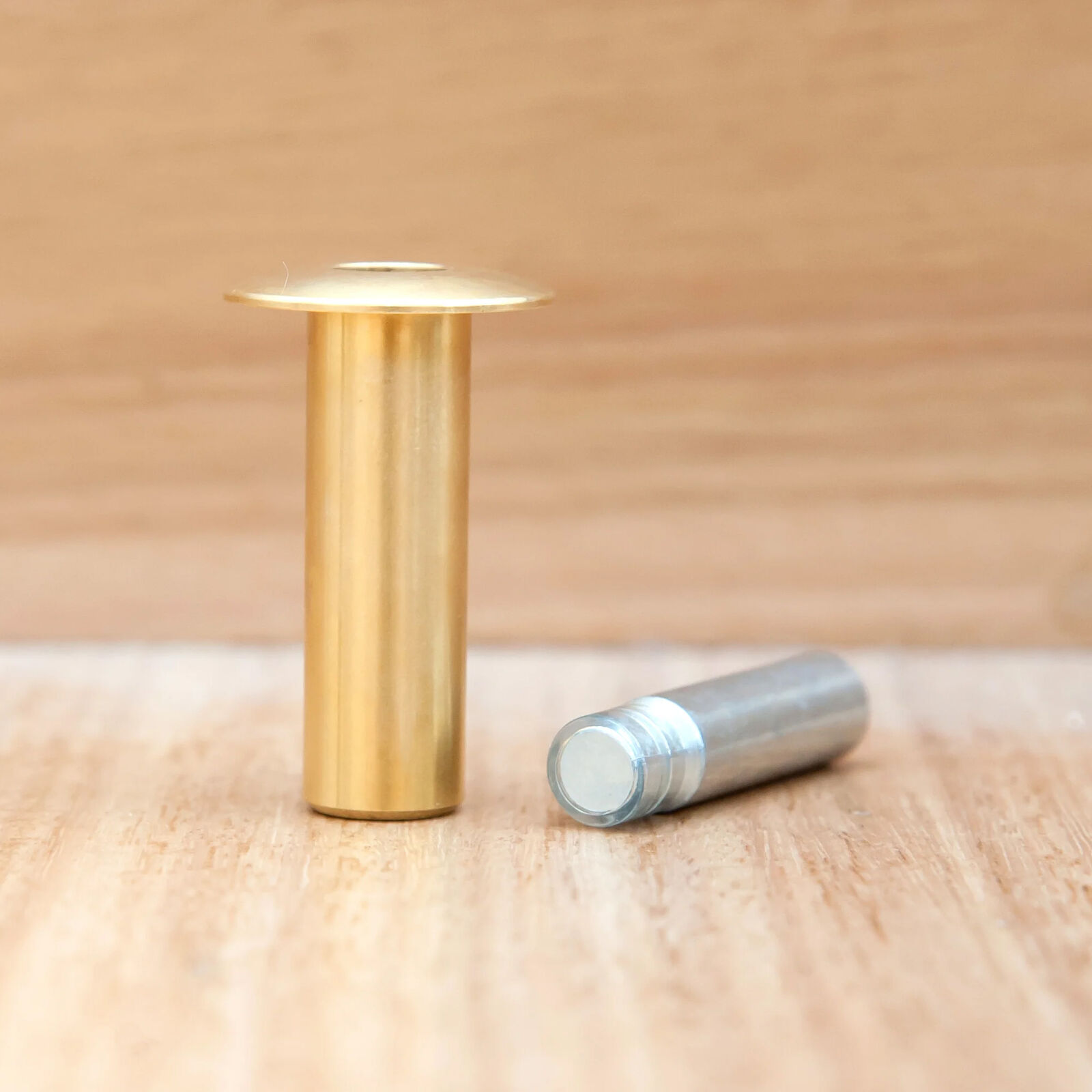

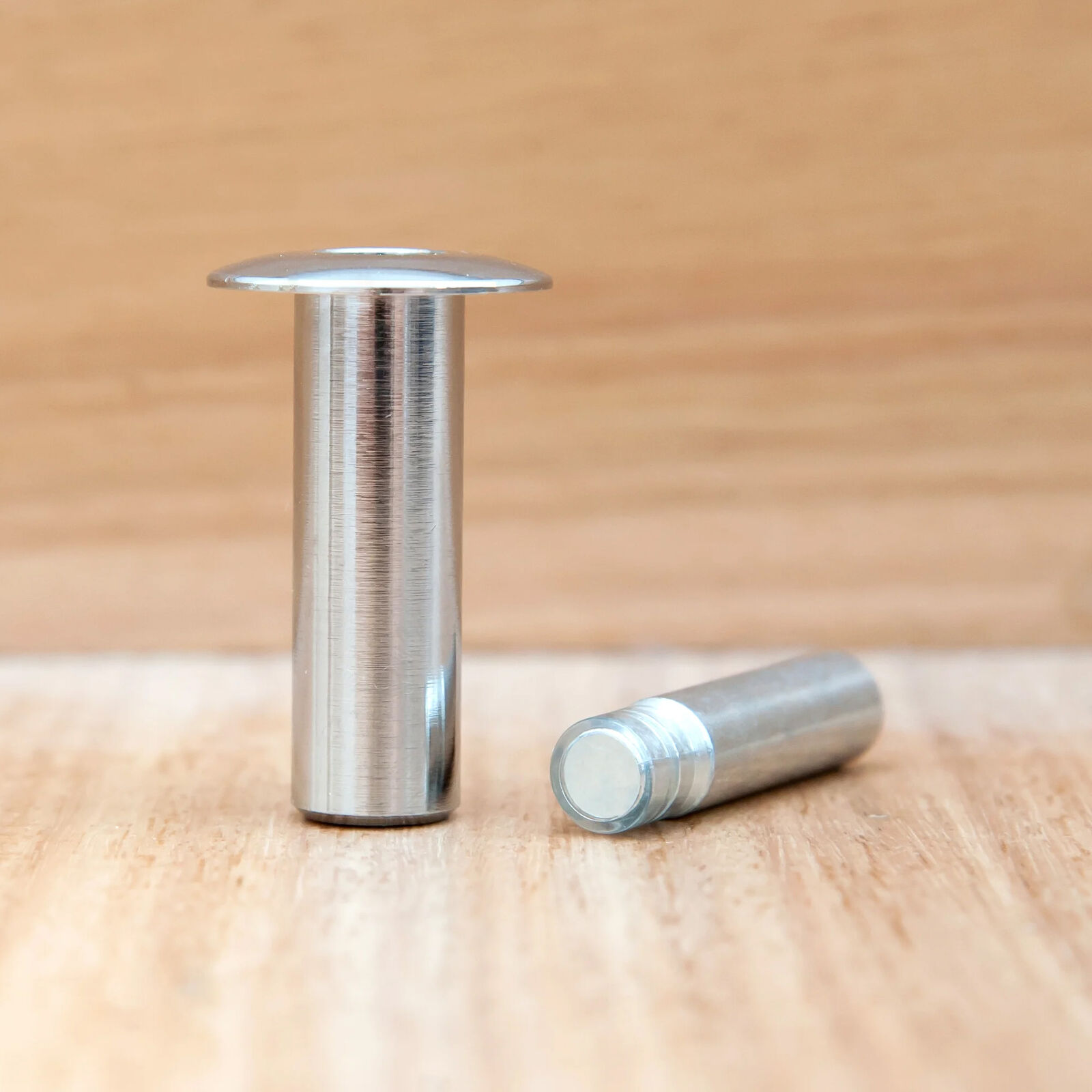

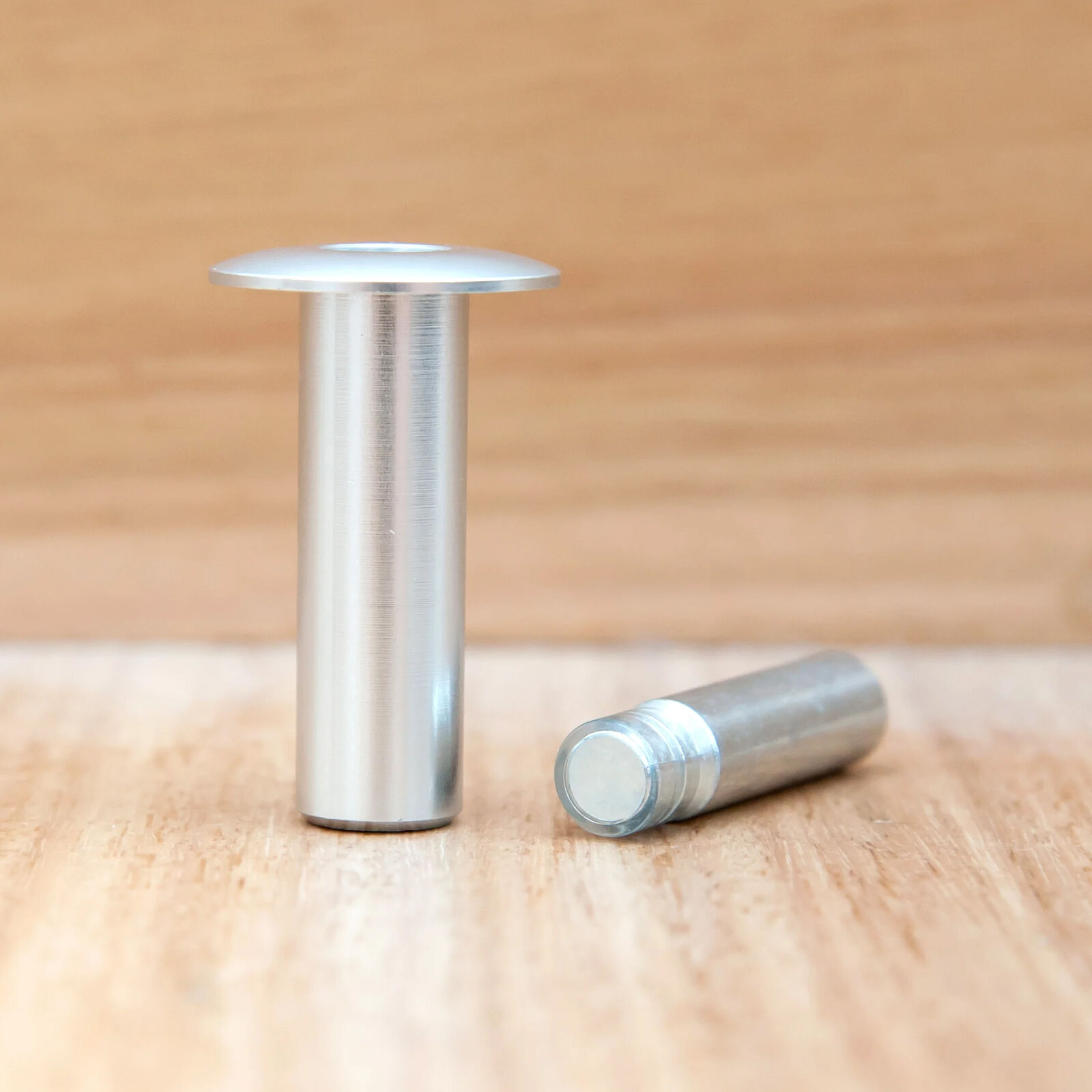

Fantom Barn Door Flush Mounted Concealed Magnetic Doorstop
BDCL

Door Stop used to keep a door from opening too wide.

Door Stop Function - prevents doors and handles damaging walls and fixtures. The black rubber buffer gives further protection for door finishes.

Features:

• Flush mounted magnetic doorstop with hold-open function
• Provides a high-quality innovative solution for all project application requirements
• Suitable for use in both the open and closed positions
• Soft close feature
• Smooth activation and deactivation
• Provides a firm hold at the closed position
• Removes door wobble

Specifications:

• Area of Application: Sliding doors made from wood, metal/Steel* or Aluminium* for indoor use

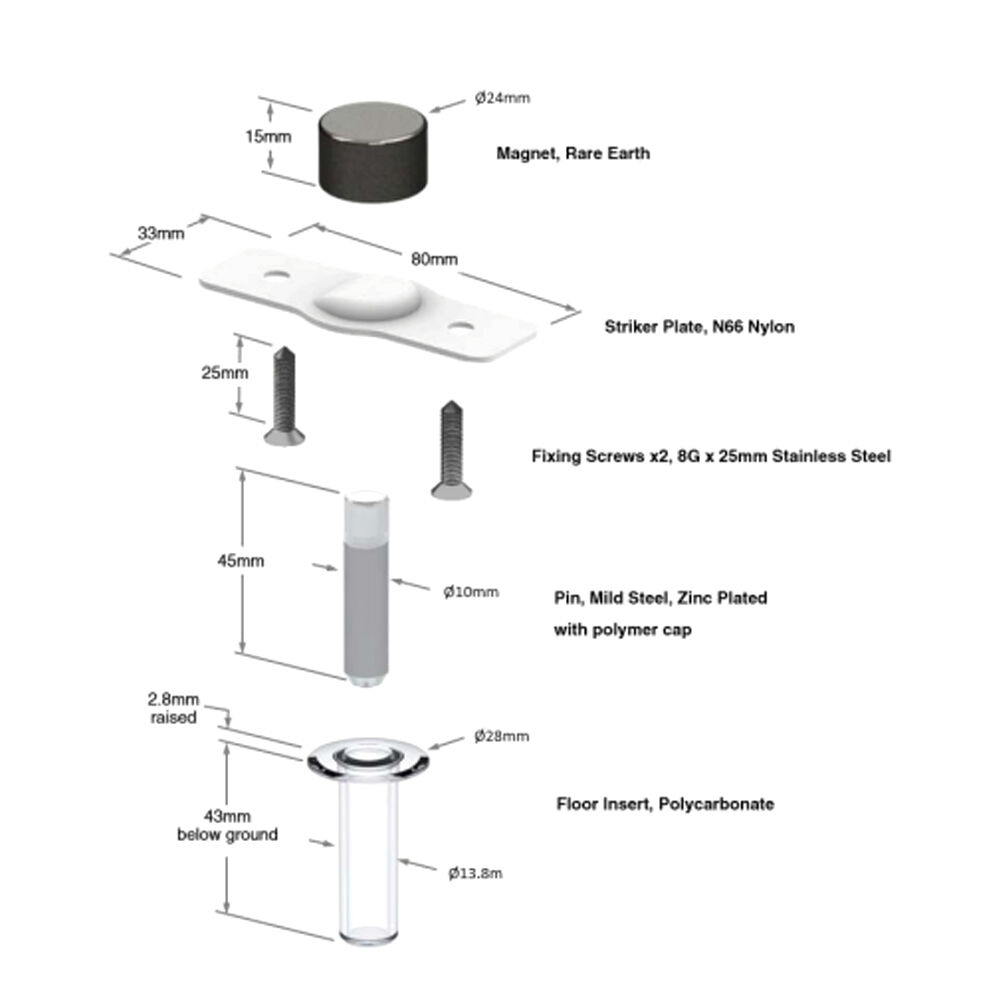

• Installation:
  • Floor sleeve: For recess mounting in the floor
  • Striker plate and magnet: For recess mounting in under side of door leaf
  • Location: Can be installed in open or closed position to hold door leaf
• Magnet: N30 Neodymium
• Pin: Low Carbon Steel / Thermoplastic Elastomer
• Striker plate: Nylon

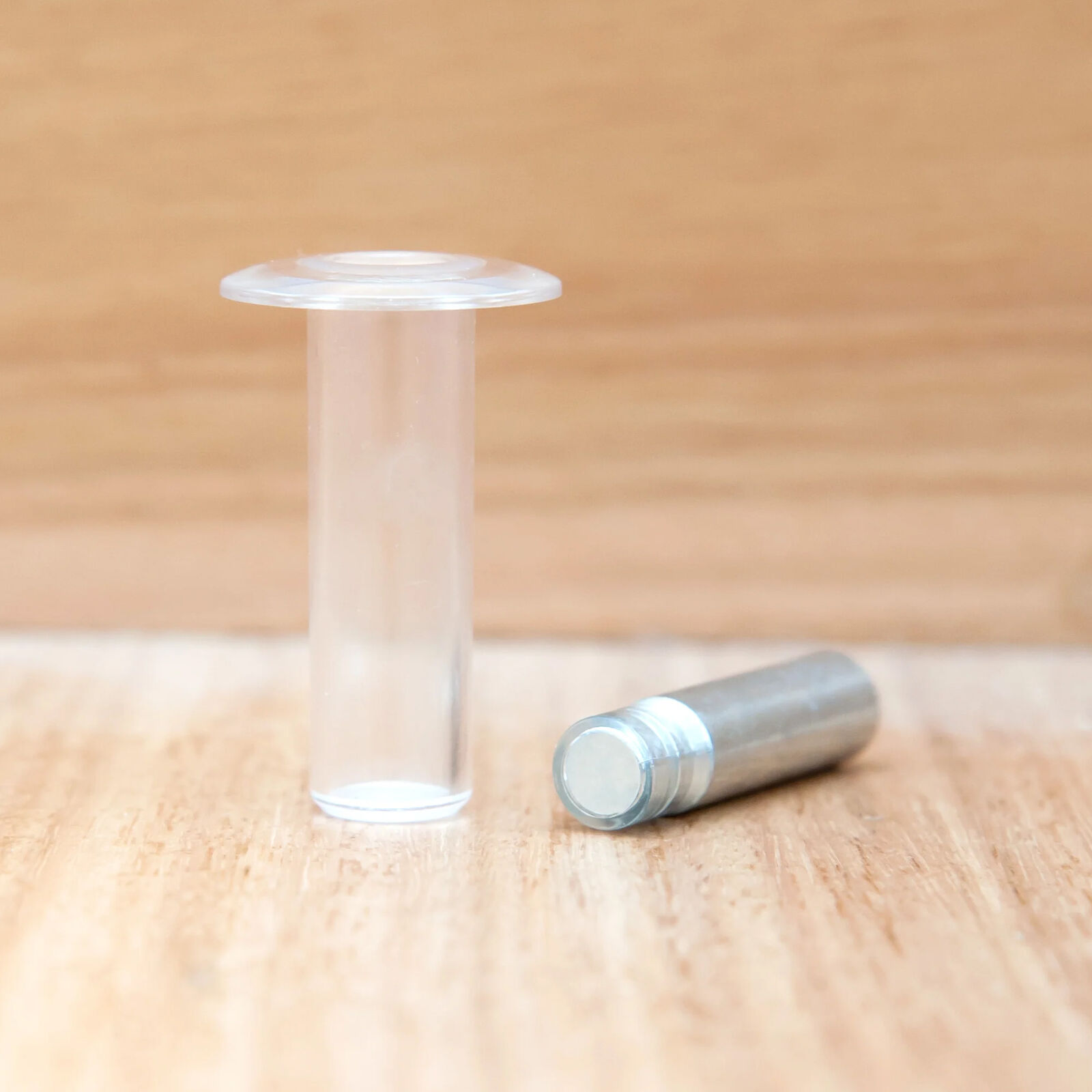

• Finish: Clear

Please Note:

• Recommended gap meauserment between finished foor level and underside of door leaf does not exceed 15mm-20mm
• If the gap is 15mm to 20mm, you can purchase a 5mm Fantom Packer, that can be installed between the underside of the door leaf and the striker plate
• Install with Fantom Magnet housing (not included)
• Can be used on Facemount, Barn and cavity sliding doors
