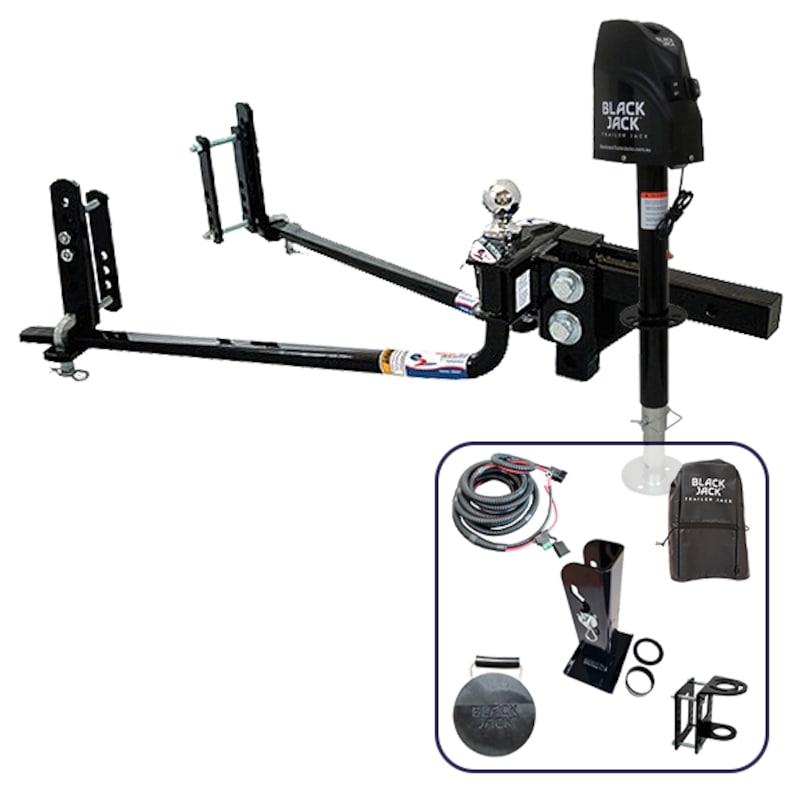

Pack Includes:

• Fastway E2 Round Bar Hitch 8,000lb PR94-00-0800
• Black Jack Electric Trailer Jack with Clamp & Harness Kit BJTJ-1001

With the Fastway e2 hitch there’s nothing extra to buy and install. Nothing extra to store. Nothing extra to remove before you can back into your campsite or make a u-turn. For a faster, easier and safer towing experience, get a Fastway e2 hitch today!

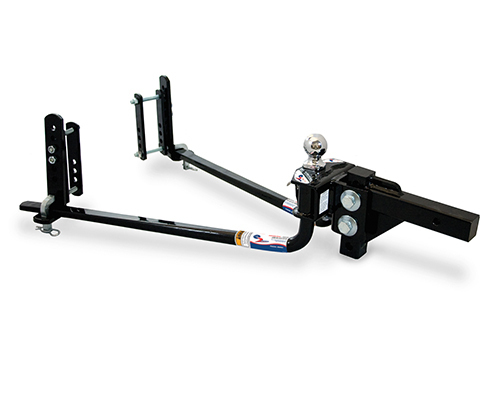

The Fastway e2™ hitch is the best-selling sway control and weight distribution hitch in the USA and is now available in Australia.

For the best and safest towing experience, you need the Fastway e2™ hitch, providing you with fast, easy  connectivity to your trailer without the hassle, chains,  add-on sway bars or dampening arms.

With its built-in sway control, the Fastway e2™ hitch has no reversing, turning, or weather restrictions. It’s rigid brackets in conjunction with the sway control bars give you permanent sway control for smarter, safer towing.  Old style Weight Distribution hitches don’t provide built-in sway control and will usually require you to remove these sway bars before backing-up and making tight turns. The Fastway e2™ hitch is designed so you can get on the road faster and enjoy your drive.

The Fastway e2™  hitch can be used with GTM loads of 8,000lb (3,500 kg), 6,000lb (2,500kg) and comes standard with a 3″ drop rise shank suitable for most vehicles.

BUILT-IN SWAY CONTROL

The Fastway e2™ hitches have the convenience of Integrated Sway Control™ built into the hitch; so you have sway control engaged whenever you are hitched up and towing. The e2™ utilizes unique sway control brackets instead of old ‘add-on’ sway bars or cam type attachments that are added to chain style hitches. Integrated sway control offers many benefits including no backing or turning restrictions, and simple and easy to understand adjustments. Built with sway control in mind, the e2™ hitch is better than a chain style hitch with add-on sway control devices.

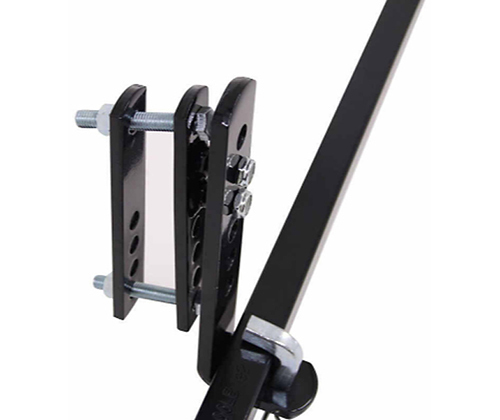

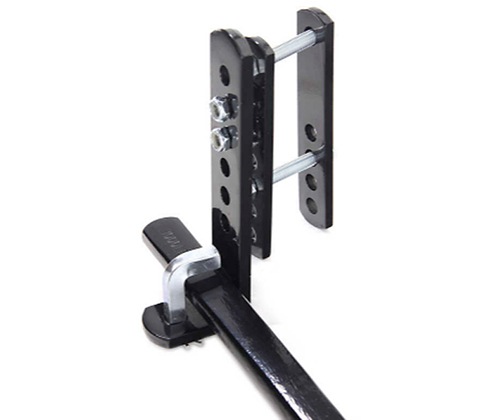

SWAY CONTROL BRACKETS

The unique rigid sway control brackets provide the convenience of integrated Sway Control™ through two points of linear steel on steel friction. Instead of the spring arm swinging back and forth freely at the bottom of a chain, e2’s spring arms rest on top of a bare metal bracket. This improvement alone significantly reduces driver fatigue and stress while towing, not to mention making it easier to use than chain style hitches on the market.

WEIGHT DISTRIBUTION

Without proper weight distribution drivers can experience highway hop, loss of steering control, and sagging of the tow vehicle.

The e2 hitch changes the way the tow vehicle and trailer couple together. It creates a bridge between them, helping them work together like one unit instead of two, and distributing the weight more evenly to the axles of both vehicles. When set up properly, the steering wheels will stay more firmly planted on the ground.

Features:

• Evenly distributes weight over axles of tow vehicle and trailer
• for improved stability and control
• Creates a level ride for both tow vehicle and trailer
• Integrated 2-Point Frictional Sway Control prevents side-to-side movement
• Brackets keep spring bars in place for a rigid system that holds trailer in line. “like its on rails!”
• Steel-on-steel friction prevents sway caused by winds or sudden maneuvers
• No lift chains – eliminate unwanted movement
• Unique design makes system compatible with surge-type brake actuators
• No-drilling! Clamp-on brackets can be adjusted along the trailer A-frame
• Desired tilt is achieved with traditional washer design
• Add or remove washers from spacer rivet to tilt head up or down
• Powder coated steel construction is durable and corrosion resistant
• Snap-up lever eases installation by reducing lifting required by trailer jack
• Australian Standard 50 mm ball included

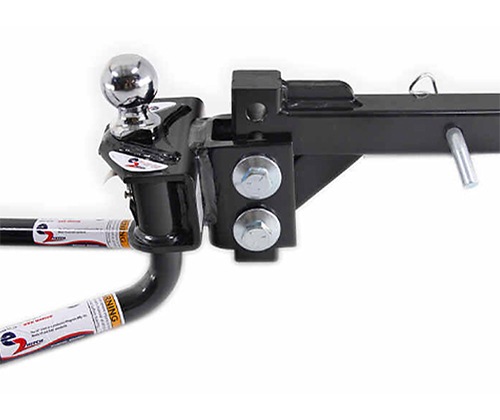

SIZING

The Fastway e2™ Sway Control Weight Distribution Hitch comes standard with a 3” drop/rise shank.  Depending on the height variations between the Tow Vehicle tow bar receiver and trailer coupler you may require larger drop/rise shank which are available in 4”, 6” and 8”. These variations will vary depending on your setup. Refer to the size shank options below to help calculate your required configuration.

Specifications:

• Model Number: PR94-00-0800
• Drop/Rise Shank: Standard 3″
• GTM Weight Sizes: 8,000lbs (3500kg)
• Weight of Hitch: 37-38kg
• Tow Ball Weight Rating: Maximum 350 kg (800lbs)
• Receiver Size: 2 inch
• Finish Colour: Black

Black Jack Electric Trailer Jack with Clamp & Harness Kit

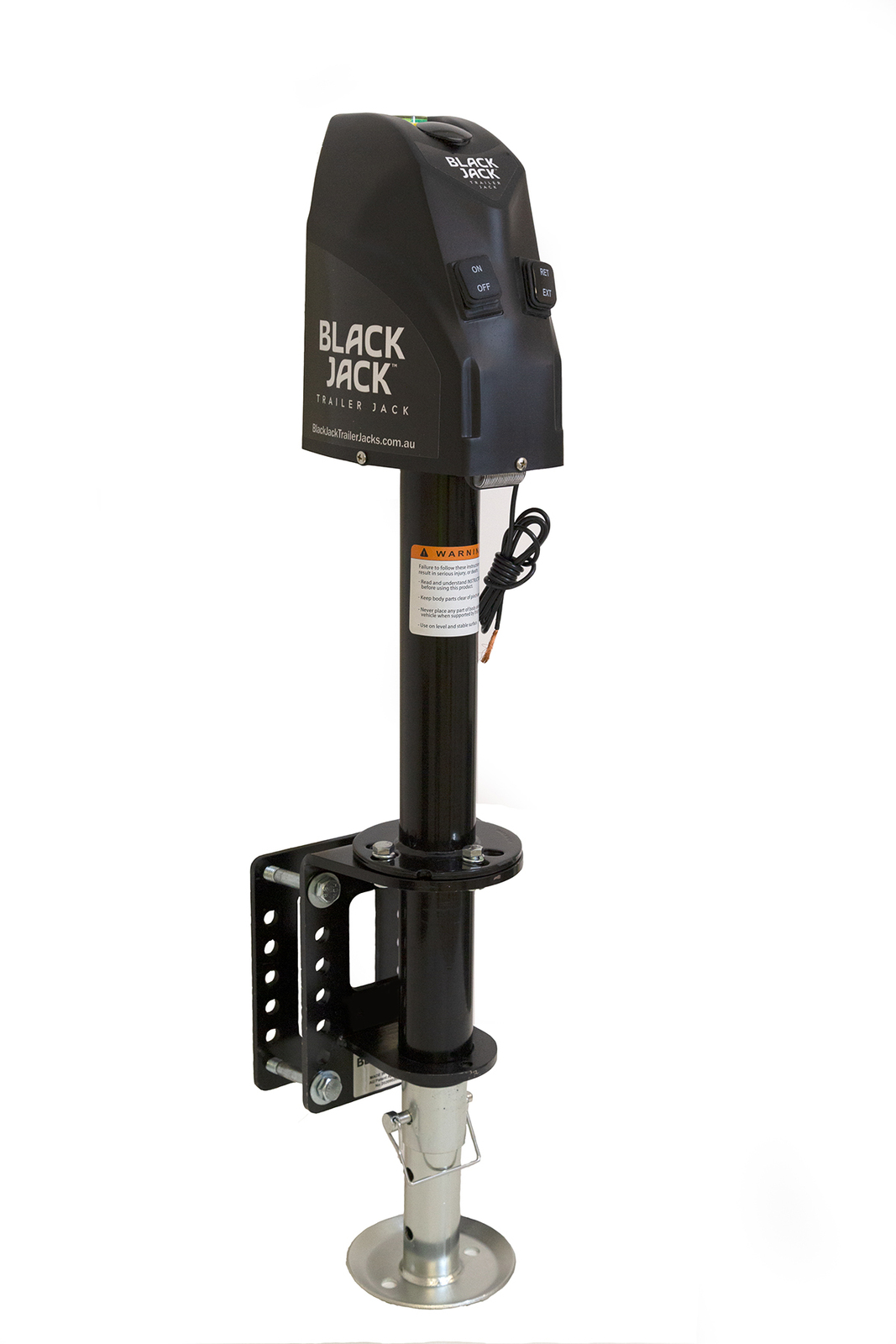

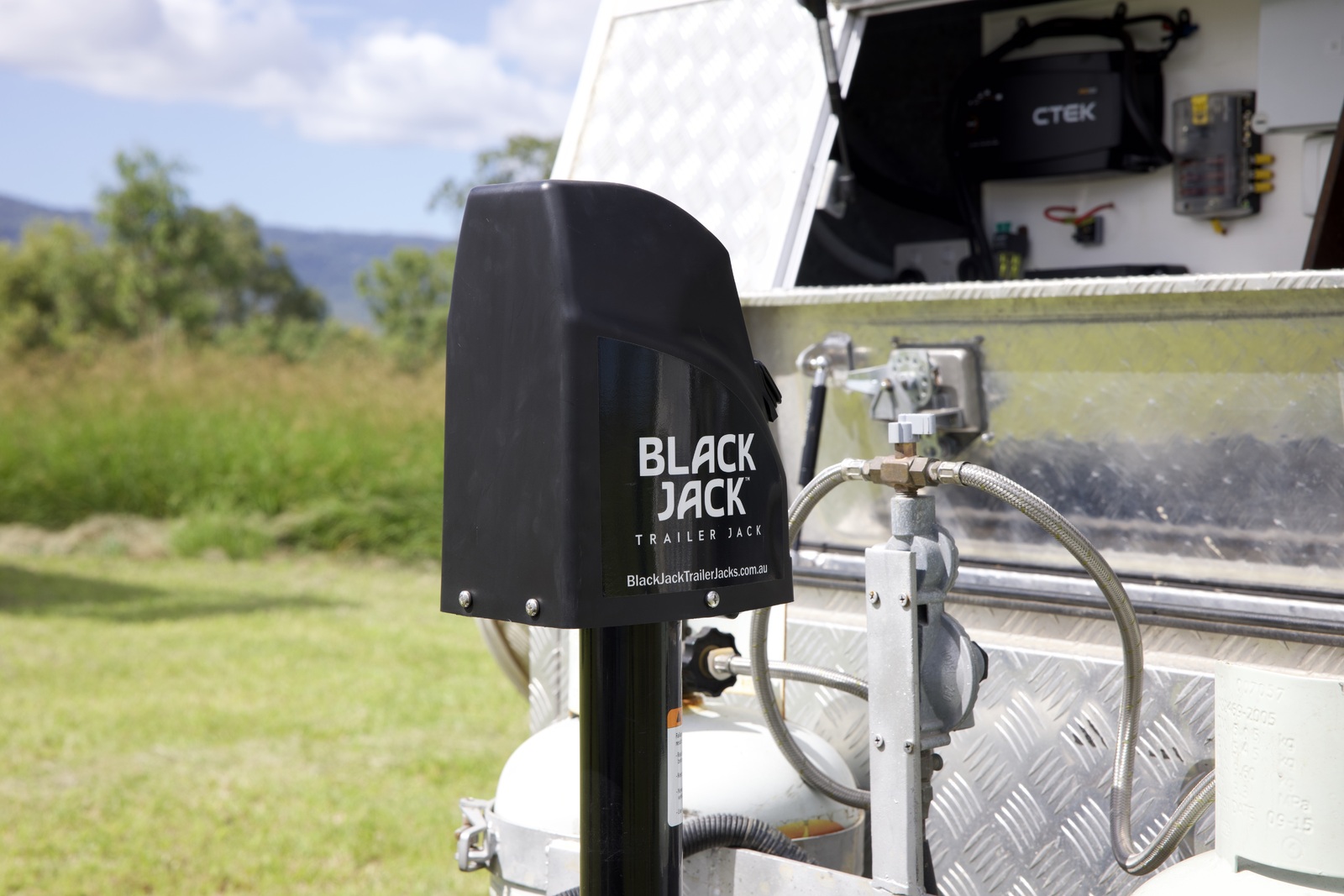

The Black Jack™ Trailer Jack is the simplest, quietest and most advanced electric jack on the market today. Easy DIY installation and insanely simple RAISE\LOWER switch operation.

Hugely popular in the USA, the Black Jack™ now comes complete with the all-weather cover, and the Black Jack Clamp™ allowing uses the ability to easily bolted to the Caravan or Trailer A-Frame. For easier and faster deployment or retraction the Black Jack™ includes the Black Jack™ Folding Foot providing no more bending down to adjust the foot extension height position. Also included is the Black Jack™ Foot Pad giving improved stability on soft or unstable surfaces.

For easy installation, the Black Jack™ installation wiring harness is also included (with BJTJ- 1001)

Kit Includes:

• 1x Black Jack Electric Trailer Jack
• 1x Black Jack Clamp Patented
• 1x Black Jack Folding Foot
• 1x Black Jack Foot Pad
• 1x Black Jack All Weather Cover
• 1x Black Jack Harness

Black Jack Trailer Jack Features:

The Black Jack Trailer Jack Harness Kit saves you time and money by not having to source components when installing your Black Jack Trailer Jack. The ‘DIY’ Harness kit provides the correct protection and process, making your installation a breeze.

Features:

• Pre installed Andersen Plug
• Pre installed 30amp Fuse
• Suitable for Caravans and Trailers.
• DIY saving you time and money on install.
• One size suits most applications
• 5 m of battery cable
• All wires secures in a protective casing

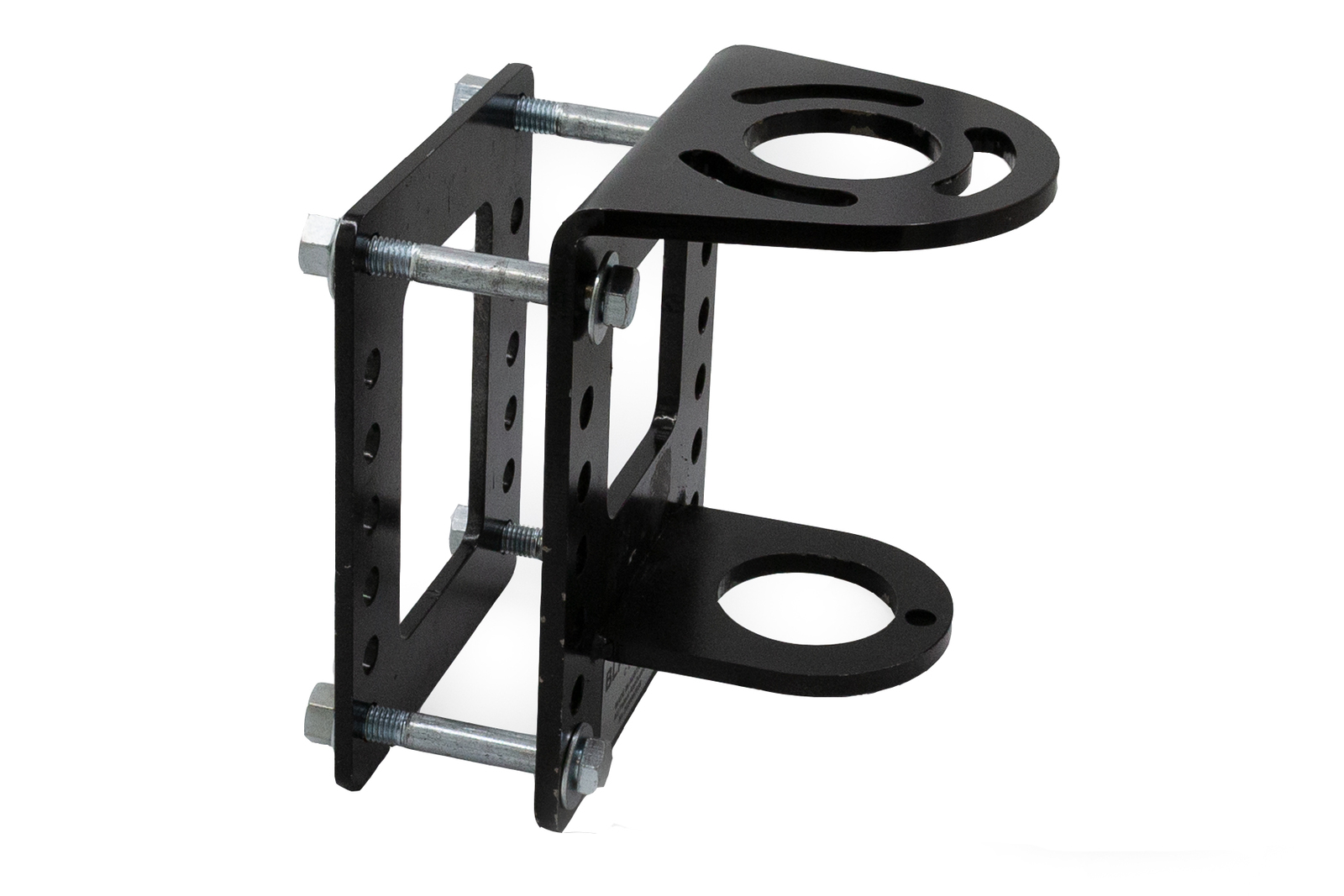

Also Included is the Black Jack™ CLAMP Featuring:

• 6 different chassis bolt hole positions so it fits any Caravan or trailer A-Frame in Australia (6 inch, 5 inch, 4 inch or 3 inch)
• Multiple top hole positions so the Black Jack can be installed facing the front, the side or the rear of the Caravan or trailer. Your choice!
• Panel recess so you can install over the top of existing wire fittings maximizing the options of where to install on the A-Frame.
• Safety chain insert hole so you can hang safety chains on the Black Jack Clamp.
• Upper support and a lower support brackets designed to eliminate any lateral movement that may be caused by uneven surfaces.
• Easy bolt installation. No additional modifications, welding or tools are required.
• Tough powder coated finish
• Australian Patent Pending (No. 2020902039)
• Registered Australian Design
• Made in Australia supporting Australian jobs

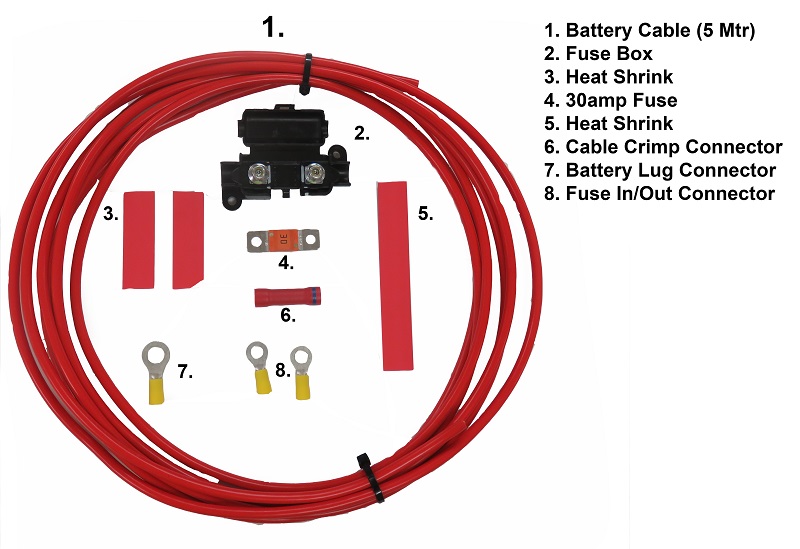

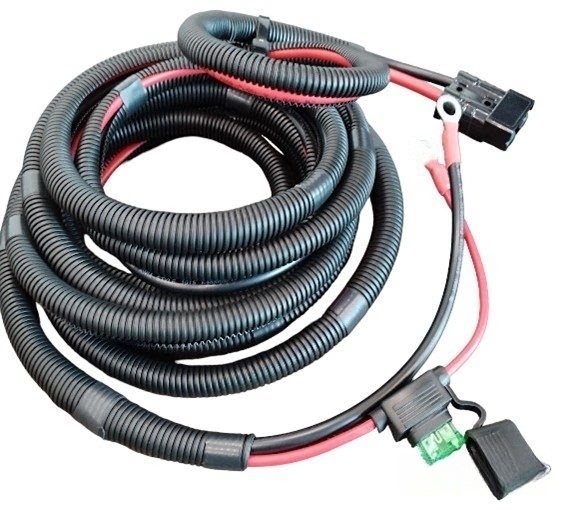

Installation DIY Wiring Harness Kit

This is the full and complete installation kit to connect the Black Jack to the Caravan or trailer 12 volt battery. Includes 30 Amp in line fuse, connectors, grounding wire and 5 meters of battery cable. Makes the whole installation very easy and fun!
