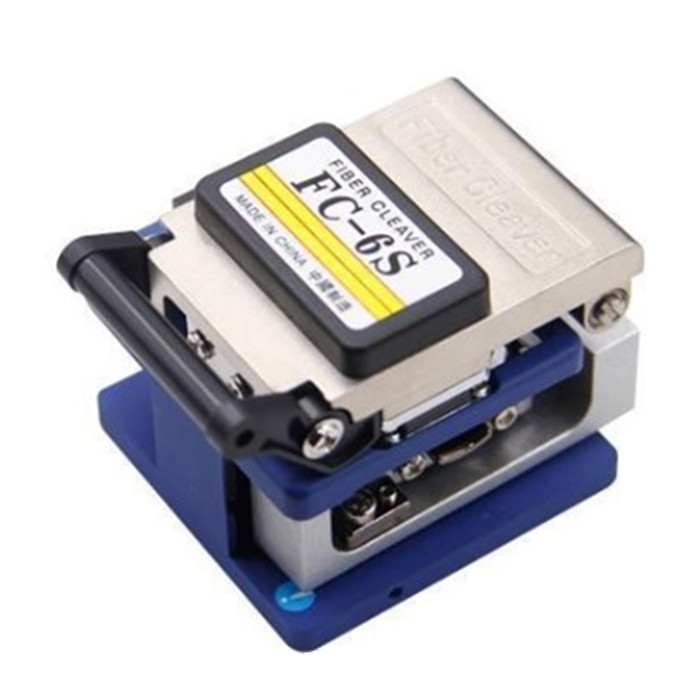

Fc-6S High Precision Optical Cleaver Stripping Cutting Tool Fiber Cutter for Sumitomo

Specifications
Material: Metal
Cutting angle: 0.5 °
0.25mm fiber is 9-16mm
Blade life: 36,000 core
Size: 6.3x7.6x6.3cm
Cutting length: 0.9mm fiber is 10-16mm;
Optical fiber package diameter: 125μm
Covered outer diameter: 0.25 & 0.9mm
Function: Cutting more precise, without any special skills

Features:
- Blade sharp, long life.
- A fiber cut, flat section.
- Small size, easy accessibility.
- High hardness, high strength, wear resistance.

Method of operation
- Please Fiber platen cover the opening and closing lever to lift,
open single fiber jig stamped to confirm the position of the blade slider on the front side
- The fiber is placed in a groove in the clamp single fiber,
the coated boundary line and cut the appropriate light measurement scale length alignment
- Cover single fiber gripper cover, clamping fiber
- Close the platen cover optical fiber, optical fiber plate and put down the lid opening and
closing lever propulsion blades slide, cut fiber
- Lift the platen cover fiber opening and closing lever to open the dental plate cover, hold the
hand edge fiber fiber side open worried removed after the fiber clamp grip cover, remove fiber debris

Packing Included:
1xFiber cutter
1xInstructions
