Fenix Work & Professional TK35UE Rechargable LED Torch Max 3200 Lumens, Powered

Fenix Work & Professional TK35UE Rechargable LED Torch Max 3200 Lumens, Powered


Fenix Work & Professional TK35UE Rechargable LED Torch Max 3200 Lumens, Powered by 2 x 18650 Li-ion Batteries, Build-In Micro-USB Charging Port Battery Holder, Reddot Award 2018 Winner Flashlight & Torch, Batteries are NOT Included.

Fenix TK35UE LED Flashlight Ultimate Edition Tactical 2018 Edition XHP 70 LED Rechargeable Flashlight, MAX 3200 Lumens

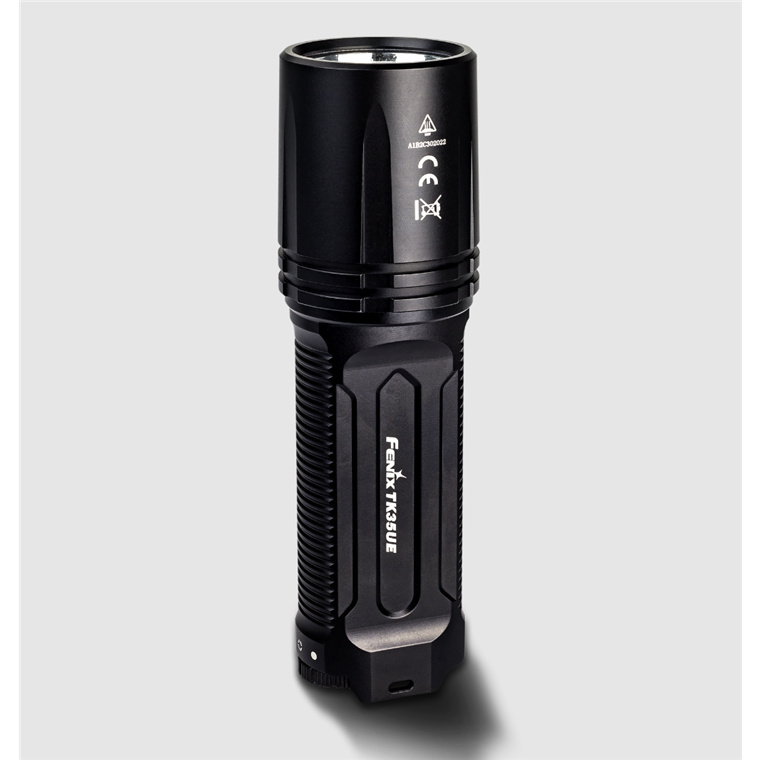

The Fenix TK35UE Ultimate Edition flashlight is newly upgraded with the latest Cree XHP70 LED which delivers a maximum output of 3200 lumens a distance of 984ft (300m). The innovative toggle switch allows you to quickly switch between tactical mode, outdoor mode and the lock-out function. The battery indicator lets you know if the two 18650 Li-ion batteries (not included) are in need of charging via the USB port on the battery holder. Waterproof and dustproof with a max runtime of 152 hours, the TK35UE flashlight is ready to easily meet the needs of any outdoor enthusiast as well as military and law enforcement.















Operating Instruction:

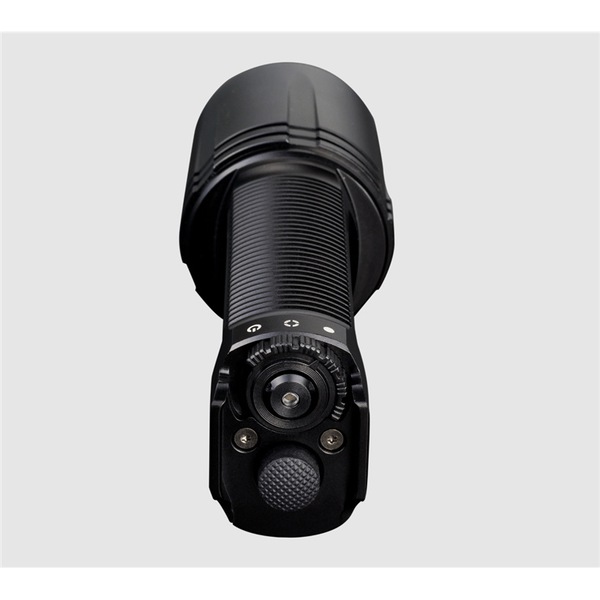

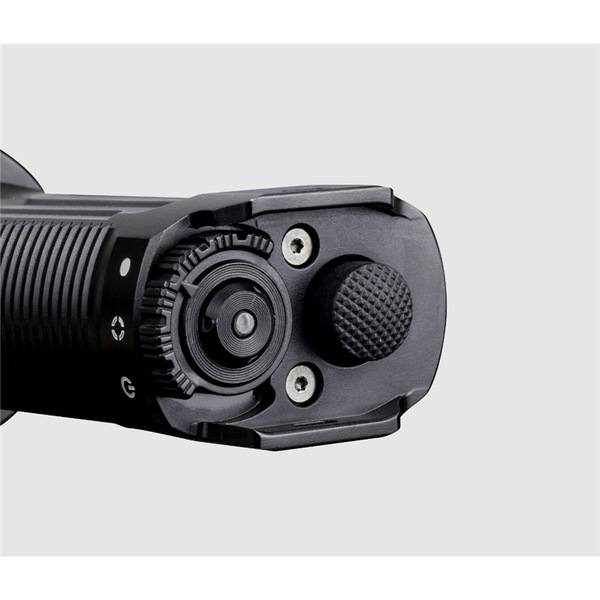

Switches
- The big one is the tactical switch.
- The small one is the functional switch.
- The toggle switch is for mode switching.
Mode Switching: In any state, turn the toggle switch from left to right, to select between tactical, outdoor and lockout modes.
Tactical Mode:
- Tap the Tactical switch to momentarily turn on the light, release it the light will go out. Fully press the Tactical switch to constantly turn on the light, press once again to turn off the light.
- With the light switched on, press and hold the Functional switch over 1 second to enter Strobe, press and hold the Functional switch again for 1 second to return to General mode.
- In Tactical mode, only Turbo on General mode and Strobe on Flash mode are available.
Outdoor Mode:
- Tap the Tactical switch to momentarily turn on the light, release it the light will go out. Fully press the Tactical switch to constantly turn on the light, press once again to turn off the light.
- With the light switched on, single click the Functional switch to cycle through Eco, Low, Med, High, Turbo. Press and hold the Functional switch over 1 second to enter Flash mode, press and hold the Functional switch again for 1 second to return to General mode.
- In Flash mode, single click the Functional switch to cycle through Strobe?SOS.
Lockout Mode: In any state, turn the toggle switch to off mark, the light will go out and enter lockout status, then the Tactical and Functional switches don't work. For security, when Tactical switch is switched on, the battery level indicator on the Functional switch will be lit on to remind that Tactical switch is switched on, turn off the Tactical switch, the battery level indicator will go out.
Instant Strobe: With the light switched off, press the Functional switch to enter instant Strobe, release it the light will return to off status. With the light switched on instant Strobe, then simultaneously press the Tactical switch to constantly lock on Strobe mode.
Intelligent Memory Circuit: The light memorizes the last selected brightness level on Outdoor mode. When turned on again the previously used brightness level will be recalled. Strobe is factory defaulted each time the light is turned on Flash mode.

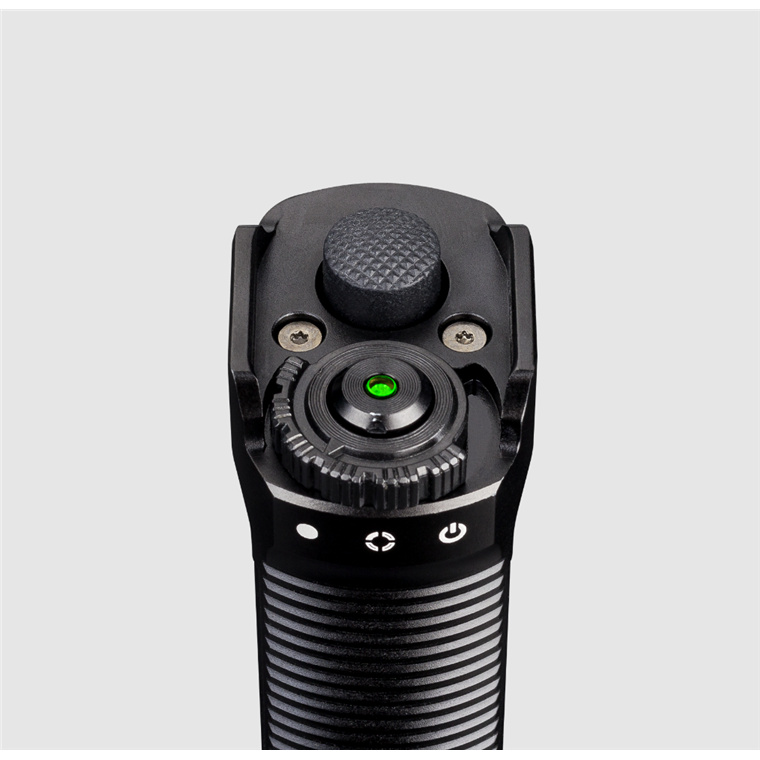

Boot-up Battery Level Indication: Each time the light is turned on, the battery level indicator will automatically display the battery status for 3 seconds.
- Green constant on: saturated
- Green flashes: sufficient
- Red constant on: poor
- Red flashes: critical
Note: This only works on rechargeable LI-ion 18650 battery.
Intelligent Protection: The light will accumulate a lot of heat when it is working at Turbo mode. When the light is overheated up to 65 degrees or above, the flashlight will automatically step down a few lumens to reduce the temperature; when the temperature is lower than 65 degrees, the output will gradually return to Turbo output level.
Low-voltage Warning: When the voltage level drops below the preset level with the light switched on, low voltage warning will be activated automatically, then the battery level indicator on the Functional switch will flash red to remind battery replacement or charging. The flashlight is programmed to step down automatically to a lower brightness level until Eco output is reached. To ensure normal use, the flashlight will not turn off until the battery level runs out or once the battery over-discharging protection activates.
Note: This only works on 18650 Li-ion battery.
Charging:
- The battery holder features charging function with a standard Micro USB port.
- Take the battery holder out of the light, plug the USB port of the charging cable into any USB power supply. and plug the Micro USB side of the charging cable into the charging port of the battery holder.
The charging indicator will display red while charging, and will turn to solid green when fully charged.
Note: Avoid conductive object like coins, screws and keys when taking the battery holder out of the light, to protect from circuit damage caused by electrode short circuit.
Battery Replacement: Unscrew the head to take out the battery holder, and then insert the batteries in accordance with the polarity marks. After loading the batteries into the holder, insert the holder with its convex top towards the light tail. Screw the head back on.
Usage and Maintenance
- Disassembling the sealed head can cause damage to the light and will void the warranty.
- Fenix recommends using excellent quality battery.
- If the flashlight will not be used for an extended period, remove the battery, or the flashlight could be damaged by electrolyte leakage or battery explosion.
- Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
- Periodic cleaning of the battery contacts improves the flashlight's performance as dirty contacts may cause the flashlight to flicker, shine intermittently or even fail to illuminate for the following reasons:
A: The batteries need replacing.
Solution: Replace batteries (Ensure batteries are inserted according to the manufacturer's specifications).
B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
C: The battery protection board is in a protective state and unable to free from it.
Solution: Take out the battery holder and replace it, or replace the batteries.
Warning: This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone's eyes.

Output Lumens
Eco: 20
Low: 100
Medium: 350
High: 1000
Turbo Tactical: 2000
Turbo Outdoor: 3200
Runtime
Eco: 152H
Low: 38H 40M
Medium: 10H 50M
High: 3H 40M
Turbo Tactical: 2H
Turbo Outdoor: 1H 30M
Distance
Eco: 66ft
Low: 180ft
Medium: 328ft
High: 554ft
Turbo Tactical: 764ft
Turbo Outdoor: 984ft
Intencity
Eco: 100cd
Low: 760cd
Medium: 2500cd
High: 7140cd
Turbo Tactical: 13600cd
Turbo Outdoor: 22500cd
Waterproof
IP68 Up tp 2M
Size:
Length: 6.5" (164.5mm)
Body: 1.7" (43mm)
Head: 1.9" (48mm)
Battery
Two 18650 Rechargable Li-ion batteries (Not included)
Weight:
10.1 oz. (286g) excluding battery
Included:
Holster
Lanyard
USB Charging Cable
Spare O-ring
GTIN: 6942870305585
