CHEMTOOLS FG100 10G Flux Gel Tube / Syringe (Nc254) 10G Gel Tube/ Syringe 10G FLUX GEL

Image 1
Hurry! 15 items left!
$20.90

Collect 20 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

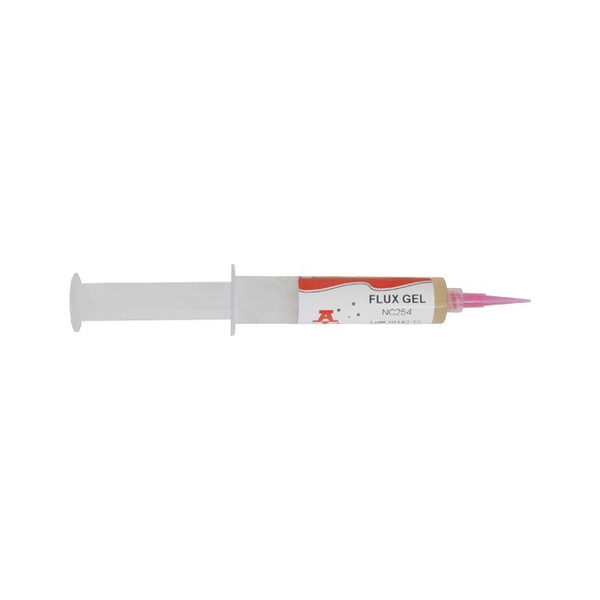

10G FLUX GEL TUBE / SYRINGE

NC254 paste flux is a mildly activated, resin-based formulation developed to offer a broad process window and pin-probeable residues. The superior wetting ability of NC254 results in bright, smooth, shiny, solder joints.

NC254 offers very low post process residues, which remain crystal clear and probable even at the elevated temperatures required for today's lead free alloys. NC254 has shown to reduce or eliminate voiding under micro- BGAs. NC254 also offers high humidity tolerance and a chemistry developed for use in air reflow.

This material has been utilized on various assemblies with RF designs without cleaning; however, the compatibility of flux residues on RF assemblies is strongly dependent upon circuitry design.

FEATURES
  • PIN PROBE TESTABLE RESIDUES
  • REDUCES VOIDING
  • EXCELLENT WETTING
  • AQUEOUS CLEAN WITH SAPONIFIER
  • AIR REFLOW / NITROGEN NOT NECESSARY
  • CAN BE PRINTED, BRUSHED, OR DISPENSED

* Passes BELLCORE and IPC, and Northern Telecom's copper mirror test; product testing results available upon request.

HANDLING
  • When packaged in jars this material has a shelf life 1 year refrigerated or 6 months at room temperature.
  • When packaged in syringes this material has a shelflife 6 months refrigerated.
  • Do not store near fire or flame.
  • Keep paste flux away from sunlight as it may degrade the product.
FLUX APPLICATION

When being used for rework, application should be limited to the area being worked. Application via dispense needle, brush or a cotton swab is recommended.

CLEANING

NC 254 paste flux can be cleaned, if necessary, with saponified water or an appropriate solvent cleaner. Please refer to the AIM No-Clean-Cleaner Matrix for a list of suitable cleaning materials.

PACKAGING

NC 254 paste flux comes standard in syringes, jars, and cartridges.

SAFETY
  • Use with adequate ventilation and proper personal protective equipment.
  • Refer to the accompanying Material Safety Data Sheet for any specific emergency information.
  • Do not dispose of any lead-containing materials in non-approved containers.

Weight: 0.015

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

GTIN: 9342114000356
