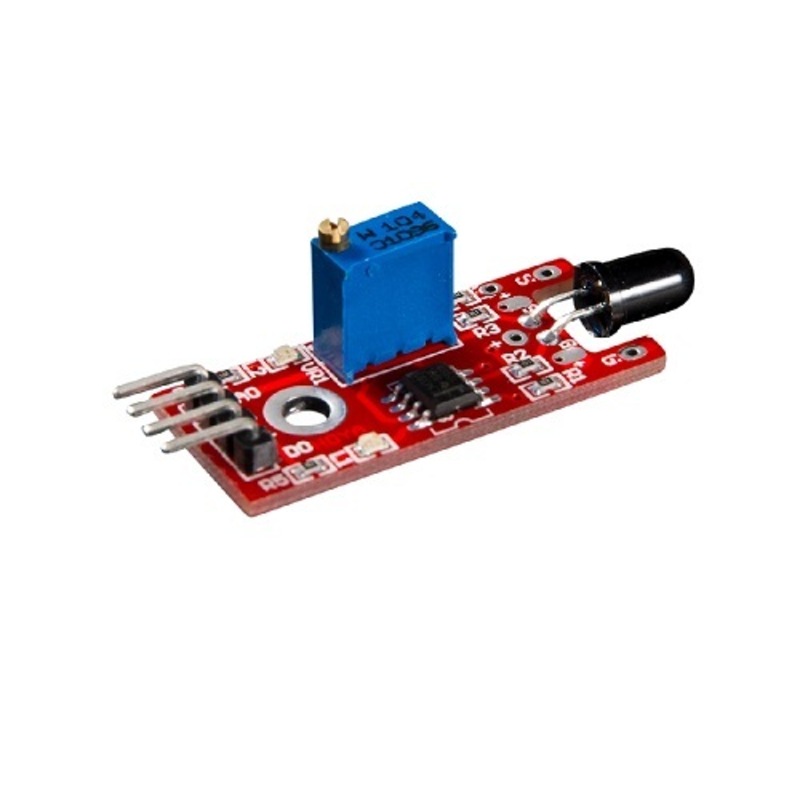

Flame Detector Sensor Module for Arduino Projects
Detects flame or light source

Flame Detection Sensor Module is sensitive to the flame, but can also detect ordinary light. Usually used as a flame alarm, it detects a flame or a light source with a wavelength in the range of 760nm-1100 nm. Detection point of about 60 degrees, particularly sensitive to the flame spectrum. Sensitivity is adjustable, stable performance.

Specifications:

  • Operating voltage 3.3V-5V
  • Output a. analog voltage output b. digital switch outputs (0 and 1)
  • With a mounting screw hole
  • PCB size: 3cm * 1.6cm
  • Power indicator (red) and digital switch output indicator (green)
  • Comparator chip LM393 ,it is stable.
  • Flame detection distance flame test can be triggered within 0.8m, if the intensity of flame is high , the detection distance will be increased.

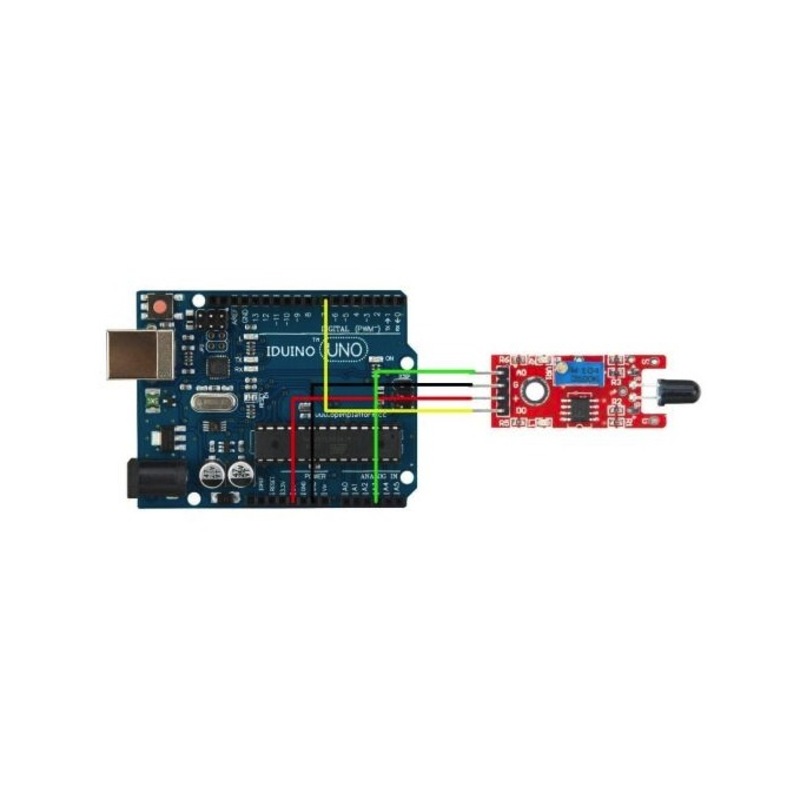

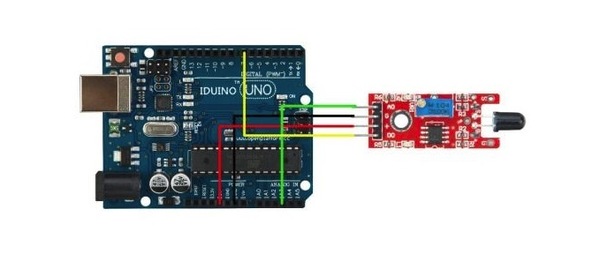

Pin Outs:

  • + -- 3.3V-5V voltage
  • - -- GND
  • DO -- board digital output interface (0 and 1)
  • AO -- board analog output interface
  • On board, digital output interface can be directly connected with the microcontroller IO.
  • Please keep a distance with flame, high temperature maybe burn out the sensor module.



Specifications:

3 Month Warranty

GTIN: 9351634003471

Estimated Delivery Time Frame: 2-10 Business Days
