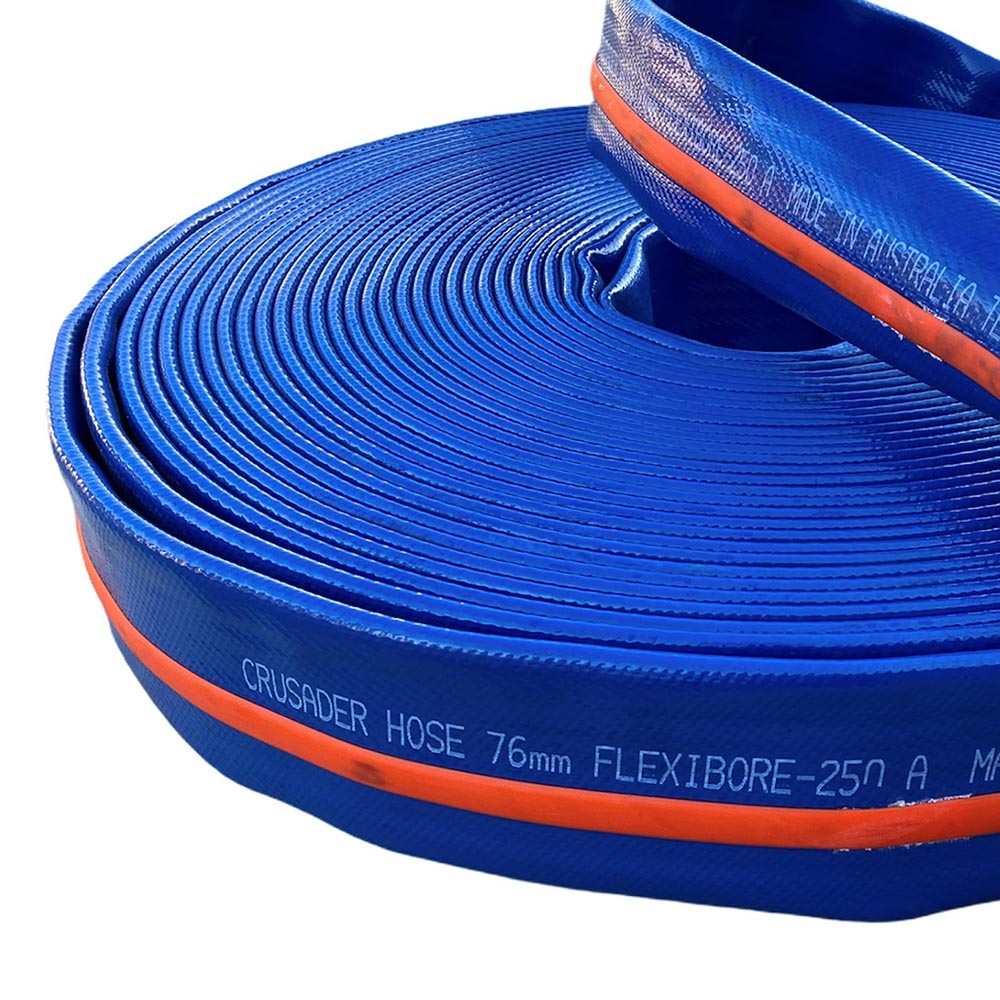

Flexibore 250 Rising Main Bore Water Layflat Hose
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 32 Everyday Rewards points
Collect 32 Everyday Rewards points
Our Flexibore 250 hose in Australia features a highly resilient and long-lasting buildup, which makes it a go-to solution for bore water retrieval, mine de-watering, and municipal water supply. Besides, our Flexibore hose is highly flexible and strong enough to withstand the weight of a submersible pump.
Our Flexibore Hose Specifications
Great Benefits of Our Bore Water Irrigation Hose
Our Flexibore 250 hose connector is made using a combination of highly resilient thermoplastic polyurethane and high-tenacity polyester fibre. This strong combination allows our Flexibore hose to withstand extreme conditions, deliver impactful performance, and last longer.

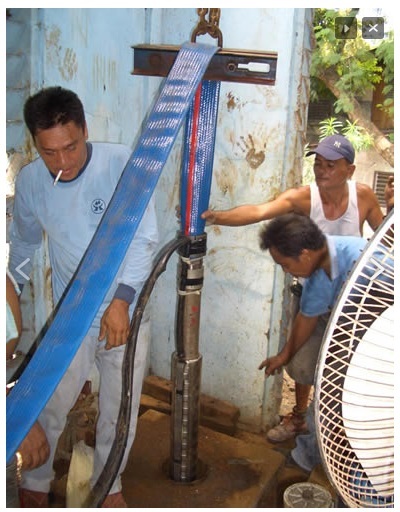

Our Flexible 250 irrigation hose is very easy to install due to its patented couplings, which easily attach to the pump once placed in the field. The pump, attached to the hose and cables, is then lowered into the bore using either a simple rolling wheel or a crane. The easy installation eventually requires less effort, thus reducing labour work and costs.
Our Borewater lay-flat hose has passed rigorous testing by the Australian Water Quality Centre and has been certified AS4020 by it. This means it is potable water approved, which is a major concern in Australia.
Applications of Our Flexibore Hose Fittings 250mm
With its powerful resilience and low maintenance requirements, our Flexibore 250 hose connector is the ultimate solution for bore water retrieval.
FLEXIBORE-250 SPECS SHEET | ||||||
SKU | 143.334.038 | 143.334.051 | 143.334.076 | 143.334.102 | 143.334.127 | 143.334.152 |
MPN | HFB040XUA | HFB051XUA | HFB076XUA | HFB102XUA | HFB127XUA | HFB152XUA |
Nominal Size (inches) | 1. 1/2" | 2" | 3" | 4" | 5" | 6" |
Internal Diameter (mm) | 40 | 51 | 76 | 102 | 127 | 152 |
Burst Pressure (bar) | 72 | 74 | 58 | 52 | 50 | 58 |
Max. Recommended Operating Head (m) | 250 | 250 | 250 | 250 | 250 | 250 |
Peak Tensile Load (tonnes) | 3.5 | 3.2 | 8.3 | 10.0 | 14.5 | 21 |
Max. Recommended Tensile Load (tonnes) | 1.7 | 1.6 | 4.2 | 5.0 | 7.3 | 10 |
Weight of Flexibore (kg/m) | 0.4 | 0.6 | 0.9 | 1.5 | 2.1 | 2.5 |
Outer Diameter of Coupling (mm) | 70 | 90 | 115 | 140 | 170 | 190 |
Weight of Stainless Steel Coupling (kg) | 1.3 | 2.8 | 5.5 | 7.8 | 11.7 | 13 |
Weight of Water at 10% Swell (kg/m) | 1.2 | 2.2 | 3.7 | 8.9 | 14.3 | 19.8 |
Max. Flow Rate (litres/sec) | 4 | 6 | 18 | 40 | 55 | 90 |
Water pH | 3-9 | |||||
Max. Swell |
