Our Flexibore 300 lay flat hose is designed specifically for borewater retrieval and mining. It involves robust construction and high-pressure performance to deliver impactful and consistent performance.
Our Flexibore 300 Layflat Hose Specifications
Amazing Benefits of Our Flexibore 300 Hose Set

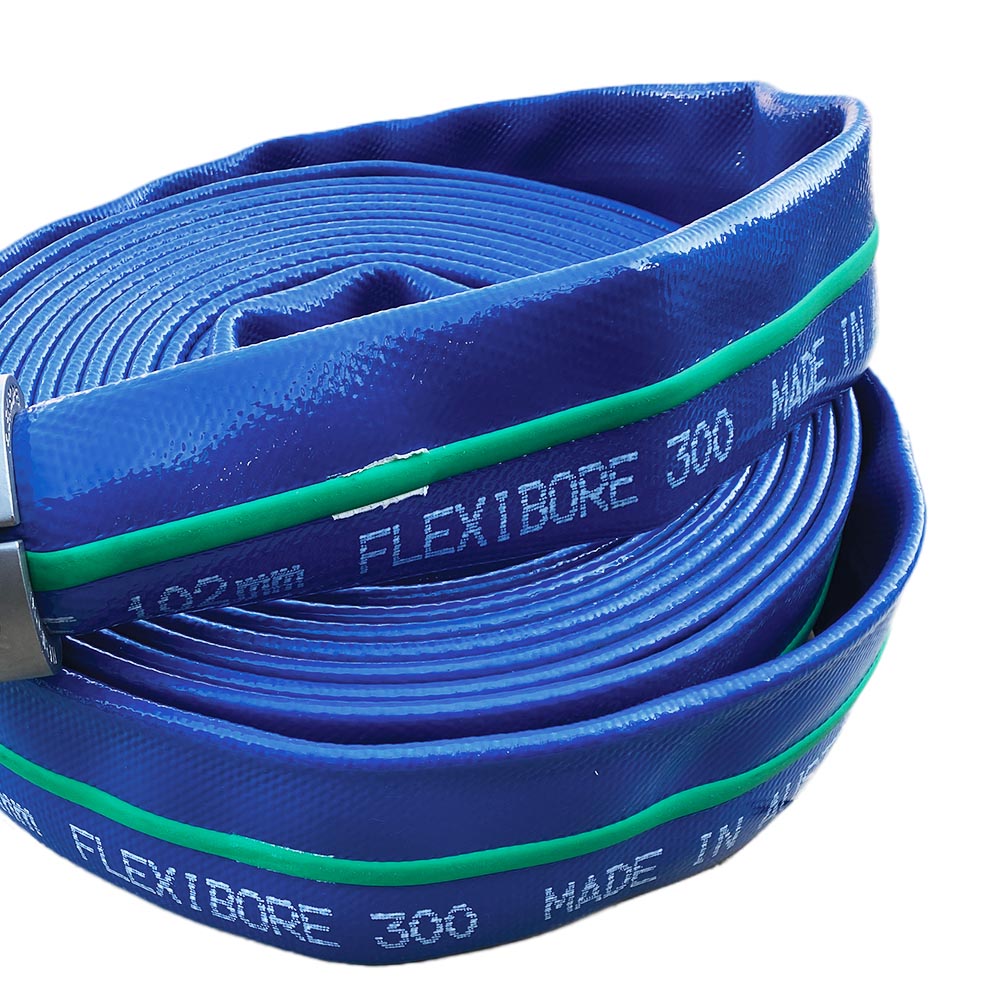

Our Flexibore 300mm hose is manufactured by weaving a textile reinforcement of high-tensile polyester fibre. This provides ultimate strength to our Flexibore hose, allowing it to withstand extreme conditions and deliver impactful performance. It also allows it to last longer, thus preventing frequent replacements and maintenance.

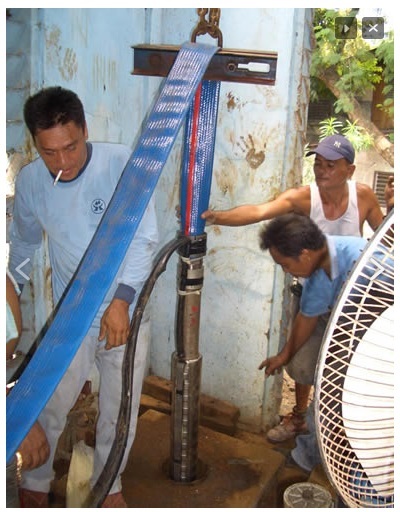

Our Flexibore 300 hose set can be easily attached on-site. A strip with intermittent loops every half metre runs along the length of the hose, ensuring the secure attachment of the electrical power cable to the hose and eventually preventing friction against the bore casing.
Our Flexibore 300 lay flat hose has undergone rigorous testing by the Australian Water Quality Centre and has been certified AS4020. This eventually makes it suitable for harsh Australian conditions, and potable water approved.
Applications of Our Flexibore 300 High-Quality Layflat Hose
Our Flexibore 300 hose set becomes your perfect solution when precision and durability are your primary concerns.
| FLEXIBORE-300 SPECS SHEET | ||||
| SKU | 143.335.076 | 143.335.102 | 143.335.127 | 143.335.152 |
| MPN | HFC076XUA | HFC102XUA | HFC127XUA | HFC152XUA |
| Nominal Size (inches) | 3" | 4" | 5" | 6" |
| Internal Diameter (mm) | 76 | 102 | 127 | 152 |
| Burst Pressure (bar) | 80 | 80 | 70 | 70 |
| Max. Recommended Operating Head (m) | 300 | 300 | 300 | 300 |
| Peak Tensile Load (tonnes) | 10 | 15 | 20 | 25 |
| Max. Recommended Tensile Load (tonnes) | 5 | 7.5 | 10 | 12.5 |
| Weight of Flexibore (kg/m) | 1.5 | 2.3 | 3 | 3.5 |
| Outer Diameter of Coupling (mm) | 120 | 145 | 175 | 195 |
| Weight of Stainless Steel Coupling (kg) | 6 | 8 | 12 | 14 |
| Weight of Water at 10% Swell (kg/m) | 3.7 | 8.9 | 14.3 | 19.8 |
| Max. Flow Rate (litres/sec) | 18 | 40 | 55 | 90 |
| Water pH | 3-9 | |||
| Max. Swell | 10% | |||
| Max Extension | 0.5% | |||
| Max. Operating Temperature | 60 C | |||
| Safety Factor | 2:1 |
