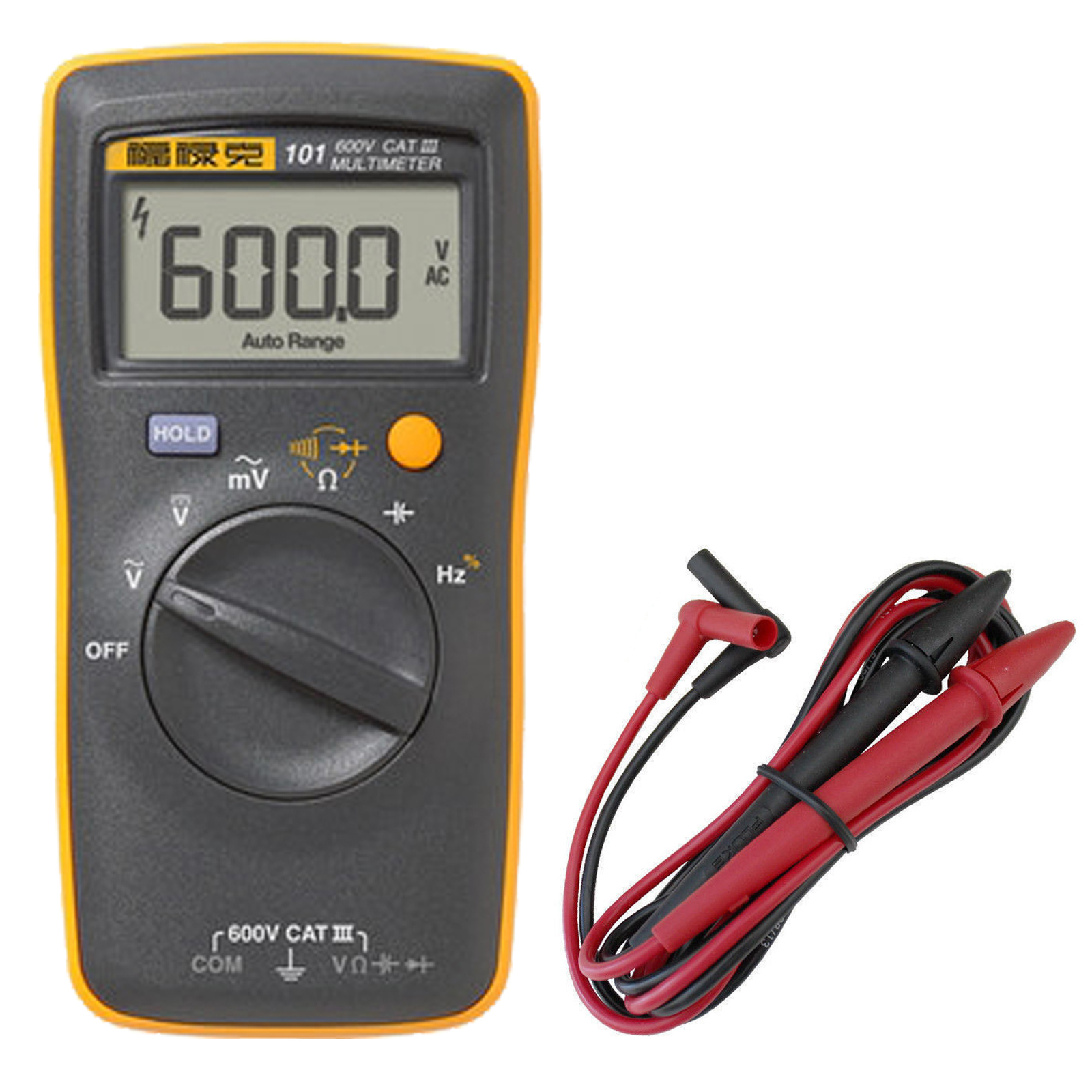

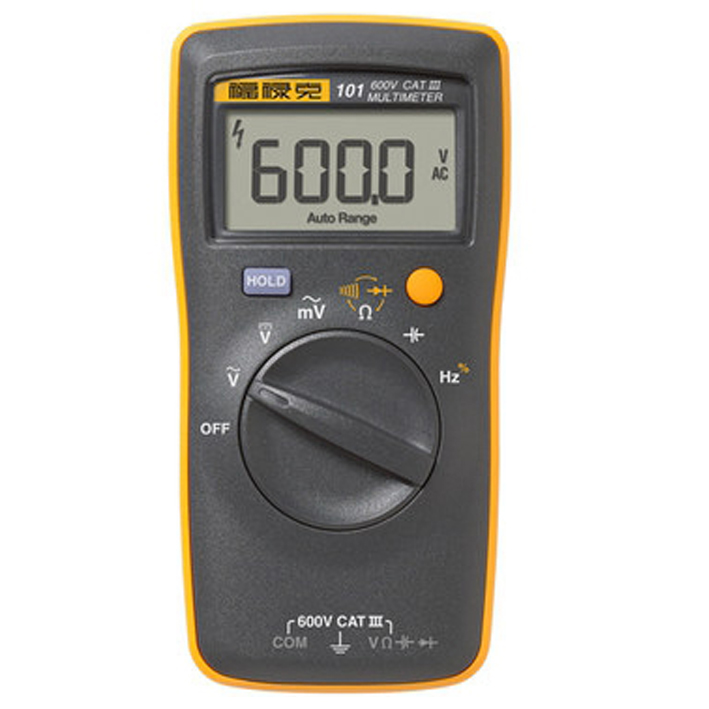

Fluke 600V Cat Iii Handheld Digital Multimeter + Test Probes Large Lcd 101
| General | |
| CAT Rating | CAT III 600 V |
| V AC Range | 600.0 V |
| V DC Range | 600.0 V |
| Ohms Range | 40.00 MΩ |
| Auto Shutoff | Yes |
| Continuity | Yes |
| Capacitor | 100.0 μF |
| Frequency | 100.0 kHz |
| Hold | No |
| Duty Cycle | Yes |
| Size | 130 mm x 65 mm x 27mm |
| Weight | 160 g |
| Battery | Two AAA |
| Environmental Specifications | |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | -30 °C to +60 °C |
| Operating Humidity | Non condensing (<10 °C) <=90% RH (at 10 °C to 30 °C) <=75% RH (at 30 °C to 40 °C) (Without Condensation) |
| Operating Humidity, 40 MΩ | 80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C |
| Operating Altitude | 2,000 meters |
| Storage Altitude | 12,000 meters |
| IP Rating | IP 40 per IEC 60529 |
| Vibration Requirements | MIL-PRF-28800F, Class 2 |
| Drop Test Requirements | -10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment Shipping container drop per Fluke SOP 39. |
| EMI, RFI, EMC | Must meet all applicable requirements in IEC/EN 61326-1 |
| Absorption/Corrosion | Per Fluke SOP 39.1 |
| Temperature Coefficients | Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC |
Electrical Specifications:
| Electrical Specifications | ||
| V AC (40-500Hz) | Range | 600.0 mV 6.000 V 60.00 V 600.0 V |
| Resolution | 0.1 mV 0.001 V 0.01 V 0.1 V |
|
| Accuracy | 3.0%±3 digit 1.0%±3 digit |
|
| V DC | Range | 6.000 V 60.00 V 600.0 V |
| Resolution | 0.001 V 0.01 V 0.1 V |
|
| Accuracy | 0.5%±3 digit | |
| Resistance Ohms | Range | 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ |
| Resolution | 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
|
| Accuracy | 0.5 %±3 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 1.5%±3 digit |
|
| Capacitance | Range | 50.00 nF 500.0 nF 5.000 μF 50.00 μF 100.0 μF |
| Resolution | 0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF |
|
| Frequency (10 Hz – 100 kHz) |
Range | 50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz |
| Resolution | 0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz |
|
| Duty Cycle | Range | 0.1 % to 99.9 % |
| Resolution | 0.1 % |
