Silm design on transmitter for easy handling! This RCÂ system uses a high gain and high quality multi directional antenna, it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission. Each transmitter has a unique ID,when binding with a receiver, the receiver saves that unique ID and can accepts only data from the unique transmitter. This avoids picking another transmitter signal and dramatically increase interference immunity and safety. This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption. AFHDS2A system has the automatic identification function, which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs. AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
Mode 2 (throttle control on left side)Â

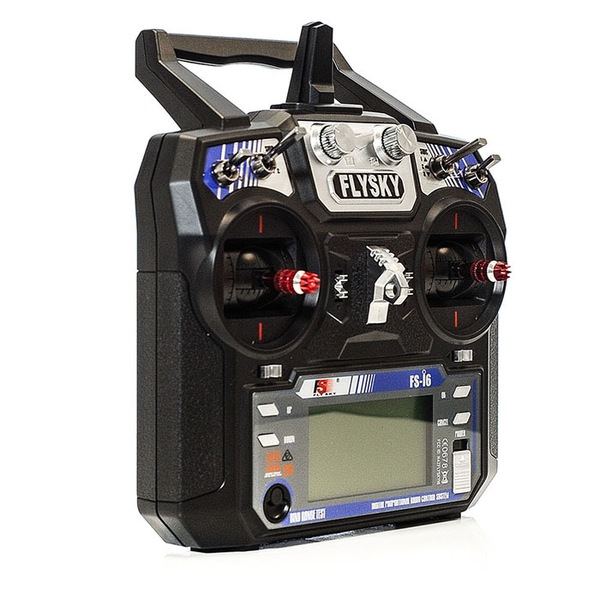

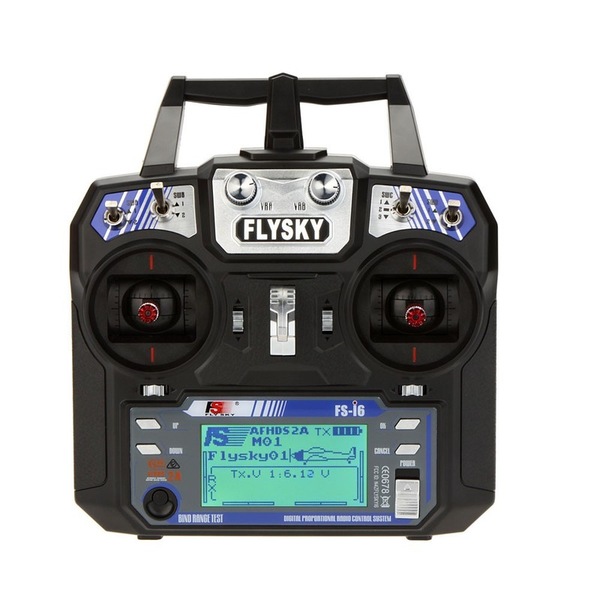

Transmitter :FlySky FS-i6 transmitter
Channel: 6
Model Type: fixed wing/helicopter/glider
Channel resolution: 1024 steps
Low voltage warning: less than 4.2v
Ant length: 26x2mm(Dual antenna)
Weight: 392g
Battery: 6v 1.5AAx4 (Not included)
Size: 174x89x190mm
Color: Black
Reciver Channel: 6 Model
type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK System
type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 6.4g
Antenna lenght: 26mm
Size: 40.4x21.1x7.35 mm
Specifications:
Mode 2 (throttle control on left side)Â
Transmitter :FlySky FS-i6 transmitter
Channel: 6
Model Type: fixed wing/helicopter/glider
Channel resolution: 1024 steps
Low voltage warning: less than 4.2v
Ant length: 26x2mm(Dual antenna)
Weight: 392g
Battery: 6v 1.5AAx4 (Not included)
Size: 174x89x190mm
Color: Black
Reciver Channel: 6 Model
type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK System
type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 6.4g
Antenna lenght: 26mm
Size: 40.4x21.1x7.35 mm

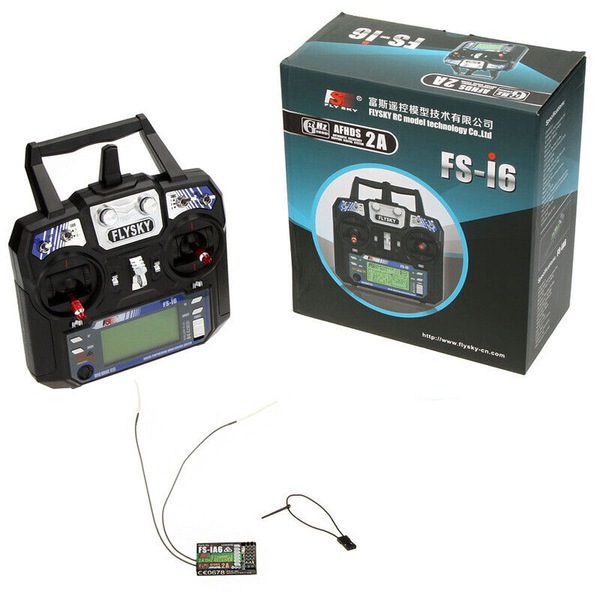

Package Content:
1 x FS-i6 transmitter
1 x Receiver
1 x Bind Cable
