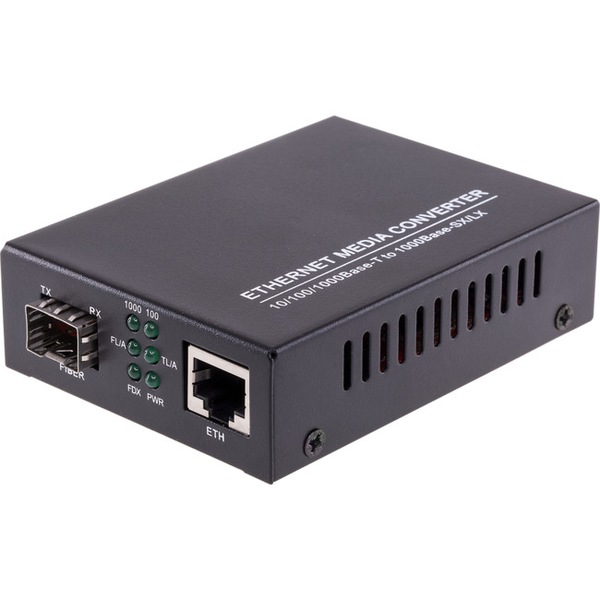

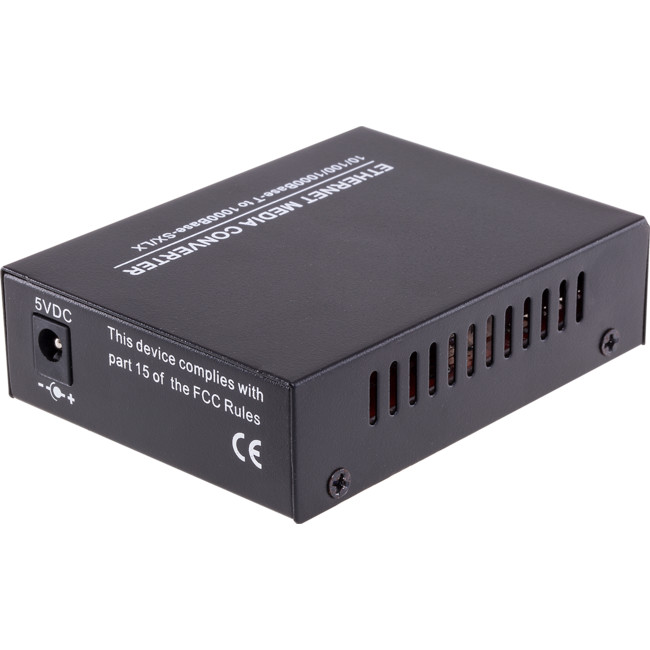

FMC1GBSFP 1G Sfp Slot Media Converter Gigabit Require Sfp Module 10/100/1000Mbps Gigabit Ethernet

FMC1GBSFP 1G Sfp Slot Media Converter Gigabit Require Sfp Module 10/100/1000Mbps Gigabit Ethernet

Hurry! 13 items left!

$34.95

Collect 34 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

Overview

FMC1GBSFP series 10/1001000M SFP slot media converter are effective solution, while uplink interface upgrade or network re-design. It can implement date transmission between twisted pair electrical signals and optical signals (SFP module).

Features

Compliant with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX, IEEE 802.3z 1000Base-FX Standards.
Provide one 10/100/1000Base-T port with RJ-45 connector, one SFP Slot socket.
Full-duplex and half-duplex auto-sensed
Supports Auto MDI / MDI-X function
Supporting the transmission of extra-long VLAN packets
Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
Supporting STP to form a redundant network
Front panel Diagnostic LED Indications

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX, IEEE 802.3z 1000Base-FX, IEEE802.3x Flow control
Wavelength	850nm/1310nm/1550nm
Transmission distance	Up to SFPmodule
Port	One RJ45 connector, connected One SFP Socket
Conversion means	Media conversion
Delay	<10us
BER	<10-9
MTBF	100,000 hours
LED	PWR (power supply); FX LINK/ACT (optical link/action) FDX (FX full duplex); TP LINK/ACT (twisted pairs link/action) TP 1000 (1000M transmission rate of twisted pairs), TP 100 (100M transmission rate of twisted pairs)
Power	AC220 0.5A/DC-48 (built-in)
Power consumption	5W
Operating temperature	-10~55'ŠC
Operating humidity	5%~90%
Maintaining temperature	-40~70'ŠC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	94mm 71mm 26 mm (external power supply)

Available Fibre Media Converters

Code	Model	Ports	Speed	Mode	Dual Fibre	Connector	Distance
09051505		1	100MB	SM	Y	SC	20KM
09051507		1	1GB	SM	Y	SC	20KM
_	_	_	_	_	_	_	_
09051512		1	1GB	MM	Y	SC	550M
_	_	_	_	_	_	_	_
09051550		4	100MB	SM	Y	SC	20KM
09051552		4	1GB	SM	Y	SC	20KM
_	_	_	_	_	_	_	_
09051522		1	1GB	Requires SFP Module, can be SM/MM and LC/SC etc.	_	_	_

Weight: 0.341
