Collect 27 Everyday Rewards points
Dispatch in 2 business days

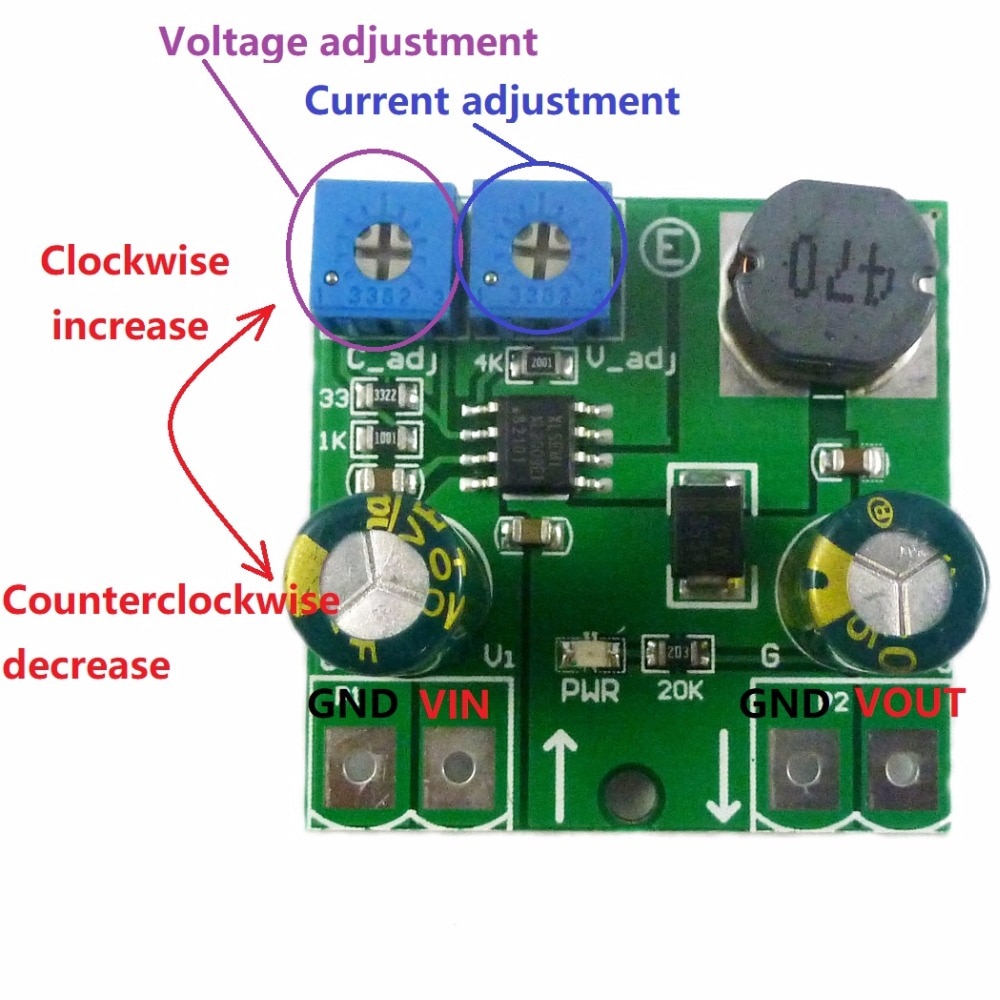

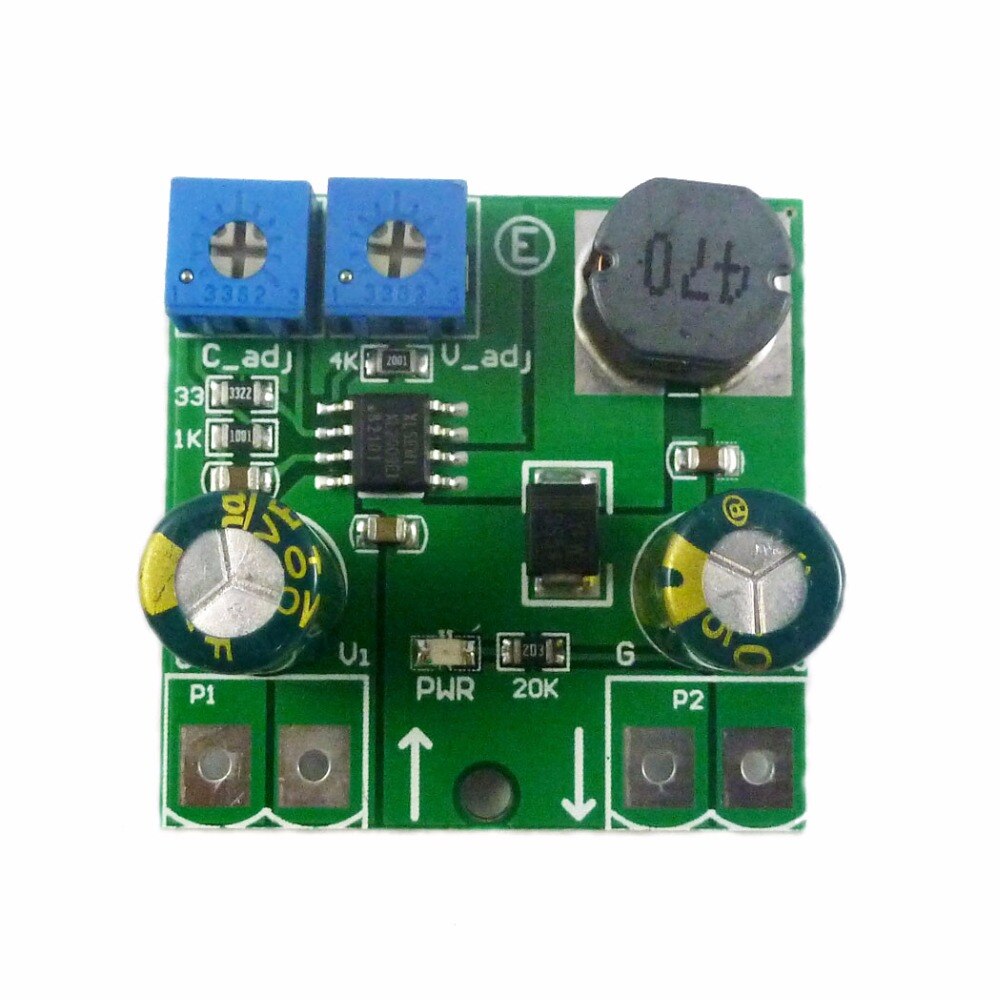

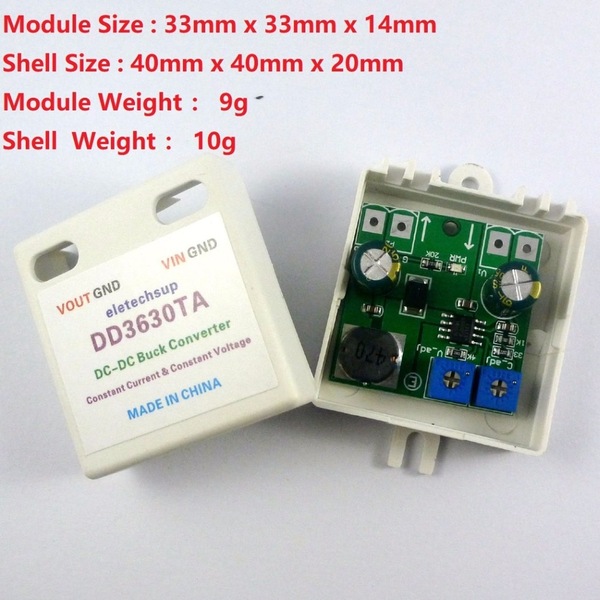

| Description:?? ? Input voltage DC 8~32V,Output Voltage? DC 2~30V adjustable; Constant current adjustable: 0.2-2.5A Maximum output current 2.5A(Maximum output power 15W) DC-DC Step-Down Converter module,Constant current and constant voltage output. Quiescent current: about 2.1mA Overtemperature shutdown, Under-Voltage Lockout (UVLO), and short circuit protection. Operating Temperature :�C40��C to +85��C Module Size : 33mm x 33mm x 14mm Shell Size : 40mm x 40mm x 20mm Module Weight ?? 9g Shell? Weight ?? 10g Applications: MCU ARM STM32 CPU FPGA/CPLD CCTV camera Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee Smart home / home automation Distributed Power Systems Battery Charger Pre-Regulator for Linear Regulators Motor Speed regulation LED? Dimming drive Adjustable resistance description: V_adj : Adjustable voltage output DC 2-30V(Input Voltgae > Output Voltage),Increase voltage clockwise and reduce voltage counterclockwise. C_adj : Adjustable current output 0.2-2.5A(Input Power > Output Power),Increase current clockwise and reduce current counterclockwise. Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself Packing list:1 PCS? 15W DC-DC? Constant current & Constant voltage Module |
GTIN: 774048925853
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7039890
