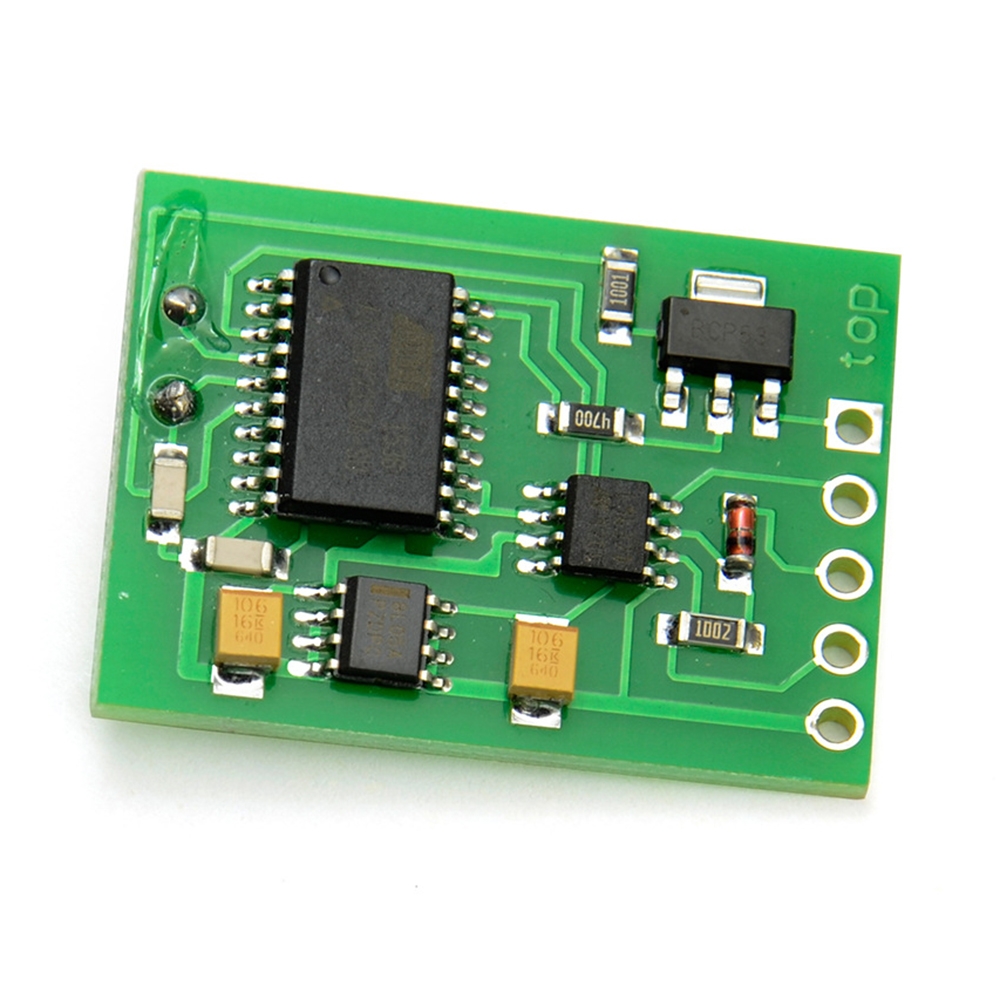

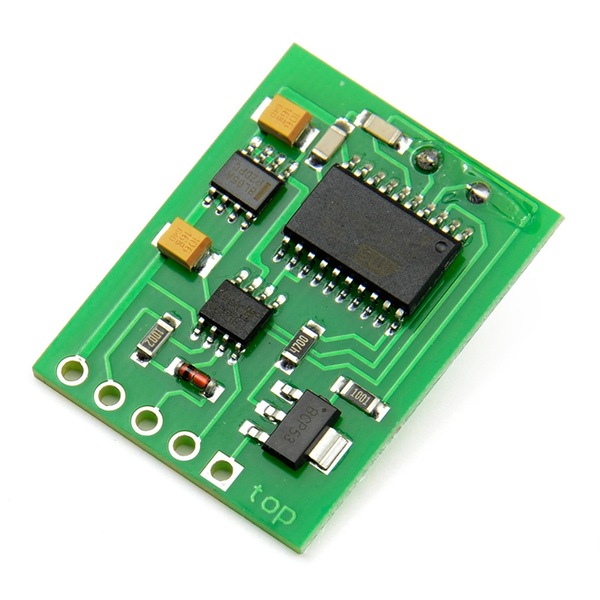

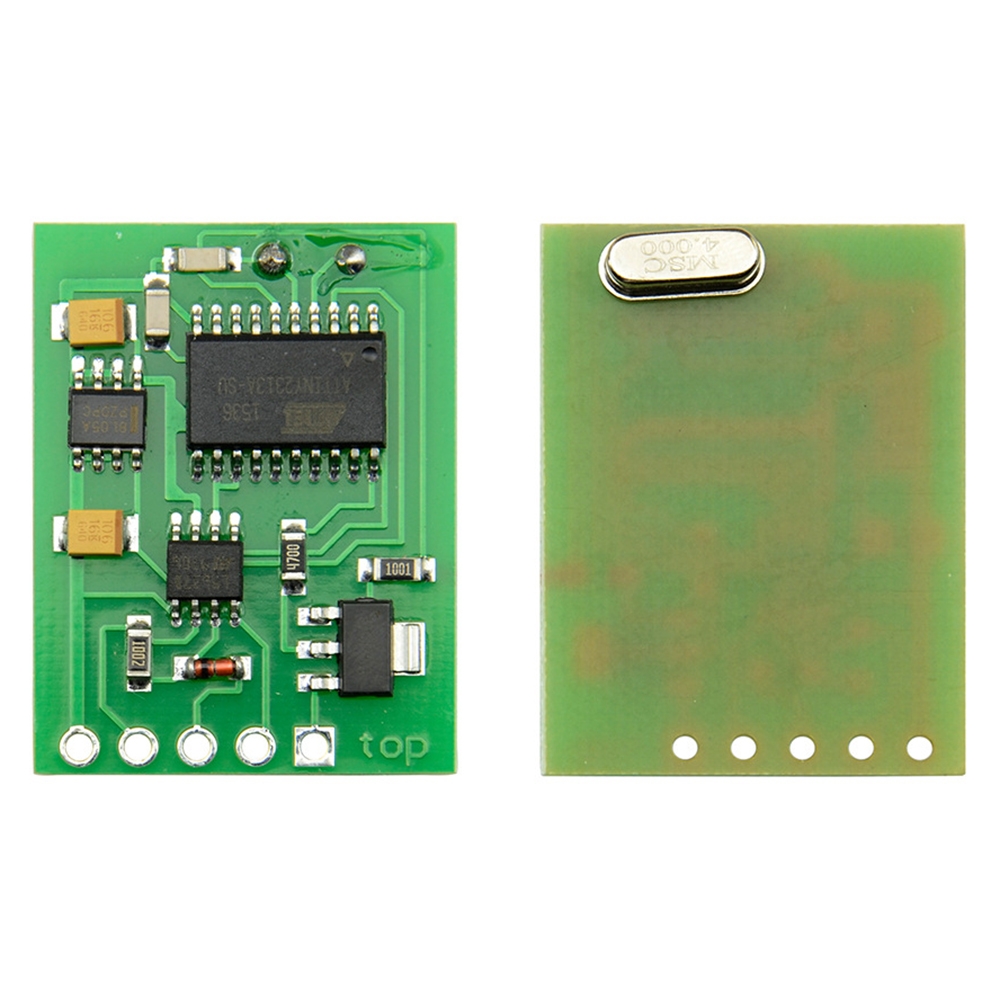

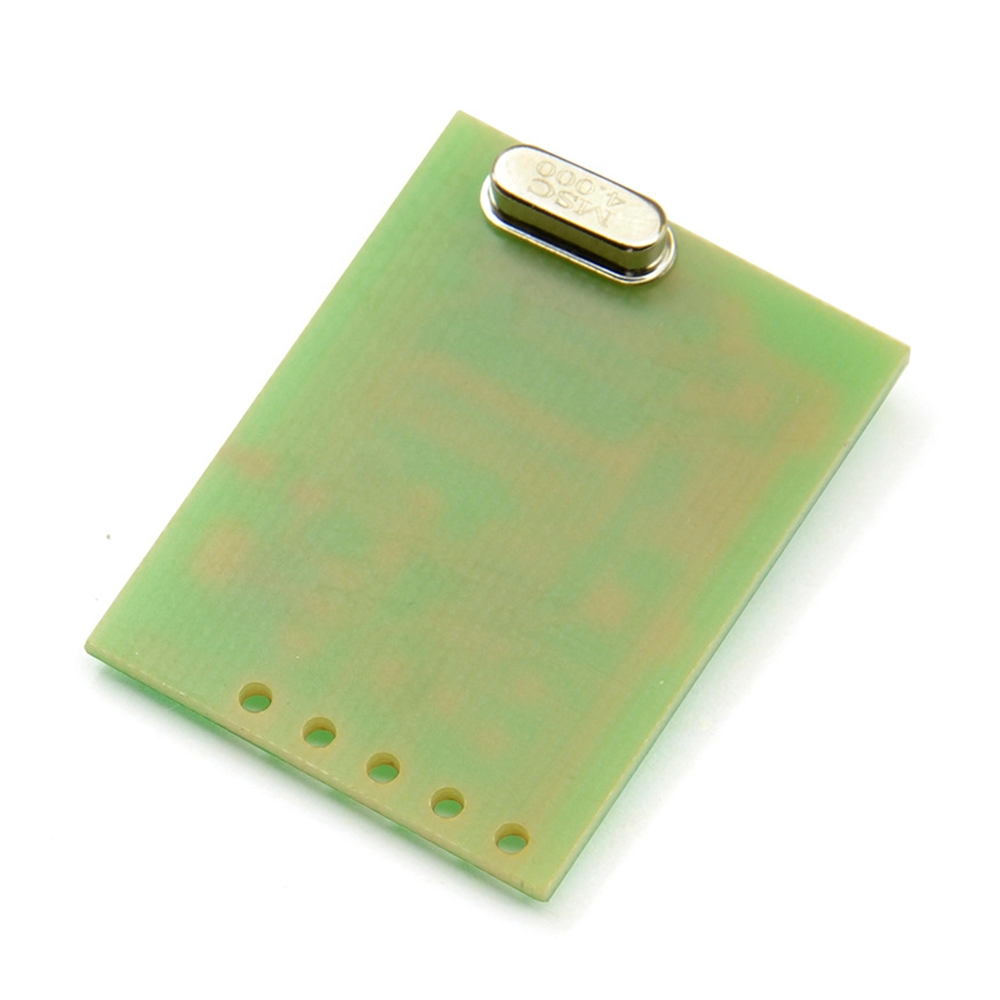

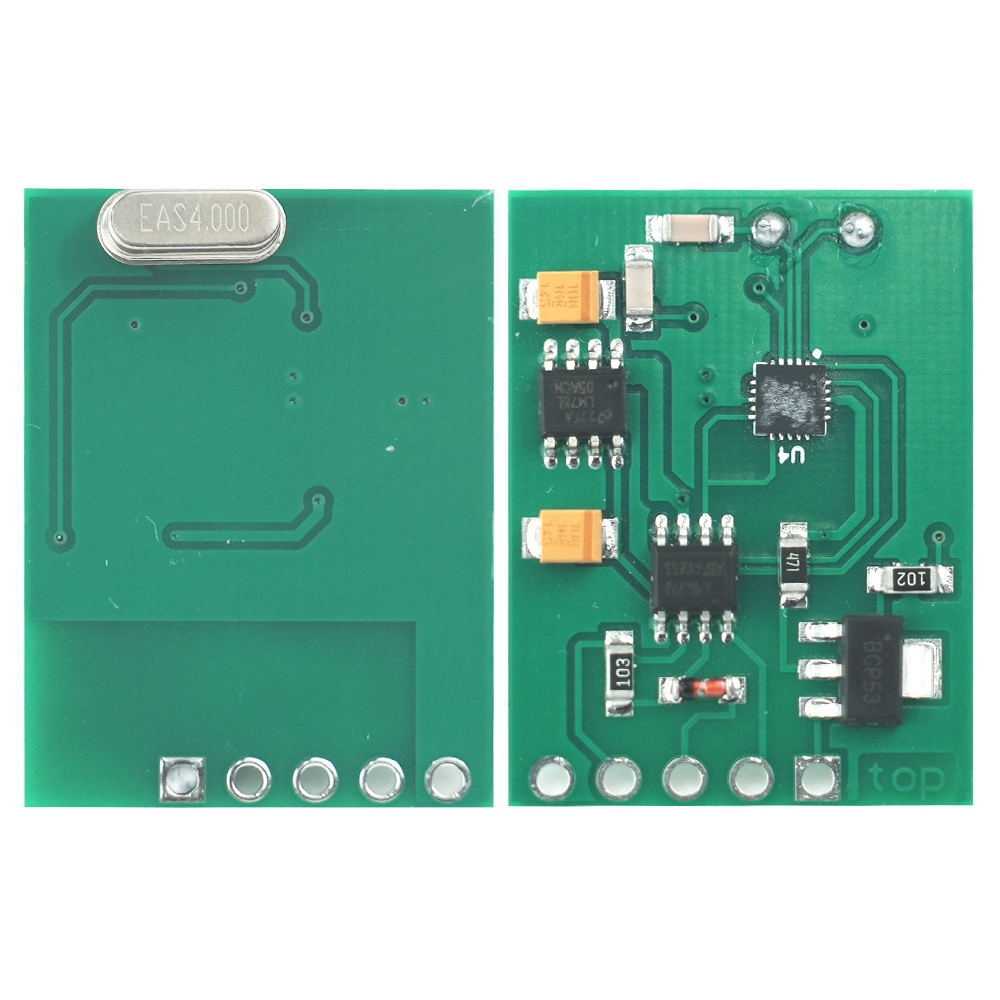

For Yamaha 2006-2009 SM04 Bicycle / Motorcycle Immo System Emulator Full Chips

For Yamaha 2006-2009 SM04 Bicycle / Motorcycle Immo System Emulator Full Chips

$67.37

Collect 67 Everyday Rewards points

Free Shipping

Dispatch in 2 business days

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 29/06/2025. Excludes Shipping.

Sold & shipped by Zhongshan Junchang Mould Co Ltd (Direct Import)

Secure ways to pay at checkout

(0)

1. Compatible with all Yamaha motorcycles, bicycles and scooters from 2006 to 2009.
2. Easy to install, no programming is required, only wires need to be connected.
3. Completely imitate the work of conventional anti-theft systems, including the work of LEDs on the dashboard.
4. For simulator installations in conventional anti-theft systems:
- Remove the sealant from the immobilizer housing.
- Remove a PCB from the immobilizer and remove the wires from it.
- Connect the simulator according to the drawing.
- Insert the simulator into the anti-theft system housing.
5. The color of the wire and its appointment:
- Black (2 pcs) for ground
- Red BATT (+12V)
- Yellow ignition (+12V)
- Gray LED (+5V)
- Blue K line anti-theft ECU
