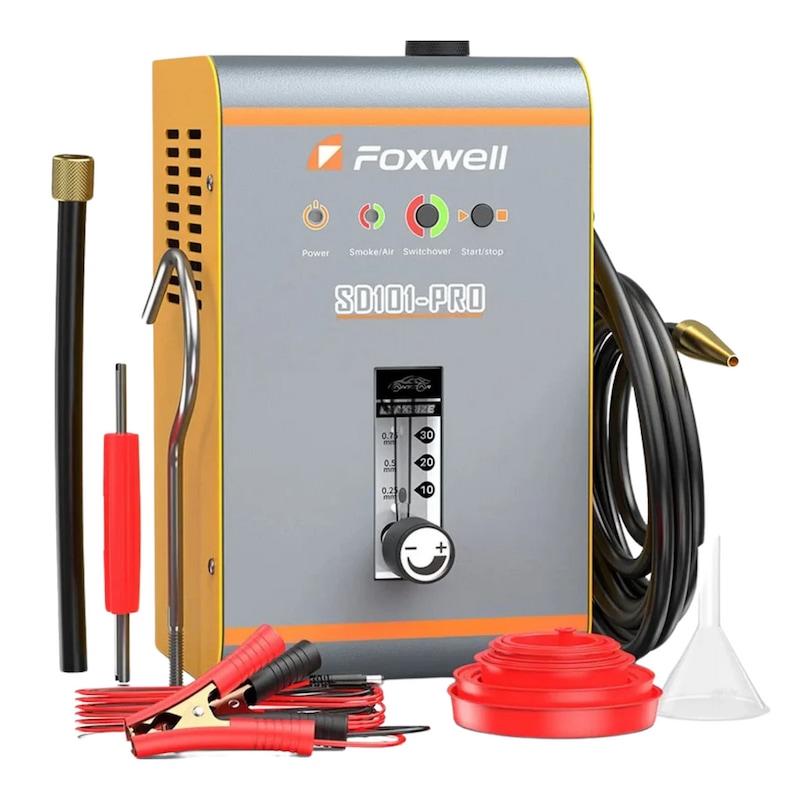

FOXWELL SD101 EVAP Smoke Machine Vacuum Leak Detector Automotive Diagnostic Tool

Introducing the Foxwell SD101, a new entry-level smoke leak detector designed to quickly and accurately locate pipeline leaks in automotive systems. Perfect for technicians and car owners, this tool reduces diagnostic time by visually identifying issues in EVAP, EGR, and other systems. With a fast 10-second smoke output, overheat protection, and wide compatibility, it’s an essential partner for efficient vehicle maintenance.

• Diagnostic Partner: Quickly determines if faults stem from pipeline leaks and pinpoints their exact location.
• Fault Code Solution: 60% of engine fault codes (e.g., P0443-P0457, P0465-P0469) relate to leaks—SD101 helps clear them by finding the source.
• Convenient Operation: Smoke visually tests entire pipelines with no dead angles, ensuring no leak is missed.
• Safe Testing: Simulates engine conditions without starting it, avoiding risks to people or vehicles.
• Boosts Productivity: Speeds up repairs, increasing station efficiency and technician output.

• EVAP & EGR Testing:
  • EVAP System: Connects via the service port (post-1996 American, post-2000 European cars) to detect vapor leaks causing idling issues or emissions waste.
  • EGR/Carbon Canister: Uses tee connectors to test exhaust gas recirculation and canister systems.
  • Outputs thick smoke in 10 seconds for rapid results.
• Pipeline Leak Detection: Performs all-round, visual leak checks with smoke, covering fuel, vacuum, and exhaust lines—no leakage point missed.

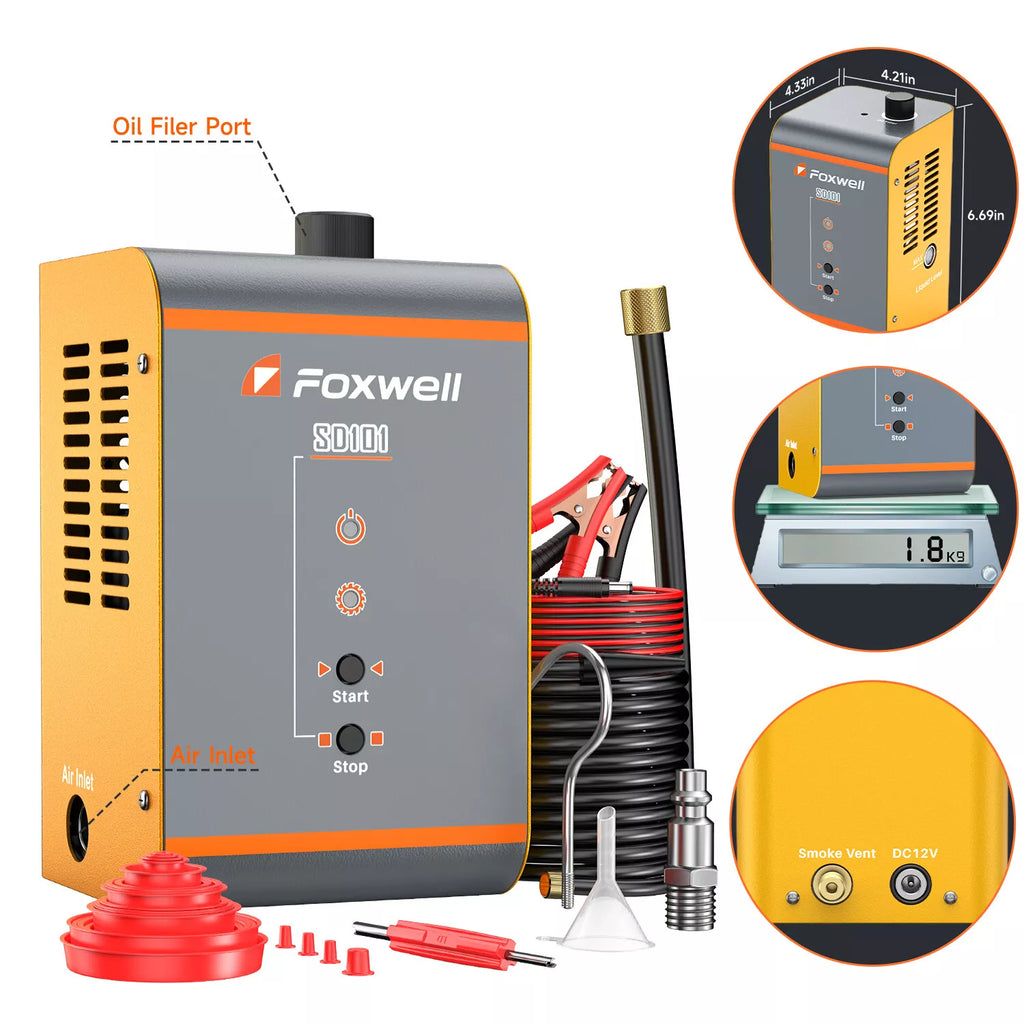

• Simple & Practical Design:
  • Easy-to-use with a hook for hanging.

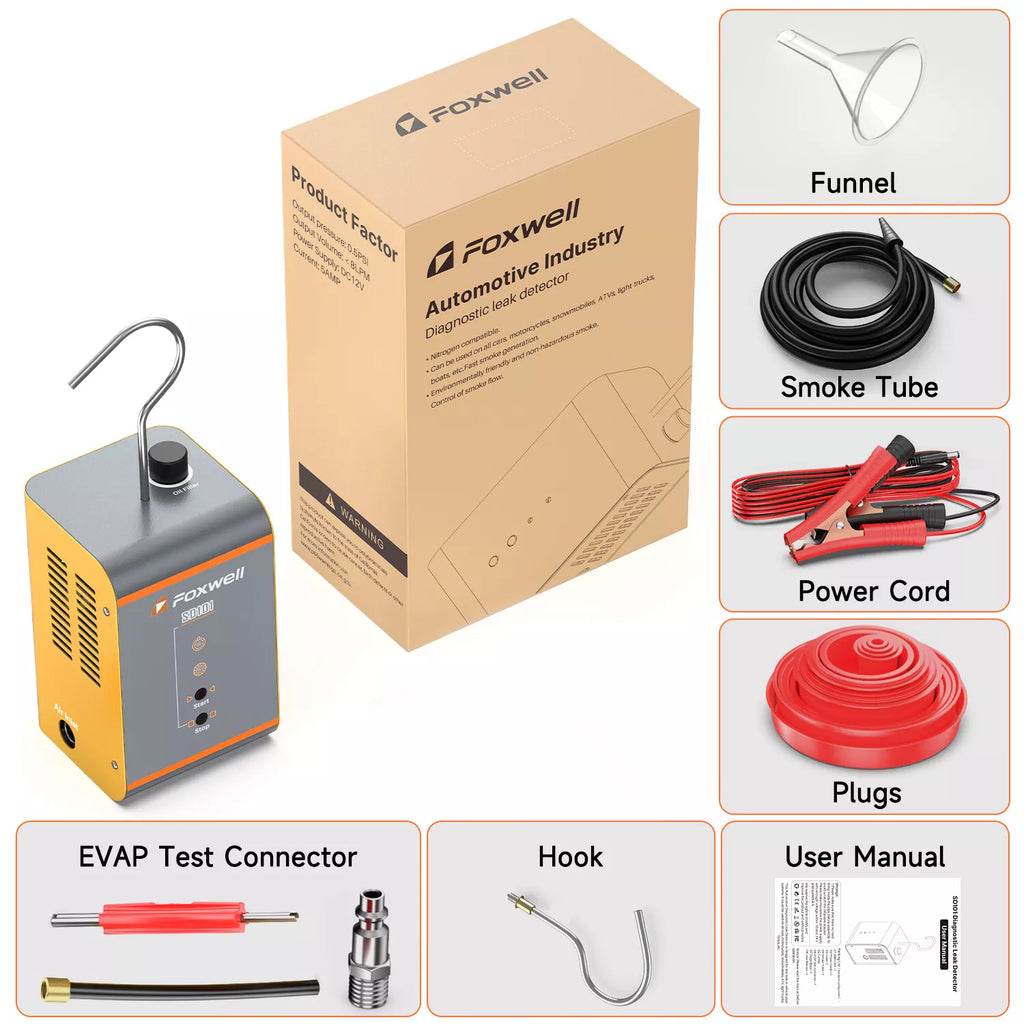

  • Includes conical and airbag adapters for most air intakes.
• Safety Protections:
  • Overheat Protection: Shuts down if temperature exceeds 75°C or after 15 minutes of continuous use (10-minute cooldown).
  • Antifreeze Support: Operates in low temperatures with a full 12V battery.
• Fast Operation: Fills pipes with smoke in ~1 minute; leaks are visible within 3 minutes under proper sealing.
• NOTICE: No built-in air pump—requires an external air compressor or pump (sold separately).

• Vehicles: Cars, motorcycles, snowmobiles, beach bikes, light/heavy-duty trucks, and speedboats.

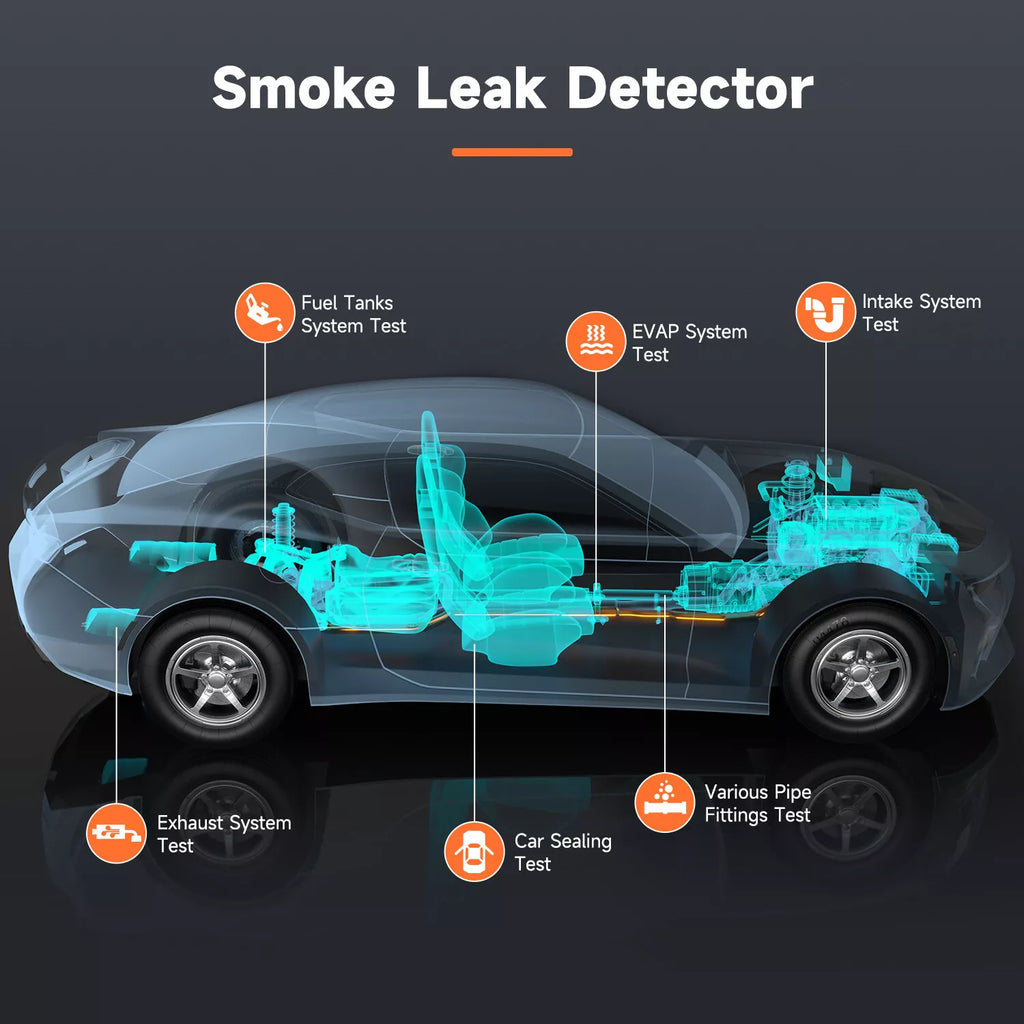

• Systems: EVAP, EGR, vacuum lines, fuel pipes, and more.
  Works with most pipeline systems—contact us with your vehicle details to confirm.

• Brand: Foxwell
• Model: SD101
• Origin: Mainland China
• Fluid Capacity: 20ml (10-20ml per test, ~10 minutes use)
• Smoke Output: Large volume within 10 seconds
• Power: DC 12V battery (red clamp to , black to -)
• Protection: Overheat (>75°C), antifreeze-compatible

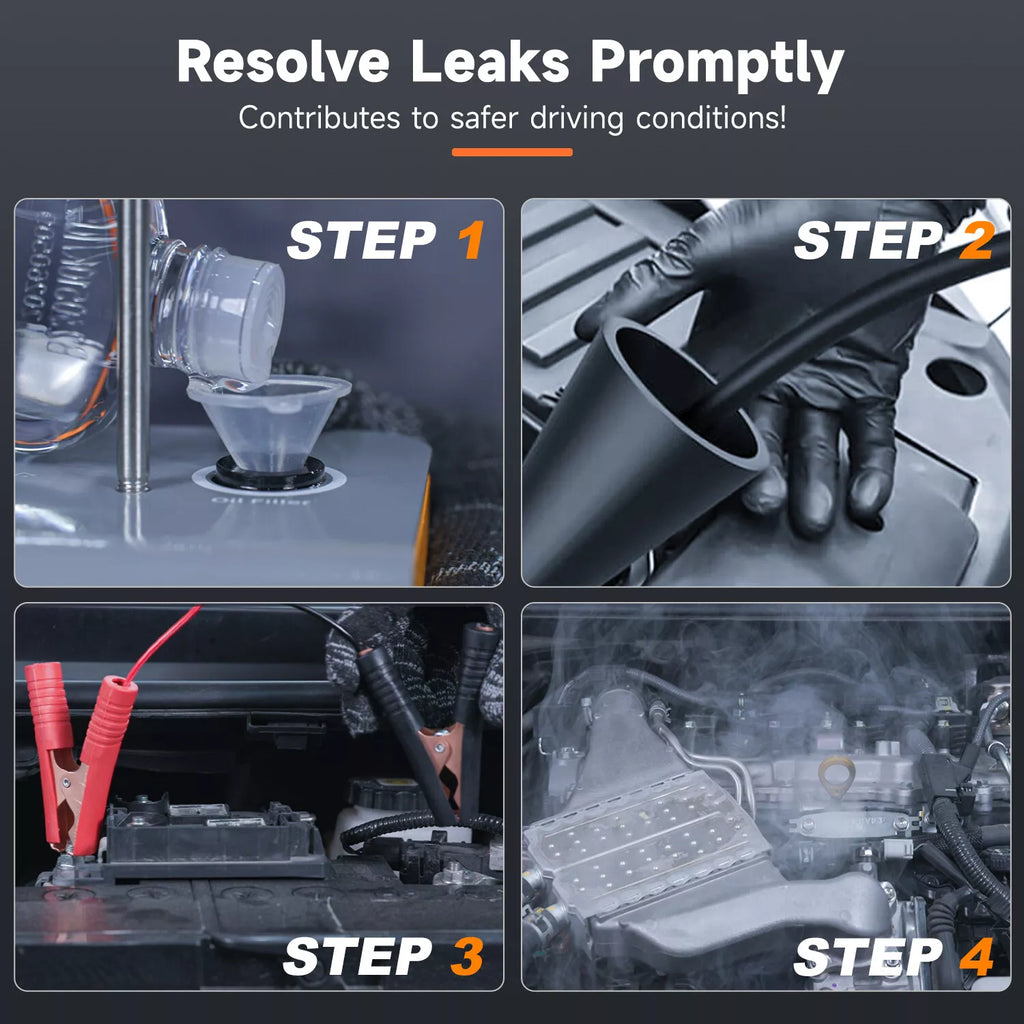

1. Fill Fluid: Inject 10-20ml of test oil (baby oil recommended)—20ml lasts ~10 minutes.
2. Prep Pipe: Open the pipeline to be tested.
3. Connect: Attach the airbag adapter to the sealed pipe and link to the smoke conduit.
4. Power On: Connect to a 12V battery (red to , black to -)—smoke production begins.
5. Inspect: Smoke fills the pipe in ~1 minute; check for leaks within 3 minutes.

• EVAP: Locate the service port (often with a green cover), remove the valve core (reverse thread) with EVAP tools, install the test adapter, and connect the smoke tube.
• EGR/Carbon Canister: Disconnect the quick connector, use matching test and tee connectors from the kit, and attach to the smoke cone.
• Run Test: Switch on the unit, lead smoke into the system, and detect leaks moments later.

• Accurate: Visually locates leaks with smoke, tackling 60% of engine fault codes.
• Efficient: Shortens diagnostic time with rapid smoke output and full pipeline coverage.
• Safe: No engine ignition needed, ensuring operator and vehicle safety.
• Versatile: Compatible with a wide range of vehicles and systems.
• Practical: Simple design with adapters for easy, hands-on use.

Order the Foxwell SD101 now and solve pipeline leaks fast through 2025! Questions about compatibility? Contact us with your vehicle details for expert assistance.
