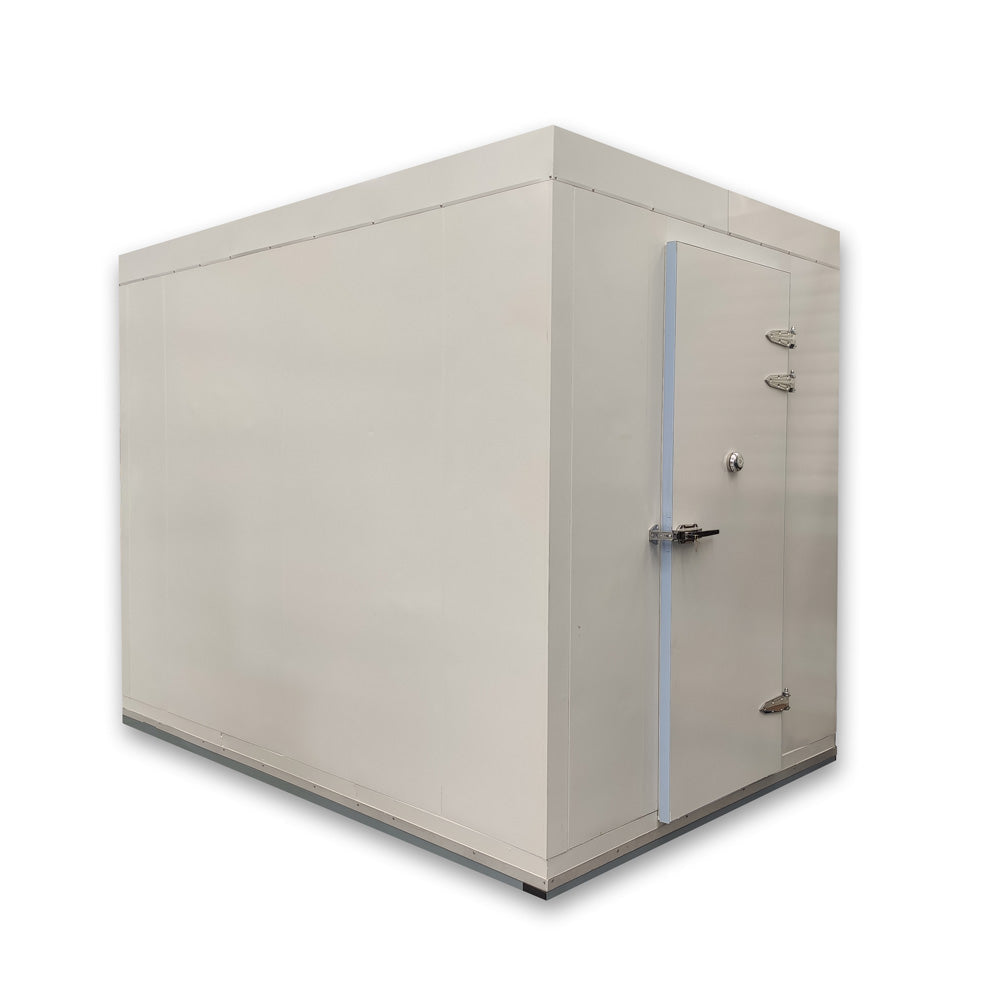

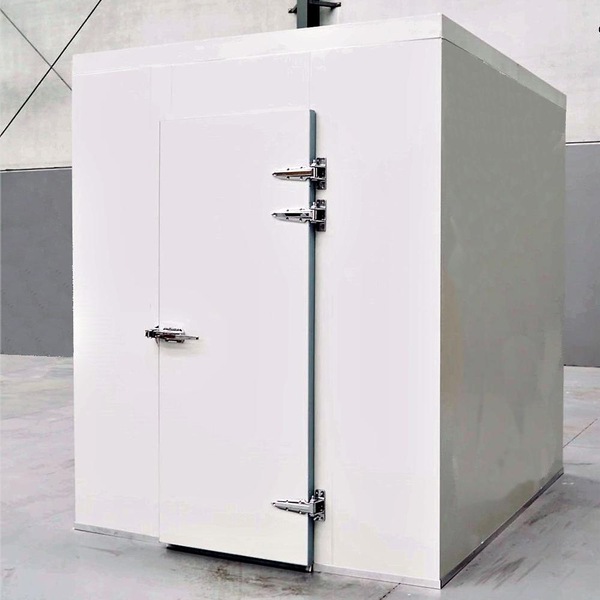

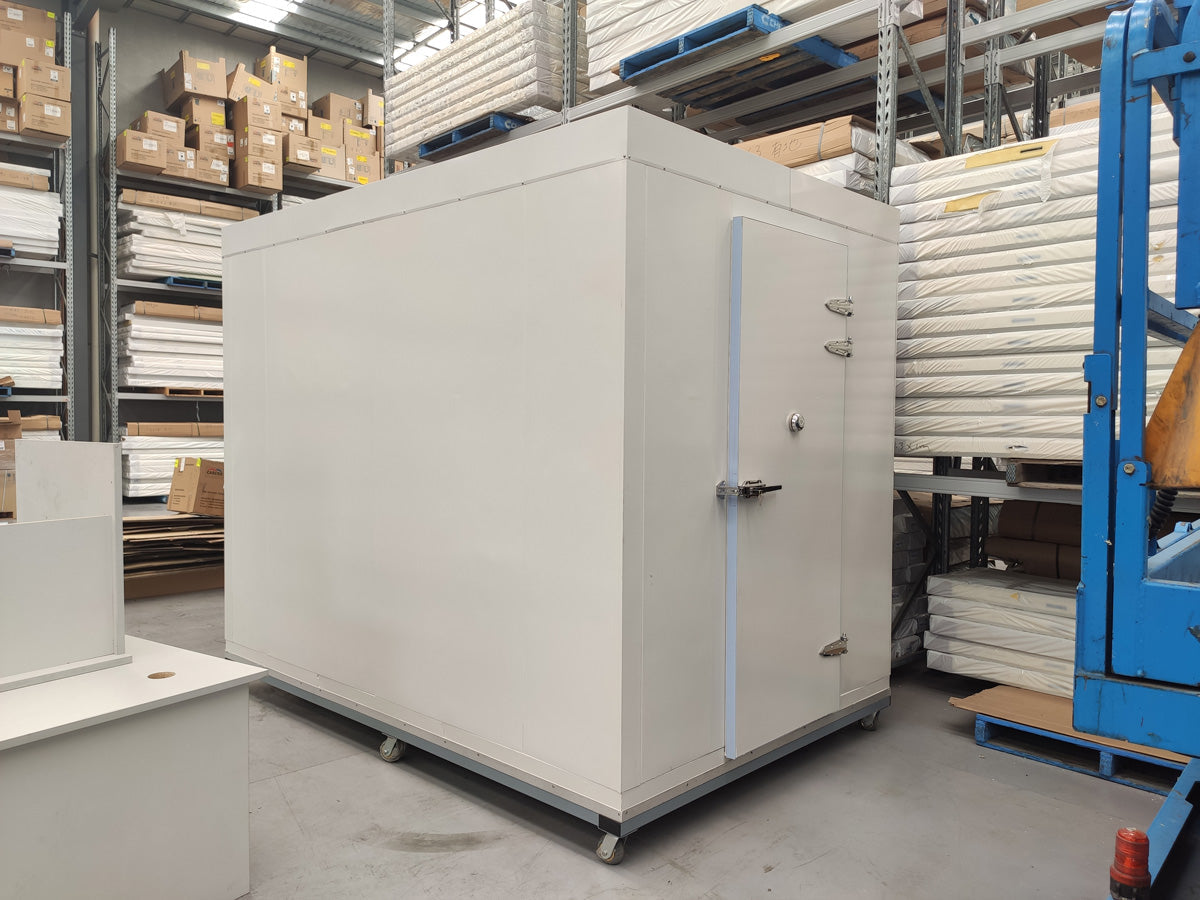

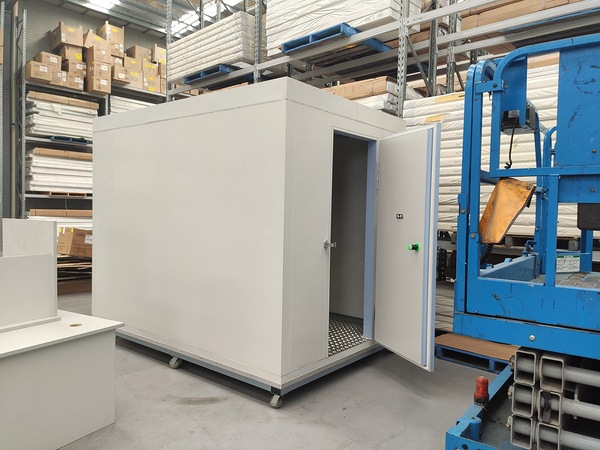

Maximize your refrigerated storage with our modular cool and freezer rooms. These units are easy to install with clip-together panels and Tecumseh cooling systems. We offer five standard room configurations, making them ideal for a wide range of spaces. All cool and freezer room panels are 100mm thick polyurethane, providing high energy efficiency and power savings compared to other brands on the market.

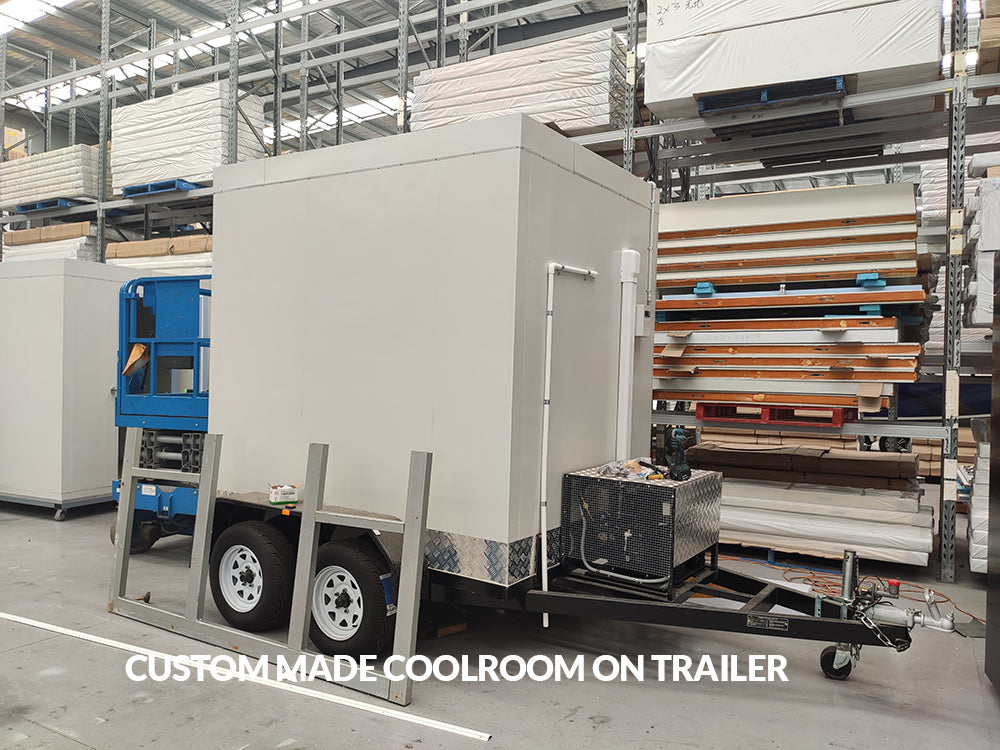

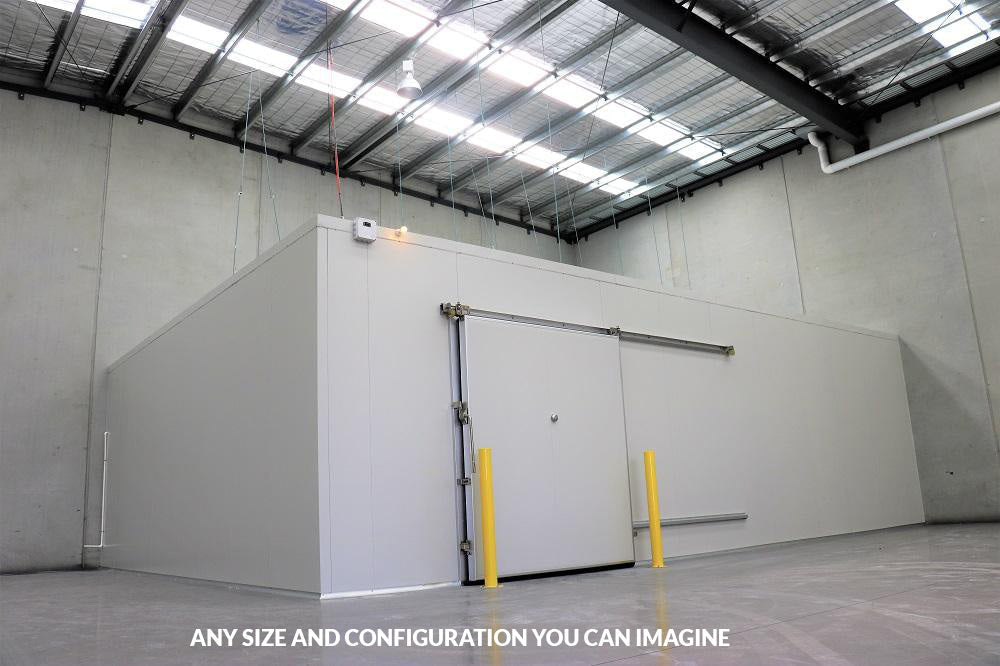

We also produce cool and freezer rooms in custom sizes. If you have special size requirements, please contact us for a custom quotation.

Panel Information

Our high-quality, 100mm thick polyurethane panels provide some of the highest rated insulation in the world, saving energy and maintaining internal temperatures. These specialized panels are high strength, moisture-resistant, and have excellent temperature insulation properties. The panels can be disassembled and reassembled if you wish to expand or modify your cool room or freezer room in the future.

Many cool rooms and freezer rooms on the market are made of polystyrene panels (EPS), which can absorb and hold over 40% of moisture from kitchen environments, making them highly flammable. In contrast, polyurethane holds zero moisture and is mold-proof, anti-corrosive, age-resistant, moth-proof, chemical-resistant, and non-toxic.

Standard Features

Freezer Room:

• Insulated floor panels are included and required for all freezer rooms
• Large HTA condenser
• Factory wired fan motor(s)
• Liquid receiver
• Copper tails on all Rotalock valves
• Crankcase heater, HP/LP control, and oil sight glass on FH, TFH, and TAG models

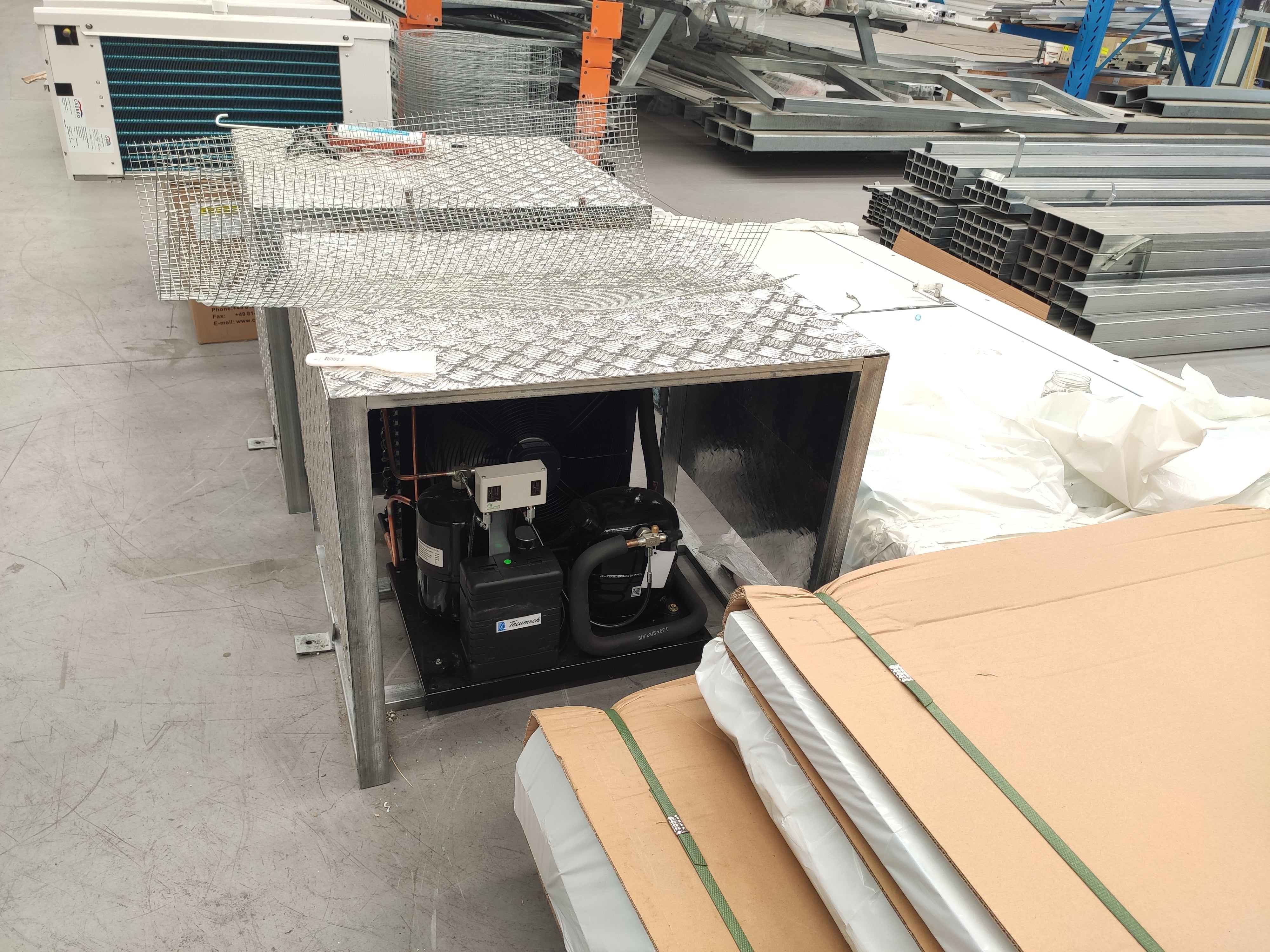

• Condensing Unit

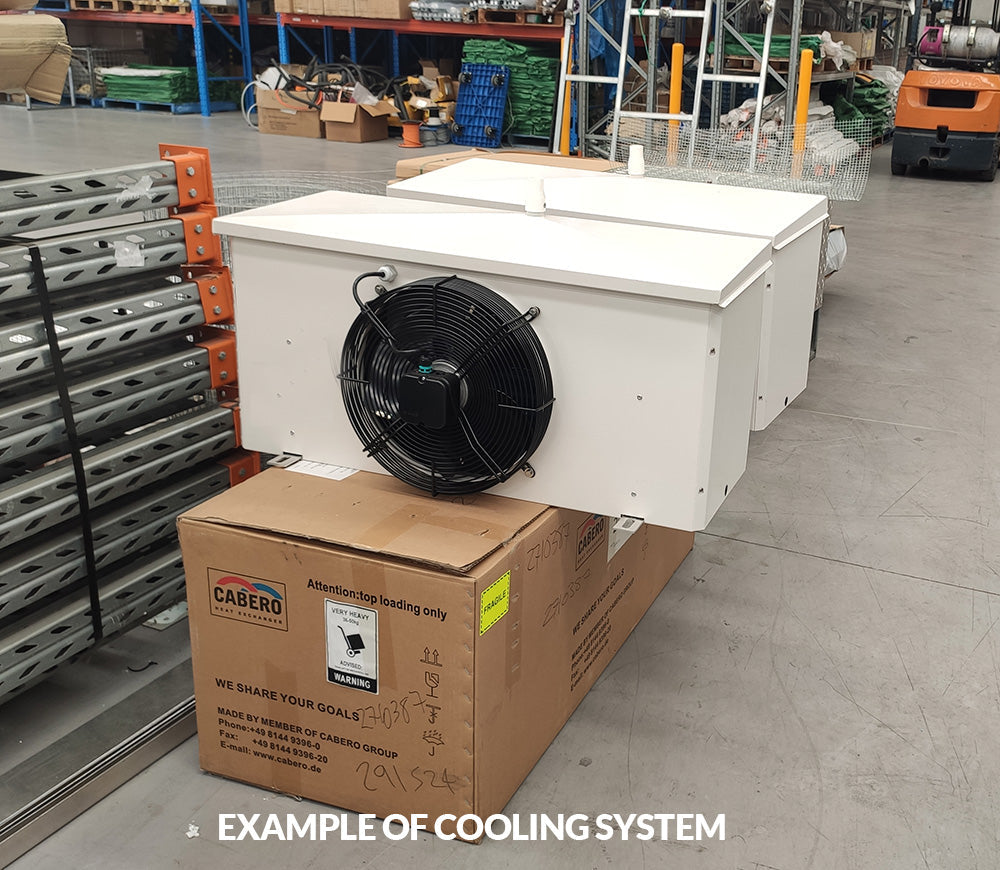

• Evaporator
• Electronic Controller
• Dual Pressure Control
• Sight Glass
• Strainer Drier
• Set of Tube Work
• Internal Cool Room Drain
• TX Valve
• Weatherproof LED light
• Weatherproof switch
• Indicator Light
• Compressor - Tecumseh CAJT2446ZBR-FZ-1
• Power Rating: 1229w
• 15amp plug required - not supplied
• Minimum Temperature: -25o

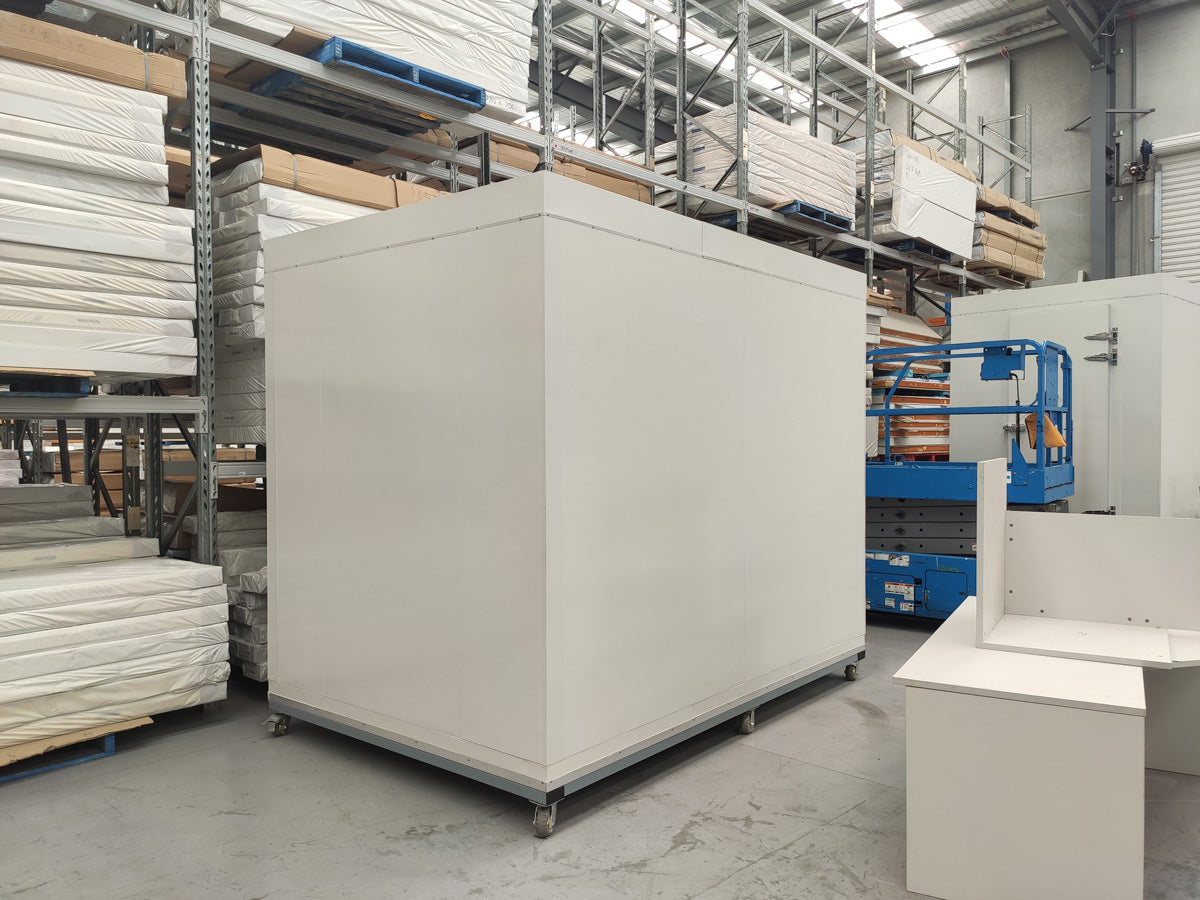

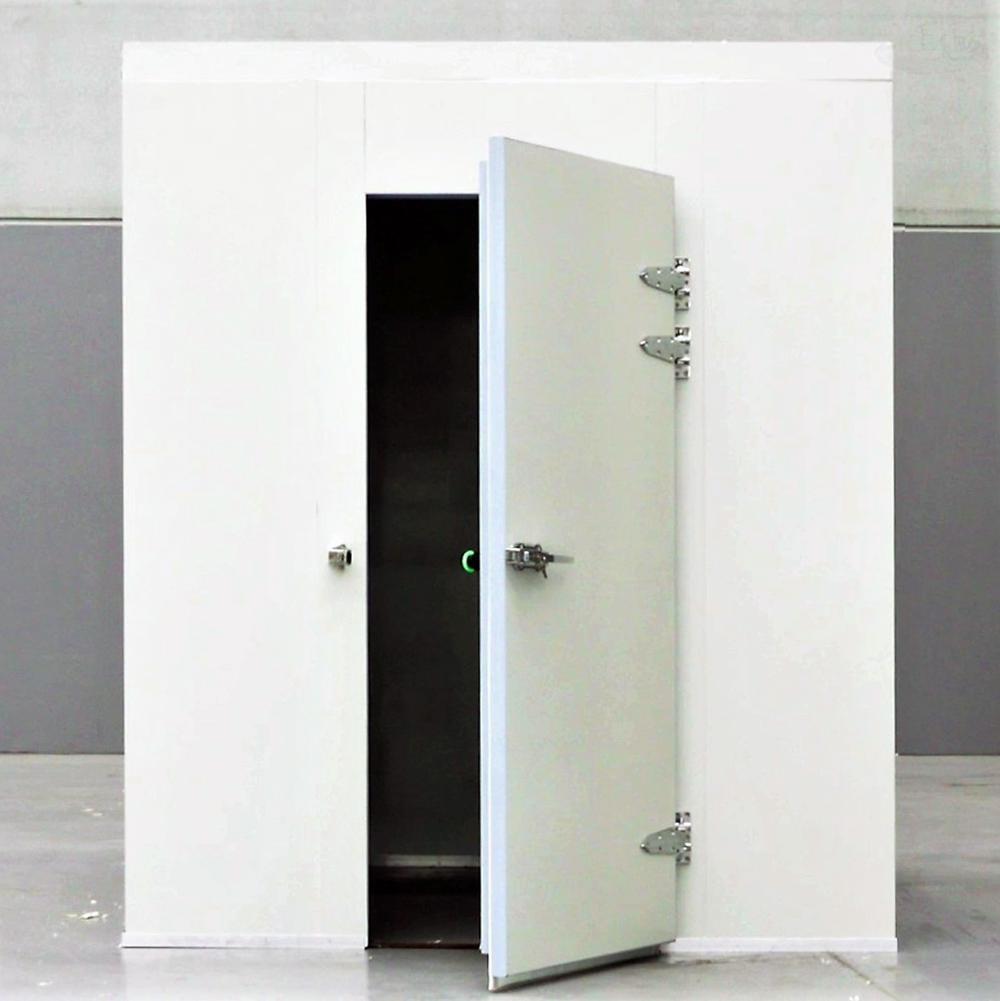

• Dimensions: 1500(w) x 1500(d) x 2400(h)mm
• Normal household plug. No special connection is required.

Optional Extras

• Stainless Steel Doors

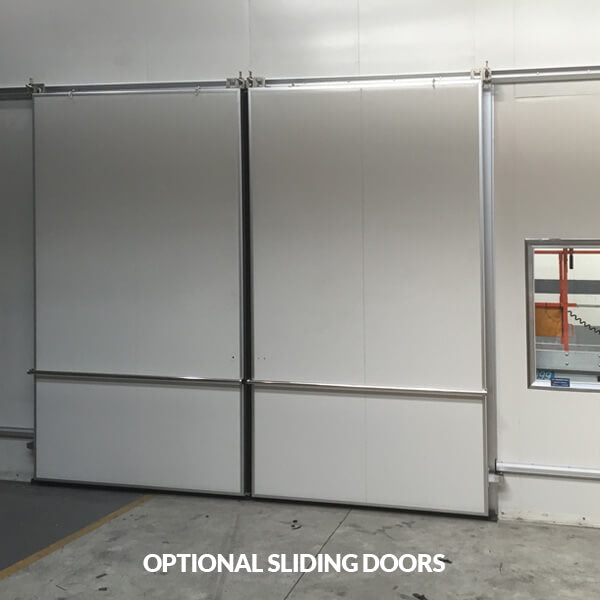

• Sliding Doors

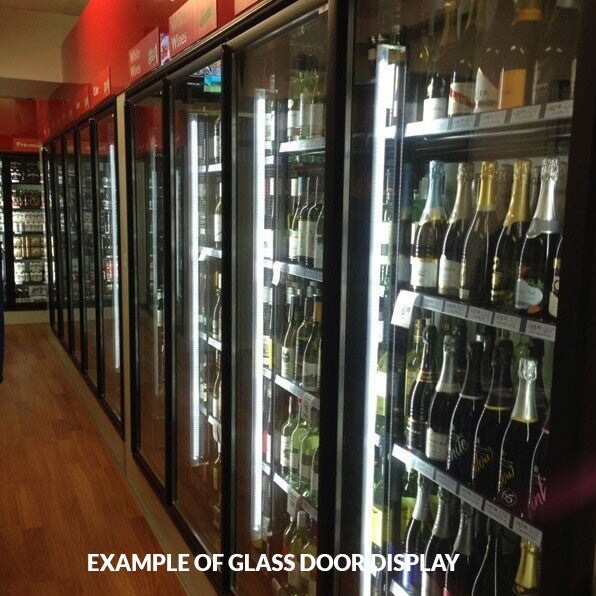

• Glass Display Doors (full door height)

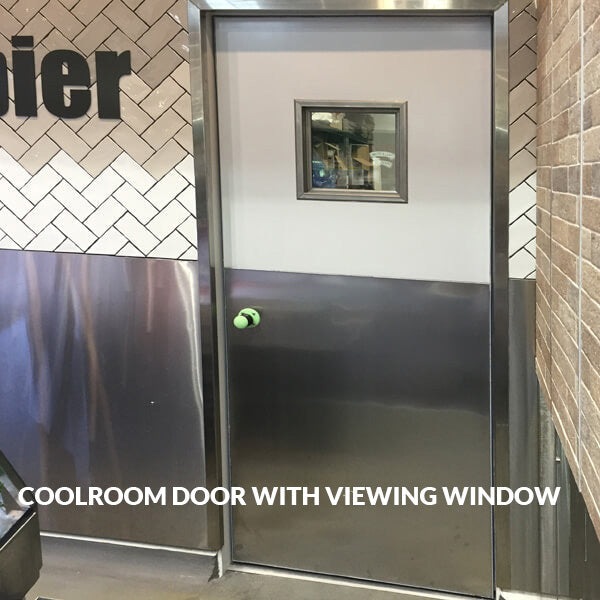

• Door with Viewing Window
• Side Panel Viewing Window
• 100mm polyurethane panel floor with aluminum checkered plate over it
• Floor panel (not required for cool rooms but included for all freezer rooms)

Installation Guidelines

• Panels clip together and can be assembled by 2-3 people in approximately 4-6 hours.
• The cooling system must be installed by a licensed refrigeration technician.
• The refrigeration technician will provide their warranty on their installation.
• The cooling system does not include refrigerant gas from the factory. Your technician will supply this during installation
• Freezer rooms require floor panels (included as standard for all freezer rooms).
• Cooling systems must be completely protected from the weather if installed outdoors.

Important Delivery Information

We want to ensure your cool room delivery goes smoothly, so please review the following details:

• All freezer rooms are delivered by a courier truck with a single driver.

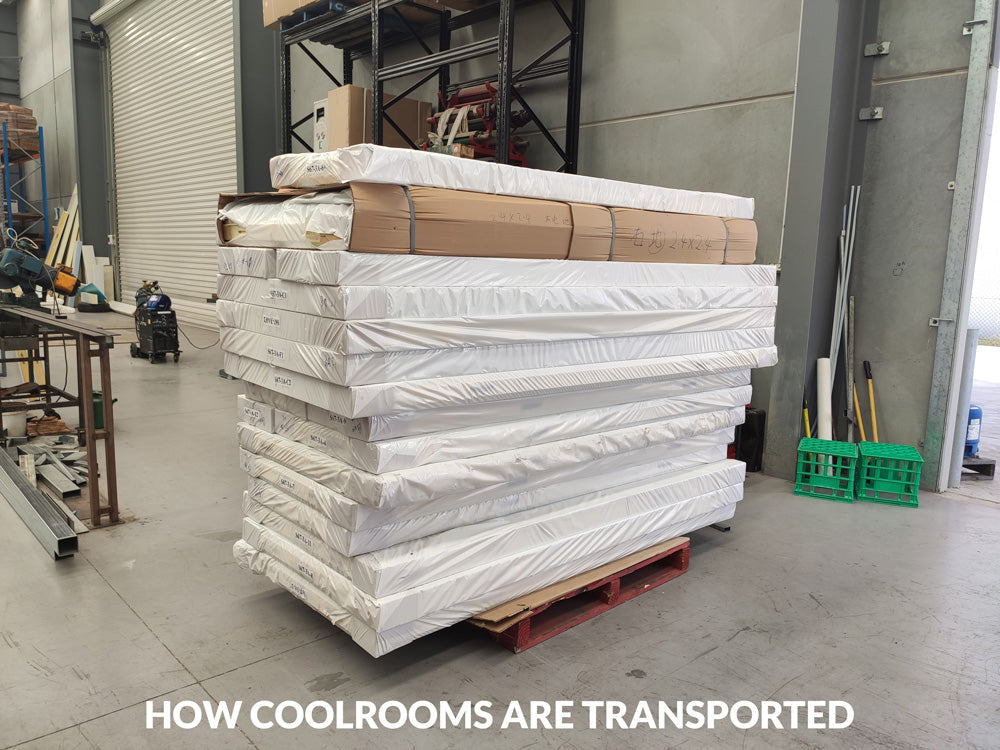

• Freezer room panels will arrive stacked on a pallet.

If you have access to a forklift:

• You can easily unload the pallet using your forklift.

If you do not have access to a forklift:

• The panels will need to be unloaded from the truck individually, panel by panel.
• Although the panels are not heavy, they are 2.4m long. The driver will need assistance from your team to help unload them.

The delivery charge on the website includes a single driver and assumes that you will be able to assist with the unloading. If you will be unable to provide any assistance to the driver for unloading, please let us know before ordering so we can arrange a special quote with additional assistance.

Please note that if additional assistance is required, an extra fee will need to be added to the delivery charge.

Thank you for your understanding and cooperation. We appreciate your help in making the delivery process as smooth as possible.
