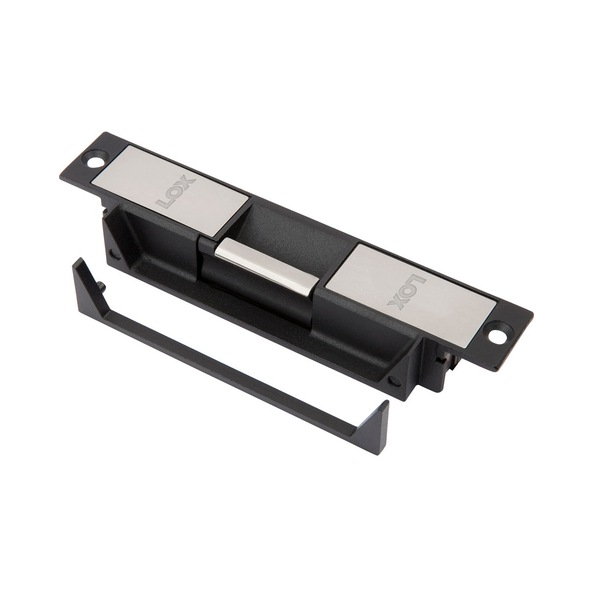

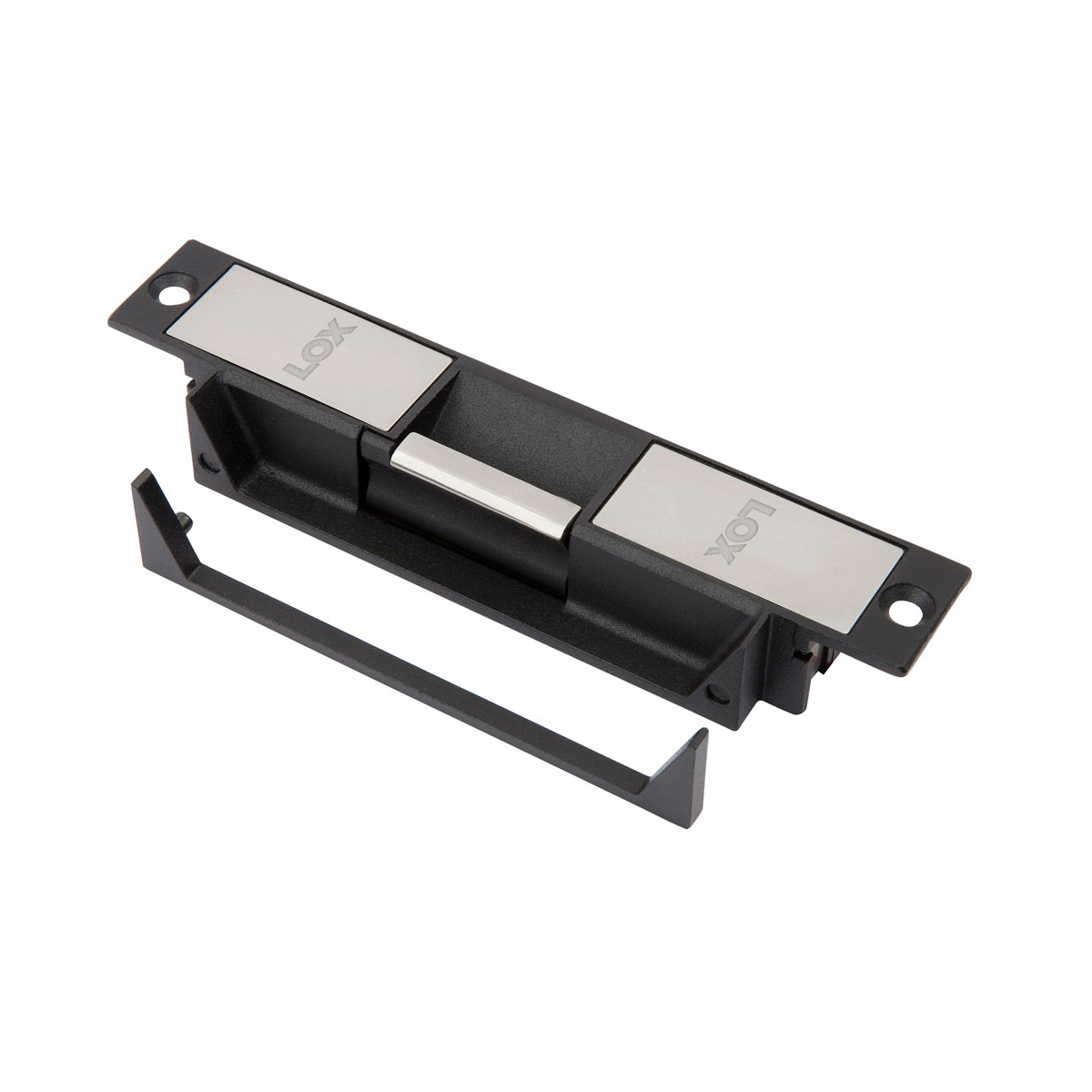

LOX Electric Strike
ES20

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

• Designed for use with all access control systems.
• Retrofit compatible with FSH and Padde Australian Footprint strikes
• Comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15mm lip. A 5mm lip extension is included with the strike if needed.
• Fail safe/fail secure is changeable on site.
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).

Features:

• Non Monitored
• Fire rated up to 4 hours
• Power to lock/power to open field selectable
• Solenoid can be continuously powered
• Optional extension lips
• Self adhesive installation template
• Includes tab mounting kit
• Pre-drilled for extension lips
• Supplied with silencer rubber buffer
• ES20 is suitable for 18mm latch with a 3mm door gap

Specifications:

• Voltage: 10 - 30VDC, 250mA at 12VDC, 125mA AT 24VDC
• Current: 12vdc @ 250mA, 24vdc @ 125mA,
• Holding Strength: up to 1000kg Tested to 1.5 Million Cycles
• Temperature: Range - 20 degress celcius to 60 degrees celcius
• Material: Stainless Steel
