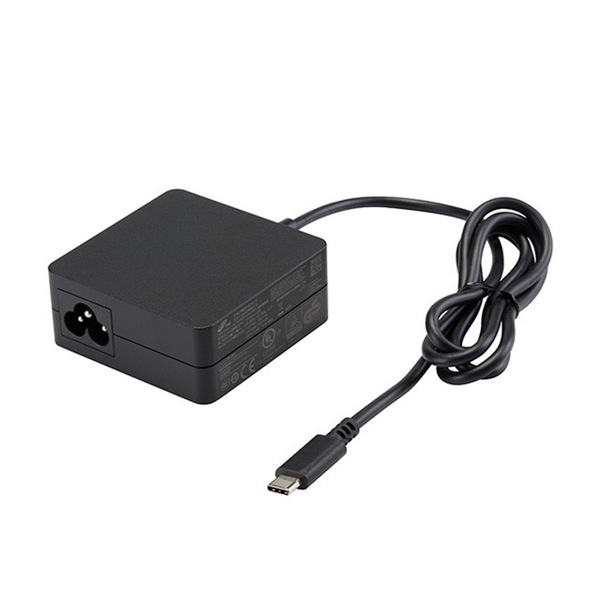

FSP 65W USB PD Type C AC Adapter

Image 1
Hurry! 3 items left!
$56

Collect 56 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

FSP 65W USB PD Type C AC Adapter

  • Certified CB 62368-1 & CB 60950-1

  • Meet Energy Efficiency DOE Level VI

  • Meet (EU)2019/1782

  • High Reliability

  • Compact Design

  • Short Circuit Protection

  • Over Temperature Protection

  • Over Voltage Power Protection





SPECIFICATIONS:

INPUT


Input voltage

90-264 VAC

Input frequency

47-63 Hz

Input current

100Vac, 240Vac / full load  1.7A

No load power consumption

115Vac , 230Vac  0.1W when the USB

type-C Connector out (no output)

Touch current

264Vac / 50Hz  0.1mA

OUTPUT


Output voltage/current

5V/3A ; 9V/3A ; 12V/3A ; 15/3A   ;

20V/3.25A

Total output power

65W

Protection

Over voltage:

The adapter shuts down which means no output, when over voltage happens at output terminal caused by internal fault. The power supply shall shut down and enter auto-recovery mode.



Short circuit & Over current:

When an internal fault occurs, or an external fault is applied to the power supply,   such that an overload or short circuit is applied to the output, the power supply shall shut down and enter auto-recovery mode.



Over temperature:

The power supply shall shut down



Brown-out:

Set at 55Vac~65Vac

Environment

Working TEMP: 0~40 (> 40 de-rating )

Storage TEMP: -20~+60

Working Humidity: 10~85% RH non-condensing

Storage Humidity: 10~95% RH non-condensing






SKU: 68814
