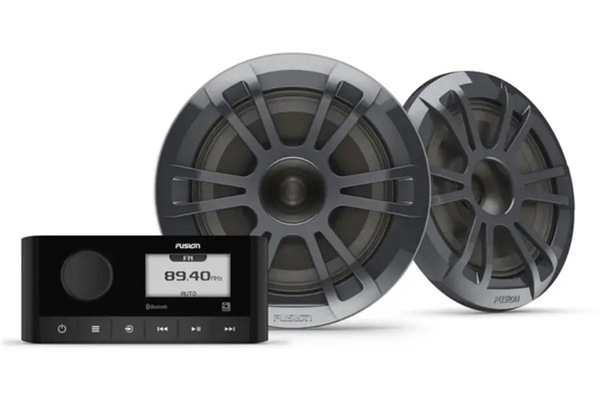

Fusion MS-RA60 Marine Stereo and EL Sports Speakers Bundle

Image 1
Image 2
Image 3
Hurry! 4 items left!
$519

Collect 519 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Elite Electronics
Secure ways to pay at checkout
MS-RA60 and EL Sports Speaker Kit - 010-02405-61
  • Ready-to-install marine stereo and two speakers
  • Music can be easily controlled from compatible Garmin MFD1, smart device, or Garmin watch
  • Built-in Class D amplifier provides higher efficiency and greater output
  • Multi-Zoneâ„¢ Technology allows for control of two separate audio zones
  • Software can be conveniently updated via Bluetooth® technology2 from the Fusion-Linkâ„¢ app on a compatible smart device
  • Expandable audio system with compatible Fusion speakers, subwoofers, and amplifiers

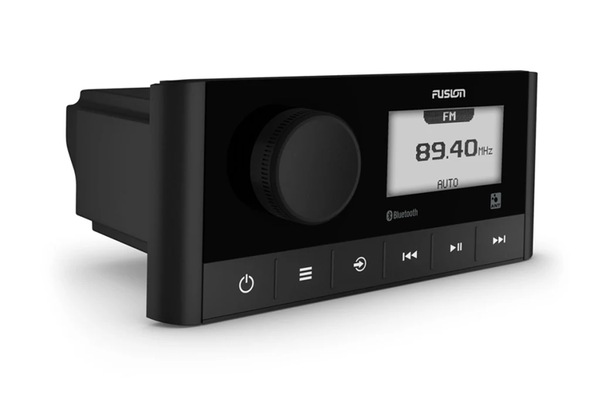

Stereo Specifications
  • Physical dimensions (HxWxD)
    • MS-RA60: 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm)
    • MS-RA210: 2.68″ x 6.18″ x 4.99″ (68 x 157 x 126.6 mm)
  • Weight
    • MS-RA60: 11.1 oz (316 g)
    • MS-RA210: 12.4 oz (350 g)
  • Water rating: IPX6 and IPX7 (front panel only, when properly installed)
  • Power input: 10.8-16 VDC
  • Operating temperature range: 32° to 122° F (0° to 50° C)
  • Current (max.): 15 A
  • NMEA 2000® LEN: MS-RA210: 1 (50 mA)
  • Bluetooth® wireless range: Up to 30 ft (10 metres)
  • ANT wireless range: Up to 10 ft (3 metres)
  • Wireless frequencies/protocols:
    • Bluetooth 2.4 GHz @ +12 dBm nominal
    • ANT 2.4 GHz @ +7 dBm nominal
  • Compass-safe distance: 5.9″ (150 mm)
  • Display:
    • MS-RA60: 2.3″ perimeter bonded monochrome dot matrix LCD
    • MS-RA210: 2.7″ optically bonded colour LCD
  • Built-in amplifier: Class-D (minimum 4 Ohm impedance)
  • Peak power:
    • MS-RA210: 200 W
    • MS-RA60: 180 W
  • Rated power output (4 Ohm):
    • MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD
    • MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD
  • Fusion-Linkâ„¢ control:
    • MS-RA60: Yes (with smartphone and Garmin watch)
    • MS-RA210: Yes (with MFD, smartphone and Garmin watch)
  • Built-in Digital Signal Processing: MS-RA210: Yes (with preconfigured DSP profiles)
  • Multi-Zoneâ„¢ technology: 2 zones
  • Bluetooth wireless technology: Yes
  • ANT wireless technology: Yes
  • DAB+ ready:
    • MS-RA60: Yes (DAB tuner built in)
    • MS-RA210: Yes (requires DAB100A antenna module)
  • SiriusXM-ready: MS-RA210: Yes (requires SiriusXM Connect vehicle tuner)
  • Multi-language interface:
    • MS-RA60: Dutch, English, French, German, Italian, Spanish
    • MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish
  • NRX remote compatibility: MS-RA210: yes
  • Software updates:
    • MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
    • MS-RA210: USB
  • Warranty: 1 year
  • Sources:
    • MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
    • MS-RA210: AM/FM/Bluetooth/USB

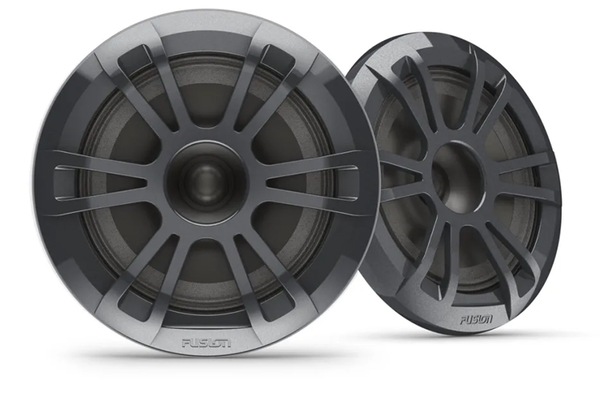

Speaker Specifications
  • Physical dimensions (HxWxD):
    • EL Classic Speaker: 6.93″ x 2.26″ (176 x 57.5 mm)
    • EL Sports Speaker: 6.93″ x 2.32″ (176 x 59 mm)
    • XS Classic Speaker: 6.97″ x 3.19″ (177 x 81 mm)
    • XS Sports Speaker: 6.97″ x 3.27″ (177 x 83 mm)
  • Water rating: IP65
  • Configuration:
    • EL Speaker: Full range
    • XS Speaker: Coaxial
  • Speaker size: 6.5″
  • Peak power (Watts):
    • EL Speaker: 80 W
    • XS Speaker: 200 W
  • RMS power (Watts):
    • EL Speaker: 20 W
    • XS Speaker: 50 W
  • Sensitivity (1 watt/1 metre):
    • EL Speaker: 88 dB
    • XS Speaker: 91 dB
  • Frequency response:
    • EL Speaker: 45 Hz-16 kHz
    • XS Speaker: 80 Hz-18 kHz
  • Nominal impedance: 4 ohm
  • Recommended amplifier power (RMS):
    • EL Speaker: 20-40 W/Ch
    • XS Speaker: 20-150 W/Ch
  • Operating temperature range: 32° to 122° F (0° to 50° C)
  • Voice coil diameter:
    • EL Speaker: 0.79″
    • XS Speaker: 1.18″
  • Cone material: Polypropylene cone with cloth surround
  • Tweeter type: XS Speaker - Aluminium dome
  • Compass-safe distance:
    • EL Speaker: 100″ (254 cm)
    • XS Speaker: 122″ (310 cm)
  • Warranty:
    • EL Speaker: 1 year
    • XS Speaker: 3 years
  • Mounting diameter clearance:
    • EL Speaker: 5.12″ (130 mm)
    • XS Speaker: 5.31″ (135 mm)
  • Mounting depth clearance:
    • EL Speaker: 1.69″ (43 mm)
    • XS Speaker: 2.64″ (67 mm)
  • Sealed enclosure volume: XS Speaker - 0.28 cubic ft (8 L)


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 753759314200
