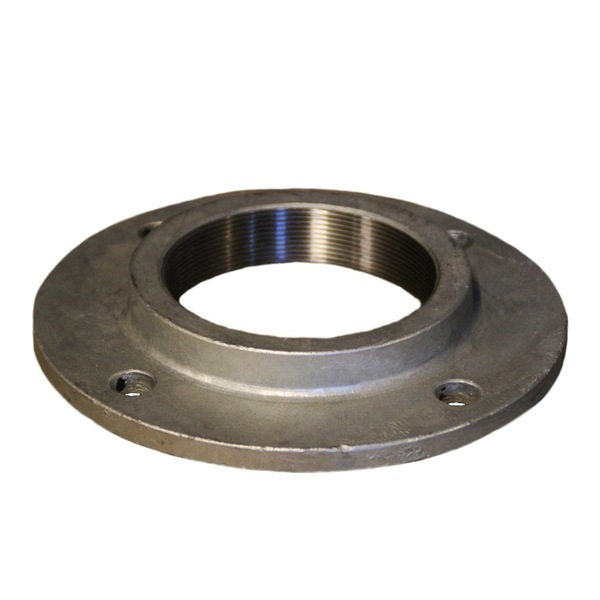

Galvanised Flange BS10 Drilled Table D - BSP Thread

Image 1
Hurry! 10 items left!
From$3.95

Collect 3 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

Galvanised Flange BS10 Drilled Table D



  • Application: General low pressure air and water

  • Material: Malleable Cast Iron to ASTM A-197, ASTM A47

  • Design standard: EN 10242 : 1994

  • Suitable for water application used in general, irrigation and rural services, compressed air pipes and fuel and gas lines utilities

  • Working Pressure: 150PSI

  • Plating Standard: ISO 1461 - Hot dip galvanised coating on fabricated iron and steel articles

  • Thread: ISO 1 - Pipe thread where pressure-tight joints are made on the thread

  • Comply with Australian Standards































































































GAL MAL - FLANGE BS10 DRILLED TABLE D
SKU IMPERIAL SIZE A (mm) B (mm) C (mm) WEIGHT (kg)
7603.16.15 1/2" 96 15 5 0.29
7603.16.20 3/4" 102 16 5.5 0.33
7603.16.25 1" 114 19 6.2 0.46
7603.16.32 1. 1/4" 121 21 6.2 0.45
7603.16.40 1. 1/2" 133 22.5 8.0 0.62
7603.16.50 2" 152 26.5 8.2 0.96
7603.16.65 2. 1/2" 165 30.0 9.2 1.28
7603.16.80 3" 185 33.8 10.3 1.75
7603.16.94 4" 215 39.0 11.2 2.63
7603.16.96 6" 280 41.7 13.8 4.72
