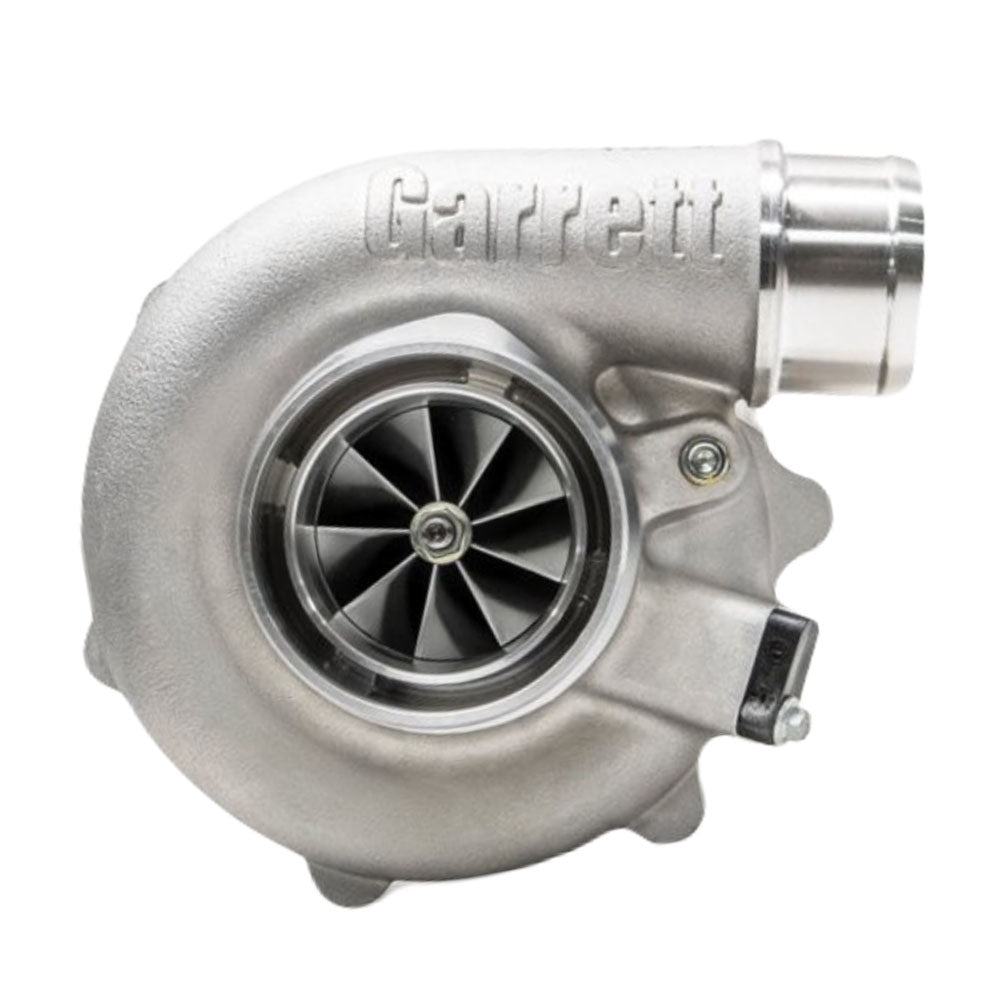

Garrett G-Series G35-900 Turbo 62mm Standard Rotation & External Wastegate

Image 1
Image 2
Image 3
Image 4
Image 5
From$2855

Collect 2855 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Turbo Pros
Secure ways to pay at checkout
The most powerful small frame turbocharger series on the market
Features

Horsepower: 550 - 900
Displacement: 2.0L - 5.5L

  • G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • 62mm TURBOCHARGER COMPRESSOR WHEEL
  • 77% MAXIMUM COMPRESSOR EFFICIENCY
  • MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
  • NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
  • STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS

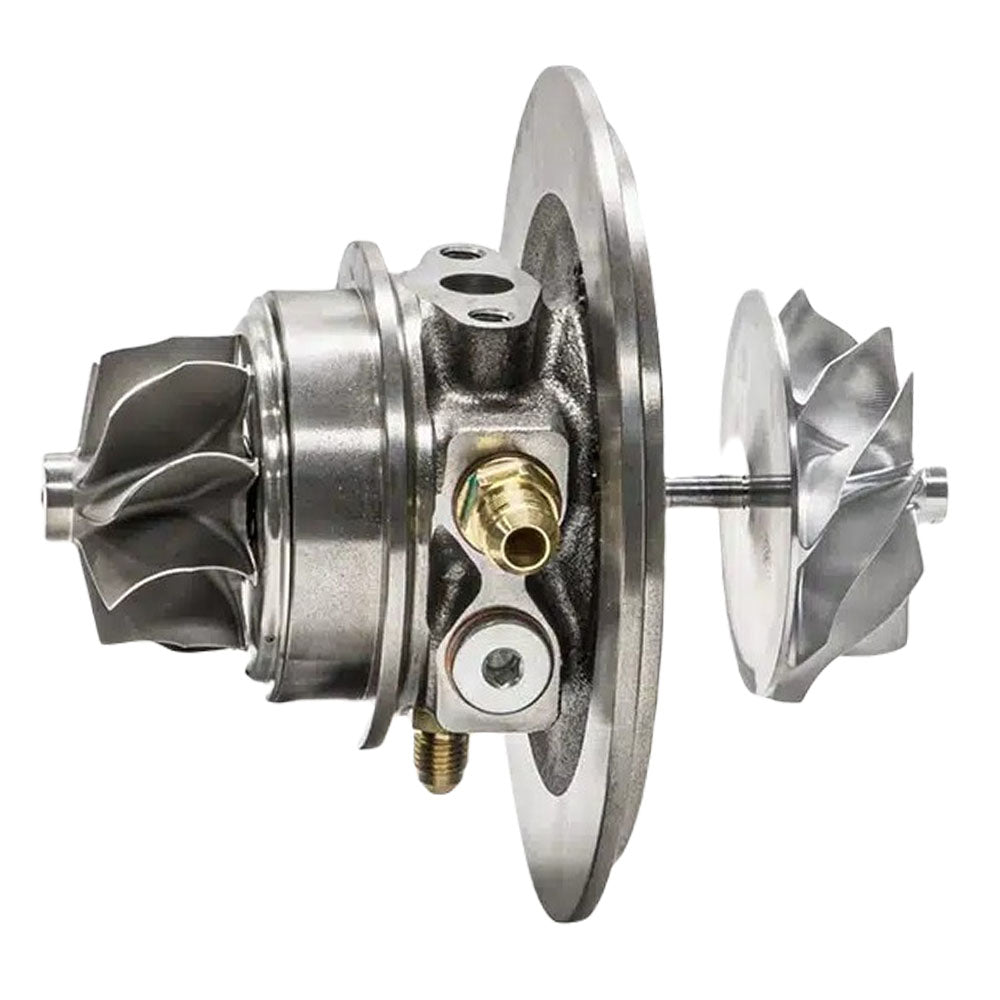

  • STANDARD AND REVERSE ROTATION SUPERCORE CONFIGURATIONS
  • FREE FLOAT TURBINE HOUSING KITS AVAILABLE IN T4 DIVIDED, T3, AND V-BAND INLET CONFIGURATIONS
  • STANDARD ROTATION INTERNALLY WASTEGATED TURBOCHARGERS AVAILABLE. FULLY ASSEMBLED AND CALIBRATED WITH A 0.5 BAR ACTUATOR

Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.

The G-Series G35-900 turbocharger is compatible with 2.0L – 5.5L engine displacements and capable of producing up to 900 horsepower. G Series 35 turbochargers are highly efficient and will outflow all comparable products on the market.

New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.

A new name designates a new generation of industry leading technology and innovation.

Understanding the Name:
G35-900

G designates 81 years of Garrett® heritage.

35 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 900)

Click To View G35-900, G35-1050 Flange Diagram

Click to Download Speed Sensor Kit Installation Instruction
