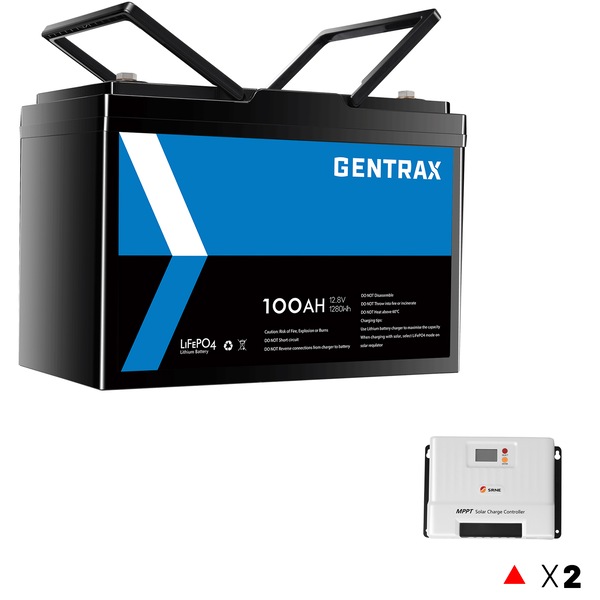

Gentrax 12V 100Ah Lithium Battery + 2* SRNE 20A MPPT Solar Charge Controller

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Best Price in the Last 14 Days
$399
You save $220Was $619

Collect 399 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
**EOFY Special! Get FREE Gift with Purchase. Limited Time Offer Ends 25/06. Claim Yours Now!**

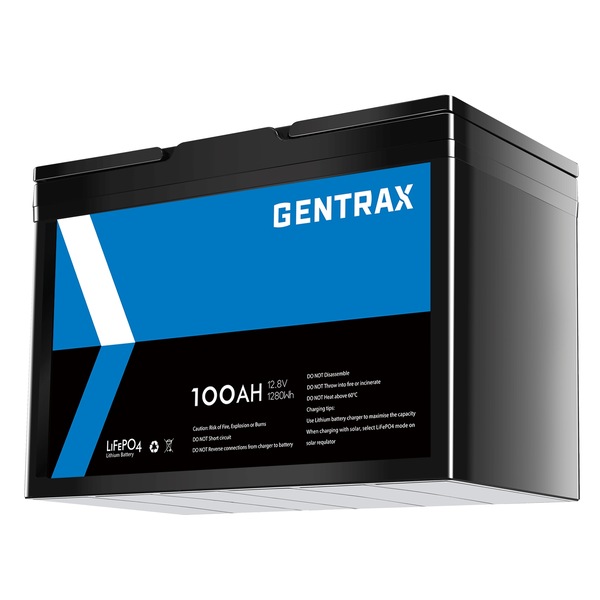

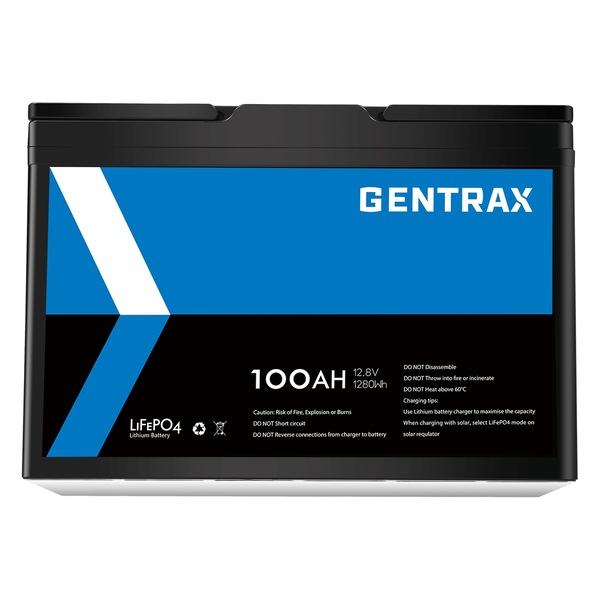

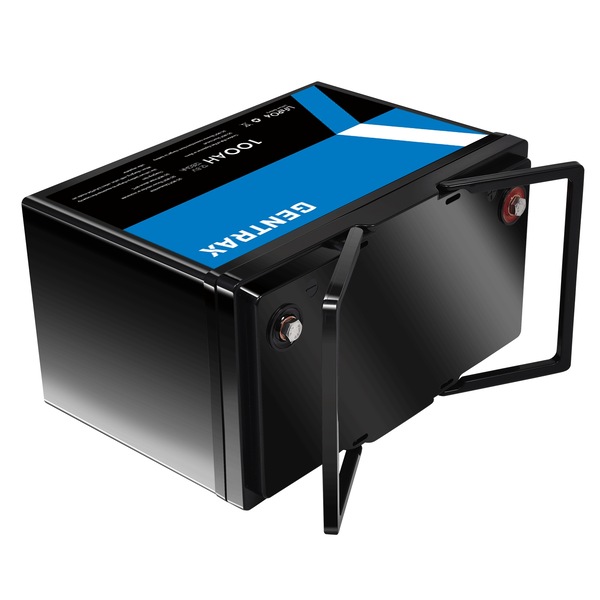

MODEL1: 1* 12V 100Ah Lithium Battery

Nominal Voltage: 12.8V
Charge Voltage Range: 14.2-14.6V
Discharge Cut-off voltage: 10V
Nominal Capacity: 100Ah
Watt Hour: 1280wh
Charge Method: CC/CV
Max. Charge Current: 100A
Continuous Discharge Current: 100A
Max. Discharge Current (5sec): 200A
Dimensions: L: 306 x W: 169x H:215mm
Storage Temperature: -10°C to 50°C
Working Temoerature Range: Charge 0°C to 45°C; Discharge: -20°C to 60°C
Warranty: 2 years

MODEL2: 2* SRNE 20A MPPT Solar Charge Controller 12V/24V

ELECTRICAL PARAMETERS
System voltage: 12V/24V
Rated charging current: 20A
Static power consumption: ≤10mA
Maximum solar panel power: 260W/12V; 520W/24V
Maximum PV open-circuit voltage: 60V (55V protection, 50V recovery)
MPPT operating voltage range: (Battery voltage +2V)~45V
Battery operating voltage range: 8V-32V
MPPT tracking efficiency: >99%
Charging conversion efficiency: 85%-98% (10%-100% of rated power)
Rated load current: 20A
Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open
TTL communication: Baud rate: 9,600 bps
RS485 communication: RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable.
Bluetooth communication: Optional
CAN communication: RJ45 interface, optional (RV-C protocol)
Grounding type: Grounding of common negative electrode
Cooling mode: Natural heat dissipation
Charging current setting: Yes
Full-charging setting: Yes
Constant voltage output setting: Yes
Charging temperature compensation of lead-acid battery: Yes
Temperature unit setting: Yes
Overload/Short-circuit protection: Yes

ENVIRONMENTAL DATA
Protection grade: IP32
Operating ambient temperature range: -35°C~65°C

MECHANICAL SPECIFICATIONS
Dimension: 181*118*61.7mm
Mounting hole spacing: 161*96mm
Weight: 650g
Fixed hole position: Φ4.5mm

GTIN: 9355348082968
