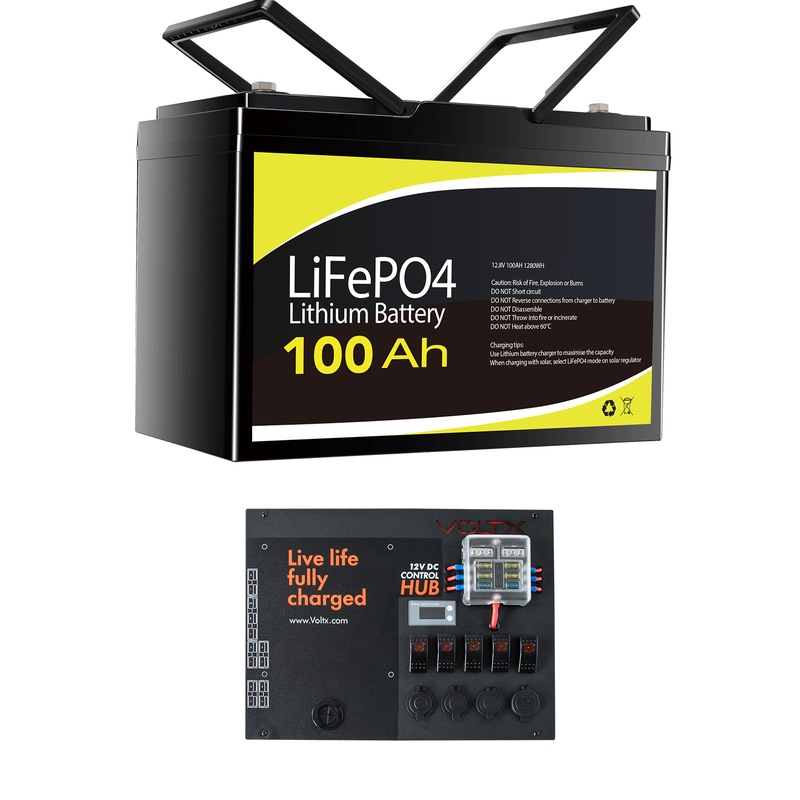

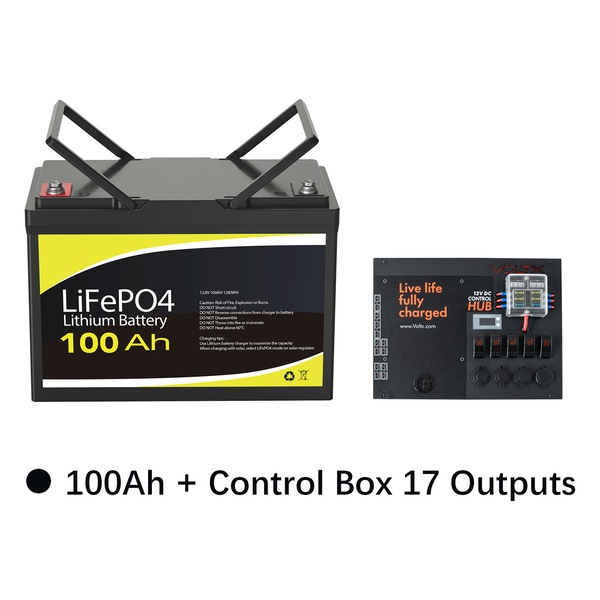

12V 100Ah Lithium Battery + Switch Panel ON-OFF Control Box (Connect 17 Devices)

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$789

Collect 789 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

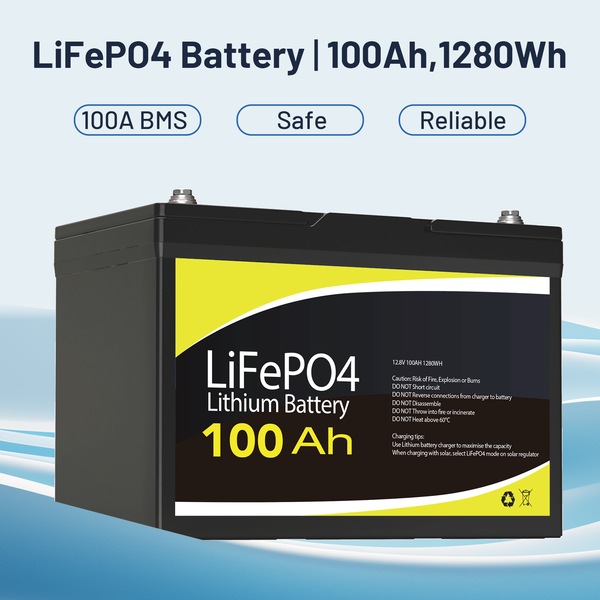

Product 1: 12V 100Ah Lithium Battery

  • Specifications

    • Brand: Power Bolt
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Rated Energy: 1280Wh
    • Approx Life Cycles: 3000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 14.4V 50A
    • Charging Voltage: 14.2-14.6V
    • Overcharge Protection: 14.6V
    • Overcharge Recovery: 14.2V
    • Overdischarge Protection: 10V
    • Overdischarge Recovery: 10.6V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Charging Way: LiFePO4 Charger, Solar Panel
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Standard
    • Battery Cells: Prismatic
    • Certifications: IEC, UN38.3
    • Protection Class: IP65
    • Warranty in Years: 3
    • Bolt Type: M8
    • Bolt Material: Iron nickel-plated
    • Cell Grouping: 4S1P
    • Parallel Connection: Max 6
    • Series Connection: Max 6

  • Dimensions & Weight

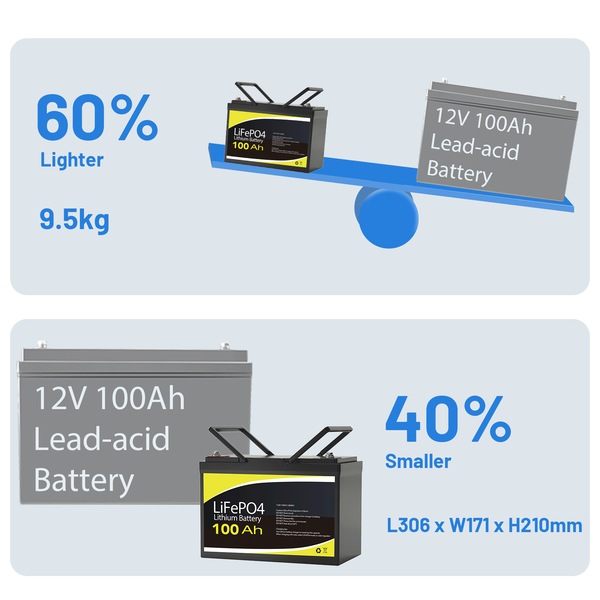

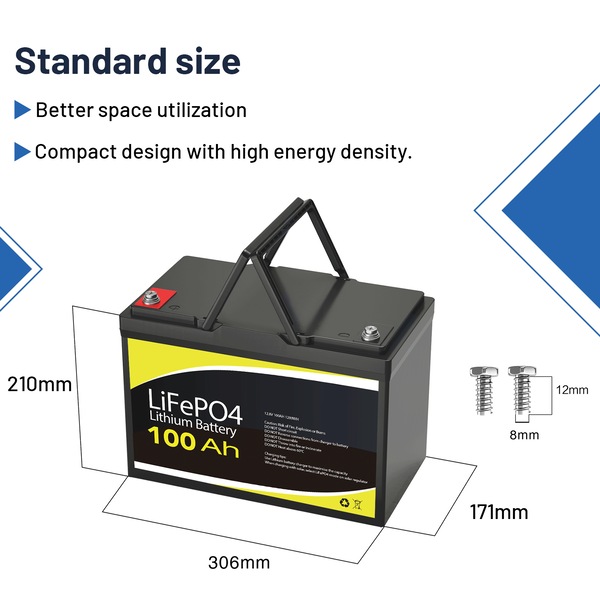

    • Product Size: L306 x W171 x H210mm
    • Package Size: L360 x W220 x H250mm
    • Bolt Terminal Size: Hexagon x 12mm
    • Bolt Terminal Perimeter: 25.12mm
    • Net Weight: 9.5kg
    • Gross Weight: 10.5kg

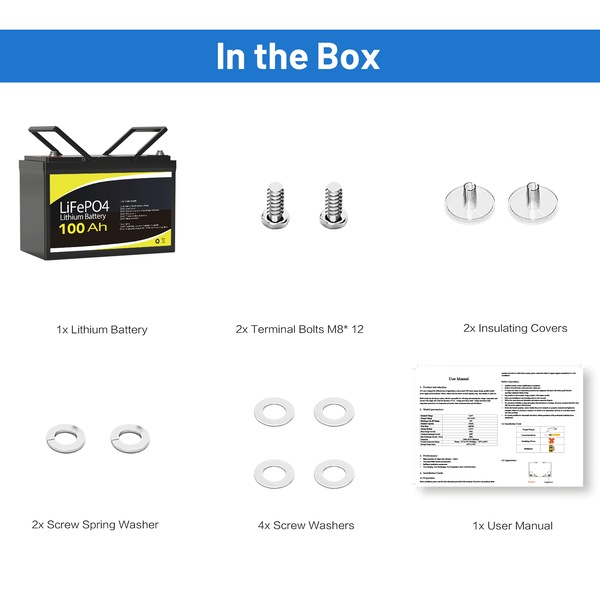

  • Package List

    • 1x 100Ah Lithium Battery
    • 2x Terminal Bolts M8*12
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: Switch Panel ON-OFF Control Box

  • Specifications

    • USB: 2*2.4A+1*QC3.0+1*MAX 18W USB-C PD
    • Cigarette socket: 2*maximum 10A per socket
    • Switch: 5*15A circuit breaker
    • Anderson plug: 5*50A+1*3PIN
    • Fuse box: 2*15A+4*20A
    • NW(kg): 3.65
    • GW(kg): 4.1
    • Dimension (product)cm: 40*30*8.5
    • Dimension (box)cm: 42.8*31.5*12.5
    • Warranty: 1 year

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348073577

    Estimated Delivery Time Frame:3-8 business days
