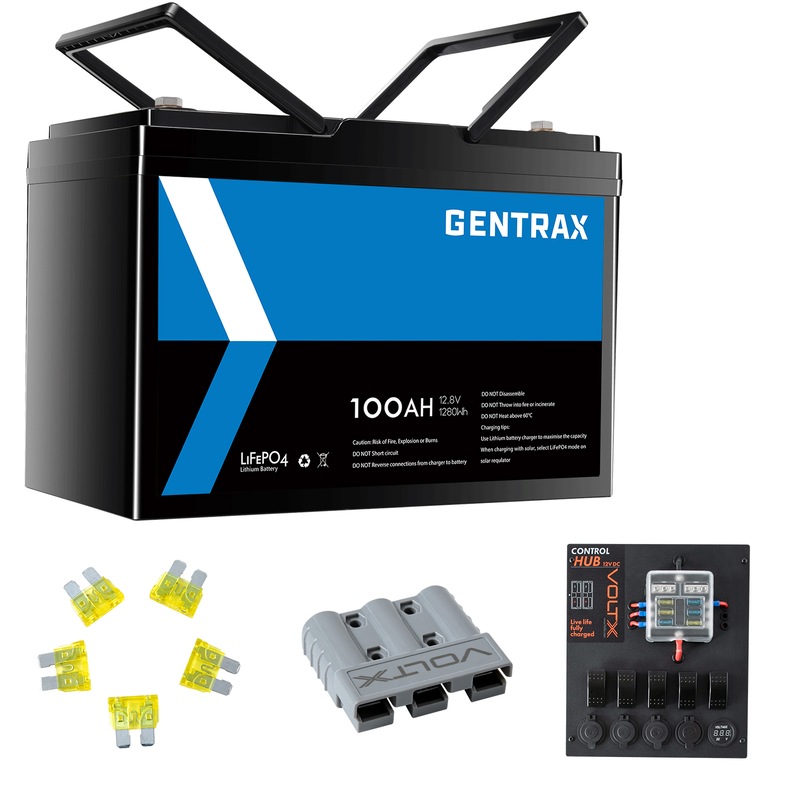

Gentrax 12V 100Ah Lithium Battery + VoltX 12V Control Box + 3pin 50A Anderson Plug + 1*5PC 20A Fuse

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$689

Collect 689 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

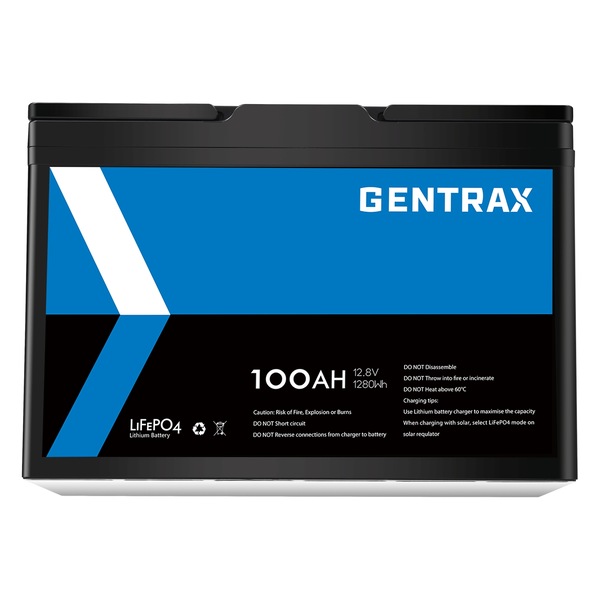

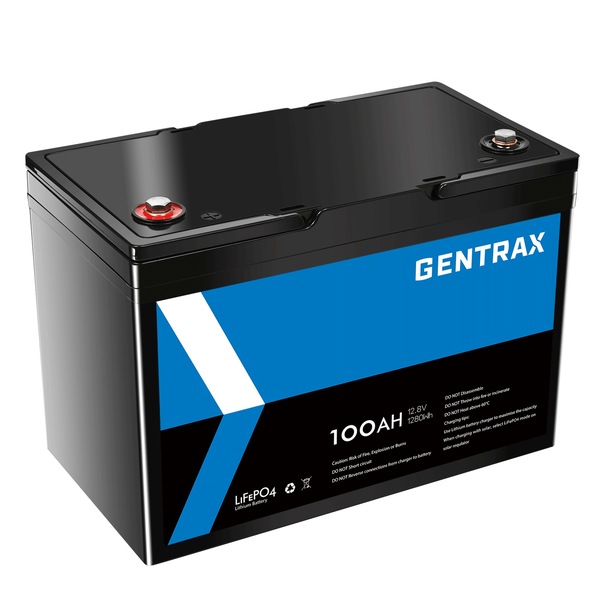

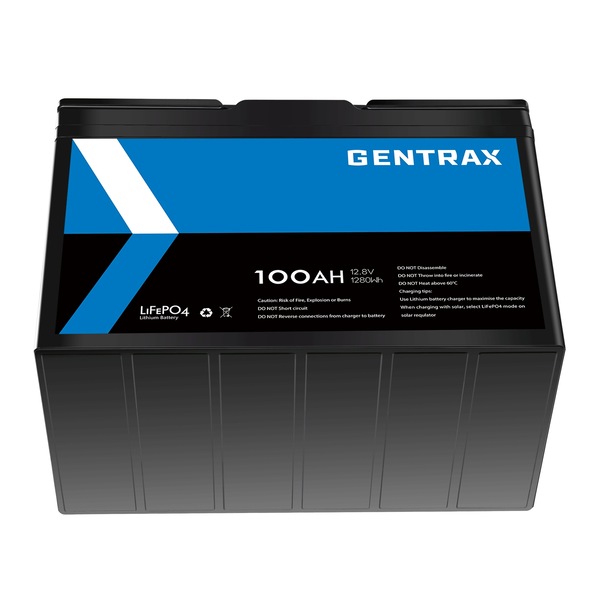

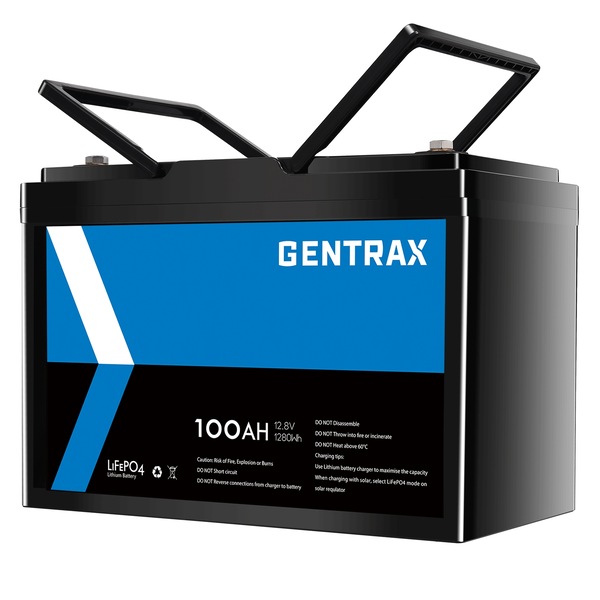

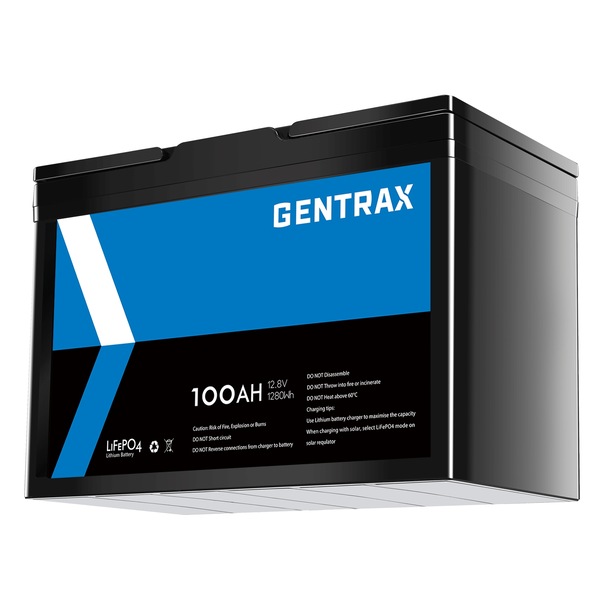

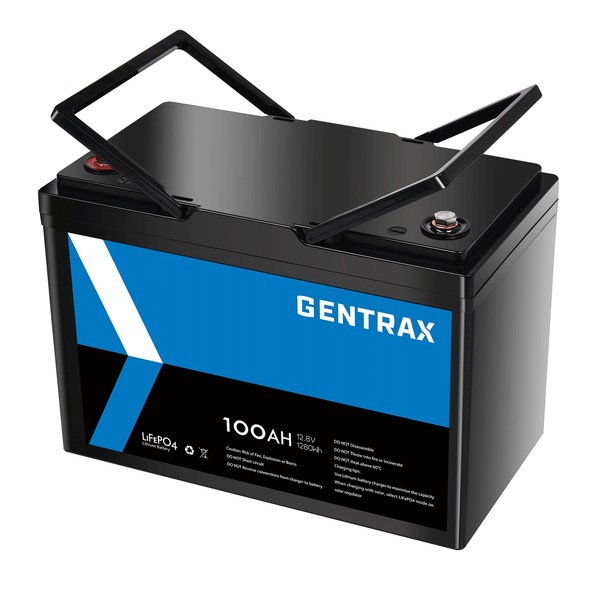

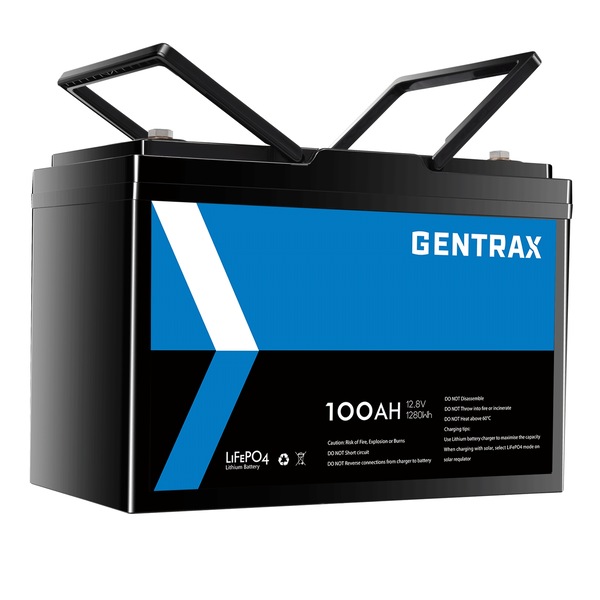

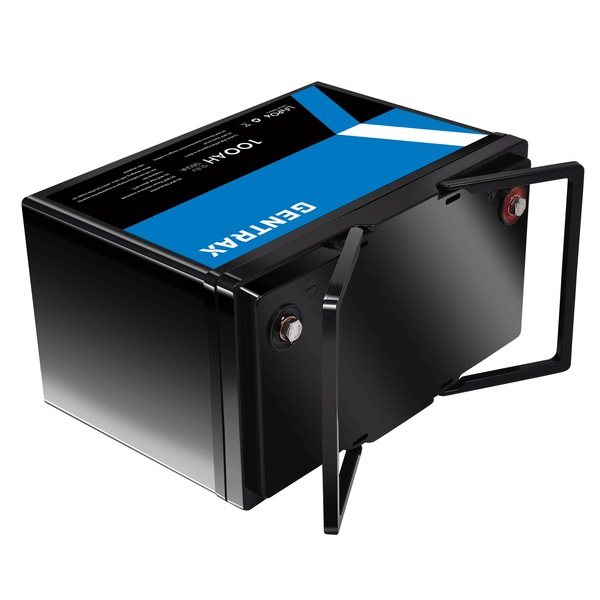

Product 1: 12V 100Ah Lithium Battery

  • Specifications

    • Brand: GENTRAX
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Rated Energy: 1280Wh
    • Approx Life Cycles: ≥3000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 14.6V 50A (not include)
    • Charging Voltage: 14.2-14.6V
    • Absorption Voltage: 14.2-14.6V
    • Float Voltage: 13.6V
    • Overcharge Protection: 15V
    • Overcharge Recovery: 14.4V
    • Overdischarge Protection: 11.2V
    • Overdischarge Recovery: 10.6V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Charging Way: LiFePO4 Charger, Solar Panel, Generator
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Standard
    • Battery Shape: General
    • Certifications: UN38.3
    • Protection Class: IP65
    • Warranty in Years: 2
    • Bolt Type: M8
    • Bolt Material: Iron nickel-plated
    • Cell Grouping: 4S2P
    • Parallel Connection: Max 4
    • Series Connection: No

  • Dimensions & Weight

    • Product Size: L306 x W169 x H215mm
    • Package Size: L360 x W230 x H271mm
    • Bolt Terminal Size: Hexagon x 14mm
    • Bolt Terminal Perimeter: 25.12mm
    • Net Weight: 9.5kg
    • Gross Weight: 10.4kg

  • Package List

    • 1x 100Ah Lithium Battery
    • 2x Terminal Bolts M8*14
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: Switch Panel ON-OFF Control Box (Connect 12 Devices)

  • Specifications

    • USB: 2*USB with led lights (2.1A&1A)
    • Cigarette socket: 3*maximum 10A per socket
    • Switch: 5*15A circuit breaker
    • Anderson plug: 2*50A
    • Fuse box: 3*15A+3*20A
    • NW(kg): 1.9
    • GW(kg): 2.2
    • Dimension (product)cm: 27.5*23.5*8.5
    • Dimension (box)cm: 29.5*24.5*12.5
    • Warranty: 1 year

    Product 3: VoltX 3pin 50amp Anderson Plug

  • Specifications

    • NW(kg): 0.033
    • GW(kg): 0.035
    • Dimension (product)cm: 5.7*4.8*1.6
    • Dimension (box)cm: 11.5*8*1
    • Warranty: 1 year

    Product 4: VoltX 5pc 12V 20A Fuse

  • Specifications

    • NW(kg): 0.0068
    • GW(kg): 0.0081
    • Dimension (product)cm: 2*1.9*0.5
    • Dimension (box)cm: 10*8.3*0.1
    • Warranty: 1 year

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348082647

    Estimated Delivery Time Frame:3-8 business days
