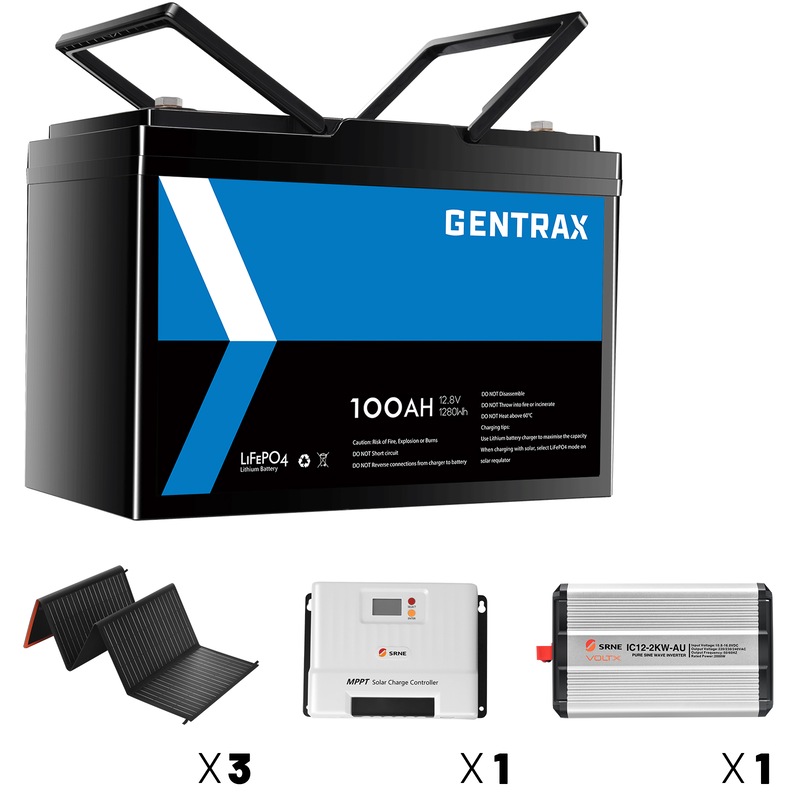

Gentrax 12V 100Ah Lithium Battery + VoltX 2KW Inverter + SRNE 40A Controller + 3* 100W Solar Panel

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$2655

Collect 2655 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

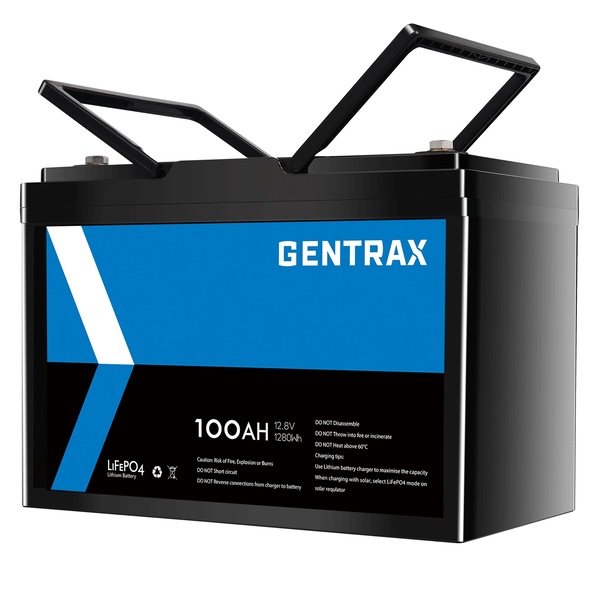

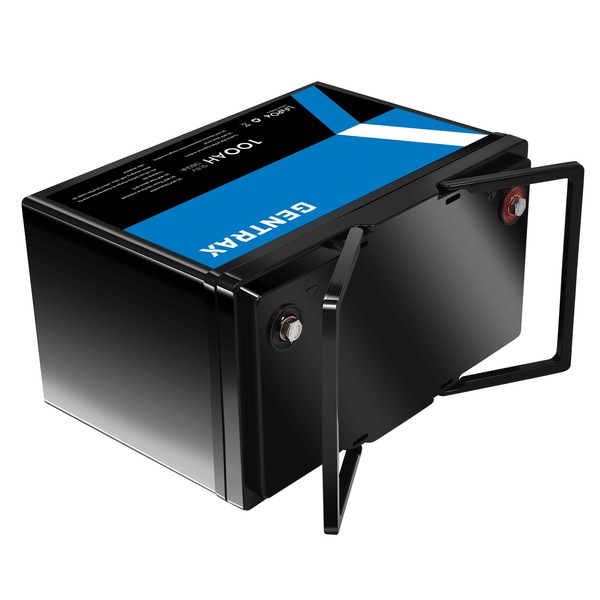

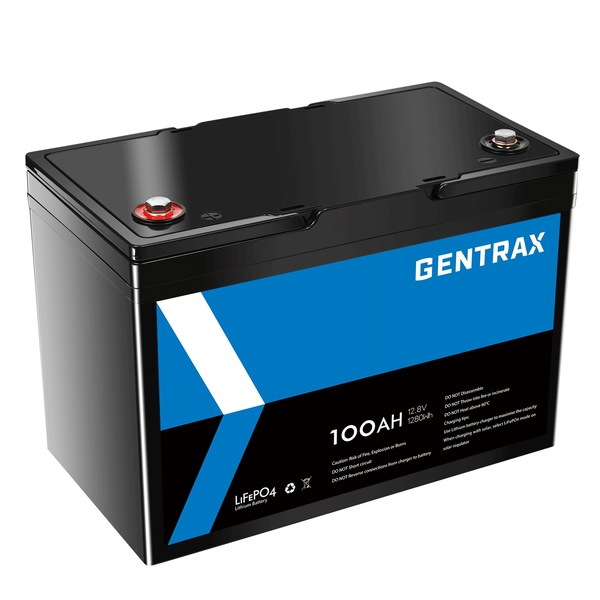

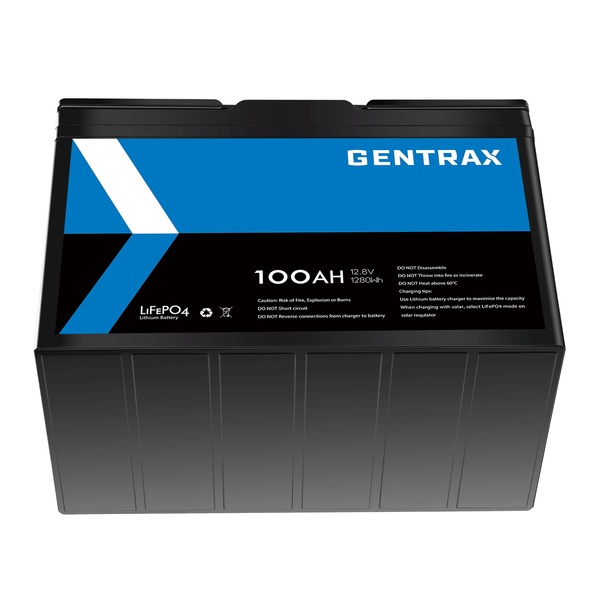

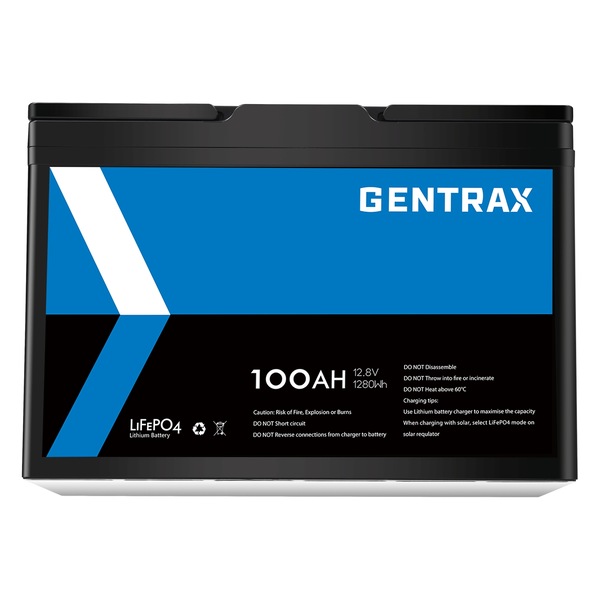

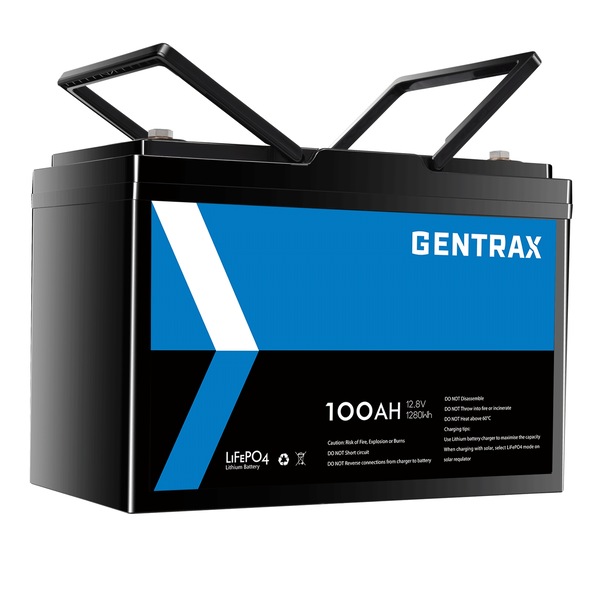

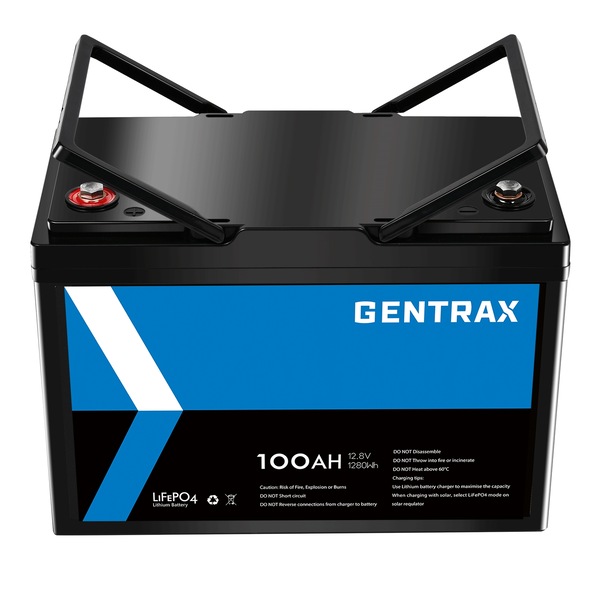

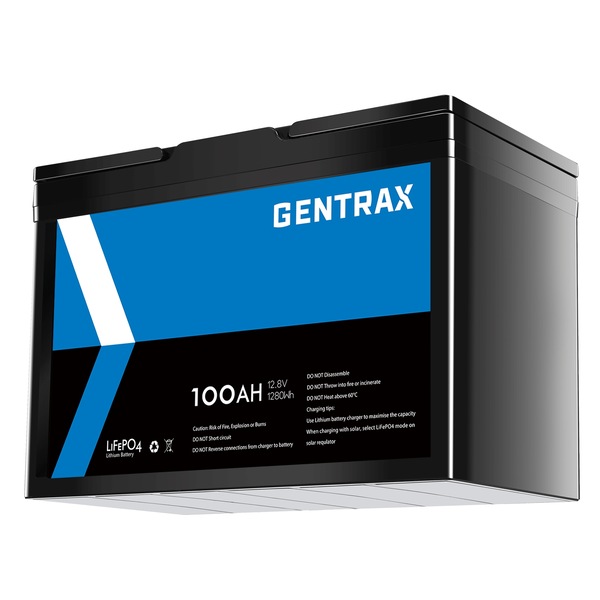

Product 1: 12V 100Ah Lithium Battery

  • Specifications

    • Brand: GENTRAX
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Rated Energy: 1280Wh
    • Approx Life Cycles: ≥3000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 14.6V 50A (not include)
    • Charging Voltage: 14.2-14.6V
    • Absorption Voltage: 14.2-14.6V
    • Float Voltage: 13.6V
    • Overcharge Protection: 15V
    • Overcharge Recovery: 14.4V
    • Overdischarge Protection: 11.2V
    • Overdischarge Recovery: 10.6V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Charging Way: LiFePO4 Charger, Solar Panel, Generator
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Standard
    • Battery Shape: General
    • Certifications: UN38.3
    • Protection Class: IP65
    • Warranty in Years: 2
    • Bolt Type: M8
    • Bolt Material: Iron nickel-plated
    • Cell Grouping: 4S2P
    • Parallel Connection: Max 4
    • Series Connection: No

  • Dimensions & Weight

    • Product Size: L306 x W169 x H215mm
    • Package Size: L360 x W230 x H271mm
    • Bolt Terminal Size: Hexagon x 14mm
    • Bolt Terminal Perimeter: 25.12mm
    • Net Weight: 9.5kg
    • Gross Weight: 10.4kg

  • Package List

    • 1x 100Ah Lithium Battery
    • 2x Terminal Bolts M8*14
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: VoltX 12V 2KW Pure Sine Wave Inverter

  • Specifications

    • Rated Output Power: 2000W
    • Rated Output Power VA: 2000VA
    • Withstand Instantaneous Impact Power: 4000W
    • Rated Output Voltage: 220VAC/230VAC/240VAC(±3%)
    • Output Frequency: 50/60HZ(±0.2%)
    • Output Wave: Pure sine wave
    • Output Harmonic Component: THDV > 3% (pure resistance load)
    • Load Power Factor: 0.2-1 (load power ≤ output continuous power)
    • Rated Input Voltage: 12VDC
    • Input Voltage Range: 10.8~16.0VDC
    • Rated Output Efficiency: >92%
    • Maximum Output Efficiency: > 93.5% (30% overload)
    • Standby Current: <0.24A
    • No-load Current: <1.0A
    • USB Interface: Dual USB output, 5VDC/2A
    • ON/OFF/ECO Mode: ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
    • ECO Starting Power: <30W
    • ECO Interval Time: 1min
    • TTL Interface: Non-isolated TTL communication, power supply 12.5V/200mA
    • Indicator: Green - normal operation; Red - fault
    • External Switch Contact Interface: Switch on or off by control equipment such as external relay and mechanical switch
    • Protection Function: Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
    • Operating Ambient Temperature: -20℃~60℃
    • Storage Ambient Temperature: -35℃~80℃
    • Relative Humidity: ≤95%
    • IP Grade: IP20
    • Heat-dissipating Method: Natural heat dissipation + intelligent air cooling
    • Noise Level: ≤60dB
    • Warranty: 3 Years

  • Dimensions & Weight

    • Dimensions: 409 x 249 x 120mm
    • Mounting Hole Spacing: 374 x 141mm
    • Fixed Hole Position: 5mm
    • Net Weight: 6.5kg

    Product 3: VoltX 100W Solar Panel ETFE (3 Packs)

  • Specifications

    • Maximum Power:100W
    • Max Power Voltage:18V
    • Open-Circuit Voltage: 22.4V
    • Short-Circuit Current: 5.88A
    • Cell Efficiency: 23.5%
    • Maximum System Voltage: 1000V
    • Temperature Range: -20°C to 65°C
    • Power Tolerance: 0-5%
    • Standard Test Conditions: AM=1.5,E=1000W/m², TC=25°C
    • Solar Cell: Mono Grade A
    • Net Weight: 3.1kg
    • IP Rating: IP65

    Product 4: 40A Solar Charge Controller MPPT Battery Charger

  • Electrical Parameters


    • System voltage: 12V/24V
    • Rated charging current: 40A
    • Static power consumption: ≤10mA
    • Maximum solar panel power: 520W/12V; 1040W/24V
    • Maximum PV open-circuit voltage: 100V (95V protection, 90V recovery)
    • MPPT operating voltage range: (Battery voltage +2V)~72V
    • Battery operating voltage range: 8V-32V
    • MPPT tracking efficiency: >99%
    • Charging conversion efficiency: 85%-98% (10%-100% of rated power)
    • Rated load current: 20A
    • Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open
    • TTL communication: Baud rate: 9,600 bps
    • RS485 communication: RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable.
    • Bluetooth communication: Optional
    • CAN communication: RJ45 interface, optional (RV-C protocol)
    • Historical data: Save the last 200 days of historical data
    • Protection function: PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection.
    • Grounding type: Grounding of common negative electrode
    • Cooling mode: Natural heat dissipation
    • Charging current setting: Yes
    • Full-charging setting: Yes
    • Constant voltage output setting: Yes
    • Charging temperature compensation of lead-acid battery: Yes
    • Temperature unit setting: Yes
    • Overload/Short-circuit protection: Yes

  • Environmental Data


    • Protection grade: IP32
    • Operating ambient temperature range: -35°C~65°C

  • Mechanical Specifications


    • Dimension: 228*160*72mm
    • Mounting hole spacing: 214*133mm
    • Weight: 1750g
    • Fixed hole position: Φ5mm

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348082531

    Estimated Delivery Time Frame:3-8 business days
