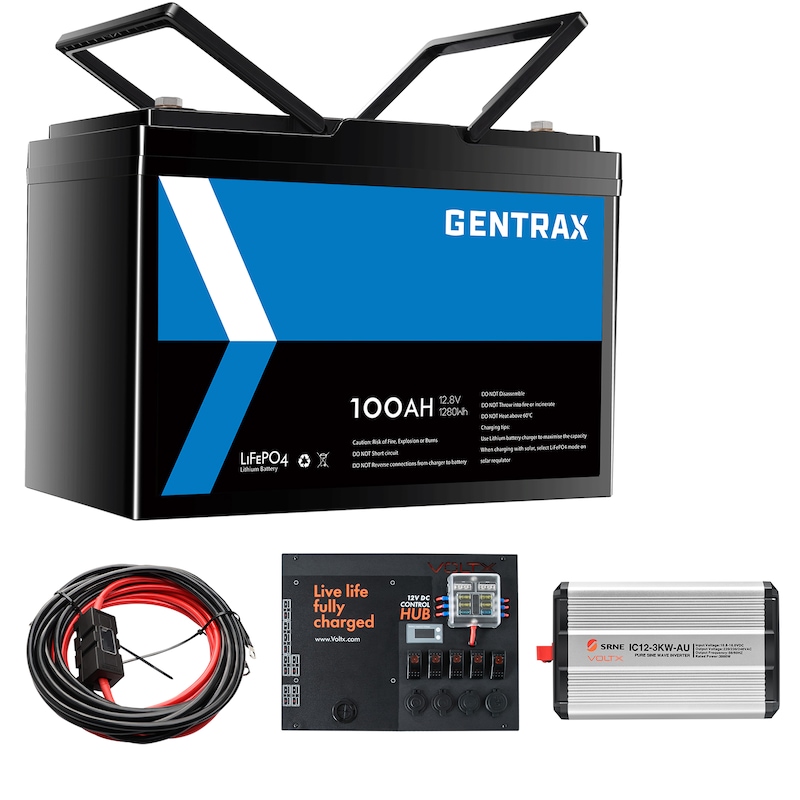

Gentrax 12V 100Ah Lithium Battery + VoltX 3KW Inverter + 12V Control Box + 6m 6AWG Alternator Cable

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$1776

Collect 1776 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Product 1: 12V 100Ah Lithium Battery

  • Specifications

    • Brand: GENTRAX
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Rated Energy: 1280Wh
    • Approx Life Cycles: ≥3000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 14.6V 50A (not include)
    • Charging Voltage: 14.2-14.6V
    • Absorption Voltage: 14.2-14.6V
    • Float Voltage: 13.6V
    • Overcharge Protection: 15V
    • Overcharge Recovery: 14.4V
    • Overdischarge Protection: 11.2V
    • Overdischarge Recovery: 10.6V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Charging Way: LiFePO4 Charger, Solar Panel, Generator
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Standard
    • Battery Shape: General
    • Certifications: UN38.3
    • Protection Class: IP65
    • Warranty in Years: 2
    • Bolt Type: M8
    • Bolt Material: Iron nickel-plated
    • Cell Grouping: 4S2P
    • Parallel Connection: Max 4
    • Series Connection: No

  • Dimensions & Weight

    • Product Size: L306 x W169 x H215mm
    • Package Size: L360 x W230 x H271mm
    • Bolt Terminal Size: Hexagon x 14mm
    • Bolt Terminal Perimeter: 25.12mm
    • Net Weight: 9.5kg
    • Gross Weight: 10.4kg

  • Package List

    • 1x 100Ah Lithium Battery
    • 2x Terminal Bolts M8*14
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: VoltX 12V 3KW Pure Sine Wave Inverter

  • Specifications

    • Rated Output Power: 3000W
    • Rated Output Power VA: 3000VA
    • Withstand Instantaneous Impact Power: 6000W
    • Rated Output Voltage: 220VAC/230VAC/240VAC(±3%)
    • Output Frequency: 50/60HZ(±0.2%)
    • Output Wave: Pure sine wave
    • Output Harmonic Component: THDV > 3% (pure resistance load)
    • Load Power Factor: 0.2-1 (load power ≤ output continuous power)
    • Rated Input Voltage: 12VDC
    • Input Voltage Range: 10.8~16.0VDC
    • Rated Output Efficiency: 0.87
    • Maximum Output Efficiency: > 91.5% (30% overload)
    • Standby Current: <0.24A
    • No-load Current: <1.45A
    • USB Interface: Dual USB output, 5VDC/2A
    • ON/OFF/ECO Mode: ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
    • ECO Starting Power: <30W
    • ECO Interval Time: 1min
    • TTL Interface: Non-isolated TTL communication, power supply 12.5V/200mA
    • Indicator: Green - normal operation; Red - fault
    • External Switch Contact Interface: Switch on or off by control equipment such as external relay and mechanical switch
    • Protection Function: Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
    • Operating Ambient Temperature: -20℃~60℃
    • Storage Ambient Temperature: -35℃~80℃
    • Relative Humidity: ≤95%
    • IP Grade: IP20
    • Heat-dissipating Method: Natural heat dissipation + intelligent air cooling
    • Noise Level: ≤60dB
    • Warranty: 3 Years

  • Dimensions & Weight

    • Dimensions: 409 x 249 x 120mm
    • Mounting Hole Spacing: 374 x 141mm
    • Fixed Hole Position: 5mm
    • Net Weight: 8.0kg

    Product 3: Switch Panel ON-OFF Control Box (Connect 17 Devices)

  • Specifications

    • USB: 2*2.4A+1*QC3.0+1*MAX 18W USB-C PD
    • Cigarette socket: 2*maximum 10A per socket
    • Switch: 5*15A circuit breaker
    • Anderson plug: 5*50A+1*3PIN
    • Fuse box: 2*15A+4*20A
    • NW(kg): 3.65
    • GW(kg): 4.1
    • Dimension (product)cm: 40*30*8.5
    • Dimension (box)cm: 42.8*31.5*12.5
    • Warranty: 1 year

    Product 4: Controller to Battery Cable

  • Specifications

    • Cable Length: 6m
    • Wire Gauge: 6AWG
    • Amperage: 60A
    • Colour: Red and Black

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348082548

    Estimated Delivery Time Frame:3-8 business days
