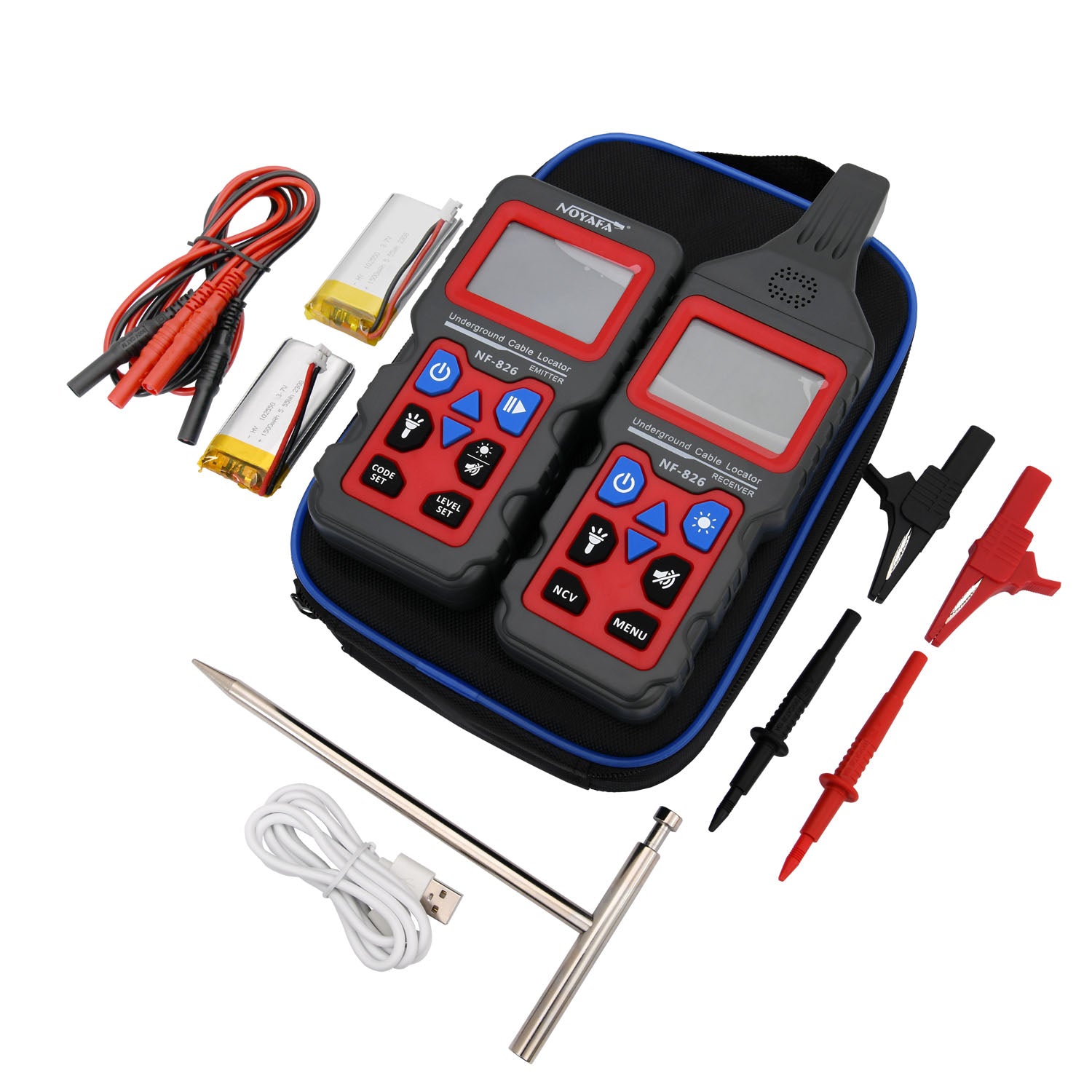

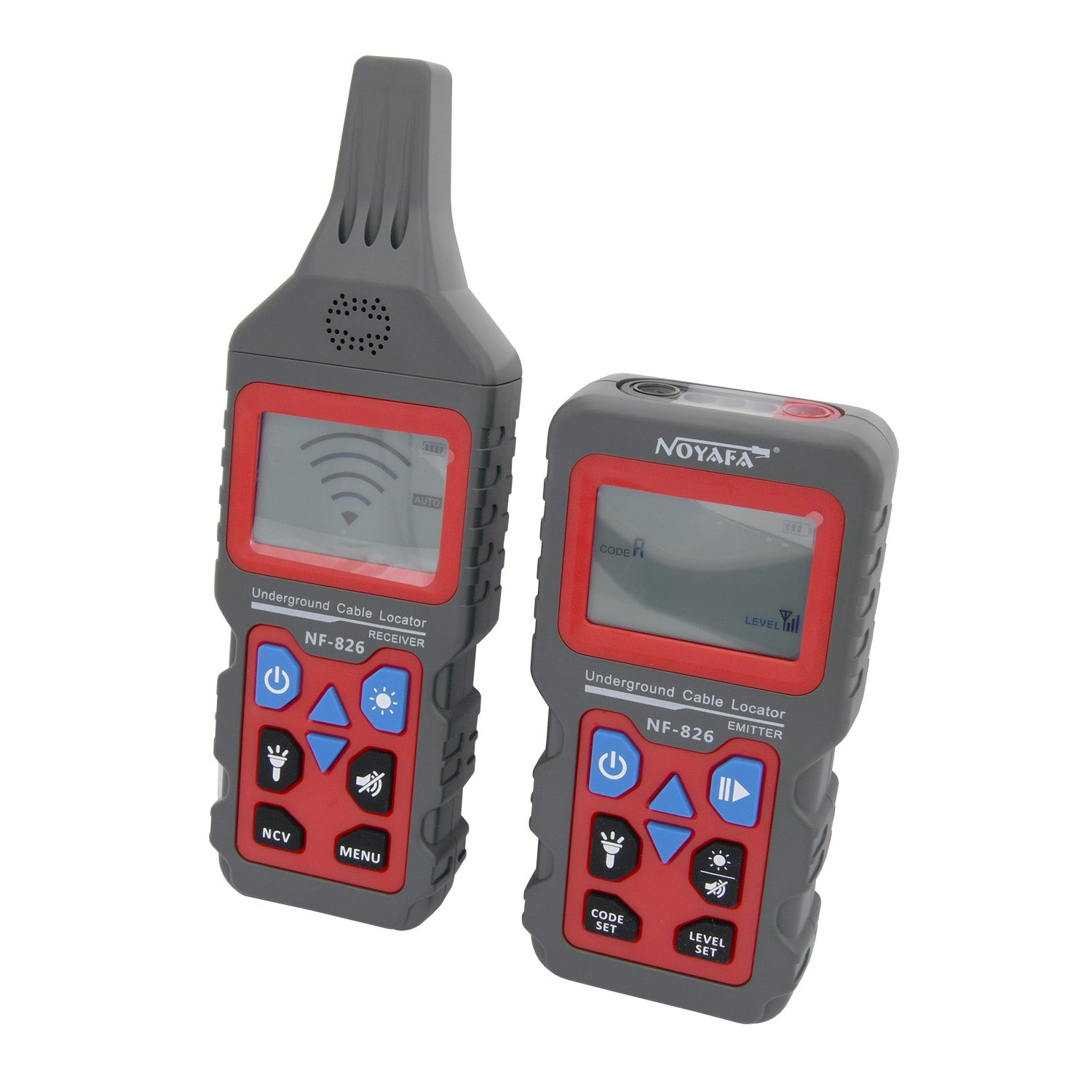

Genuine V3 Underground Cable Locator & Wire Detector Tracker –

Product Description:

The Genuine V3 Underground Cable Locator & Wire Detector Tracker (T1501) is an advanced detection tool designed to accurately trace cables, identify faults, and locate pipelines buried underground or within walls. Featuring integrated digital circuit technology, this device ensures stable and reliable electrical performance for professionals working in power cable maintenance, communication line troubleshooting, and pipeline detection.

With its ability to detect live and non-live cables up to 1.5 meters deep, locate breakpoints, short circuits, and fuses, and identify hidden outlets and distribution boxes, the T1501 is an essential tool for electricians, technicians, and construction professionals.

Key Features:

Multi-Purpose Wire & Pipeline Detection – Accurately traces electrical lines, communication cables, water, and gas pipelines buried underground or in walls.
Breakpoint & Short Circuit Location – Pinpoints cable breaks, short circuits, and interruptions with precision.
Fuse & Circuit Identification – Locates fuses and circuits within electrical panels and systems.
Hidden Outlet & Junction Box Detection – Finds concealed power outlets and distribution points.
Deep Detection Capability – Maximum detection depth of 1.5 meters (5 feet) depending on wiring setup.
LCD Display & Adjustable Sensitivity – Clear bar chart readings and precise signal adjustments for accurate detection.
Rechargeable Lithium Battery – Long-lasting 3.7V 1400mAh lithium battery ensures continuous operation.

How to Use:

1️⃣ Locating a Cable Route:

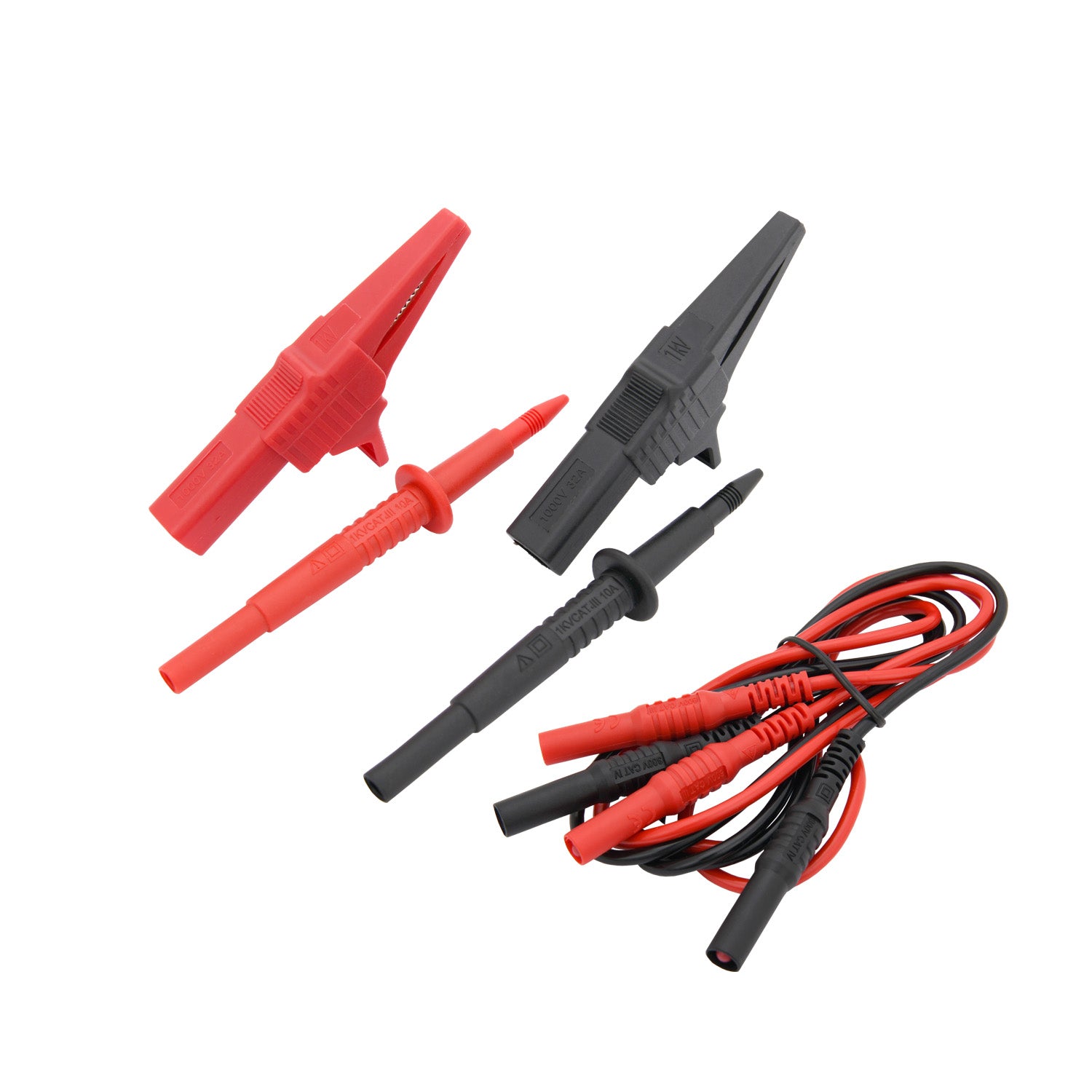

  • Connect the red clip to the target cable and the black clip to the ground.
  • Use the receiver to track the signal path and determine the cable’s direction.

2️⃣ Finding a Cable Breakpoint:

  • Attach the red clip to the broken cable and the black clip to the ground.
  • The receiver will emit a signal before the breakpoint and stop detecting after passing it.

3️⃣ Locating a Short Circuit:

  • Connect the red clip to one end of the shorted conductor and the black clip to the other.
  • The receiver will detect the signal before the short circuit point but remain silent beyond it.

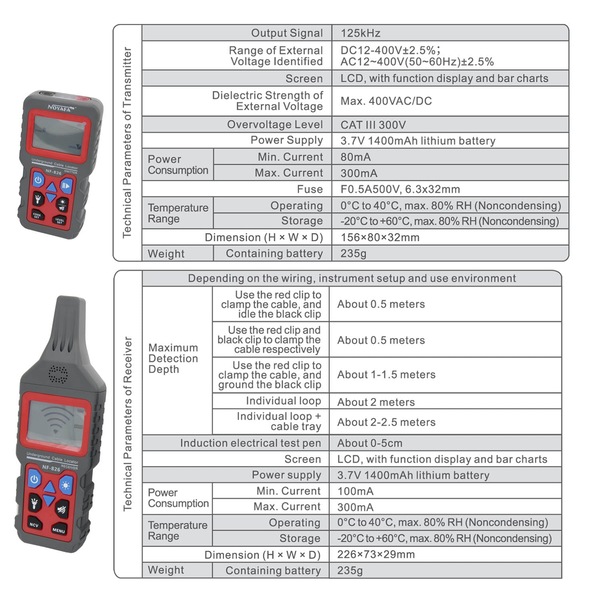

Technical Specifications

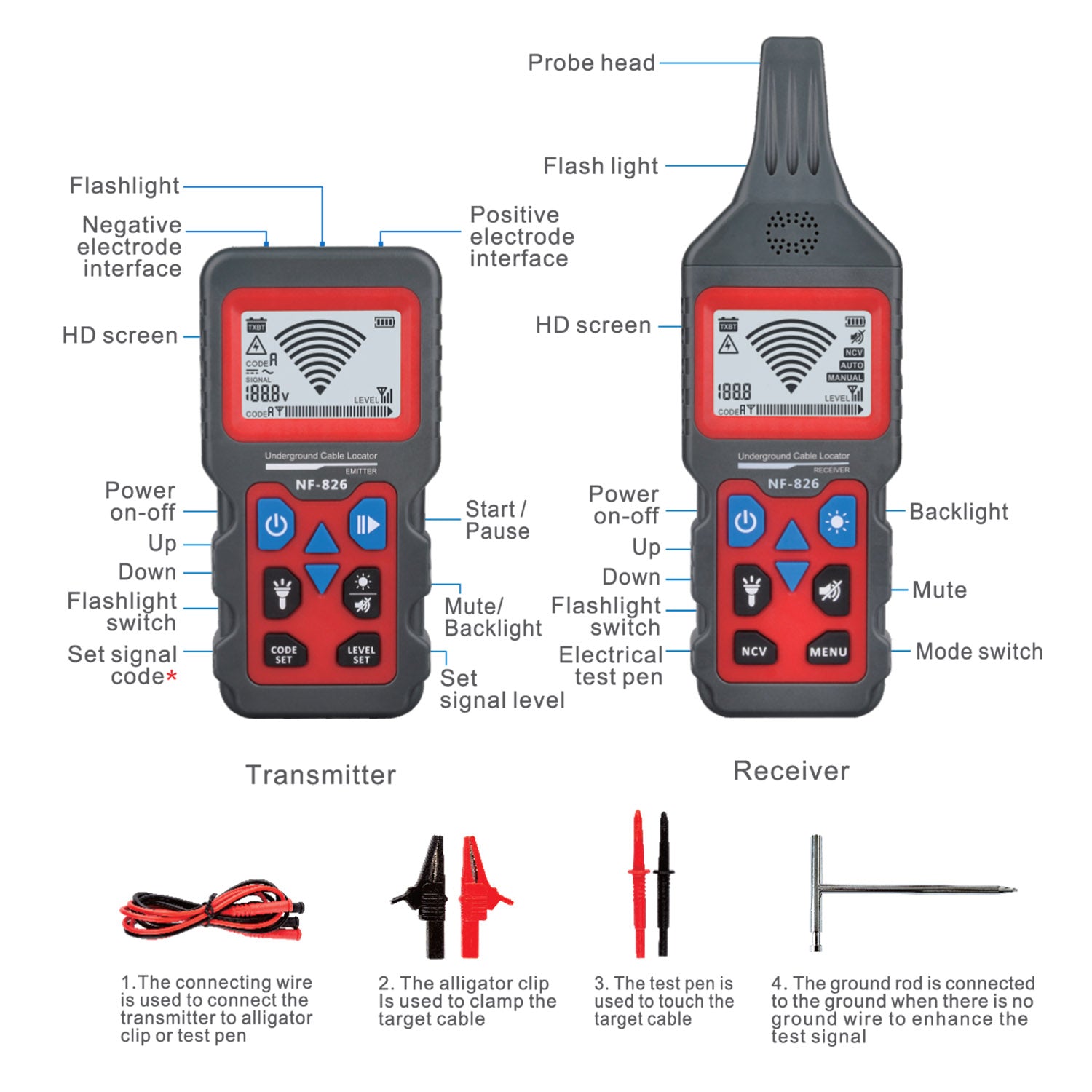

🔹 Transmitter:
  • Output Signal: 125 kHz
  • Voltage Identification Range:
    • DC: 12-400V ±2.5%
    • AC: 12-400V (50-60Hz) ±2.5%

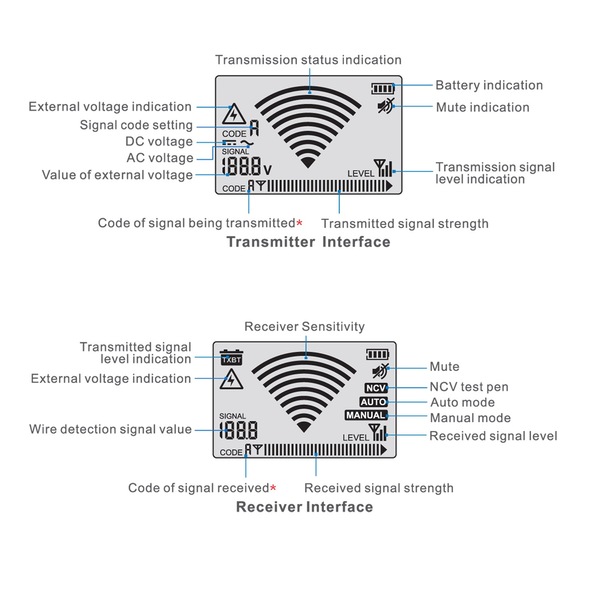

  • Screen: LCD with function display and bar charts
  • Maximum Voltage Handling: 400V AC/DC
  • Overvoltage Category: CAT III 300V
  • Power Supply: 3.7V 1400mAh lithium battery (rechargeable)
  • Power Consumption:
    • Minimum: 80mA
    • Maximum: 300mA
  • Operating Temperature: 0°C to 40°C, max. 80% RH (non-condensing)
  • Storage Temperature: -20°C to 60°C, max. 80% RH (non-condensing)
  • Dimensions: 156 x 80 x 32 mm
🔹 Receiver:
  • Detection Depth (varies by setup & environment):
    • Single clip connection: ~0.5 meters
    • Dual clip connection: ~0.5 meters
    • Red clip on cable, black clip grounded: 1-1.5 meters
    • Single loop detection: 2 meters
    • Single loop + cable tray: 2-2.5 meters
  • Screen: LCD with function display and bar charts
  • Power Supply: 3.7V 1400mAh lithium battery (rechargeable)
  • Power Consumption:
    • Minimum: 100mA
    • Maximum: 300mA
  • Operating Temperature: 0°C to 40°C, max. 80% RH (non-condensing)
  • Storage Temperature: -20°C to 60°C, max. 80% RH (non-condensing)
  • Dimensions: 226 x 73 x 29 mm

Why Choose the V3 Underground Cable Locator?

High-Precision Cable & Pipeline Detection – Detects electrical lines, pipelines, and faults with accuracy and efficiency.
Ideal for Professional & Industrial Use – Suitable for electricians, technicians, utility workers, and construction experts.
User-Friendly & Durable – Features clear LCD display, rechargeable battery, and adjustable sensitivity for easy operation.
Versatile & Reliable Performance – Works with power cables, communication lines, electric heating circuits, and more.

A Must-Have Tool for Electrical & Cable Maintenance Professionals!
Detect and trace wires faster and easier with the T1501 Underground Cable Locator – Order yours today!

SKU: T1501
