Walbro 525 lph E85 Fuel Pump Kit F90000285 BA BF FG Falcon VE VZ EFP-530

Image 1
Limited Stock
$314.50

Collect 314 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Speed Parts
Secure ways to pay at checkout

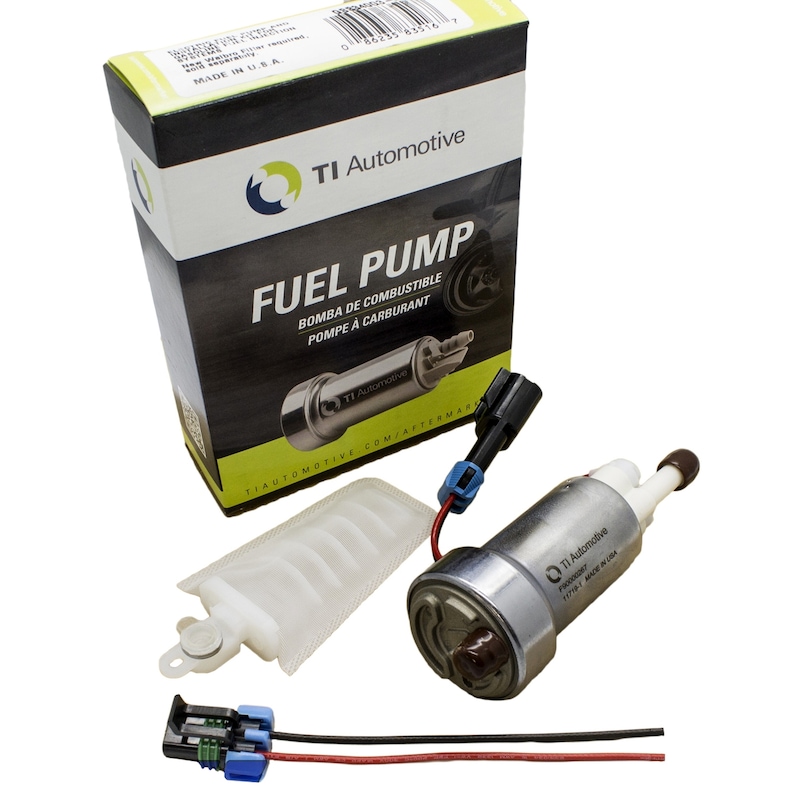

Walbro / TI Automotive 525 lph Unleaded & E85 In Tank Fuel Pump. This is the latest and greatest version of the venerable Walbro 460 lph pump, with even higher flow than ever. Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive. These high flow & pressure fuel pumps feature an impeller with two parallel rows of turbine blades that feed two high-pressure pumping channels. This modern design results in minimal noise and current draw, and efficiency that’s 20 percent greater than conventional fuel pumps like your standard Bosch 044 or 023 (also available in our other listings). The Walbro 525lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump won’t flow enough. If you are under 500hp, see our other items for the Walbro GSS341 / GSS342 255 lph pumps. Suits the following vehicles (along with many others) with minor cradle mods: BA, BF, FG, FG X Falcon & XR6 Turbo VT, VX, VY, VZ, VE, VF Commodore Subaru WRX Nissan Skyline, Silvia, 180sx and many more. Specifications Common names: Walbro 525, Hellcat Flow rate: 525 lph @ 13.5v (3 bar) E85 Compatible: Yes Max current draw: 25A (Make sure your wiring can handle this beast!) Body Diameter: 39mm / 50mm Length: 131mm Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm) Pressure Relief: 112psi Check Valve: Yes (Inbuilt) Walbro is now known as TI Automotive For decades, Walbro automotive fuel pumps have been manufactured by TI Automotive. As of late 2019, these same pumps are now branded with the TI Automotive name, carrying a legacy for more than 60 years of manufacturing the most popular drop-in fuel pumps, with the same performance, quality and reliability that you have come to know and expect. TI Automotive products are manufactured in their plant in Caro, Michigan in the USA. We source our pumps from a registered Australian wholesaler, delivered them with holograms for authenticity and supply them with genuine fitting kits only. Read the back of the box or our news page for more info. Walbro/TI Automotive Part Number: F90000285 Also known as: EFP-530

Specifications:

Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts

GTIN: 9341554120112
