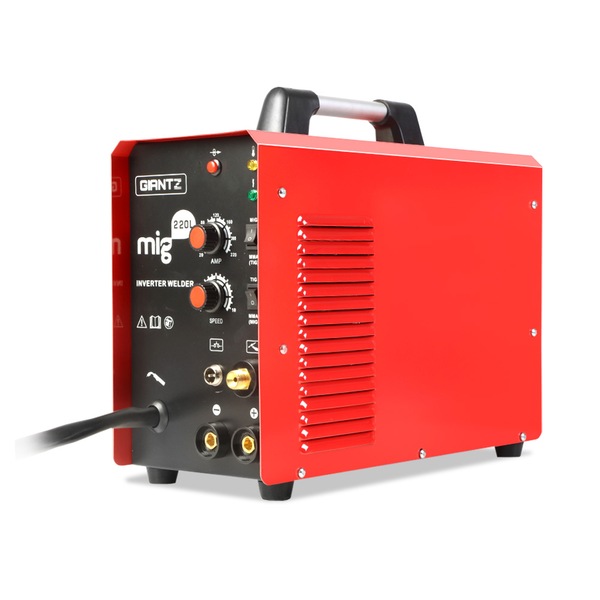

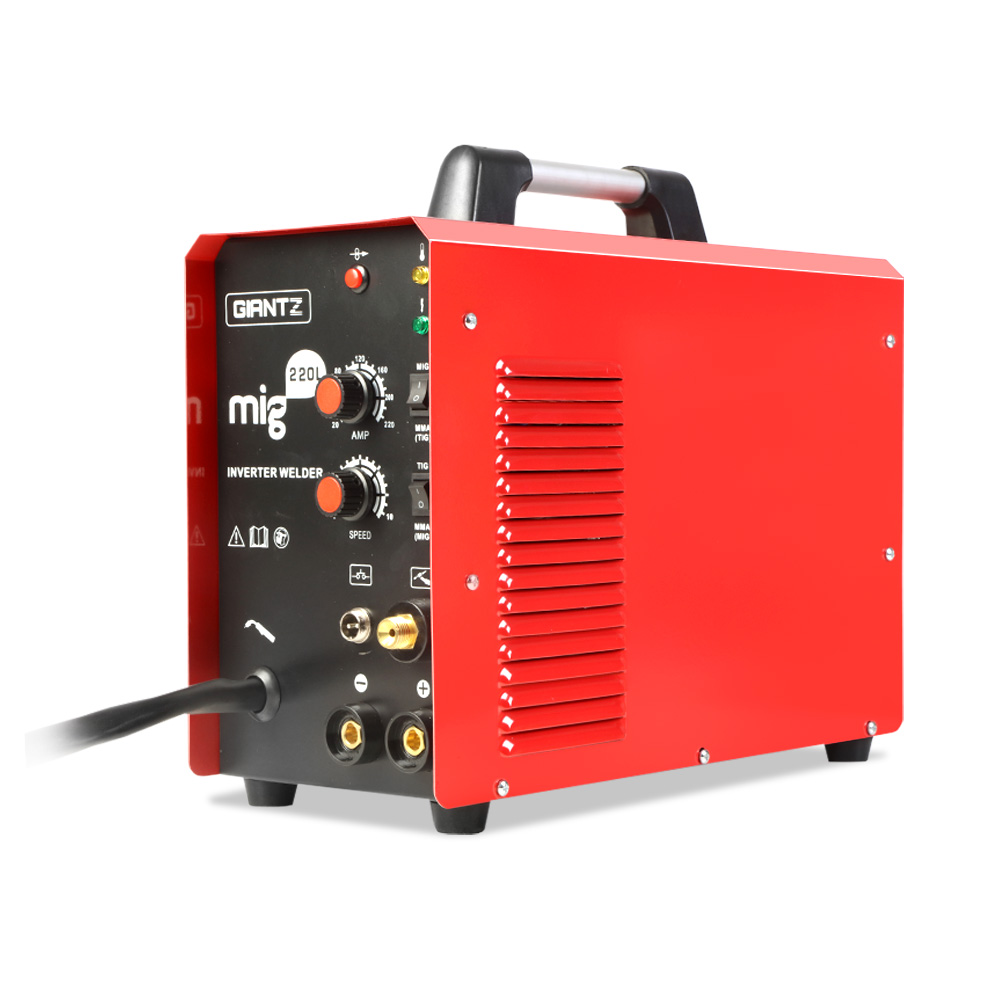

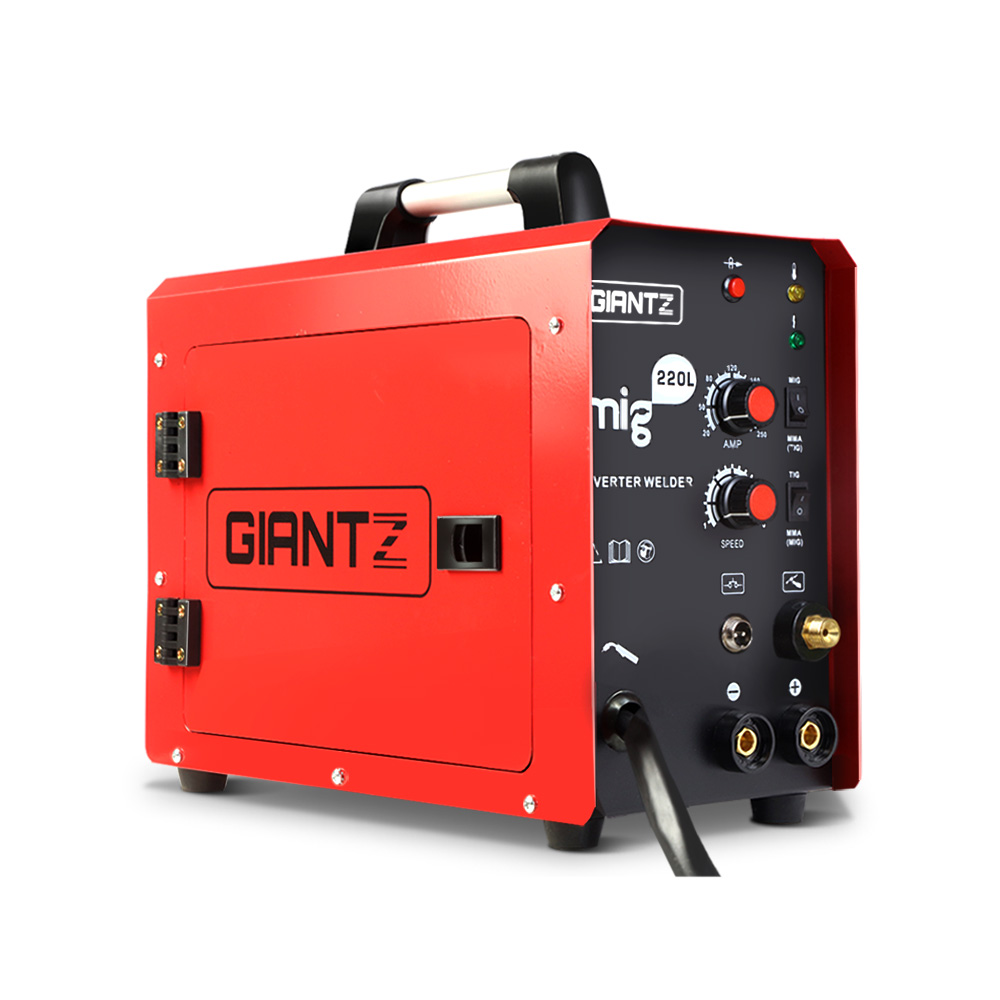

Giantz 220 Amp Inverter Welder MMA MIG DC Gas Gasless Welding Machine Portable
The Giantz Portable Welder offers professional quality MIG/MAG/TIG/MMA welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth welded finish. The machine can handle an array of electrodes and rod sizes. The output current is adjustable between 20A and 220A to produce flawless results with all kinds of metals including mild steel, stainless steel, carbon steel and even sheet metal. The advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better welding performance and durability. Operating the machine is also enhanced with the digital display and user-friendly controls. Not least, safety is never taken for granted as the machine is protected from overloading current, overheating and dust and water protection. The compact machine is lightweight for easy handling and comes with a full range of accessories for hassle-free welding.

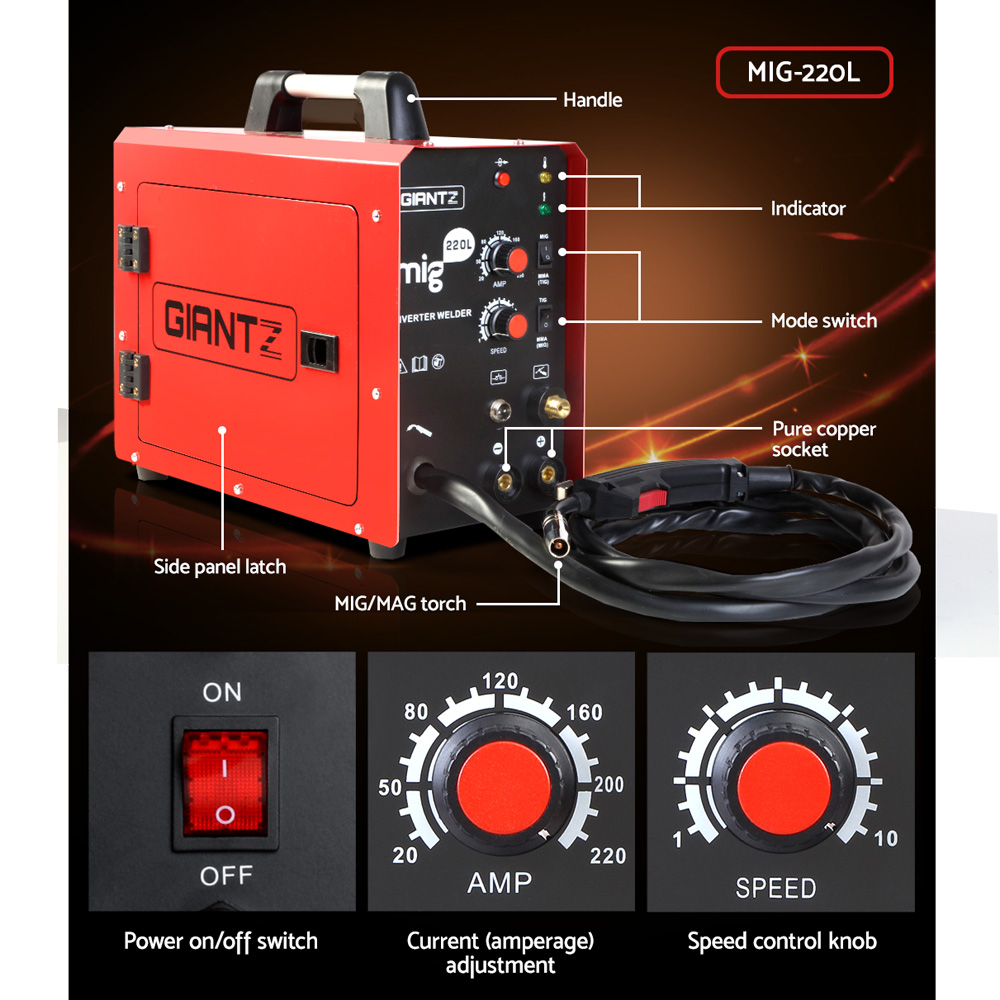

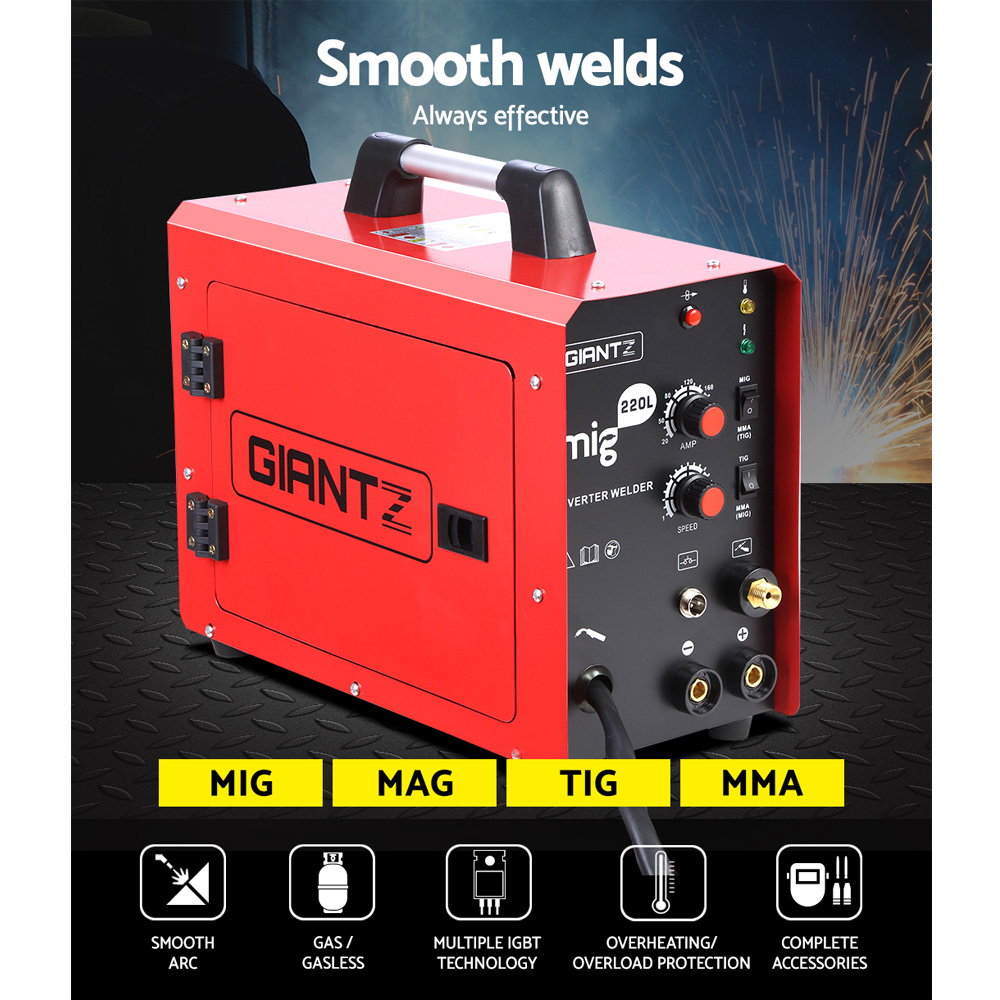

Features
Multifunction MIG/MAG/TIG/MMA Welder
Outstanding current range
Super stable arc force and post flow control
Compact and lightweight
IGBT inverter technology
Maximum 1.0mm wire spool
Super stable DC inverter technology
Current stablisation and auto increase
Industry-standard DIN sockets
Outstanding 30,000 MTPF hours cooling
Overheating, over current, and over/under voltage protection
Works with a range of rod sizes
SAA, EMC, CE and C-Tick certified
Specifications:
Power Voltage: Single Phase 220V 15%, 50Hz
Power Plug: 15A AU Standard
Input capacity: 7.5KVa
Output current range: 20A 220A
Duty Cycle: 35% @ 220A, 60% @ 170A
Efficiency: 85%
Insulation class: F
Shell protection grade: IP21
TIG and MMA connections: Quick-connect brass fittings
MIG torch connection: Hardwired
Max rated input: 15Amp (Require 15Amp Socket)

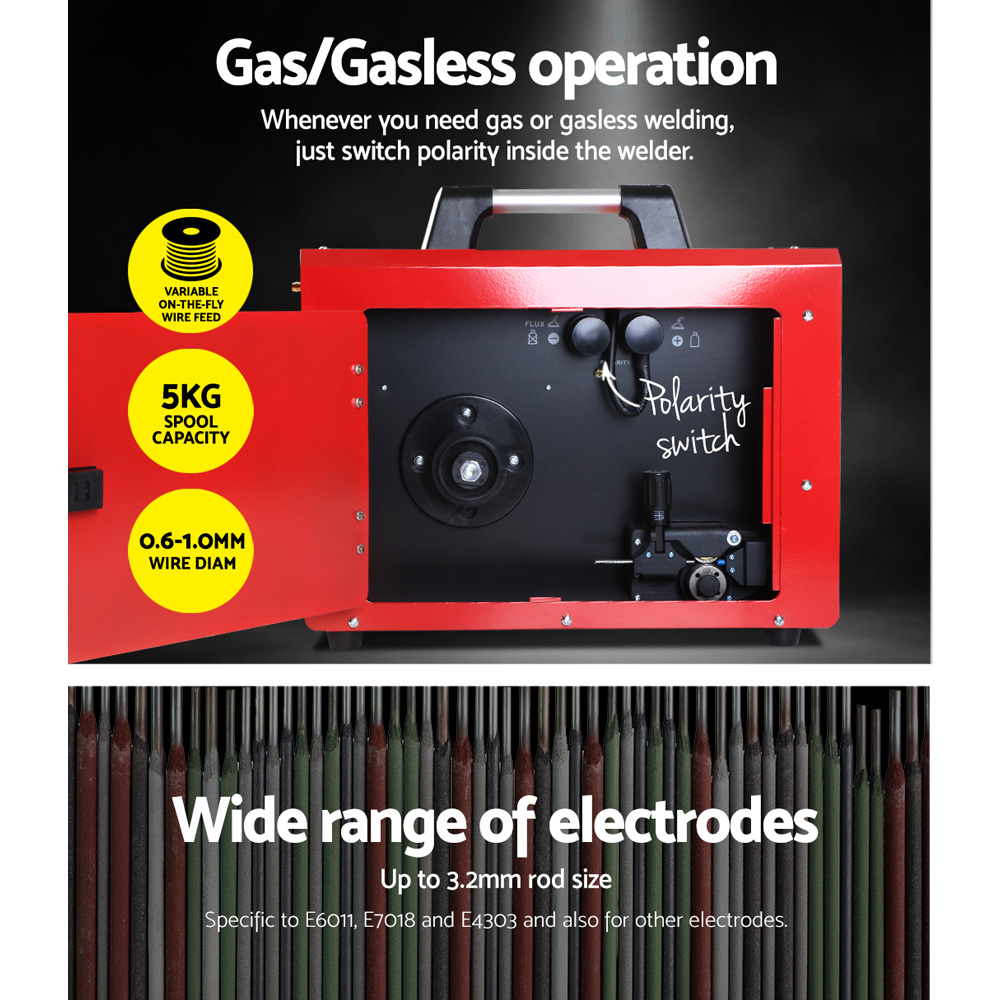

Wire spool diameter: 0.8mm- 1.0mm
Spool capacity: Takes Up to 5Kgs Spools from 0.8 - 1.0mm
Welding electrodes: Up to 4.0mm
MIG touch length: 3m
MMA electrode cable length: 1.8m
Earth clamp cable length: 1.2m
TIG torch cable length: 4m
Power cord length: 1.8m
Generator recommended: 8kVA

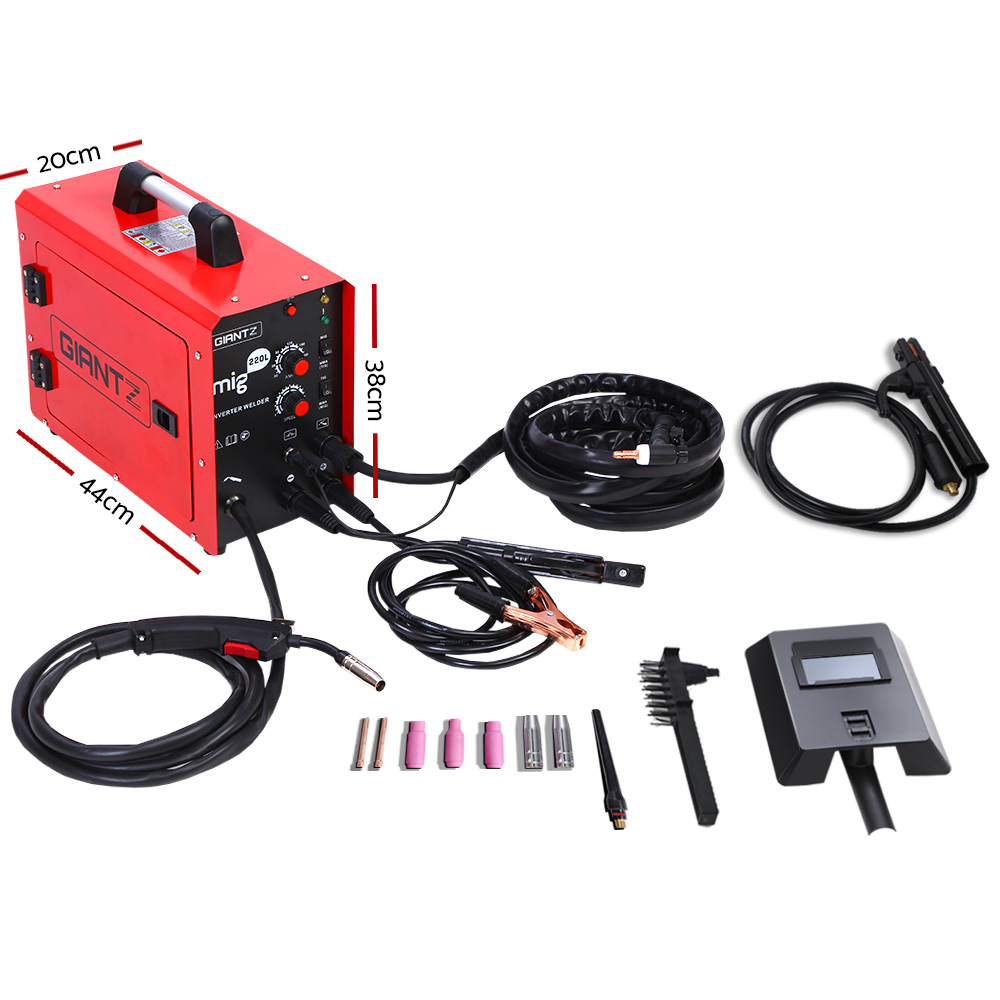

Dimensions: 42cm x 18.5cm x 34cm
Product weight: 11kg

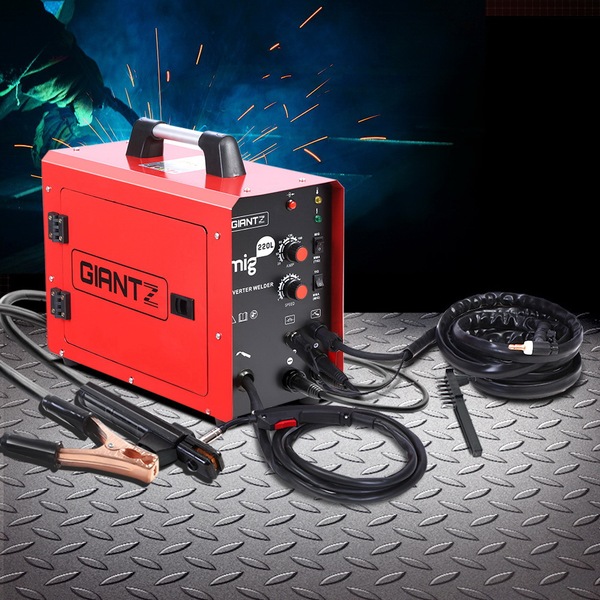

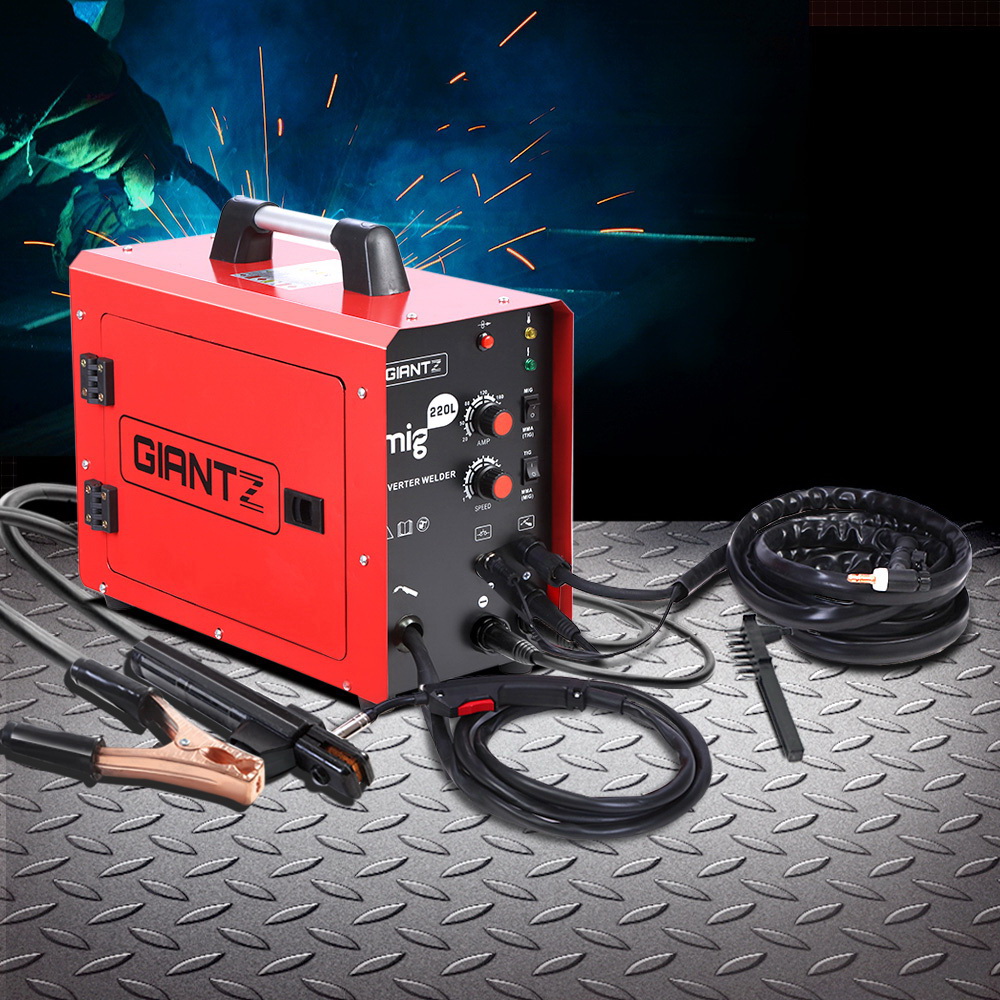

Package Content
Item Description:Quantity:
GIANTZ Inverter Welderx 1
MIG torchx 1
TIG torch Leadx 1
Electrode Holder Leadx 1
Earth Clamp Leadx 1
Welding Maskx 1
Packing Bag for Touch Leadx 1
Colletx 1
Gas Nozzlex 1
Stubby Ceramic Nozzlex 1
Long Back Capx 1
Wire Brushx 1
User Manualx 1
This product comes with 1 year warranty
