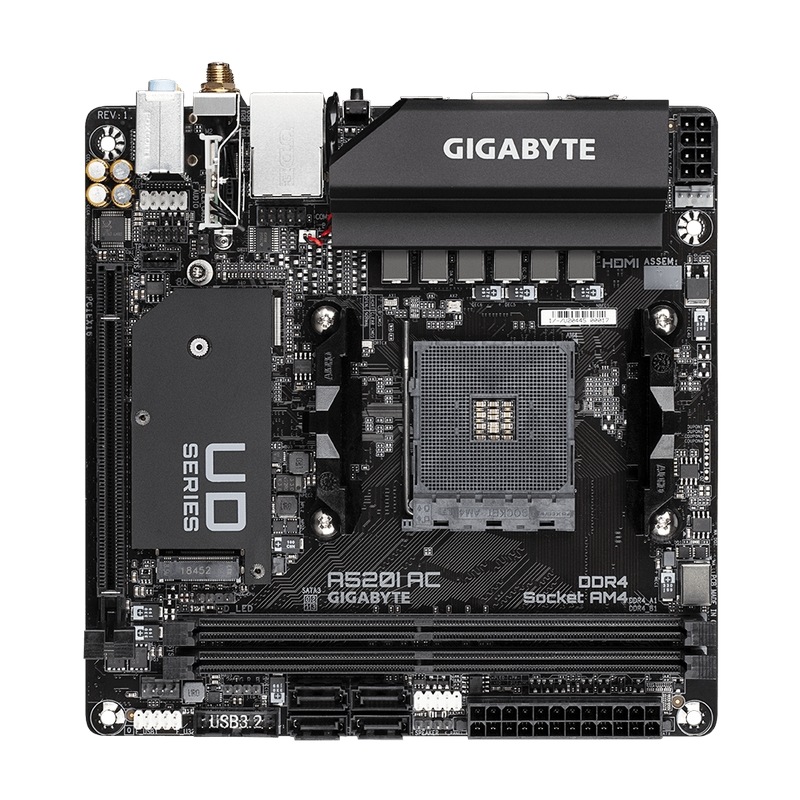

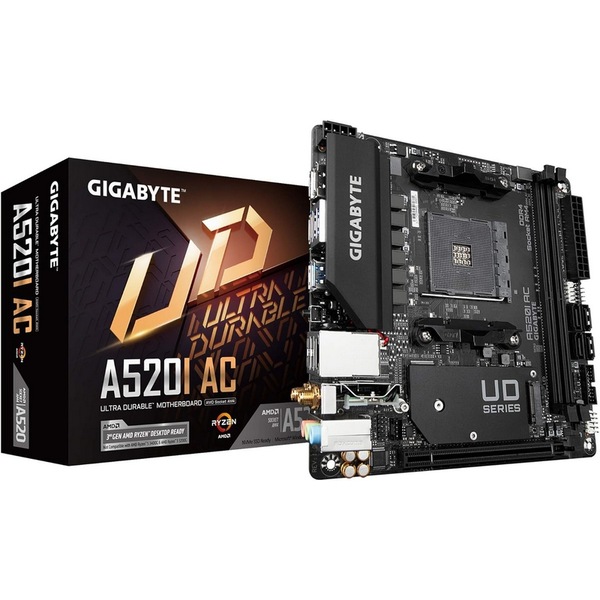

Gigabyte A520I AC Motherboard, for AMD CPU, DDR4, AM4, Mini-ITX MB

Gigabyte A520I AC Motherboard, for AMD CPU, DDR4, AM4, Mini-ITX MB

SOLD OUT
Enter your email to receive a notification when this item is back in stock


Gigabyte AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard 802.11ac WIFI, Realtek GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Features:
  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 6 Phases Digital VRM Solution with 55A DrMOS
  • Ultra-FastNVMe PCIe 3.0 x4 M.2
  • Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna
  • Realtek GbE LAN with Bandwidth Management
  • DisplayPort, Dual HDMI for for Multiple Display
  • RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
  • Smart Fan 5 Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
Specifications:
  • CPU :
    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset :
    1. AMD A520
  • Memory :
    1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
      * ECC memory (ECC mode) support varies by CPU
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics :Integrated Graphics Processor with AMD Radeon™ Graphics support:
    1. 1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    2. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Support for up to 3 displays at the same time
    Maximum shared memory of 16 GB
  • Audio :
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN :
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Wireless Communication module :Intel® Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3)/Intel® Wi-Fi AC 9260 (For PCB rev. 1.1)/ Realtek® Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4)
    1. WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 4.2
    3. Support for 11ac wireless standard
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots :Integrated in the CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
  • Storage Interface :Integrated in the CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Chipset:
    1. 4 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, and RAID 10
  • USB :Integrated in the CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors :
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 1 x M.2 Socket 3 connector
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x speaker header
    12. 1 x USB 3.2 Gen 1 header
    13. 1 x USB 2.0/1.1 header
    14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    15. 1 x serial port header
    16. 1 x Clear CMOS jumper
    ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

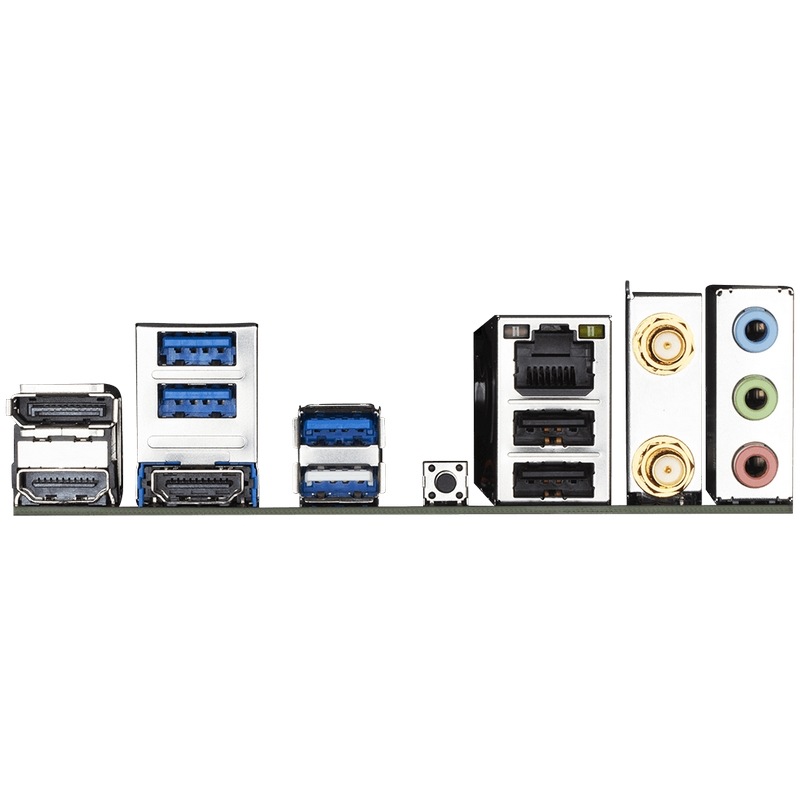

  • Back Panel Connectors :
    1. 1 x DisplayPort
    2. 2 x HDMI ports
    3. 4 x USB 3.2 Gen 1 ports
    4. 2 x USB 2.0/1.1 ports
    5. 1 x Q-Flash Plus button
    6. 1 x RJ-45 ports
    7. 2 x SMA antenna connectors (1T1R)
    8. 3 x audio jacks
  • I/O Controller :
    1. iTE® I/O Controller Chip
  • H/W Monitoring :
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS :
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features :
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
  • Bundled Software :
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System :
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor :
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Remark :
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
SKU: MB-GB-A520I-AC
