Gigabyte B650M GAMING WIFI Motherboard, for AMD CPU, DDR5, AM5, Micro-ATX MB

Image 1
Image 2
Image 3
Limited Stock
$212.46

Collect 212 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

Gigabyte B650M GAMING WIFI(rev. 1.0)

Features:
  • AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
  • Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5: 2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Fast Networks: 2.5GbE LAN & 802.11ac Wi-Fi
  • Extended Connectivity: HDMI , D-sub
  • Smart Fan 6: Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
  • • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
  • • Transforms Native DDR5 memory module to Overclocked DDR5 memory
  • • Increases DDR5 memory overclocking performance and capability
  • • Supports all PMIC vendors for maximum compatibility
  • * Memory overclocking capabiblity will vary based on users' hardware configuration One empty SPD profile can be defined by users and carry to next computer
  • Quick memory performance simulation based on user input clock and timing parameters
  • Profile save and load function to share your memory parameters online
  • STEP 1: Plug 24pin & 8pin power supply cable on motherboard
  • STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
  • STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
  • Cooling High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
  • Precision Control: Multiple temperature/fan speed control points for precise fan curve
  • Dual Curve Mode: Slope/Stair dual mode for different user scenario
  • Fan Stop: Fan can stop completely below users' specified temperature point
  • Unified software platform for all Gigabyte supported products
  • Intuitive user interface for an eased experience
  • Modularized control components only for installed hardware
  • Auto update function to keep system up to date and support future products
Specifications:
  • CPU :AMD Socket AM5, support for:
    AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
  • Chipset :AMD B650
  • Memory :Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
    Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics :Integrated Graphics Processor with AMD Radeon™ Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
  • Audio :Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN :Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module :AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)
    - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
    - BLUETOOTH 4.2
    - Support for 11ac wireless standard
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots :1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
    - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface :1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
    - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB :CPU:
    - 2 x USB 3.2 Gen 1 ports on the back panel
    - 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    - 2 x USB 3.2 Gen 1 ports available through the internal USB header
    - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through
    the internal USB header)
    Chipset+USB 2.0 Hub:
    - 2 x USB 2.0/1.1 ports available through the internal USB header
  • Internal I/O Connectors :1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    2 x addressable LED strip headers
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
    1 x Clear CMOS jumper

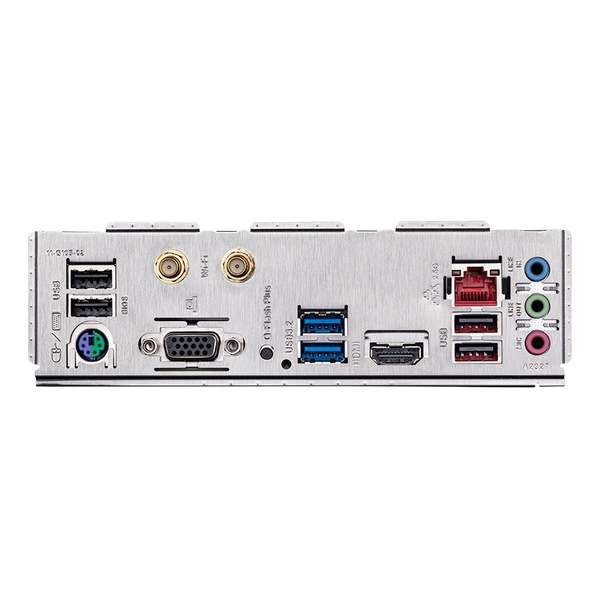

  • Back Panel Connectors :4 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x Q-Flash Plus button
    2 x USB 3.2 Gen 1 ports
    1 x HDMI port
    1 x RJ-45 port
    3 x audio jacks
  • I/O Controller :iTE® I/O Controller Chip
  • H/W Monitoring :Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS :1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features :Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
  • Bundled Software :Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System :Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor :Micro ATX Form Factor; 24.0cm x 22.5cm

SKU: MB-GB-B650MGWF
