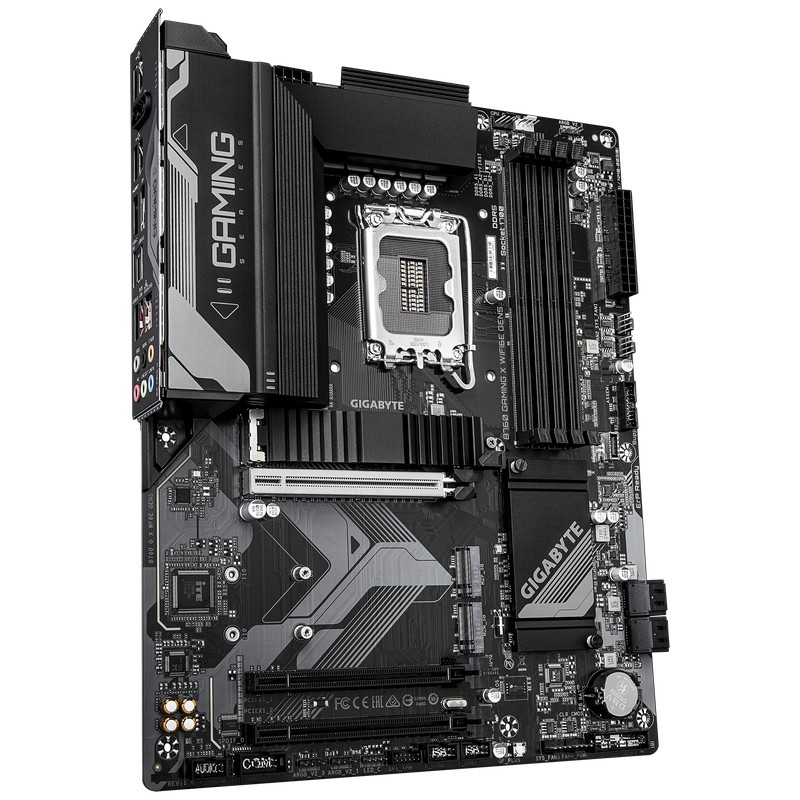

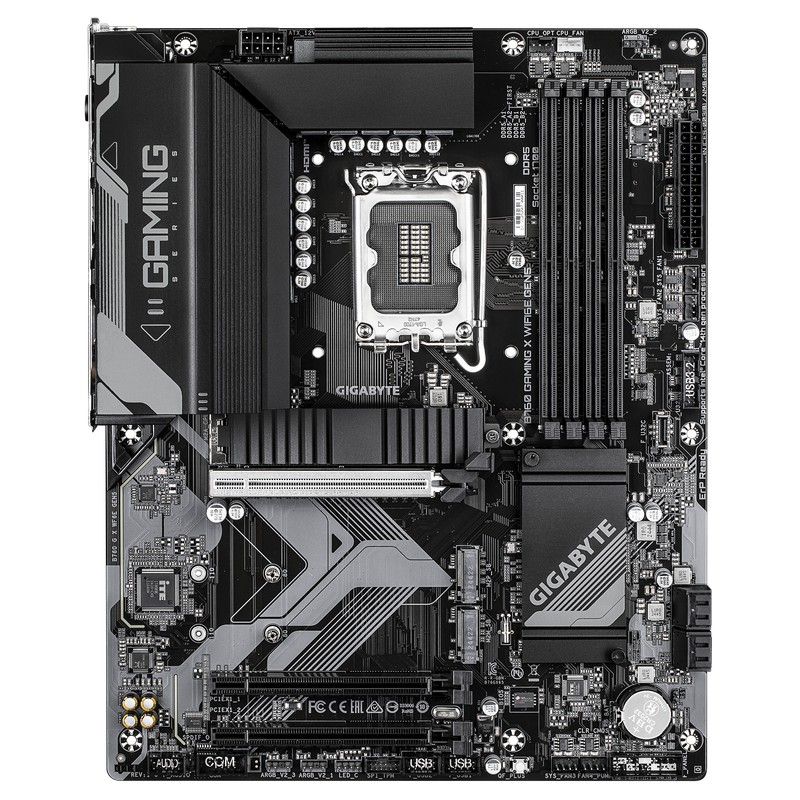

Gigabyte B760 GAMING X WIFI6E GEN5 Intel ATX Motherboard

Gigabyte B760 GAMING X WIFI6E GEN5 - Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable motherboards bring together a unique blend of features and technologies that offer users the absolute ultimate platform for...

Features:
  • PCIe Gen5 Performance :Perfect Sync to Win
  • Supports Intel Core 14th/ 13th/12 processors
  • Efficient Thermal :VRM Thermal Armor Advanced & M.2 Thermal Guard
  • WIFI EZ-Plug :Quick and easy design for Wi-Fi antenna installation
  • WIFI Compass :Auto detects the best antenna position for strongest Wi-Fi signal
  • EZ-Latch :PCIe 5.0x16 Slot with Quick Release Design
  • PCIe UD Slot :SMD PCIe 5.0 Armor for enhanced graphics card support
  • Unparalleled Performance :Hybrid 8+1+1 Phases VRM Solution
  • Dual Channel DDR5 :4*DIMMs with XMP Memory Module Support
  • Fast Networks :2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity :Front USB-C 10Gb/s, DP, HDMI
  • Next Generation Storage :3*PCIe 4.0 x4 M.2 Connectors
  • Q-Flash Plus :Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications:
  • CPU :LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core,
    Pentium Gold and Celeron Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
    L3 cache varies with CPU
  • Chipset :Intel B760 Express Chipset
  • Memory :Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics :Integrated Graphics Processor-Intel HD Graphics support:
    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
  • Audio :Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
  • LAN :Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module :Intel Wi-Fi 6E AX210
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots :CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
  • Storage Interface :CPU:
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB :Chipset:
    - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
    - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    - 1 x USB 2.0/1.1 port on the back panel
    Chipset+2 USB 2.0 Hubs:
    - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors :1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

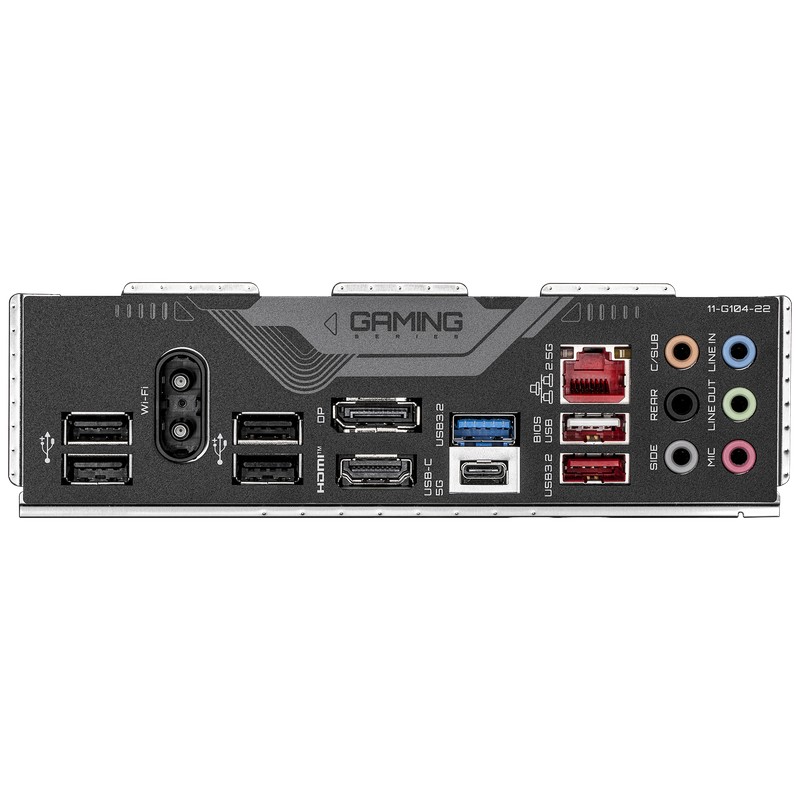

  • Back Panel Connectors :1 x USB 3.2 Gen 2 Type-A port (red)
    1 x USB Type-C port, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 port
    5 x USB 2.0/1.1 ports
    2 x antenna connectors (2T2R)
    1 x DisplayPort (Note)
    1 x HDMI port (Note)
    1 x RJ-45 port
    6 x audio jacks
    (Note) Actual support may vary by CPU.
  • I/O Controller :iTE I/O Controller Chip
  • H/W Monitoring :Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS :1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features :Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
  • Bundled Software :Norton Internet Security (OEM version)
  • Operating System :Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor :ATX Form Factor; 30.5cm x 24.4cm

GTIN: 4719331871673
