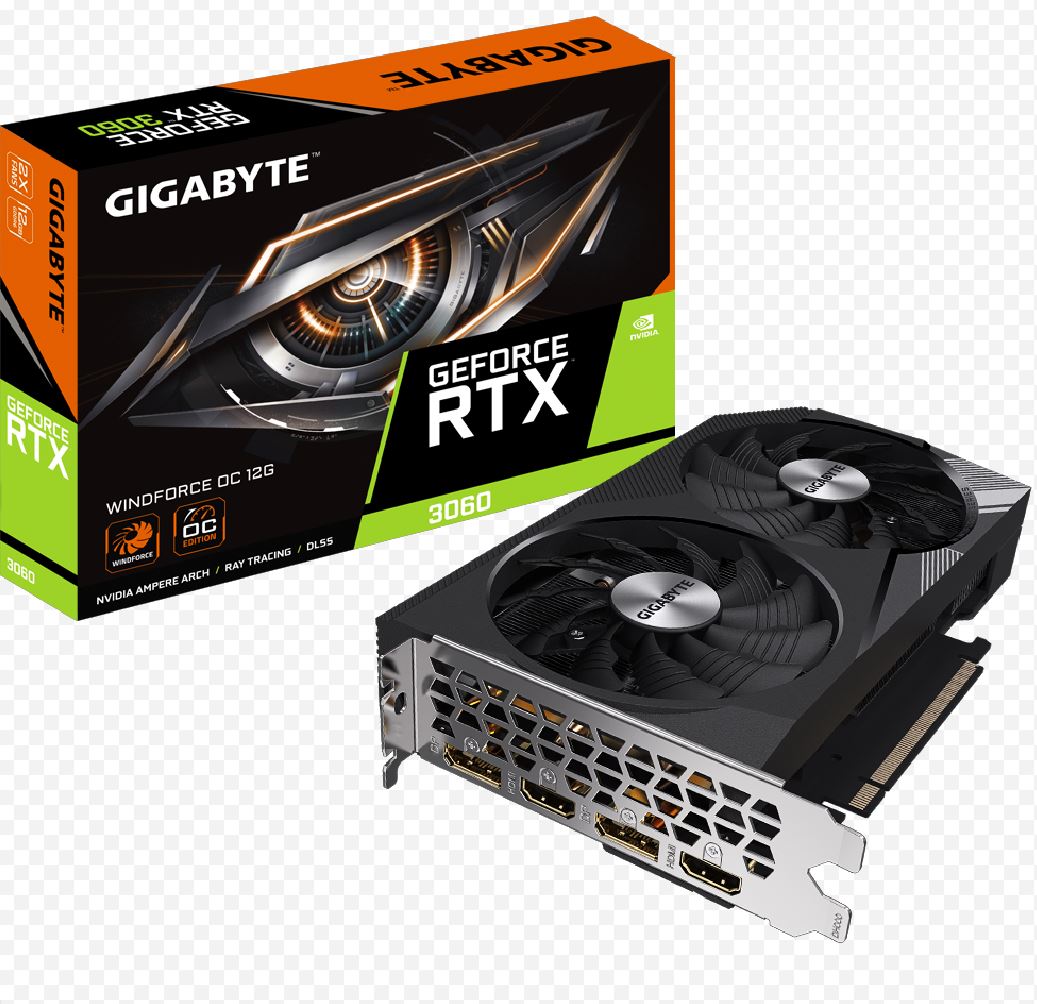

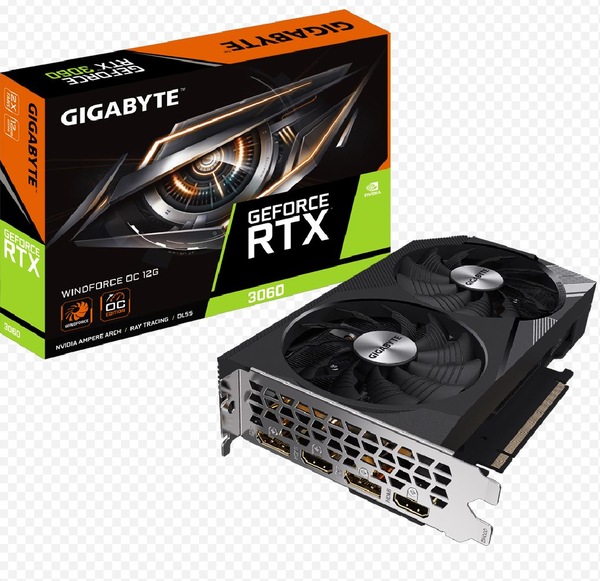

Gigabyte GeForce RTX 3060 WINDFORCE12G, 1777 MHz, CUDA 3584, 15000 MHz, GDDR6, 192 bit, PSU 550W, DisplayPort 1.4a *2 HDMI 2.1 *2 GV-N3060WF2OC-12GD 2.0

Image 1
Hurry! 18 items left!
$568.31

Collect 568 Everyday Rewards points

Log in to MyDeal to link your card
Secure ways to pay at checkout

VCG-N3060WF2OC-12GD


Gigabyte GeForce RTX 3060 WINDFORCE12G, 1777 MHz, CUDA 3584, 15000 MHz, GDDR6, 192 bit, PSU 550W, DisplayPort 1.4a *2 HDMI 2.1 *2


SPECIFICATION


Graphics Processing
GeForce RTX 3060


Core Clock
1777 MHz


CUDA Cores
3584


Memory Clock
15000 MHz


Memory Size
12 GB


Memory Type
GDDR6


Memory Bus
192 bit


Memory Bandwidth (GB/sec)
360 GB/s


Card Bus
PCI-E 4.0 x 16


Digital max resolution
7680x4320


Multi-view
4


Card size
L=198 W=121 H=39 mm


PCB Form
ATX


DirectX
12 Ultimate


OpenGL
4.6


Recommended PSU
550W


Power Connectors
8 pin*1


Output
DisplayPort 1.4a *2
HDMI 2.1 *2


SLI Support
N/A


Accessories
Quick guide


KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Screen cooling
200 mm compact card size
Limited Hash Rate version


WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.


ALTERNATE SPINNING
The GIGABYTE Alternate Spinning' is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.


UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.


3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.


HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.


GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.


SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.




GTIN: 4719331312862
