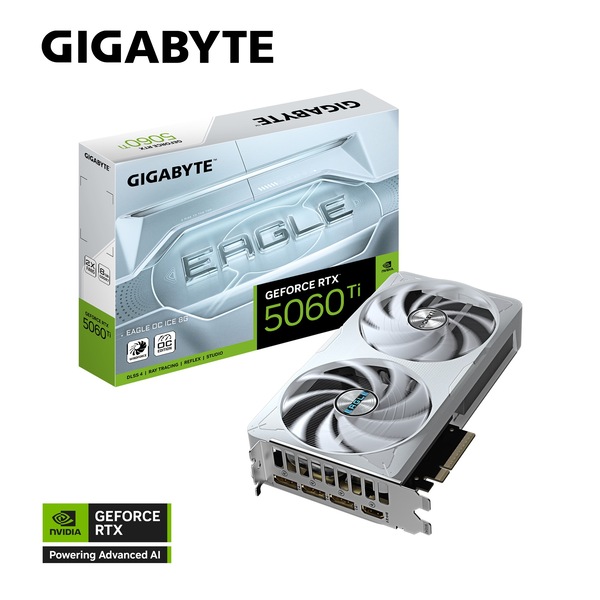

Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 8G, 2617 MHz, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, ATX, PSU 650W, DisplayPort 2.1b *3, HDMI 2.1b *1 GV-N506TEAGLEOC ICE-8GD

Image 1
Hurry! 18 items left!
$836.88

Collect 836 Everyday Rewards points

Log in to MyDeal to link your card
Secure ways to pay at checkout

VCG-N506TEAGLEOCICE-8GD


Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 8G, 2617 MHz, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, ATX, PSU 650W, DisplayPort 2.1b *3, HDMI 2.1b *1


SPECIFICATION


Graphics Processing
GeForce RTX 5060 Ti


Core Clock
2617 MHz (Reference card :2572 MHz)


CUDA Cores
TBD


Memory Clock
28 Gbps


Memory Size
8 GB


Memory Type
GDDR7


Memory Bus
128 bit


Card Bus
PCI-E 5.0


Digital max resolution
7680x4320


Multi-view
4


Card size
L=215 W=122 H=40 mm


PCB Form
ATX


DirectX
DirectX 12 API


OpenGL
4.6


Recommended PSU
650W


Power Connectors
8 Pin*1


Output
DisplayPort 2.1b *3
HDMI 2.1b *1


Accessories
Quick guide


FEATURES


Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure


The Ultimate Platform for
Gamers and Creators


Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4


New Streaming Multiprocessors
Optimized for neural shaders


Fourth-Gen Ray Tracing Cores
Built for Mega Geometry


WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.


ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.


SIGNATURE IDENTITY
The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EALGE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.


REINFORCED STRUCTURE
The reinforced backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.




GTIN: 4719331356095
