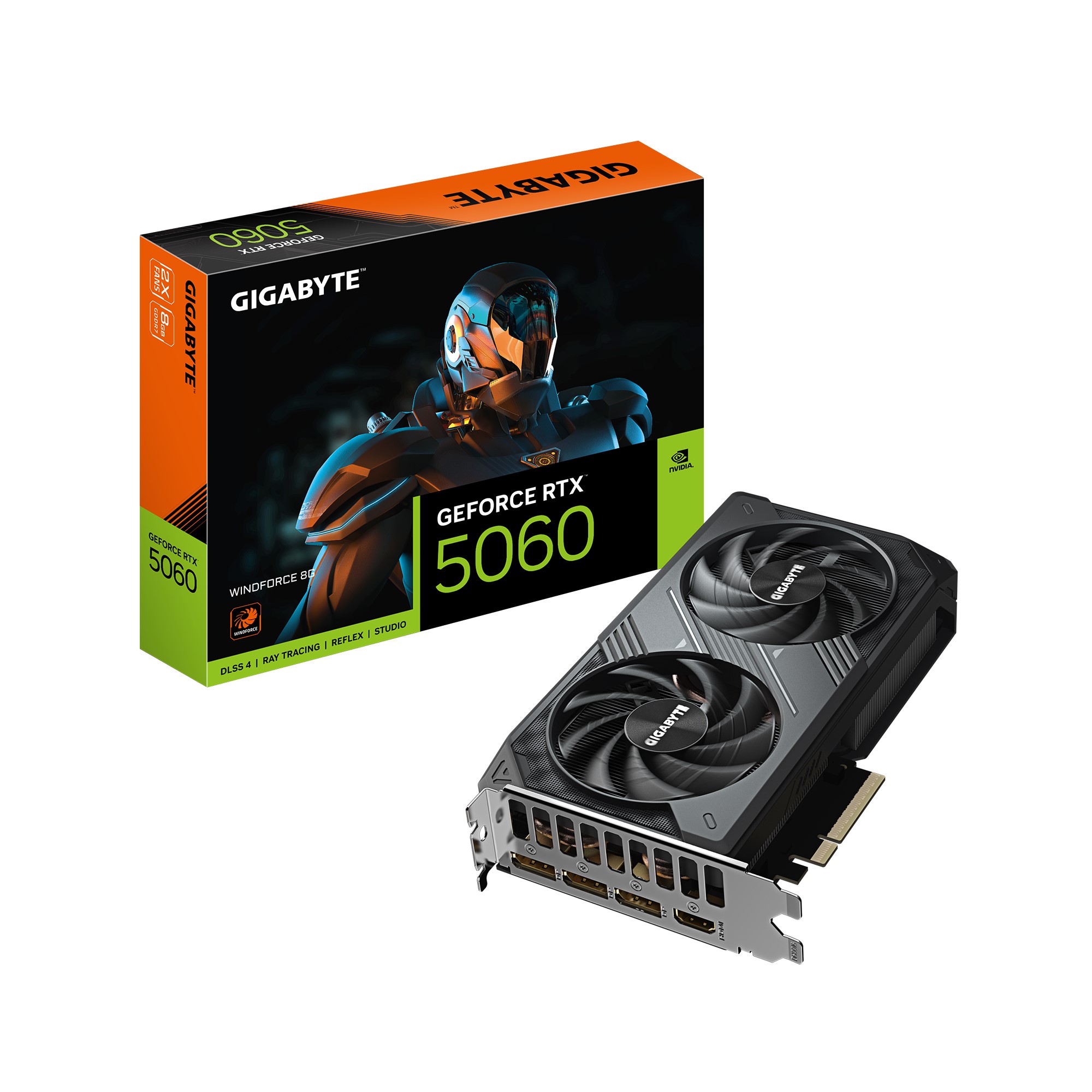

Gigabyte GeForce RTX 5060 WINDFORCE 8G, 2497MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 2.1b *3 HDMI 2.1b x1 GV-N5060WF2-8GD

Gigabyte GeForce RTX 5060 WINDFORCE 8G, 2497MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 2.1b *3 HDMI 2.1b x1 GV-N5060WF2-8GD

Hurry! 5 items left!

$619.98

Collect 619 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by Perth Computers and Office Supplies

Secure ways to pay at checkout

VCG-GV-N5060WF2-8GD

Gigabyte GeForce RTX 5060 WINDFORCE 8G, 2497MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 2.1b *3 HDMI 2.1b x1

SPECIFICATION

Graphics Processing
GeForce RTX 5060

Core Clock
2497MHz

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=199 W=116 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE
The reinforced backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.

WARRANTY POLICY:

All new components sold by Perth Computers and Office Supplies carry a manufacturer's warranty. The warranty does not cover damage/failure caused by mishandling, abuse or accident. Operating any product outside the manufacturer's documented specifications will void your warranty. This includes but is not limited to overclocking, incorrect voltage and other hardware modifications. Failure to follow standard installation and operating instructions, or failure to ensure adequate cooling will also void your warranty.

The length of the warranty on new hardware varies from component to component. All new hardware products sold by Perth Computers and Office Supplies have at minimum 1-year manufacturer's warranty.

Perth Computers and Office Supplies provides free labour for any warranty work required on a complete computer package for the period of 2 years from date of purchase. After the 2nd year, if the goods are still under warranty, no charges will be applicable for the repairs/replacements of the component, but charges for labour / freighting will be applied. Most software includes a warranty which covers defects on the actual media (the floppy or CD-ROM disk). No warranty is provided in terms of functionality or suitability of the program itself.

Perth Computers and Office Supplies provides a warranty on the functionality of software supplied with new Perth Computers and Office Supplies PCs for the period of 7 days from purchase. If the customer’s software is not operating correctly (regardless of whether this is caused by user error or hardware failure), we will restore the computers original configuration for no charge. After 7 days from purchase, software configuration is charged at our standard labour rates.

Perth Computers and Office Supplies provides a 3 month labour warranty on repairs that we perform to non-warranty equipment. All warranty is "return-to-base". The customer is responsible for returning and collecting any products for repair/upgrade. Perth Computers and Office Supplies offers no warranty on blank media, i.e. DVDs and CD-Rs.

RETURN OF GOODS / REFUNDS

Change of Mind returns are accepted in the first 5 days of purchase AND only for SEALED/UNOPENED/UNUSED items/goods. A 20% restocking fee applies, based on on the total invoiced value. Testing of returned items will be performed before any credit/refund/exchange is completed. Items damaged by customer will not be refunded/credited/exchanged and will void the warranty. Please allow reasonable time for testing.

GTIN: 4719331356378

Estimated Delivery Time Frame:4-14 business days
