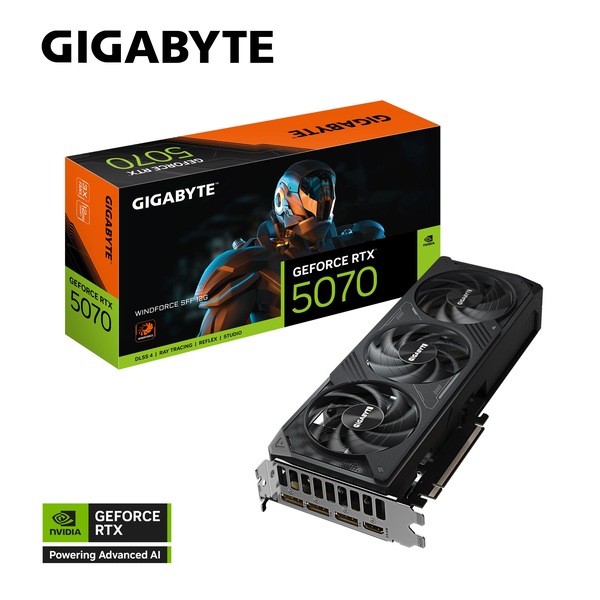

Gigabyte GeForce RTXâ„¢ 5070 WINDFORCE SFF 12G, 2512 MHz, CUDA 6144, 28 Gbps, GDDR7, 192 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b *3 HDMI 2.1b *1

Graphics Processing

GeForce RTXâ„¢ 5070

Core Clock

2512 MHz

CUDA® Cores

6144

Memory Clock

28 Gbps

Memory Size

12 GB

Memory Type

GDDR7

Memory Bus

192 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=282 W=110 H=50 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

750W

Power Connectors

16 Pin*1

DisplayPort 2.1b *3

HDMI 2.1b *1

Accessories

1. Quick guide

2. 1x 12V-2x6 to 2x PCIe 8pin adapter

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX 5070

Integrated with 12GB GDDR7 192bit memory interface

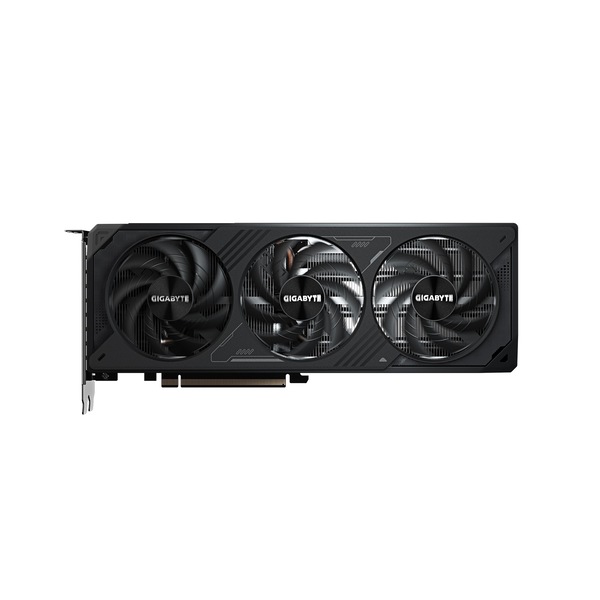

WINDFORCE cooling system

Hawk fan

Server-grade thermal conductive gel

NVIDIA SFF-ready

Reinforced structure

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

NVIDIA SFF-READY

Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

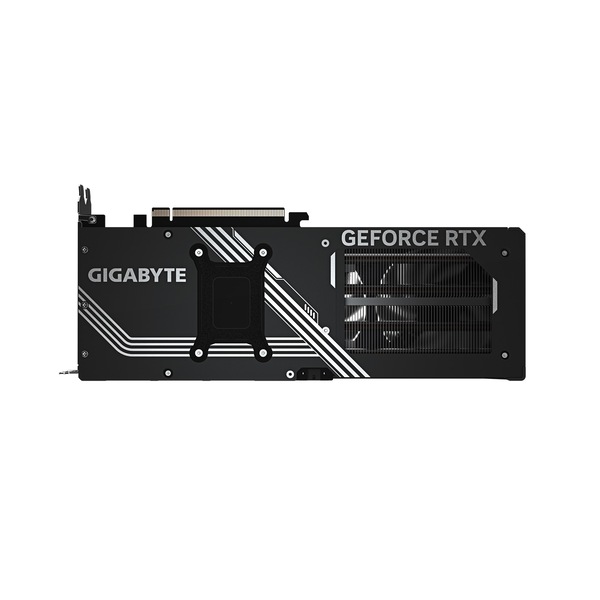

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
