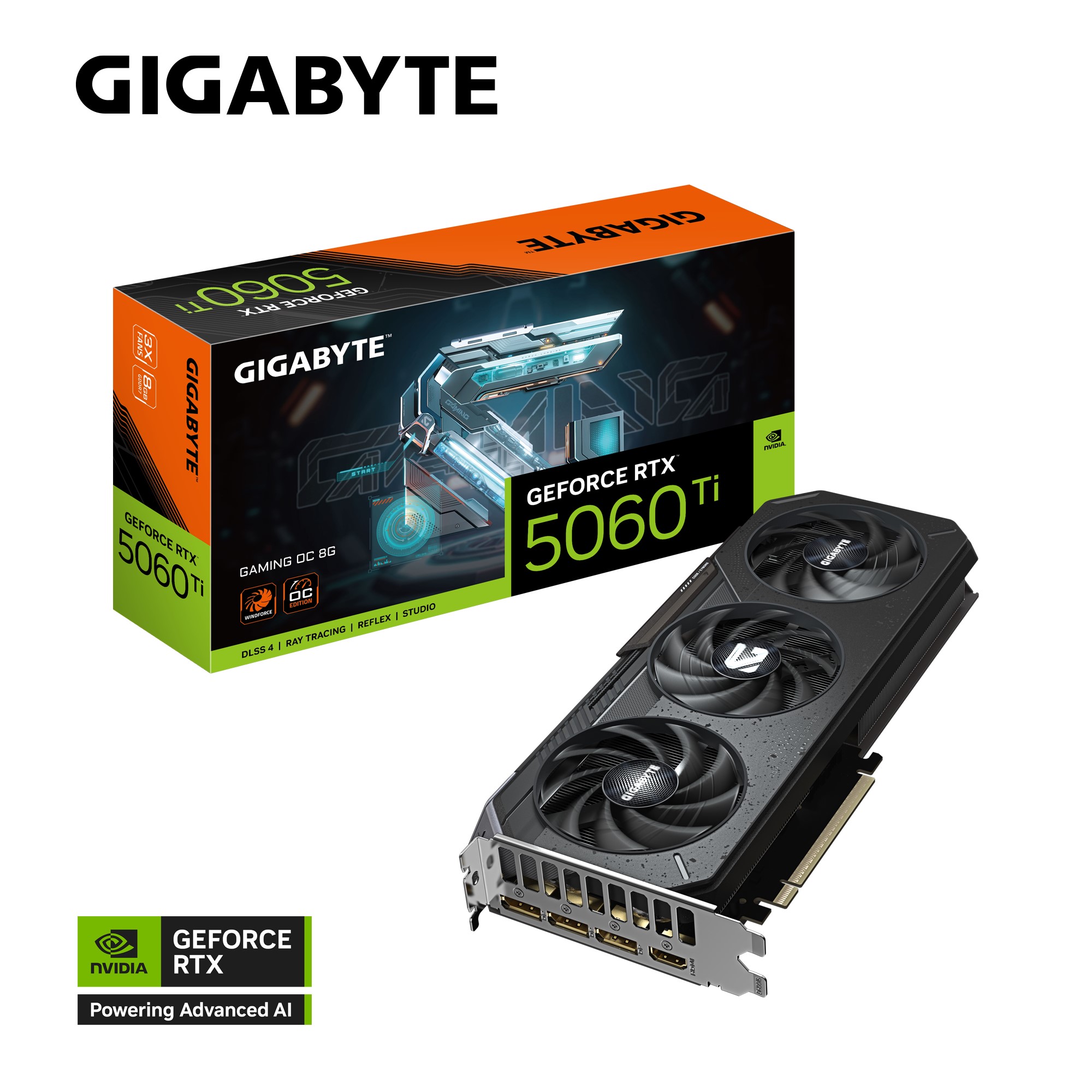

Gigabyte GeForce RTX 5060 Ti GAMING OC 8G, 2647 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1 GV-N506TGAMING OC-8GD 1.0

Image 1
Hurry! 2 items left!
$859.64

Collect 859 Everyday Rewards points

Log in to MyDeal to link your card
Secure ways to pay at checkout

VCG-N506TGAMINGOC-8GD


Gigabyte GeForce RTX 5060 Ti GAMING OC 8G, 2647 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1


SPECIFICATION


Graphics Processing
GeForce RTX 5060 Ti


Core Clock
2647 MHz (Reference card :2572 MHz)


CUDA Cores
TBD


Memory Clock
28 Gbps


Memory Size
8 GB


Memory Type
GDDR7


Memory Bus
128 bit


Card Bus
PCI-E 5.0


Digital max resolution
7680x4320


Multi-view
4


Card size
L=281 W=119 H=40 mm


PCB Form
ATX


DirectX
DirectX 12 API


OpenGL
4.6


Recommended PSU
650W


Power Connectors
8 Pin*1


Output
DisplayPort 2.1b *3
HDMI 2.1b *1


Accessories
Quick guide


FEATURES


Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB lighting
Dual BIOS (Performance / Silent)
Reinforced structure


The Ultimate Platform for Gamers and Creators


Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4


New Streaming Multiprocessors
Optimized for neural shaders


Fourth-Gen Ray Tracing Cores
Built for Mega Geometry


WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.


ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.


MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.


UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.


RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.


SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.


EXCELLENCE IN ESSENTIAL


REINFORCED STRUCTURE
The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.




GTIN: 4719331356019
