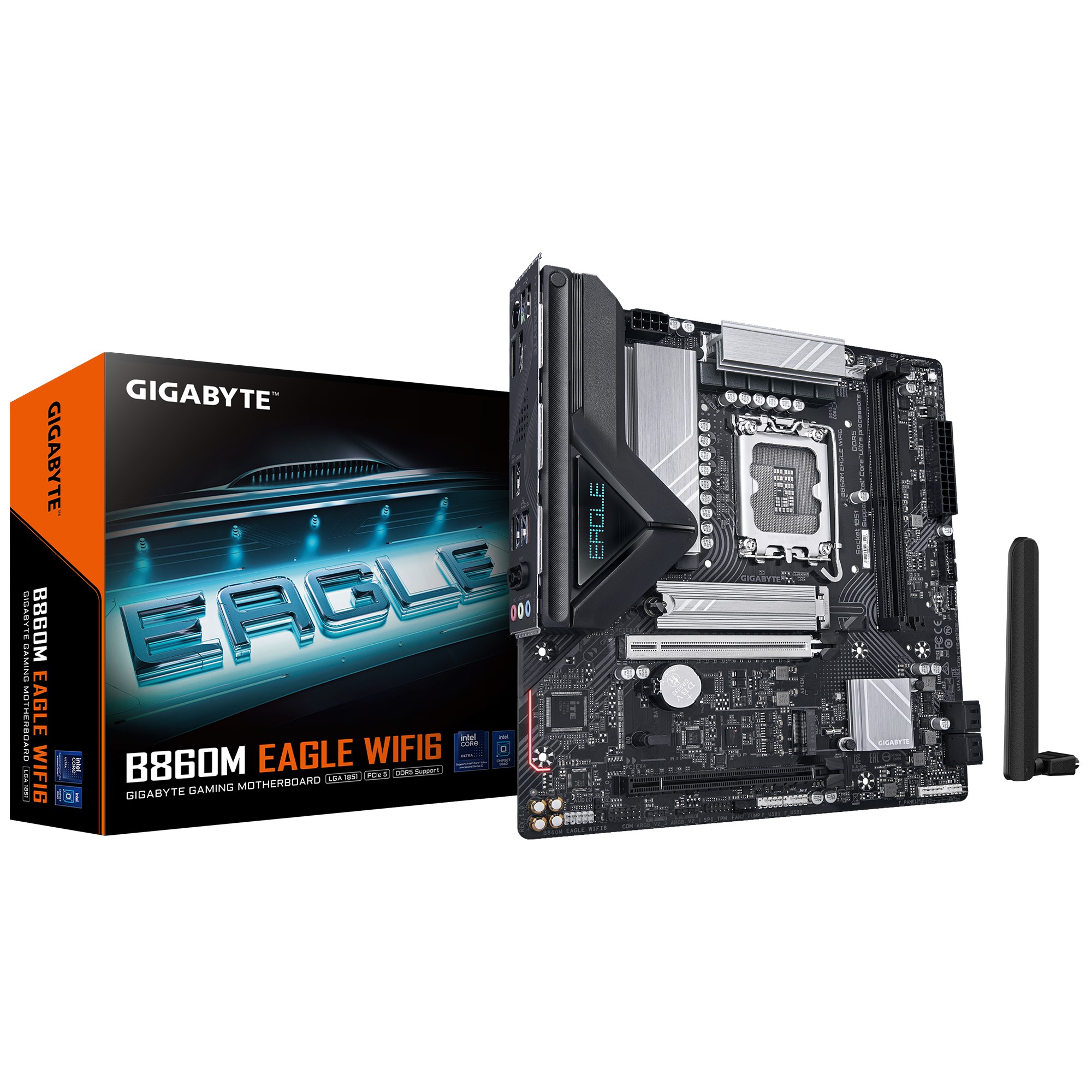

Gigabyte M/B B860M EAGLE WIFI6 1.0, Intel B860, 4 x DDR5 up to 128 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2 B860M EAGLE WIFI6 1.0

Image 1
Hurry! 18 items left!
$278.72

Collect 278 Everyday Rewards points

Log in to MyDeal to link your card
Secure ways to pay at checkout

MBG-B860MEAGLEWIFI6


Gigabyte M/B B860M EAGLE WIFI6 1.0, Intel B860, 4 x DDR5 up to 128 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2


CPU
LGA1851 socket: Support for Intel Core Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU


Chipset
Intel B860 Express Chipset


Memory
Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.)


Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)


LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)


Wireless Communication module
Realtek Wi-Fi 6 RTL8851BE


Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)


Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices


USB
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers




GTIN: 4719331867010

Estimated Delivery Time Frame:4-14 business days
